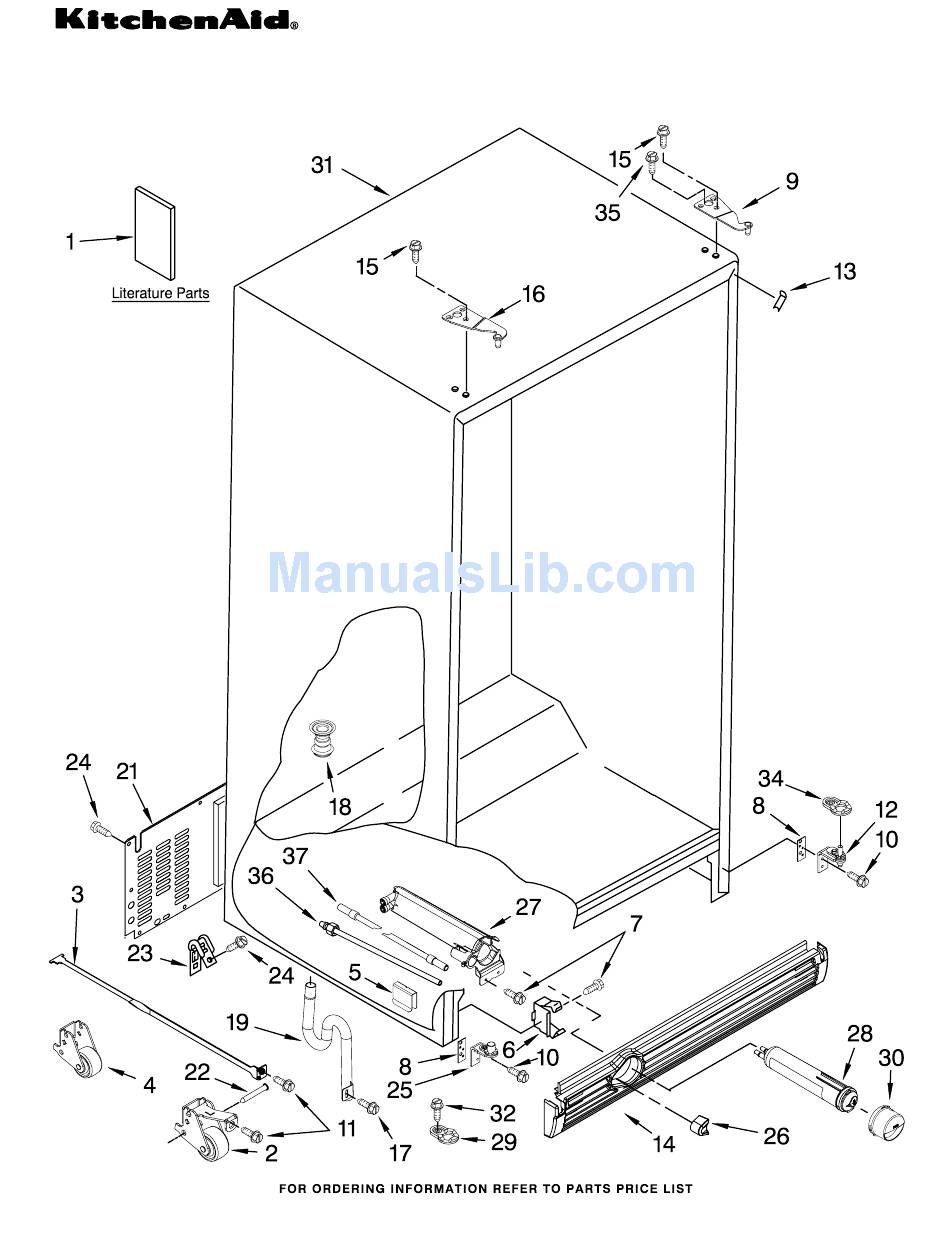

CABINET PARTS
REFRIGERATOR
For Models: KSCS23INWH02, KSCS23INBT02, KSCS23INBL02, KSCS23INSS02, KSCS23INMS02
(White)
(Biscuit)
(Black)
(Stainless Steel)(Monochromatic Stainless)
11−06 Printed In U.S.A. (rrm)
Part No. W10116614
1
