CABINET PARTS
REFRIGERATOR
For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00
(White)
(Biscuit)
(Black)
(Stainless Steel)(Monochromatic Stainless)
Part No. 8199169 Rev. B
03−06 Printed In U.S.A. (kdr)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSCS23INBL00 and is the answer not in the manual?

Questions and answers

Summary of Contents for KitchenAid KSCS23INBL00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Part No. 8199169 Rev. B 03−06 Printed In U.S.A. (kdr)

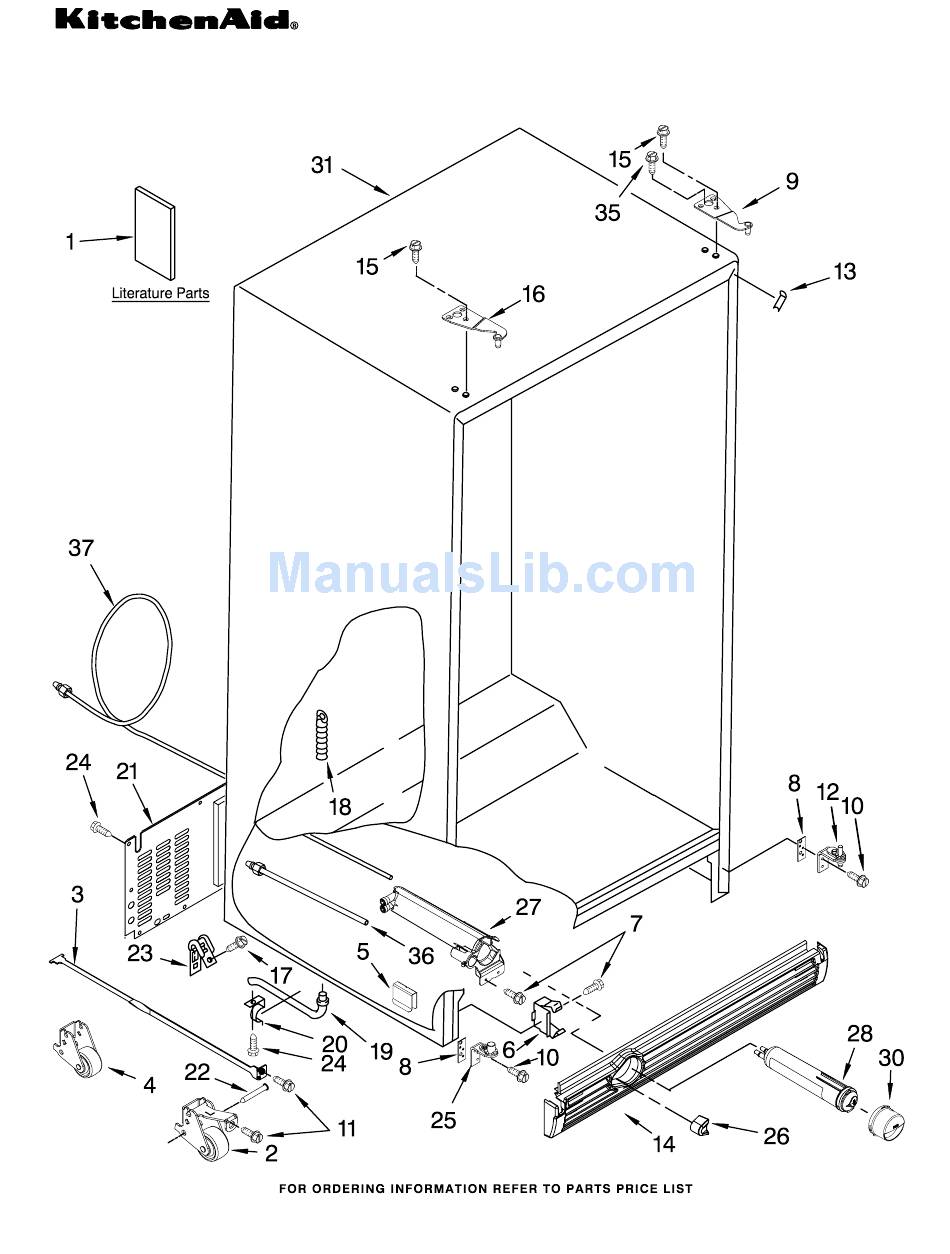

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2223520 Hinge Assembly, 489084 Screw 2306982 Use & Care Guide Bottom−RC 2223460 Hinge Assembly, 2223419 Service &...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2206273 Ladder, Shelf (2) 2301234 Housing, Door Control 489084 Screw...
  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2223525 Cover, Meat Pan (Includes Items 13, 14, 15 &...
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) 8199169...
  • Page 6 FREEZER LINER PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2196483 Stud Assembly 2223811 Basket, Deep (2) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket Shelf Track...
  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) 8199169...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION 2223317 Ice Bin 2255580 Crusher Bin 2258222 Auger 2258220 Washer 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary...
  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) 8199169...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2223960W White 2223960T Biscuit 2223960B Black 2223960S Stainless Steel and Monochromatic Stainless 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2165792K Butter Dish 2219698 Stud, Handle...
  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) 8199169...
  • Page 12 FREEZER DOOR PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2223965W White 2223965T Biscuit 2223965B Black 2223965SB Stainless Steel 2223965SA Monochromatic Stainless Handle 2304832W White 2304832T Biscuit 2304832B Black...
  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) 8199169...
  • Page 14 DISPENSER FRONT PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White...
  • Page 15: Air Flow Parts

    AIR FLOW PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223771 Air Duct Freezer 2315504 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator...
  • Page 16: Control Parts

    CONTROL PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION 2306989 Control Box (Includes #6) 2223882 Heat Shield Asm (Includes #17) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2223678 Light Bulb 8199169...
  • Page 17: Unit Parts

    UNIT PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) 8199169...
  • Page 18 UNIT PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2224022 Heat Shield 777070 Screw Following Parts Not Illustrated 2225834 Fan, Blade 2319825 Drier and Optional Parts Not Included 2223315 Condenser 2223801 Compressor (Includes Items...
  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) 8199169...
  • Page 20 ICEMAKER PARTS For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold &...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS23INWH00, KSCS23INBT00, KSCS23INBL00, KSCS23INSS00, KSCS23INMS00 (White) (Biscuit) (Black) (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 8171357 Graphite 4392901 Biscuit PAINT, TOUCH−UP (1/2oz.) 72017 White 80051 Graphite 72032 Black 4392899 Biscuit...

This manual is also suitable for:

Kscs23inbt00Kscs23inms00Kscs23inss00Kscs23inwh00
