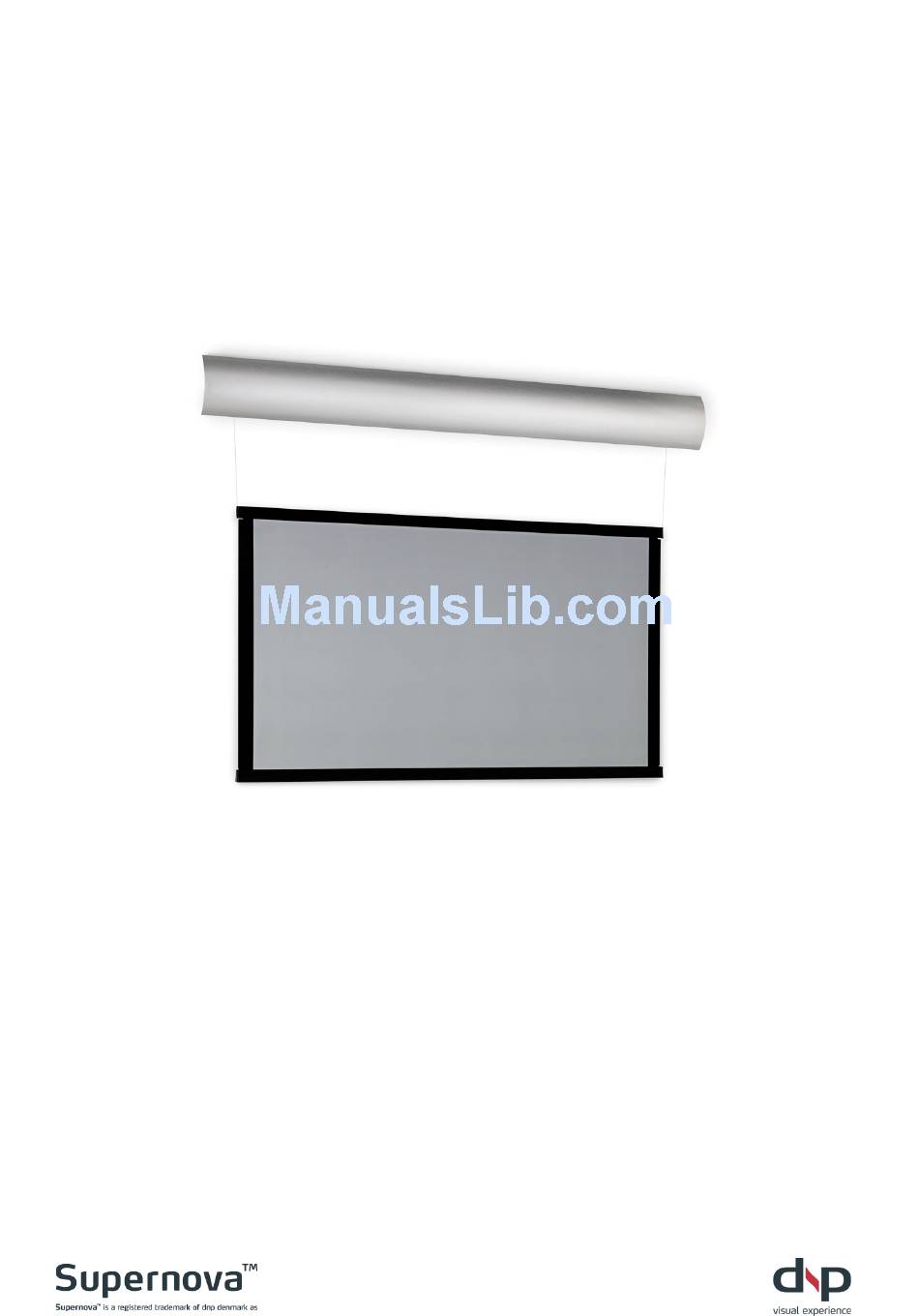

  • Page 1 ™ Supernova Flex Installation manual...

  • Page 2: Table Of Contents

    Contents Section Page A Important Safety Instructions B Required tools C Box contents D Planning E Mounting screen assembly F Setup with remote control G Communication H Planning guide I Specifications and dimensions...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not defeat the safety purpose of the grounding-type plug.
  • Page 4 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio Communications.

  • Page 5: B Required Tools

    Required tools You will need the following tools: Level Phillips screwdriver Power drill Tape measure Box contents Check box for: Box 1 – Screen 1 Installation manual (this document) 1 User manual 1 Screen assembly 1 Remote control 3 AAA batteries 2 Wall brackets 4 #8 X 2 1/2”...

  • Page 6: D Planning

    Planning Planning screen location a. Locate wall studs or other structural member suitable for bracket mounting. Note: Select studs for mounting that are at least 4” [101 mm] in from end of cover. b. Leave enough clearance at ends to permit access for removing screws from wood shipping fixtures.
  • Page 7 Checking screen dimensions a. Determine space requirements for installation. b. Refer to section H Planning guide and section I Specifications and dimensions. c. Ensure proper clearances. _____ Planning projector location a. The projector can be positioned freely on a vertical centerline, perpendicular to the screen, up to 5% above (ceiling mounted) or up to 5% below (table mounted) the...

  • Page 8: E Mounting Screen Assembly

    Mounting screen assembly Unpacking bracket hardware a. Unpack two wall brackets. b. Unpack mounting and securing hardware. _____ Lifting screen from box a. Use two people to lift screen from box. b. Lift from box using the two wood packing fixtures at the ends as handles.
  • Page 9 Leveling brackets a. After planning screen location... (using section H Planning guide and section I Specifications and dimensions) b. Mount wall bracket with securing screw at top of bracket. c. Locate wall brackets at least 4” [101 mm] in from end of cover. d.
  • Page 10 Mounting screen a. Leave wood packing fixtures attached to ends while mounting screen assembly to wall. b. Using two (2) people, grasp wood fixtures, lift, rotate, and seat screen assembly into wall brackets. Warning! Be sure that screen assembly is securely seated before releasing grip.
  • Page 11 Removing wood fixtures a. Remove three (3) end screws from wood packing fixtures and … b. Carefully remove wood packing fixtures from ends of screen assembly. _____ Attaching security clips a. Slide security clips into the cover catches at the ends of the cover. b.
  • Page 12 Seating cover a. Lift cover onto screen assembly. b. Mate the catches on back of cover to lip on top of screen assembly. c. Rotate cover down until it stops. _____ Securing cover a. Position security clips on outside of screen assembly ends and … b.
  • Page 13 Powering up (Plug in) Insert the plug of the IR receiver cable into the mini-jack socket in the screen (located next to the RS-232 socket). See below. PRESS BEGIN Place the infrared eye in the metal holder and ensure good visible contact to the remote control can be obtained.
  • Page 14 Checking smooth operation a. Check extension and retraction of screen. b. Ensure that screen retracts smoothly and does not snag on any parts. c. Ensure that full screen extension operates without hitting obstacles. _____ Aesthetics – hiding cables The cables suspending the screen can easily be coloured to blend with the wall.

  • Page 15: F Setup With Remote Control

    The remote control has a programmable display with buttons on the screen (soft buttons) and arrow buttons below the screen for menu navigation. The remote is factory programmed for the Supernova Flex and can be further programmed for use with other electronic components. Please see the remote control manual for programming instructions.
  • Page 16 • Shift back to Page 1 and test setting with [UP] & [DOWN] keys. Changing the Speed Supernova Flex has three possible speed “Low, Medium and High”. The screen will arrive set for the “Medium” speed. To set another speed: •...

  • Page 17: G Communication

    Communication IR remote control The screen is operated by the standard protocol, RC5. Please see below for details: The illustration shows a typical pulse train of an RC5 message. This example transmits command 0x35-53 to address 0x05-5. Description LCD remote RC5 address RC5 command Full up...
  • Page 18 User commands This section describes most common user commands in detail. Items enclosed in square brackets are optional. Items enclosed in angle brackets are to be replaced by specific values. For example, the command syntax for lowering the screen is: d[own] <n>...
  • Page 19 i[nfo] Shows system information. info 301 System settings follow Firmware=0.3.6 Serial=0000000016 Bottom=2502 SpeedLimit=50 Position=2502 Speed=0 m[ove] <n> Moves the screen to absolute position <n>. move 2000 101 Moving to 2000 203 Screen stopped at 1994 move 2000 420 Already there s[et] b[ottom] Sets current position as bottom position.
  • Page 20 101 Moving to 2642 203 Screen stopped at 1034 12V-Trigger control To operate the Supernova Flex through contact closures, a pluggable terminal block connection is available. The terminal block has seven positions for wires. For contact closure operation, the five terminals on the left side of the terminal block are used.

  • Page 21: H Planning Guide

    Planning guide Use the below information and the size specifications (section I Specifications and dimensions) to determine the placement of the screen and the wall brackets. See section I Specifications and dimensions for data of your screen. Certified to CAN/CSA std. C22.2 no. 60065 Conforms to UL std.

  • Page 22: I Specifications And Dimensions

    Specifications and dimensions Specifications per screen size 1.33:1 1.78:1 Aspect ratio 4:3 format 16:9 format dnp Supernova Flex™ Screen size 72" 84" 100" 72" 84" 92" 100" Product no. 5072500000 5084500000 5100500000 5072600000 5084600000 5092600000 5100600000 Width 1463 1707 2032...
  • Page 23 www.dnp.dk dnp denmark as – Skruegangen 2 – DK – 2690 Karlslunde – Denmark – Tel: +45 46 16 51 00 – Fax: +45 46 16 52 00 – dnp@dnp.dk...
