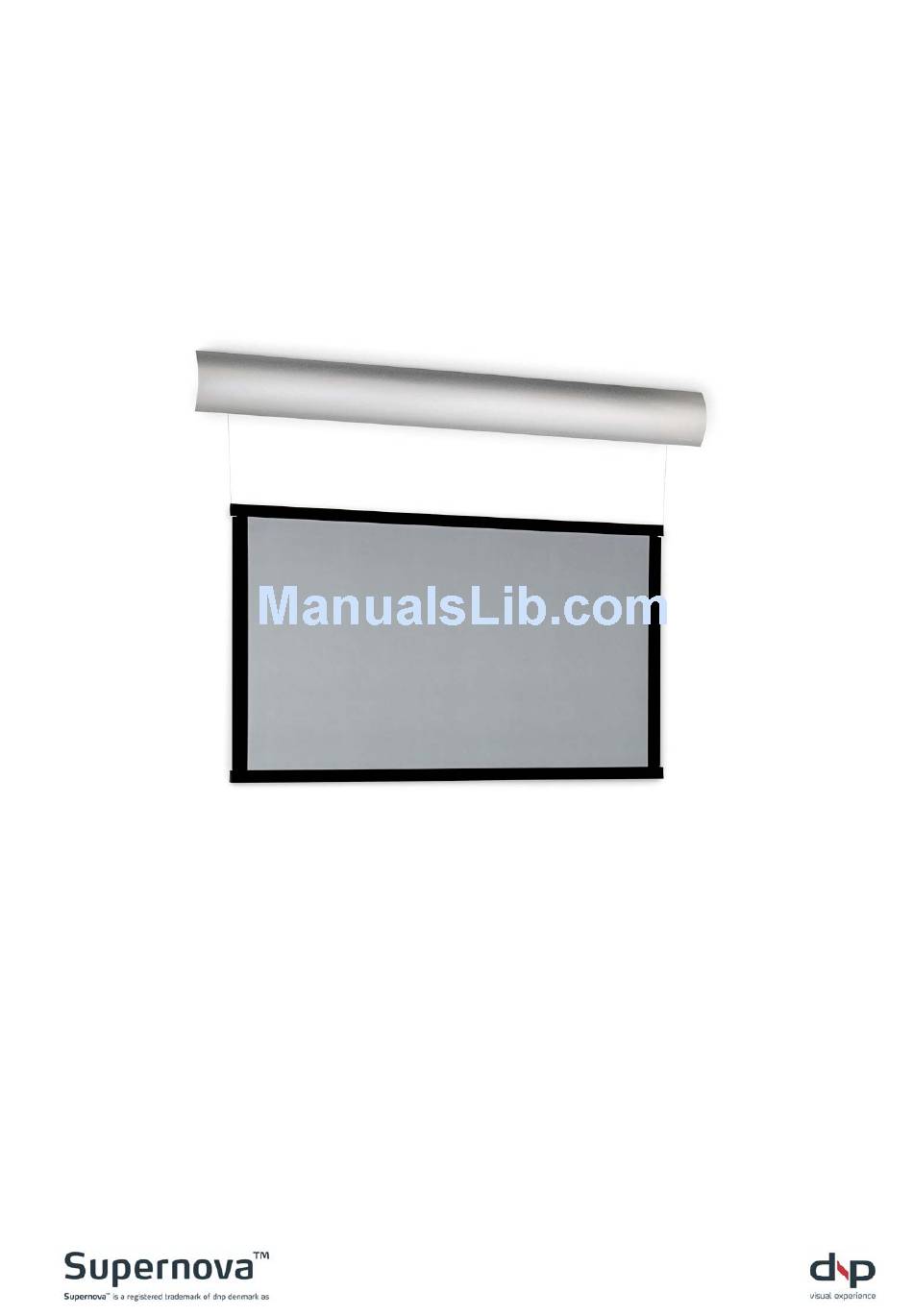

  • Page 1 ™ Supernova Flex Installation manual...

  • Page 2: Table Of Contents

    Contents Section Page A Important Safety Instructions B Required tools C Box contents D Planning E Mounting screen assembly F Setup with remote control G Communication H Planning guide...

  • Page 3: A Important Safety Instructions

    Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not defeat the safety purpose of the grounding-type plug.
  • Page 4 WARNING! Do not connect power until screen assembly is completely mounted. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: B Required Tools

    Required tools You will need the following tools: Level Phillips screwdriver Power drill Tape measure Box contents Check box for: Box 1 Box 1 – Screen 1 Installation manual (this document) 1 User manual 1 Screen assembly 1 Remote control 3 AAA batteries 2 Wall brackets 2 #8-32 Allen head screws for...

  • Page 6: D Planning

    Planning Planning screen location a. Locate wall studs or other structural member suitable for bracket mounting. Note: Select studs for mounting that are at least 4” [101 mm] in from end of cover. b. Leave enough clearance at ends to permit access for removing screws from shipping fixtures.
  • Page 7 Checking screen dimensions a. Determine space requirements for installation. b. Refer to section H Planning guide c. Ensure proper clearances. _____ Planning projector location a. The projector can be positioned freely on a vertical centerline, perpendicular to the screen, up to 5% above (ceiling mounted) or up to 5% below (table mounted) the image area.

  • Page 8: E Mounting Screen Assembly

    Mounting screen assembly Unpacking bracket hardware a. Unpack two wall brackets. b. Unpack mounting and securing hardware. _____ Lifting screen from box a. Use two people to lift screen from LIFT HERE box. b. Lift from box using the two shipping fixtures at the ends as handles.
  • Page 9 Leveling brackets a. After planning screen location... (using section H Planning guide) b. Mount wall bracket with securing screw at top of bracket. c. Locate wall brackets at least 4” [101 mm] in from end of cover. d. Level wall brackets to each other and tighten leveling screws.
  • Page 10 Mounting screen a. Leave shipping fixtures attached to ends while mounting screen assembly to wall. b. Using two people, grasp fixtures, lift (1), rotate (2), and seat (3) screen assembly into wall brackets. Warning! Be sure that screen assembly is securely seated before releasing grip.
  • Page 11 Removing fixtures a. Remove connection screws from shipping fixtures (1) and … b. Carefully remove lower part of shipping fixtures from ends of screen assembly (2). c. Upper part of shipping fixture stays on master frame (3) _____ Mount end-caps a.
  • Page 12 Attaching security clips a. Slide security clips into the cover catches at the ends of the cover. b. Be sure ends of security clips are seated in the cover catches. c. Loosely position security clips near ends of cover. _____ Seating cover a.
  • Page 13 Powering up (Plug in) Insert the plug of the IR receiver cable into the mini-jack socket in the screen (located next to the RS-232 socket). See below. PRESS BEGIN Place the infrared eye in the metal holder and ensure good visible contact to the remote control can be obtained.
  • Page 14 Checking smooth operation a. Check extension and retraction of screen. b. Ensure that screen retracts smoothly and does not snag on any parts. c. Ensure that full screen extension operates without hitting obstacles. _____ Aesthetics – hiding cables Unless your screen has steel wires the cables suspending the screen can easily be coloured to blend with the wall.

  • Page 15: F Setup With Remote Control

    The remote control has a programmable display with buttons on the screen (soft buttons) and arrow buttons below the screen for menu navigation. The remote is factory programmed for the Supernova Flex and can be further programmed for use with other electronic components. Please see the remote control manual for programming instructions.
  • Page 16 • Shift back to Page 1 and test setting with [UP] & [DOWN] keys. Changing the Speed Supernova Flex has three possible speed “Low, Medium and High”. The screen will arrive set for the “Medium” speed. To set another speed: •...

  • Page 17: G Communication

    Communication IR remote control The screen is operated by the standard protocol, RC5. Please see below for details: The illustration shows a typical pulse train of an RC5 message. This example transmits command 0x35-53 to address 0x05-5. Description LCD remote RC5 address RC5 command Full up...
  • Page 18 User commands This section describes most common user commands in detail. Items enclosed in square brackets are optional. Items enclosed in angle brackets are to be replaced by specific values. For example, the command syntax for lowering the screen is: d[own] <n>...
  • Page 19 i[nfo] Shows system information. info 301 System settings follow Firmware=0.3.6 Serial=0000000016 Bottom=2502 SpeedLimit=50 Position=2502 Speed=0 m[ove] <n> Moves the screen to absolute position <n>. move 2000 101 Moving to 2000 203 Screen stopped at 1994 move 2000 420 Already there s[et] b[ottom] Sets current position as bottom position.
  • Page 20 203 Screen stopped at 1034 12V-Trigger control To operate the Supernova Flex through contact closures, a pluggable terminal block connection is available. The terminal block has seven positions for wires. For contact closure operation, the five terminals on the left side of the terminal block are used.

  • Page 21: H Planning Guide

    Planning guide Use below information and size specifications to determine the placement of the screen and the wall brackets. NOTE! See the Supernova Flex datasheet for screen specifications and dimensions for your size of screen.
  • Page 22 Certified to CAN/CSA std. C22.2 no. 60065 Conforms to UL std. 60065 3124639...
  • Page 23 www.dnp.dk www.dnpscreens.us...
