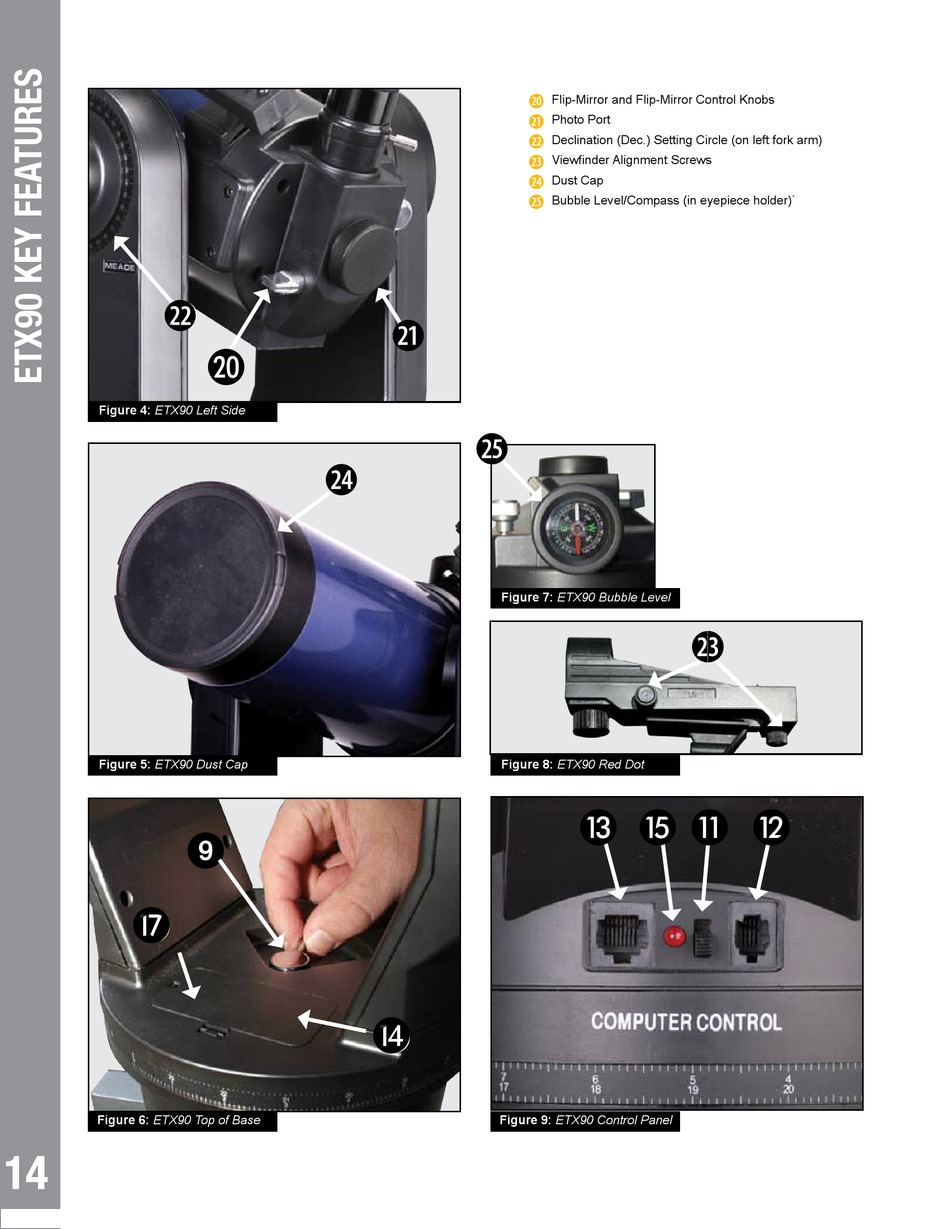

Meade EXT90 Instruction Manual page 14

2@
Figure 4: ETX90 Left Side
Figure 5: ETX90 Dust Cap
Q
Figure 6: ETX90 Top of Base
1

2$
9
2) Flip-Mirror and Flip-Mirror Control Knobs
2! Photo Port
Declination (Dec.) Setting Circle (on left fork arm)
2@
2# Viewfinder Alignment Screws
2$ Dust Cap
2% Bubble Level/Compass (in eyepiece holder)`
2!
2%
Figure 7: ETX90 Bubble Level
Figure 8: ETX90 Red Dot

Figure 9: ETX90 Control Panel
2#
   
