Key Features Identified On The Telescope - Meade EXT90 Instruction Manual

Maksutov-cassegrain telescopes with autostar #497 hand controller
Table of Contents

Advertisement

1
3
4
8
Q
9
S
1
Eyepiece
2
Red Dot Viewfinder
3
Eyepiece Holder Thumbscrew
4
90° Eyepiece Holder
5
Optical Tube
6
Vertical Lock
7
Fork Arms
8
Focus Knob
9
Horizontal Lock
Computer Control Panel
ON/OFF Switch

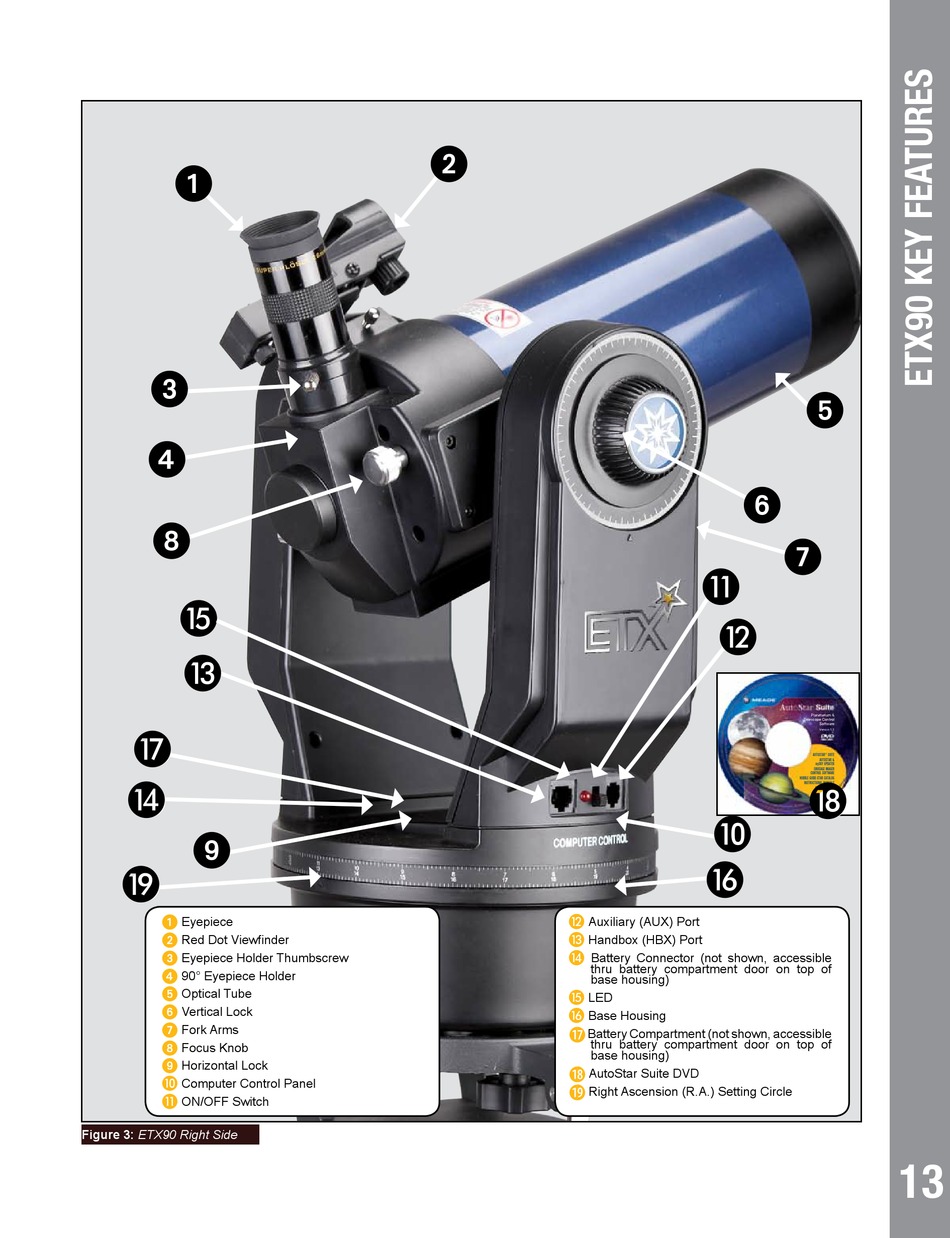

Figure 3: ETX90 Right Side
2
Auxiliary (AUX) Port
Handbox (HBX) Port
Battery Connector (not shown, accessible
thru battery compartment door on top of
base housing)
LED
Base Housing
1&
Battery Compartment (not shown, accessible
thru battery compartment door on top of
base housing)
1*
AutoStar Suite DVD
1(
Right Ascension (R.A.) Setting Circle
5
6
7
R
13
