Summary of Contents for Dukane AS3A

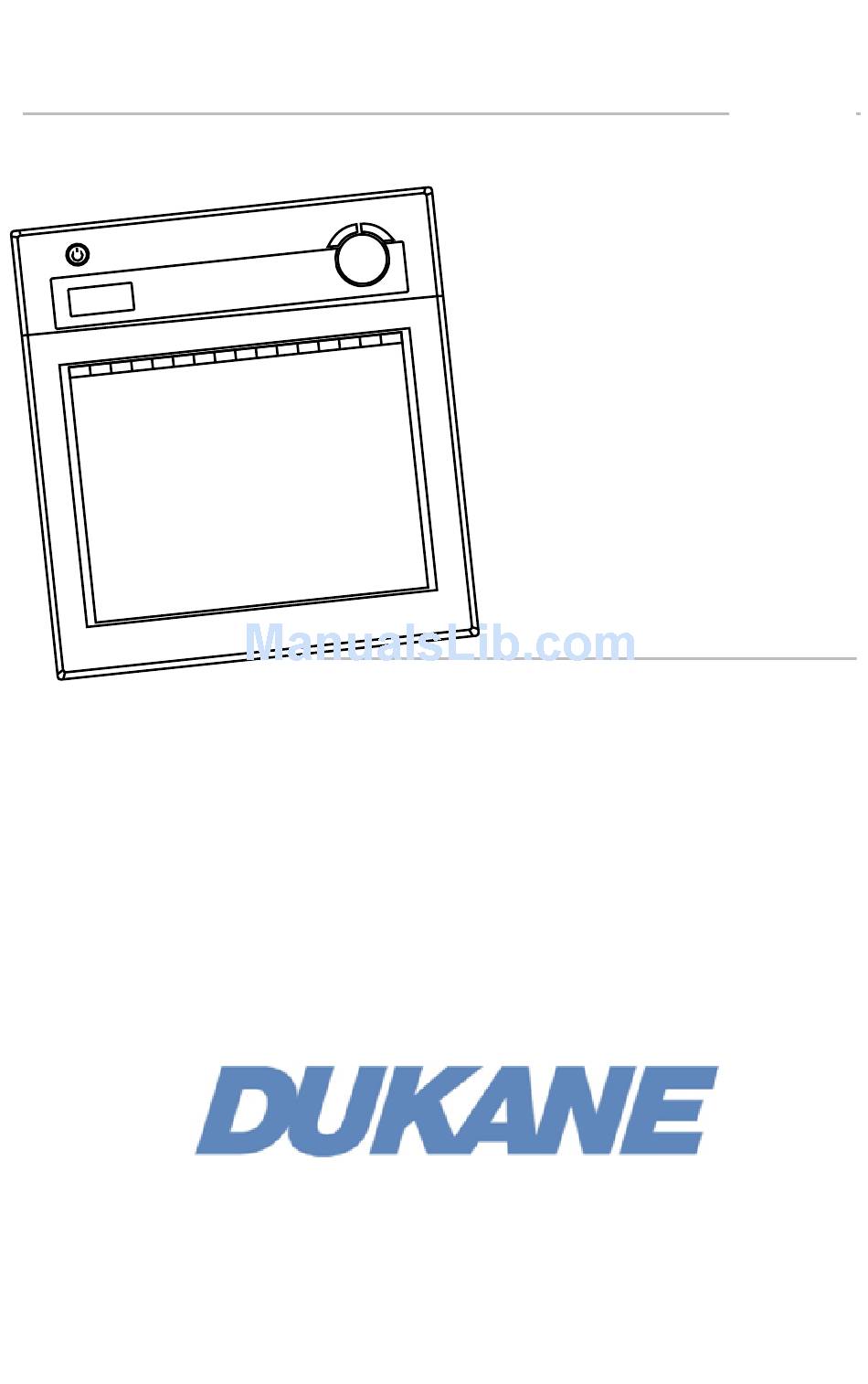

- Page 1 AS3A quick start guide...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the in- structions, may cause harmful interference to radio communications.
- Page 3 Contents Take a quick inventory of what you received in your box. Description AS3A (2.4G RF) Stylus (pen) Replacement tips for pen Tool for removing pen tip USB RF Receiver Dongle (2.4G) Install Discs QuickStart Guide Multi-lingual Guide USB Recharging Cable IMPORTANT –...
- Page 4 Prepare Tablet For Use Before using your AS3A Wireless Tablet you will want to make sure the battery is charged and the pen battery has been installed. Ÿ To charge your AS3A simply plug the USB Charging Cable into the pad and any open USB port on your computer.
- Page 5 Linking AS3A to PC Upon first use the tablet will need to be synchronized with the USB RF Receiver. NOTE: Make sure the MacroKey Manager software has been installed first. q To link the tablet and receiver: ü Power on the tablet (hold the power button for 3 seconds or more) ü...
- Page 6 Setting Up the Macro Keys (hot spots) The MacroKey Manager provides an easy to use interface for setting the actions of each of the 16 programmable hot spots along the top of the AS3A active area (see yellow shaded area in the image below).
- Page 7 Mac OSX 10.4 and up Pen Battery 1 x AAA Battery (not included) Pen Dimensions 5” long, 0.54” diameter Pen Proximity 0.4” above pad DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com http://www.dukane.com/av/service/...
- Page 8 Audio Visual Products 2900 Dukane Drive St. Charles, Illinois 60174 www.dukane.com/av Toll-free: 888-245-1966 Fax: 630-584-5156 E-mail: avsales@dukane.com...
