CABINET PARTS
BEVERAGE CENTER
For Model: KBCO24LSBX02
(Black Cabinet)
11−08 Litho In U.S.A. (wam) (eeb)
Part No. W10241962 Rev.A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBCO24LSBX02 and is the answer not in the manual?

Questions and answers

Summary of Contents for KitchenAid KBCO24LSBX02

  • Page 1 CABINET PARTS BEVERAGE CENTER For Model: KBCO24LSBX02 (Black Cabinet) 11−08 Litho In U.S.A. (wam) (eeb) Part No. W10241962 Rev.A...
  • Page 2: Cabinet Parts

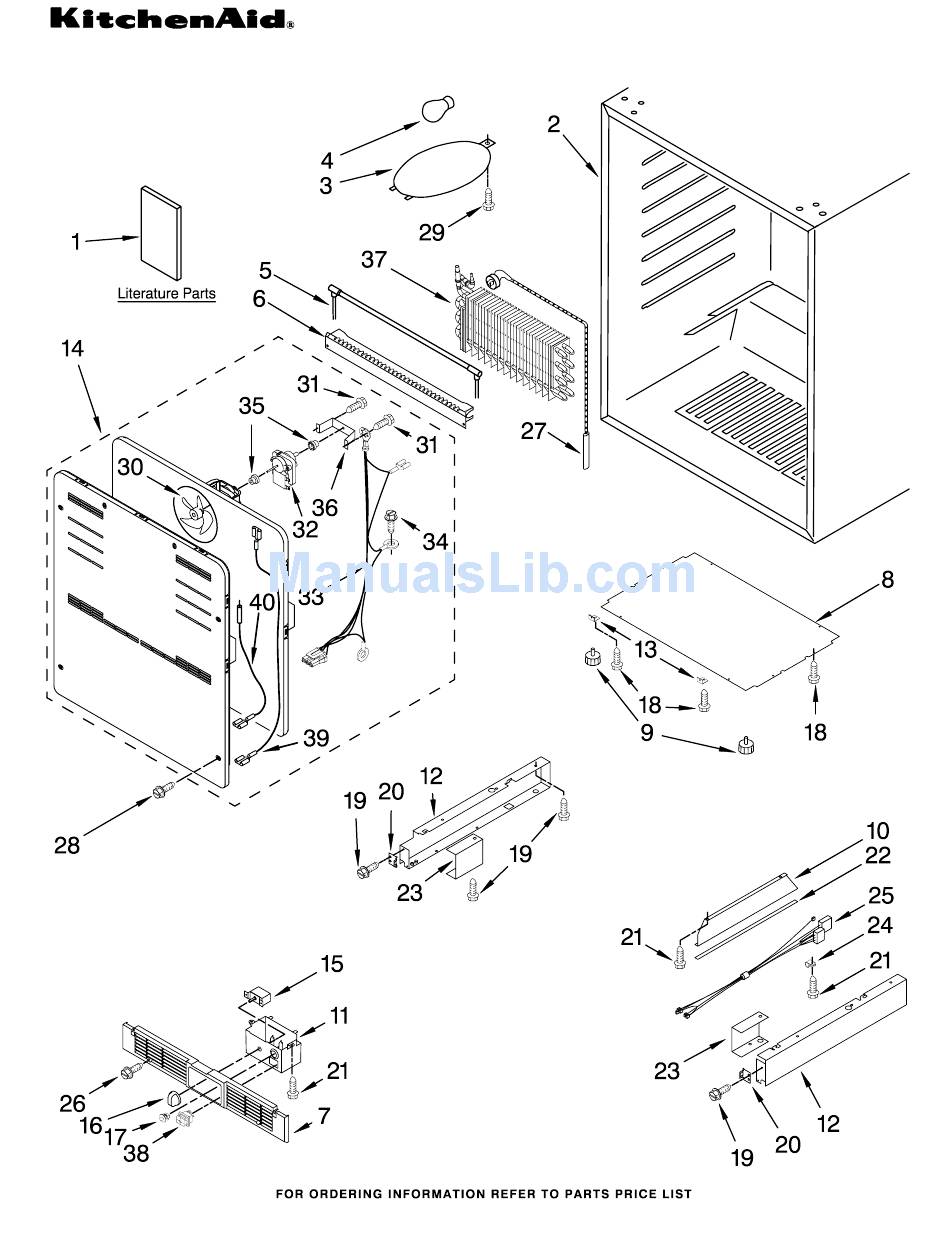

    CABINET PARTS For Model: KBCO24LSBX02 (Black Cabinet) Illus. Part DESCRIPTION Literature Parts 2300277 Use & Care Guide 4344901 Wiring Diagram Cabinet (Not A Service Part) 4344739 Lens, Light 4344740 Bulb, Light 4344746 Heater, Defrost 4344747 Heat Shield 4344761 Grille 4344762 Plate, Bottom...
  • Page 3: Shelf Parts

    SHELF PARTS For Model: KBCO24LSBX02 (Black Cabinet) W10241962...
  • Page 4 SHELF PARTS For Model: KBCO24LSBX02 (Black Cabinet) Illus. Part DESCRIPTION 1 W10238032 Wine Rack Top & Middle 4344866 Rubber Support 3 W10238029 Rail Assembly 4 W10187313 Wine Rack, Lower Ladder, Shelf 4344842 Left Side 4344843 Right Side 4344794 Screw 4344795 Washer...
  • Page 5: Door Parts

    3 W10163191 Gasket−Push Plate 4344787 Hinge Bottom 4344754 Hinge, Top 4344804 Spacer, Top Trim 4344798 Spacer Bottom Hinge W10241962 DOOR PARTS For Model: KBCO24LSBX02 (Black Cabinet) Illus. Part DESCRIPTION 4344757 Actuator, Switch 4344802 Door Stop 4344852 Door Gasket 4344760 Washer...
  • Page 6: Unit Parts

    6 W10238066 Mounting Plate, Compressor 4344778 Grommet, Fan Motor 4344779 Grommet, Compressor 4344780 Bolt, Compressor 4344781 Fan Motor, Condenser UNIT PARTS For Model: KBCO24LSBX02 (Black Cabinet) Illus. Part DESCRIPTION 4344782 Baffle, Air 4344783 Fan Blade 4344784 Bracket, Motor 4344785 Bracket, Motor...
