- Page 1 CABINET PARTS BEVERAGE CENTER For Models: KBCO24RSBX02 (Black Cabinet) 2−11 Litho In U.S.A. (wam) (bay) Part No. W10241961 Rev.B...
-

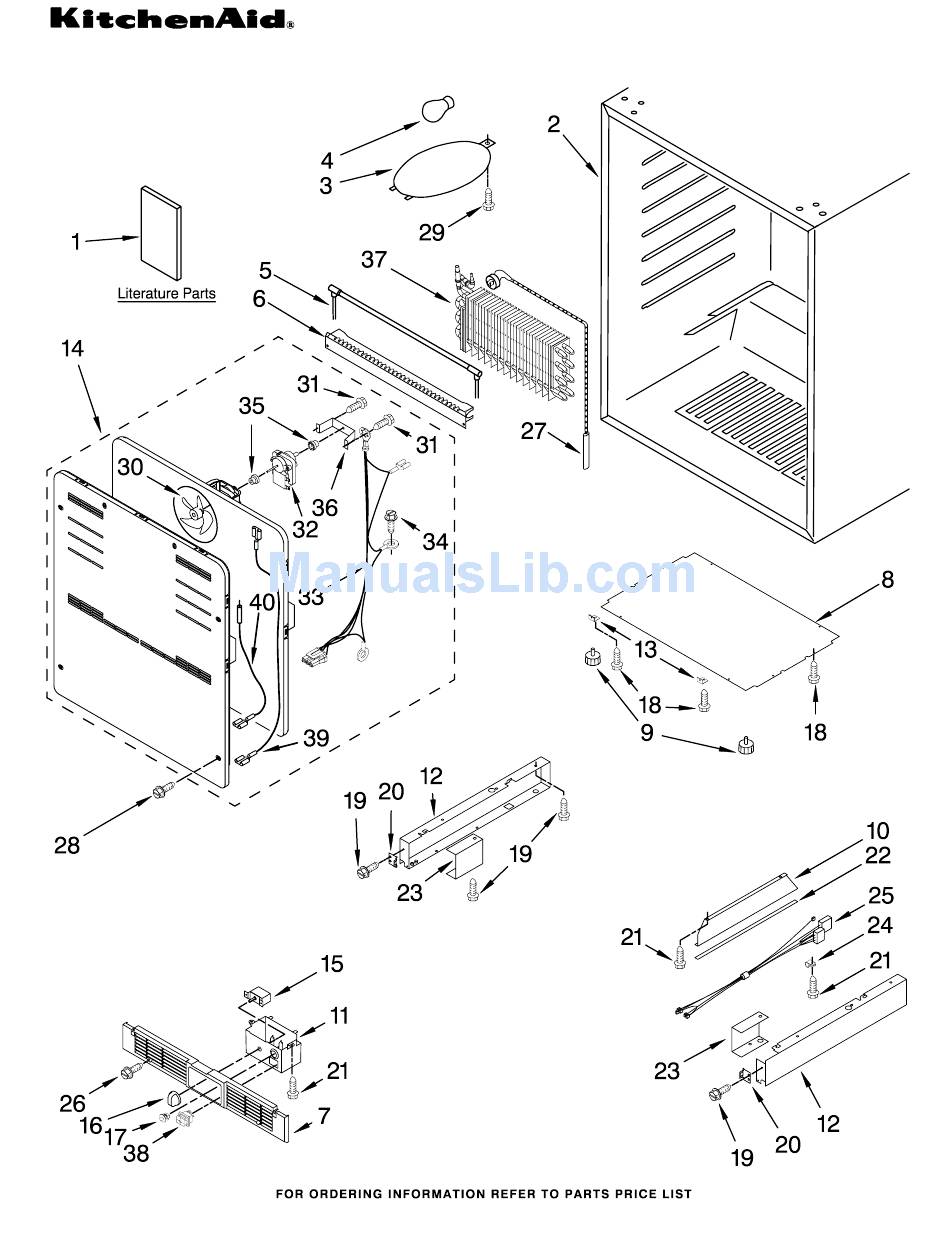

Page 2: Cabinet Parts
CABINET PARTS For Models: KBCO24RSBX02 (Black Cabinet) Illus. Part DESCRIPTION Literature Parts 2300277 Use & Care Guide 4344901 Wiring Diagram Cabinet (Not A Service Part) 4344739 Lens, Light 4344740 Bulb, Light 4344746 Heater, Defrost 4344747 Heat Shield 4344761 Grille 4344762 Plate, Bottom 4344763 Foot, Leveling 10 W10204638 Brace, Support 4344898 Control Box... -
Page 3: Shelf Parts
SHELF PARTS For Models: KBCO24RSBX02 (Black Cabinet) W10241961... - Page 4 SHELF PARTS For Models: KBCO24RSBX02 (Black Cabinet) Illus. Part DESCRIPTION 1 W10238032 Wine Rack Top & Middle 4344867 Rubber Support 3 W10238029 Rail Assembly 4 W10187313 Wine Rack, Lower Ladder, Shelf 4344842 Left Side 4344843 Right Side 4344794 Screw 4344795 Washer 8 W10239365 Shelf Support 4344851 Screw 4344882 Trim, Top And...
-
Page 5: Door Parts
DOOR PARTS For Models: KBCO24RSBX02 (Black Cabinet) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4344890 Door Assembly 4344757 Actuator, Switch 15 W10204865 Screw (Includes Gasket) 4344802 Door Stop 4344800 Screw 2 W10162992 Washer/Bottom 4344852 Door Gasket 4344801 Screw 3 W10163191 Gasket−Push Plate 4344760 Washer 4344753 Hinge, Bottom... -
Page 6: Unit Parts
UNIT PARTS For Models: KBCO24RSBX02 (Black Cabinet) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4344784 Bracket, Motor 4344825 Screw 1 W10163193 Drain Pan 4344785 Bracket, Motor 4344832 Screw 4344773 Bracket, 4344775 Compressor 4344786 Cover, Rear Defrost Timer (Includes Items 4344837 Capacitor 4344774 Defrost Timer 4344836 Clip...
