GAS FURNACE OPERATION

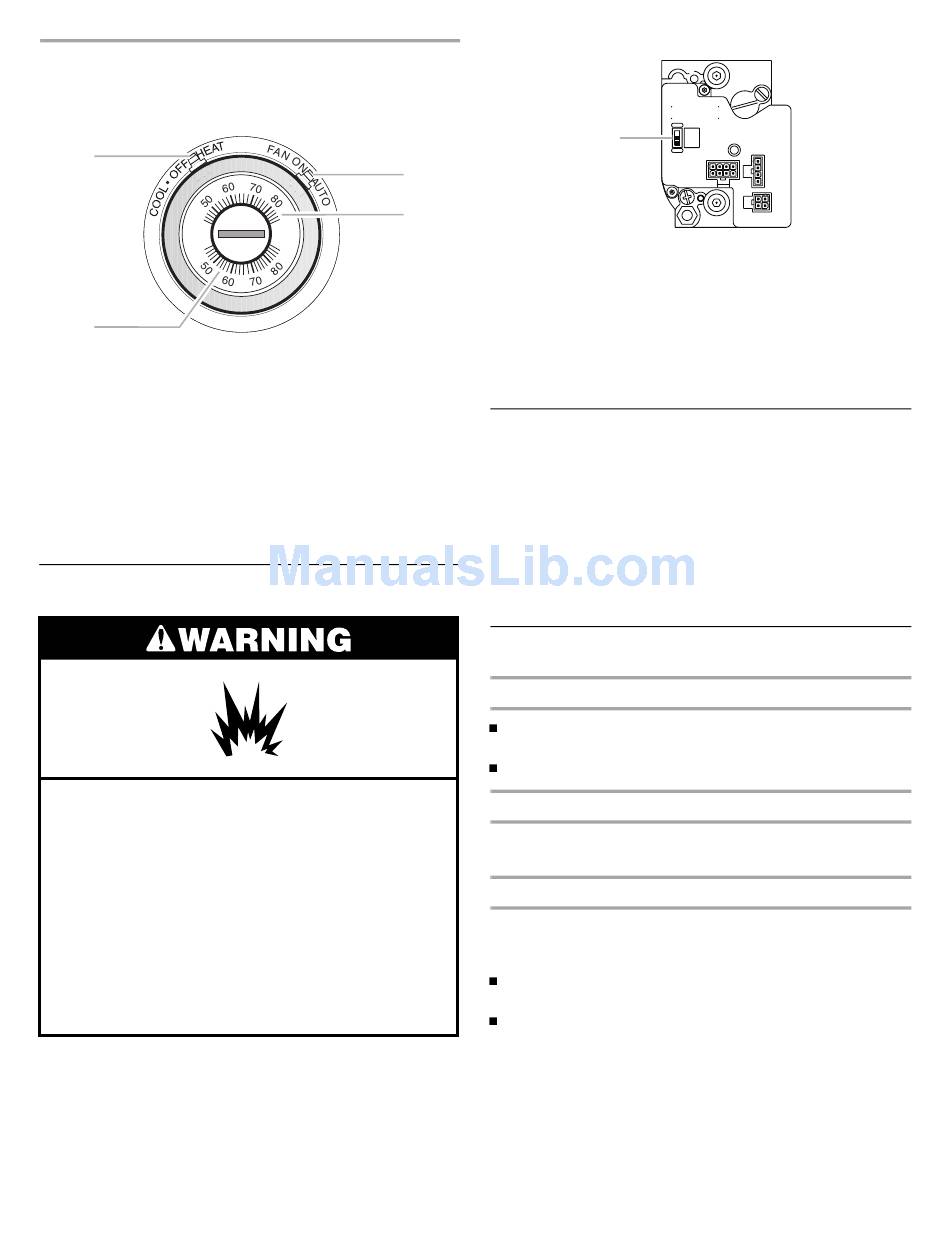

Thermostat Control
1
2
1. Selector switch
3. Fan switch
2. Room temperature
4. Heating & cooling temperature setting
There are many types and styles of thermostats. Yours may look
different from the one shown, depending on the type of
thermostat and whether cooling was installed with the system.
However, almost all thermostats perform the same basic
functions.
There are two switches located on the thermostat. One switch
controls the heating and cooling (if applicable) functions. The
other switch is for FAN operation, either continuous or automatic.
Also on the thermostat is the temperature range for the desired
heating and cooling temperatures.

Lighting the Furnace

Explosion Hazard
Furnace must be installed and serviced by a
qualified person.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel.
Read and follow all instructions provided for
installation, adjustment, service, alteration, or
maintenance.
Failure to follow these instructions can result in death,
explosion, fire, or carbon monoxide poisoning.
1. Set the house thermostat control(s) to the lowest setting.
2. Disconnect power.
3. Remove the burner compartment access panel (on some
models).
4. This appliance is equipped with an automatic ignition device.
Do not try to light the burners by hand.
Gas Control Valve
3
4
5. Push the gas control switch to ON.
6. Replace the burner compartment access panel (on some
models).
7. Reconnect power.
8. Set the thermostat to the desired setting.
9. If the furnace will not operate, see "Shutting Down the
Furnace" and call a qualified person.

Shutting Down the Furnace

1. To shut down the furnace, set all the household thermostat
control knobs to OFF or to the lowest setting (see Thermostat
Control graphic).
2. Disconnect power.
3. Remove the burner compartment access panel (on some
models).
4. Push the gas control switch to OFF. See "Gas Control Valve."
5. Replace the burner compartment access panel (on some
models).
To Turn the System On or Off
Move the selector switch to HEAT or COOL to turn the
system on.
Move the selector switch to OFF to turn the system off.
To Select the Temperature
Move the thermostat dial or lever to select the temperature you
would like the system to maintain.
To Operate the Fan
You may wish to increase your comfort by setting your system for
continuous circulation of the indoor air. You may do this by
moving the fan switch on the thermostat.
Move the fan switch to ON so the fan will operate
continuously.
Move the fan switch to AUTO for the fan to operate only when
the unit is either heating or cooling.
1
OFF
ON
C1
C2
C3
1. Gas control switch

Adjusting the Controls

3
