Emissivity
Marterial
Aluminum 0.30
Asbestos 0.95
Asphalt
0.95
Basalt 0.70
Brass 0.50
Brick 0.90
Carbon 0.85
Ceramic 0.95
Concrete 0.95
Copper
0.95
Dirt 0.94
Frozen food 0.90
Hot food 0.93
Glass(plate)
0.85
Ice 0.98
-04-
Emissivity
Marterial
Iron 0.70
Lead 0.50
Limestone 0.98
Oil 0.94
Paint 0.93
Paper
0.95
Plastic 0.95
Rubber 0.95
Sand 0.90
Skin 0.98
Snow 0.90
Steel 0.80
Textiles 0.94
Water 0.93
Wood 0.94

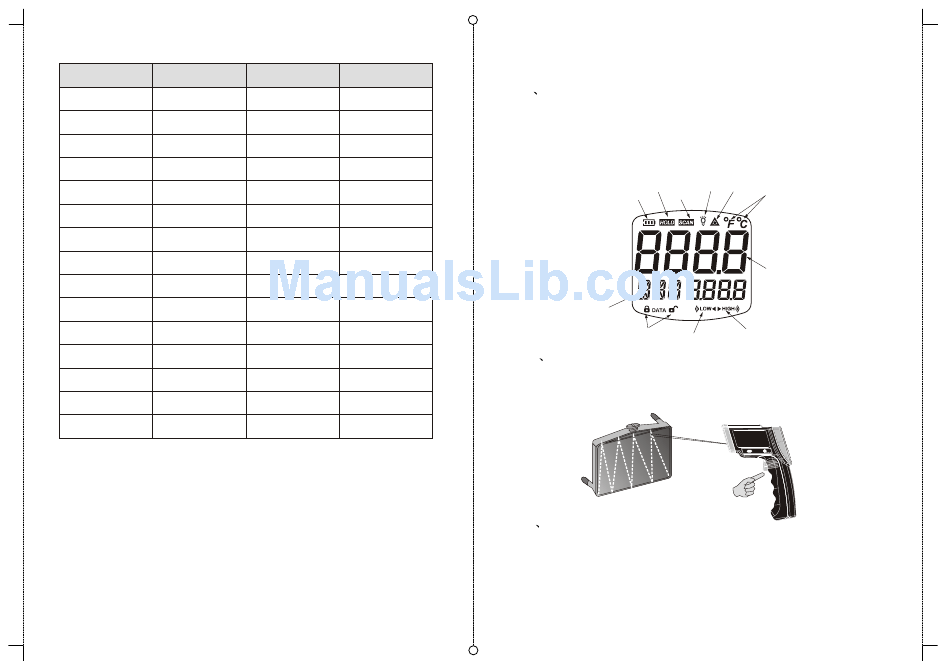

5.Quick start instruction

5.1 LCD display:

A measuring reading
C laser on icon
E battery power icon
H mode/emissivity indicator
J low temperature alarm icon
K high temperature alarm icon
G
E F
(Figure1)
H
K
I
5.2 Locating a hot/cold spot: To find a hot/cold spot, aim
the thermometer outside the area of interest, then
scan across with up and down motion until you locate
the hot/cold spot.
(Figure2)
5.3

Diagram description

(1) Trigger: When turn on LCD display VERXX software
version for 1 sec. And turn to display reading with
SCAN icon. Release the trigger, display reading
with HOLD icon. Built in auto power off in 30sec.
-05-
B measuring unit
D back light on icon
F scanning icon
G data hold icon
I data storge / read icon
D
C
B
A
J
9V
RS232 DC IN
9V
DC IN
