(2) Laser / back light button: when back light turn on ,any
operations will remain back light for 10 sec. LCD
indicate on/off status.
(Figure3)
8
6
REC/CLR
7
SET
2
LASER
SET
BACKLIT
REC/CLR
4 MODE
5
3
MODE
(3) (5) key functions: press 3 key, LCD subdisplay
MAX-MIN-AVG -DIF -HAL-LAL-SGN-PLY-CLR-EMS
segment (only main display means normal
mode) press 4 key to enter.
a. MAX: measuring maximum temperature
b. MIN: measuring minimum temperature
c. AVG: measuring average temperature
d . DIF: Basic on the reading before press 4 key,
compute the difference of current reading.
e. HAL: high temperature alarm--when selected
press 5 keys to set high temperature alarm
an dconfirmed by pressing 4 key. When
over trigger, LCD display HI icon with
sounds.
f. LAL: low temperature alarm--when selected
press 5 keys to set low temperature alarm
and confirmed by pressing 4 key. When reading
over trigger, LCD display LOW icon with BiBi audio
sounds
g. SGN: data storage--when selected STO, lock &
DATA & 1---indicator will shown when press 4 key.
After temperature read out press 6 key to store,
then 2---memory unit will be shown.
-06-
(Figure4)
9V 9V
RS232 DC IN DC IN
9
1
10-11
blinks
measuring
HAL,
trigger
reading
BiBi audio
LAL,
trigger
19mm@
D:S=50:1
300mm
0.8"@
12"

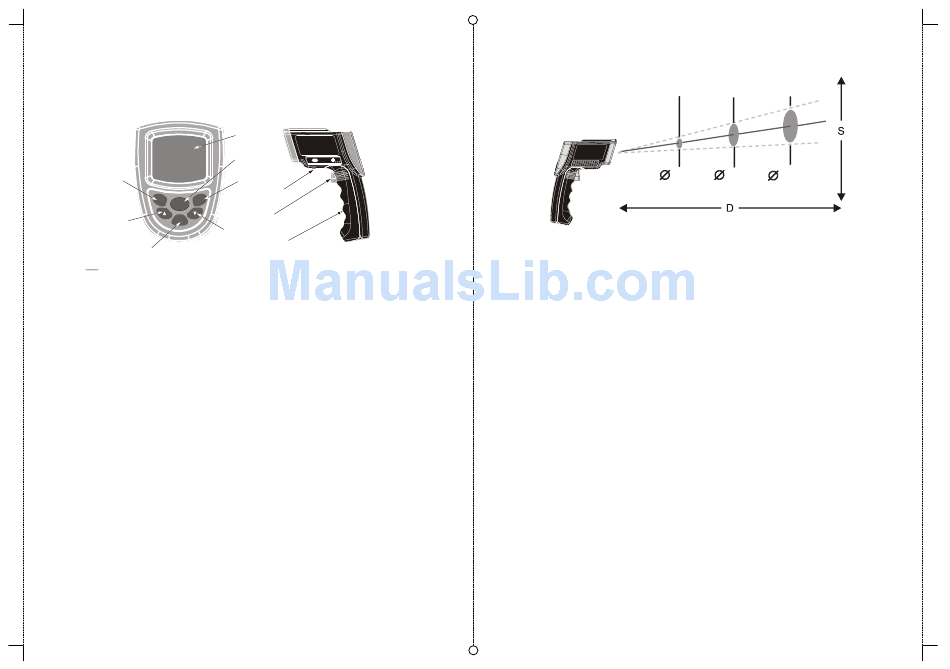

4.3 Field of view: Make sure the target is larger than the
unit's spot size. The smaller target the closer measure
distance. When accuracy is critical, make sure the target is
at least twice as large as the spot size.
4.4 Emissivity: Most organic materials and painted or
oxidized surfaces have an emissivity of 0.95 (pre-set in
the unit). Inaccurate readings will result from measuring
shiny or polished metal surfaces. To compensate for this,
adjust the units emissivity reading (see table below and
5.3 settings) or cover the surface to be measured with
masking tape or flat black paint. Measure the tape or
painted surface when the tape or painted reach the same
temperature as the material underneath.
4.5 Table of approximate emissivity
-03-
18mm@ 42mm@
900mm 1500mm
0.7"@ 1.7"@
36" 60"
