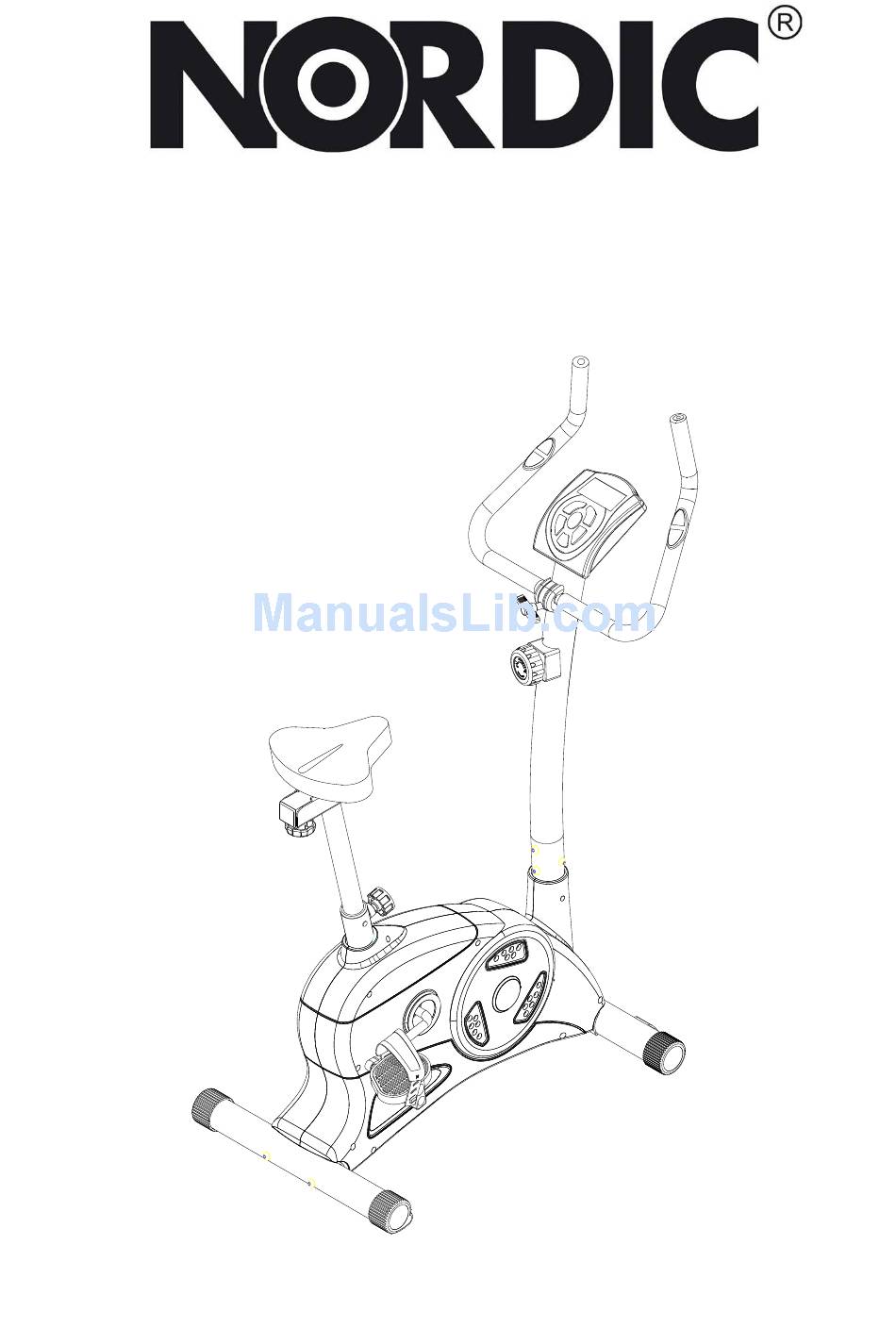

  • Page 1 220 cycle Owner's Manual SRS-968-NF May 28, 2008 version 01...
  • Page 2  Hvis computeren ikke fungerer, sjekk om batteriene er intakte.  Ta kontakt med Nordic Fitness Servicesenter dersom problemet vedvarer. For øvrige tekniske spørsmål vedrørende ditt produkt, ta kontakt med Nordic Fitness Servicesenter. Nesten samtlige av de spørsmål eller problemer som måtte oppstå, kan løses ved å snakke med en av Nordic Fitness sine serviceansvarlige.
  • Page 3 Explode Diagram...

  • Page 5: Part List

    Part List NO. DESCRIPTION Q'TY NO. DESCRIPTION Q'TY MAIN FRAME REAR FOOT COVER R UPRIGHT TUBE WELDMENT MOVING WHEEL SADDLE POST FRONT FOOT COVER(L&R) MAGNETIC HOLDER SADDLE SUPPORT TUBE INSERT FRONT FOOT FIX PLATE REAR FOOT BELT HANDLEBAR SEAT CRANK FOAM GRIP FRONT PULLEY HANDLE BAR END CAP...

  • Page 6: Assembly Instructions

    Assembly Instructions 1. Fasten Front Foot (5) to the Base Frame (1) using 2 x (23), 2 x (26), 2 x (15) and 2 x (51) as indicated. 2. Fasten Rear Foot (6) to the Base using 2 x (23), 2 x (26), 2 x (15) and 2 x (49) as indicated.
  • Page 7 5. Insert the Handlebar Post (2) into the Base (1) and attach it with 4 x (23), 4 x (26) and 4 x (16). 6. Attach the clamp of seat (55) to the seat slide post (80) and tighten the seat firmly into your desired position. After assembling the seat slide post (80) at the seat post with washer (82) seat post knob (83), you can move the hole of seat post to adjust your desired position.
  • Page 8 9. Attach the Handlebar (7) to the Handlebar Post (2) using Handle Screw (45) through Cover (47). Insert the plug of hand pulse wire (65) to the jack of the monitor (60). 10. Insert the Right Pedal (26) into the right arm of the Crank Assembly (27) and finger tighten in a clockwise direction until the thread is fully inserted in the crank.

  • Page 9: Display Console Overview

    Manual for B11032 Display Console Overview: The things you should know before exercise SLEEP MODE: The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Functions and Features: 1.

  • Page 10: Key Function

    6. PULSE: Your computer displays your pulse rate in beats per minute during your workout. If no pulse signal input then the computer will display 0 on the window. 7. RPM: Your pedal cadence. Key function: There are 3 button keys and the function description as follows: 1.
