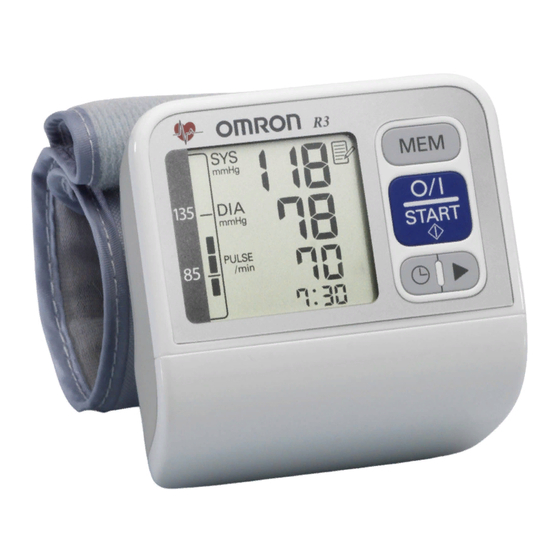

Wrist Blood Pressure Monitor
Model R3
Instruction Manual
Fabricado en China
Geproduceerd in China
Сделано в Китае
Check following components!
Vérifier les composants suivants !
Controleer de volgende onderdelen!
Prüfen Sie folgende Teile des Lieferumfangs!
Проверьте следующие компоненты!
Controllare i componenti indicati di seguito!
¡Compruebe los siguientes componentes!
English
Français
Deutsch
Italiano
Español
Nederlands
Русский
IM-HEM-6200-E-03-10/2011
5329513-9B

Advertisement

Table of Contents
loading

Related Manuals for Omron R3

Summary of Contents for Omron R3

  • Page 1 Italiano www.omron-medizintechnik.de Español OMRON SANTÉ FRANCE SAS Wrist Blood Pressure Monitor 14, rue de Lisbonne, 93561 Rosny-sous-Bois Cedex, FRANCE Uniquement pour le marché français: OMRON Service Après Vente Nederlands Model R3 Nº Vert 0 800 91 43 14 consommateurs@omron-sante.fr Русский...

  • Page 2: Table Of Contents

    Thank you for purchasing the OMRON R3 Wrist Blood Pressure Monitor. The OMRON R3 is a compact and easy to use blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly. For comfortable controlled inflation without the need of pressure pre-setting or re-inflation the devices uses its advanced “IntelliSense”...

  • Page 3: Important Safety Information

    Important Safety Information Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis. Please read this section carefully before using the unit. Warning: • Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 4 Important Safety Information • Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit. • Do not operate unit in a moving vehicle (car, airplane). (Battery Usage) •...

  • Page 5: Overview

    1. Overview Open the rear cover page to read following: The alphabet in the rear cover page correspond to those in the body page. Main unit Display Display Systolic blood pressure Battery compartment cover Diastolic blood pressure Wrist cuff Memory symbol MEM (Memory) button Average value symbol O/I START (...

  • Page 6: Preparation

    2. Preparation 2.1 Installing/Replacing the Batteries Remove the battery cover. Push the hook on the bottom of the battery cover. Pull the cover off the main unit. Insert two 1.5V “AAA” alkaline (LR03) batteries as indicated in the battery compartment and then replace the battery cover.

  • Page 7: Setting The Date And Time

    2. Preparation 2.2 Setting the Date and Time Set the monitor to the correct date and time before taking a measurement for the first time. Press the button. Push the button to Year change. • Hold down to advance Month the digit rapidly.

  • Page 8: Using The Unit

    • The blood pressure can differ between the right arm and the left arm, and therefore also the measured blood pressure values can be different. Omron recommends to always use the same arm for measurement. If the values between the two arms differ substantially, please...

  • Page 9: How To Sit Correctly

    3. Using the Unit 3.2 How to Sit Correctly To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. No eating, smoking or exercising 30 minutes before taking a measurement. • Sit on a chair with your feet flat on the floor. •...

  • Page 10: Taking A Reading

    3. Using the Unit 3.3 Taking a Reading Notes: • To cancel a measurement, press the O/I START button at any time during measurement. • Remain still while taking a measurement. Press the O/I START button. The wrist cuff will start to inflate automatically. START INFLATE DEFLATE...
  • Page 11 3. Using the Unit Important: • Recent research suggests that the following values can be used as a guide to high blood pressure for measurements taken at home. Systolic Blood Pressure Above 135 mmHg Diastolic Blood Pressure Above 85 mmHg This criteria is for home blood pressure measurement.

  • Page 12: Using The Memory Function

    3. Using the Unit 3.4 Using the Memory Function The monitor automatically stores the result up to 60 sets. It can also calculate an average reading based on the measurements from the last three readings taken within 10 minutes. If there are only two readings in memory for that period, the average will be based on two readings.
  • Page 13 3. Using the Unit To delete all the values stored in memory When the memory symbol ( ) appears, first press the MEM button. Then while holding it down, press the O/I START button simultaneously for about 2-3 seconds. First Second Note: You cannot partially delete the stored readings.

  • Page 14: Troubleshooting And Maintenance

    4. Troubleshooting and Maintenance 4.1 The Icons and Error Messages Error Display Cause Remedy Remove the wrist cuff. Wait 2-3 minutes and then take another measurement. Irregular or weak pulses are detected. Repeat the steps in section 3.3. If this error continues to appear, contact your doctor.
  • Page 15 Cuff is over inflated. Carefully read and repeat the steps listed under section 3.3. Movement during measurement. An Er mark with a code/number Consult your OMRON retail outlet or indicates the device has a hardware distributor. failure. Note: The irregular heartbeat symbol (...

  • Page 16: Troubleshooting

    Movement or talking during during measurement. Refer measurement. to section 3.3. Wrist cuff pressure does not Air is leaking from the wrist Consult your OMRON retail rise. cuff. outlet or distributor. Apply the cuff correctly so that it is securely wrapped Wrist cuff deflates too soon.
  • Page 17 (+/-) polarity. • Press the O/I START button and repeat measurement. • If the problem continues, try replacing the batteries with new ones. Other problems. If this still does not solve the problem, contact your OMRON retail outlet or distributor.

  • Page 18: Maintenance

    4. Troubleshooting and Maintenance 4.3 Maintenance To protect your unit from damage, please avoid the following: • Subjecting your unit to extreme temperatures, humidity, or direct sunlight. • Washing the cuff or exposing the cuff or unit to water. • Disassembling the unit. •...
  • Page 19 • It is generally recommended to have the unit inspected every two years to ensure correct functioning and accuracy. Please consult your authorised OMRON dealer or the OMRON Customer Service at the address given on the packaging or attached literature.

  • Page 20: Technical Data

    5. Technical Data Product Description Wrist Blood Pressure Monitor Model OMRON R3 (HEM-6200-E/HEM-6200-E8) Display LCD Digital Display Measurement Method Oscillometric method Measurement Range Pressure: 0 mmHg to 299 mmHg Pulse: 40 to 180 beats/min. Pressure: 3 mmHg Accuracy Pulse:  5% of reading...
  • Page 21 Part 1: General Requirements and Part 3: Supplementary requirements for electromechanical blood pressure measuring systems. • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood pressure monitors, which is the...
  • Page 22 EN60601-1-2:2007 standard has been implemented. This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions.

  • Page 23: Some Useful Information About Blood Pressure

    6. Some Useful Information about Blood Pressure What is Blood Pressure? Blood pressure is a measure of the force of blood flowing against the walls of the arteries. Arterial blood pressure is constantly changing during the course of the heart’s cycle. The highest pressure in the cycle is called the Systolic Blood Pressure;...
  • Page 24 6. Some Useful Information about Blood Pressure Why is it a Good Thing to measure Blood Pressure at Home? Many factors such as physical activity, anxiety, or Upper curve: systolic blood pressure Lower curve: diastolic blood pressure the time of day, can influence your blood pressure.
  • Page 25 6. Some Useful Information about Blood Pressure Classification of Blood Pressure by the World Health Organization The World Health Organization (WHO) and the Systolic blood pressure International Society of Hypertension (ISH) (mmHg) developed the Blood Pressure Classification Severe hypertension shown in this figure. This classification is based on the blood Moderate hypertension pressure values measured on people in a sitting...
