Omron RX-3 Instruction Manual

Blood pressure monitor
Hide thumbs Also See for RX-3:

Advertisement

Table of Contents

See also: Instruction Manual
Instruction manual
Gebrauchsanweisung
Gebruiksaanwijzing
Blood Pressure Monitor
page 1
Mode d'emploi
Seite 17
Manuale de instructone
pagina 33
Manual de instrucciones
RX-3
page 49
pagina 65
pagina 81
IM-HEM-640-E-01-08/08
1628088-1E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron RX-3

Summary of Contents for Omron RX-3

  • Page 1 RX-3 Blood Pressure Monitor Instruction manual page 1 Mode d’emploi page 49 Gebrauchsanweisung Seite 17 Manuale de instructone pagina 65 Gebruiksaanwijzing pagina 33 Manual de instrucciones pagina 81 IM-HEM-640-E-01-08/08 1628088-1E...

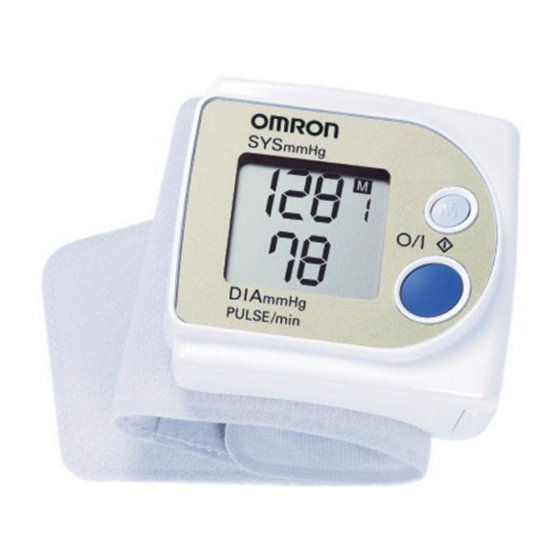

  • Page 2 RX-3 English Introduction The OMRON RX-3 measures your blood pressure and pulse simply and quickly from the wrist, without the use of an inflation bulb or stethoscope. The measurement values are stored in the memory of the OMRON RX-3. The OMRON RX-3 fits wrist circumferences from 13.5 to 19.5 cm.

  • Page 3: How To Obtain Meaningful Blood Pressure Readings

    RX-3 English How to obtain meaningful blood pressure readings General Caution • The OMRON RX-3 is not suitable for measuring • Operating temperature between 10°C and 40°C. the frequency of cardiac pacemakers. • Operating environment must be free from • Consult your doctor during pregnancy, arrhythmia excessive vibrations, shocks, magnetic fields, and arteriosclerosis.
  • Page 4 RX-3 English Overview A Display D On/Off button B Wrist Cuff E Battery Compartment C Memory Recall button...
  • Page 5 RX-3 English Preparation Insert batteries 1 Open the battery compartment. 2 Insert two batteries in the battery compartment. Caution ! Use two identical 1.5V alkaline batteries type AAA LR03! 3 Close the battery compartment.
  • Page 6 RX-3 English Fit wrist cuff Caution ! Do not press On/Off button when the wrist cuff is not wrapped around the wrist! 1 Bare your wrist. 2 Put the monitor on the inner side of your wrist. Caution ! Push up your sleeve: avoid constricting...

  • Page 7: Operation

    RX-3 English Operation MEMORY mmHg DI A mmHg PULSE /min Control functions Measurement C Memory Recall button F Systolic blood pressure in mmHg. D On/Off button G Monitor blood pressure: flash - measurement takes place, light up - finish measurement.
  • Page 8 PULSE /min 1 Sit comfortably at a table with your feet flat on the Caution ! The OMRON RX-3 should always be at floor and put your arm against the hard case. heart height during measurement. Usage of the hard...

  • Page 9: Read Display

    RX-3 English Read display MEMORY MEMORY mmHg mmHg DI A DI A mmHg mmHg PULSE PULSE /min /min 1 Read the values of blood pressure and pulse from the display. Note: Display shows alternately blood pressures and heartbeats. MEMORY mmHg...

  • Page 10: Recall Previous Values

    RX-3 English Memory Recall previous values K Memory position of latest and previous values. MEMORY MEMORY mmHg mmHg DI A DI A mmHg mmHg PULSE PULSE /min /min 1 Press Memory Recall button to turn on power. Note: Display shows alternately blood pressures and heartbeats.

  • Page 11: Erase Memory

    RX-3 English Erase memory MEMORY MEMORY mmHg mmHg DI A DI A mmHg mmHg PULSE PULSE /min /min 1 Press Memory Recall button to turn on power. 2 Press Memory Recall button and simultaneously On/Off button to erase memory. Caution ! All stored values will be erased!

  • Page 12: Faults: Causes And Rectifications

    Storage • Store the OMRON RX-3 in the hard case in a dry, closed place with a temperature between -20°C and 60°C. • Remove the batteries if you not intend to use the OMRON RX-3 for 3 months or more.
  • Page 13 OMRON distributor as mentioned on distributor as mentioned on the packaging. the packaging. Calibration • It is recommended to have the OMRON RX-3 Attention ! Disposal of batteries inspected every two years to ensure correct and the OMRON RX-3 should be function and accuracy.

  • Page 14: Technical Data

    Supplementary requirements for electromechanical blood pressure measuring systems. This OMRON product is produced under the strict quality system of OMRON HEALTHCARE CO., LTD., Japan. The Core component for OMRON blood pressure monitors, which is the Pressure Sensor, is produced in Japan.

  • Page 15: General Information About Blood Pressure

    RX-3 English General information about blood pressure Blood circulation The blood circulation is responsible for supplying the body with oxygen. Blood pressure is the pressure Systolic blood pressure (mmHg) exerted on the arteries. The systolic blood pressure value (higher pressure...
  • Page 16 RX-3 English Health and blood pressure • Stress and emotional upset The incidence of hypertension increases with age. In • Excessive consumption of salt addition, a lack of exercise, excess body fat and high • Lack of physical exercise levels of cholesterol (LDL), which sticks to the inside •...

  • Page 17: Treatment Of High Blood Pressure

    RX-3 English Treatment of high blood pressure If your blood pressure reaches upper values of 140 - 160 mmHg and lower values of 90 - 95 mmHg in repeated measurements over several days, you Upper curve: systolic blood pressure should consult your doctor for detailed medical Lower curve: diastolic blood pressure examination.
  • Page 18 OMRON HEALTHCARE CO., LTD. 24, Yamanouchi Yamanoshita-cho, Ukyo-ku Manufacturer Kyoto, 615-0084 Japan OMRON HEALTHCARE EUROPE B.V. EU-representative Kruisweg 577, 2132 NA Hoofddorp, The Netherlands www.omron-healthcare.com OMRON DALIAN CO., LTD. Production facility Economic & Technical Development Zone, Dalian 116600, China OMRON HEALTHCARE UK LTD.

This manual is also suitable for:

Rx3 plusHem-640-e
