Duncan Convertible 60 WATT Owner's Manual

Hide thumbs

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Convertible 60 WATT and is the answer not in the manual?

Questions and answers

Related Manuals for Duncan Convertible 60 WATT

Summary of Contents for Duncan Convertible 60 WATT

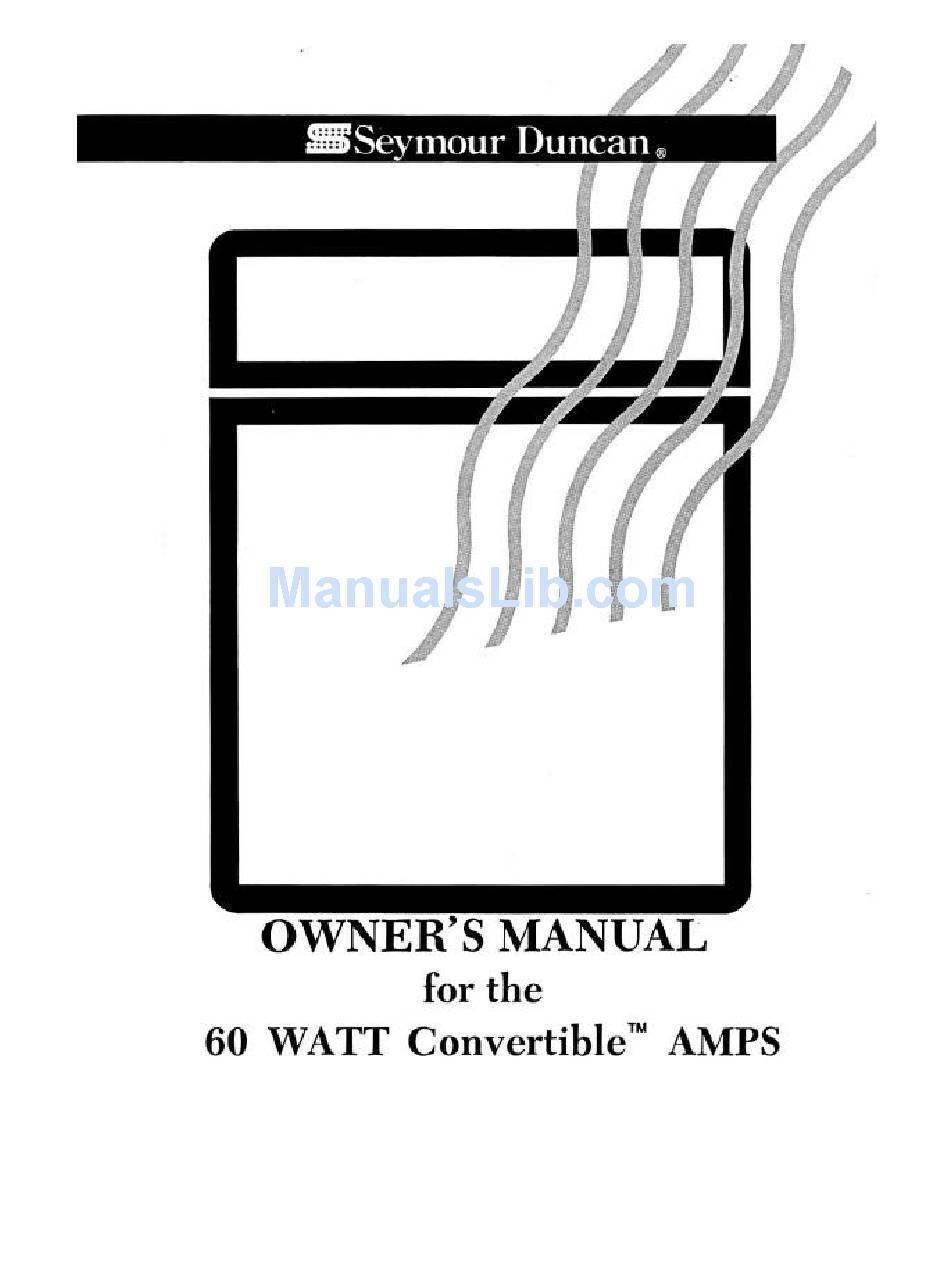

  • Page 2 If you're like most musicians I know, the first thing you want to do is plug -in your new amp and start playing - the last thing you want to do is read an owner's manual. Go ahead and play the amp and see what it can do for you. Once you've completed the "breaking in"...
  • Page 3 Unpacking Inspect your Convertible TM amp for hidden damage that may have occurred in transit. Your amp was inspected and sound tested before shipment from the factory. All claims for shipping damage must be made by the receiver. Save your box and packing material for evidence of damage if it has occurred.

  • Page 4: Table Of Contents

    Table of Contents Front Panel Controls…………………………………………………………..Page 4-5 Rear Panel Controls.…………………………………………….…………… Page 6-7 Preamp Modules……………………………………………………………….Page 8-9 Module Arrangements……………………………...……………………...Page 10- 11 Changing Modules……………………………………..……………………….Page 12 Tubes……………………………………………………..……………..……….Page 13 Trouble Shooting …………………………..…........Page 14-15 Blank Module Arrangements.……………………….………………………...Page 16...
  • Page 5 The optional Seymour Duncan footswitch with built-in L.E.D. will glow only when you’re playing in the red channel. Some amps produce a loud "pop" through their speakers when channel switching.
  • Page 6 5) VOLUME, CHANNEL 1 INDICATOR (RED): When your amp is in channel 1 and the power is on, this L.E.D. will glow. Your Convertible Amp uses L.E.D.'s because L.E.D.'s will last up to 10 times longer than regular bulbs. Under normal usage. your L E.D.'s should last 10 years or more.
  • Page 7 With the Convertible 60 Watt Amp, you can plug your guitar into the guitar input jack and run your effects through the Effects Loop for the least noise and least unwanted distortion.

  • Page 8: Front Panel Controls

    1. FUSE HOLDER: The fuse is located in the cap of the fuse holder. If the fuse fails, it must be replaced with one that provides proper current protection or you will void the warranty. The proper fuse rating for the 110-120 v.a.c. Convertible 60 Watt Amp is 3.15 amp Slo -Blo @ 250 v.a.c.
  • Page 9 4) 8 OHM SPEAKER JACK: Use this jack to match the amp impedance to the input of an 8-ohm speaker. The Seymour Duncan Convertible Speaker that is built into the 60 watt Combo is an 8-ohm speaker.

  • Page 14: Module Arrangements

    MODULE ARRANGEMENTS Modules are a feature to let you create your own sounds. Each module is actually part of the preamp, so you can radically modify the tone characteristics. The module in the red L.E.D. channel is located on the right as you look at the rear of the amp.

  • Page 16: Changing Modules

    CHANGING MODULES Both factory installed preamp modules are located on the right hand rear of the amp. Changing modules is quick and easy. Dramatic tone changes are possible when you try new modules. To remove and replace modules, just follow these easy steps. TO REMOVE 1.UNPLUG YOUR AMP from the power outlet.

  • Page 17: Tubes

    TUBES Just like all other parts in the Convertible amps, the tubes were selected for providing the most musical tones. Tubes can be temperamental, but there are things that can be done to avoid problems. Module Preamp Tubes Convertible amps are designed with EL-34 power tubes. These tubes will give you the sweetest tone and are generally more "musical".

  • Page 18: Troubleshooting

    However, if you cannot identify the cause of the problem using the table below, or if it indicates your amplifier to be defective and in need of repair, return the unit to your authorized Seymour Duncan Service Center or call (805) 964-9610 for a Return Authorization number.
  • Page 19 3) Verify power source 3) No source voltage with something you know works 4) Defective ON/OFF 4) Return unit to dealer power switch or factory for repair No sound coming from 1) Master Volume and/or Increase control speaker(s), (no audible Over drive control levels level setting(s) to "4"...

  • Page 20: Blank Module Arrangements

    2) Replace module with 2)Defective preamp one known to operate module properly Distorted sound coming 1) Overdrive control 1) Reduce control level from both channels levels set too high settings 2) Speaker output wires 2) Replace speaker cord to amplifier shorted 3) Pickup, instrument, or 3) Substitute cable and connecting cable may be...
