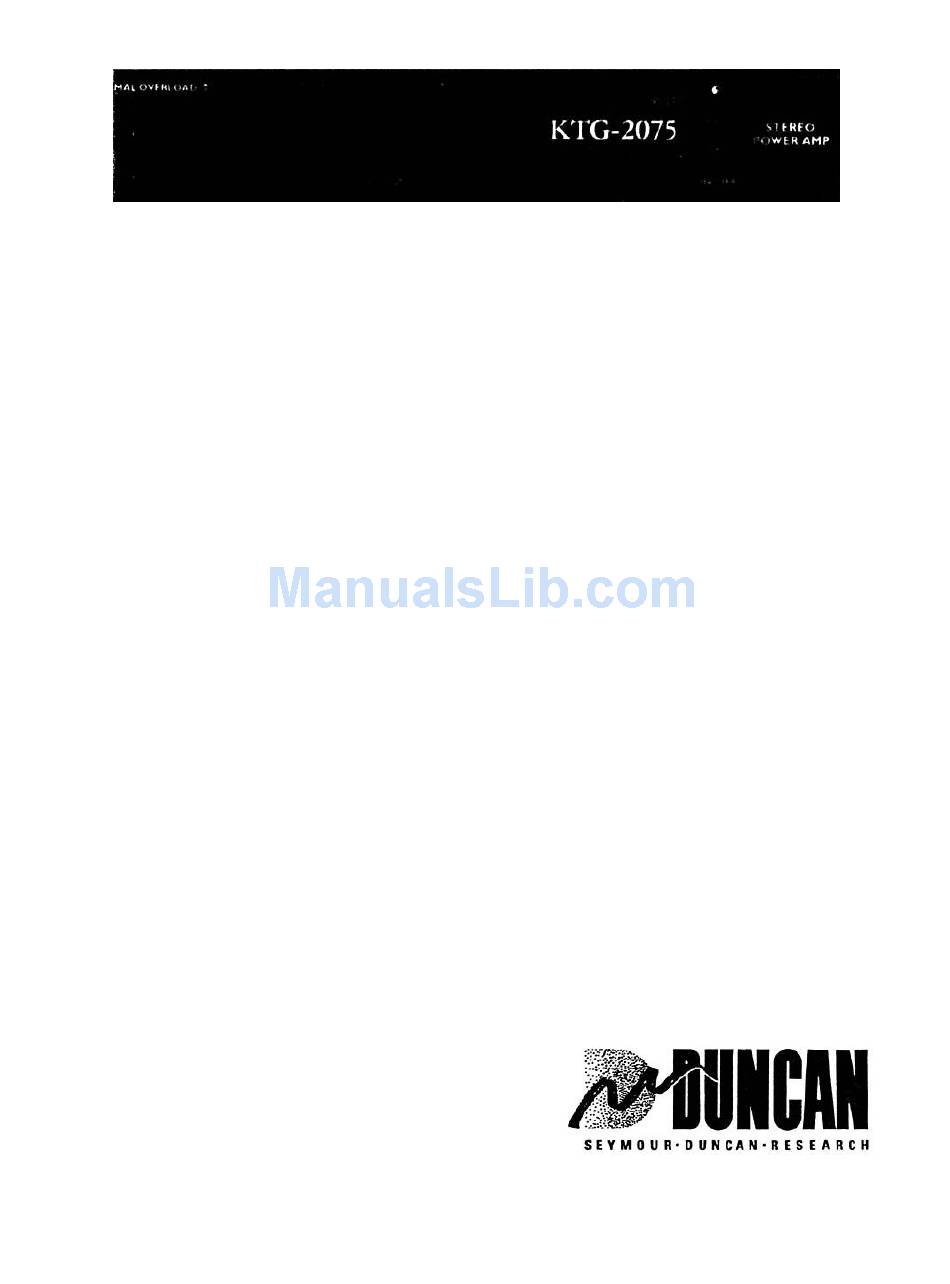

- Page 1 KTG-2075 Stereo Power Amplifier Owners Manual...
-
Page 2: Performance Specifications
Caution To prevent electrical shock, do not operate this unit in wet or moist areas. There are no user - serviceable parts inside. (See " Maintenance" and "Tube Chart" sections for user mainte nance procedures.) Performance Specifications I rack space, 2-channel power amplifier Power Output –... - Page 3 Congratulations on your purchase of the Seymour Duncan Research KTG - 2075 TM Stereo Power Amplifier. Each product in the KTG, King Tone Generator series has been designed and built to generate great guitar sound, now and for years to come. Read this manual carefully to become familiar with their features...
-
Page 4: Front Panel
Volume Control Like many power amps, the KTG-2075 does not have a Volume control. When the amp is on, it provides maximum head room & prevents you from unknowingly clipping any signal processors earlier in the chain. Clipping reduces dynamic... - Page 5 When you need to reduce your overall volume, use the output level control of your pre-amp or final signal processor. Thermal overload indicator The KTG - 2075 is designed for rugged operation under extremes of temperature. In the event the amp does reach a dangerous degree of temperature, the thermal overload indicator (see front panel diagram) will light up, and the amp will automatically shut down until it has cooled enough for safe operation.
-
Page 6: Rear Panel
To avoid short circuits (possibly blowing Fuses) use good quality speaker cable and use a minimum load of 4 ohms. Note: 2-ohm loads will eventually blow fuses. In the event of blown output protection fuses, always replace with 4A Fast Blow type. -
Page 7: Maintenance
Maintenance The KTG - 2075 has been designed to provide safe and reliable performance year after year. Treat it with care as you would any piece of high performance pro gear, preferably rack mounted in a good road case. There are no user - serviceable parts inside. - Page 8 Reference:KTG-1 Tubes The KTG-1 uses three tubes in its all-tube design. They are, from left to right looking from the front of the unit: Type Comment Should be a low noise, low microphonic tube, so Tube 1 I2AX7 we use a Chinese tube for this position.
