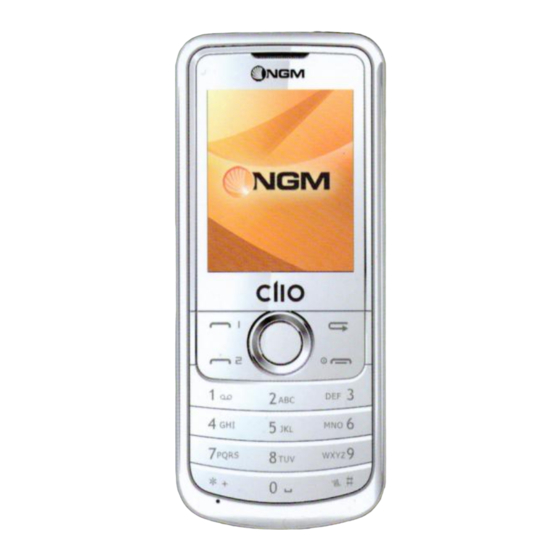

Summary of Contents for NGM CLIO
- Page 1 Ver.1.0.20110412 CLIO...
-
Page 2: Table Of Contents
CLIO User Manual Contents 1. For your Safety ....... 6 2. Mobile Phone Profile ..... 9 3. Preparation before Use ....11 Installing SIM Card ........... 11 Install Memory card ......... 13 Install Battery ..........14 Charge Battery ..........15 Notice on using the battery ...... - Page 3 CLIO User Manual IMEI ..............25 6. Basic operation ......26 Switch on ............26 Switch off ............27 Dial a Call ............27 Adjust Receiver Volume ........28 Answer a Call ........... 28 Send DTMF Signal ..........29 Dial Hold ............29 Fast Read SMS ..........
- Page 4 CLIO User Manual Text message ........... 46 MMS ..............51 Broadcast Message .......... 57 Multimedia ............57 Camera ............57 Image viewer ........... 59 Video recorder ..........59 Video player ............. 60 Audio player ............. 61 Sound Recorder ..........62 FM Radio ............
- Page 5 CLIO User Manual Internet service ..........76 Data account ........... 78 8. Coffer Function ......82 9. Editor Operation ......86 Basic letter input ..........86 Number input ........... 86 Symbol input ............ 87 10. Use of USB ......... 87 11.
-
Page 6: For Your Safety
CLIO User Manual 1. For your Safety For your safety and proper use of the mobile phone, please read the following guidelines carefully: Do not switch the mobile phone on when close to a chemical factory, gas station or other explosive objects. - Page 7 CLIO User Manual Non-original factory’s accessories and parts will lose guarantee. Do not dismantle the mobile phone without permission. In case of failure, please contact the supplier as soon as possible. Do not plug the charger into the mobile phone and charge without battery.
- Page 8 CLIO User Manual temperature, never expose the mobile phone under strong sunshine or too wet an environment. The suitable temperature for the phone and accessories is 0℃-40℃. The height to use the phone shall be less than 2,000m. This mobile phone has shooting, videoing...
-
Page 9: Mobile Phone Profile
CLIO User Manual to any of the content here in this user guide without public announcement in advance. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern. - Page 10 CLIO User Manual Receiver Right soft key End key Main menu/ OK key Keypad SIM 1 Call key Camera SIM 2 Call key Speaker...
-
Page 11: Preparation Before Use
CLIO User Manual 3. Preparation before Use Installing SIM Card When registering the mobile phone number, you can apply for two different phone numbers, two different mobile phone network service providers thus obtain (Subscriber Identification Module) cards. With these two SIM cards, you can use all functions of your mobile phone. - Page 12 CLIO User Manual Follow the following diagram to install the SIM card. Please insert the host SIM card into the SIM1 slot and the slave SIM card into the SIM2 slot. Note: If SIM card is inserted only into the SIM1 slot, then only the host works;...
-
Page 13: Install Memory Card
CLIO User Manual Install Memory card As the mobile phone does not have enough storage space, to use some functions, you need to install a memory card (This mobile phone uses T-FLASH card.) Install T-FLASH card: Open the back cover to take... -
Page 14: Install Battery
CLIO User Manual Note: As the T-FLASH card is a small object, keep it out of children’s touch. Install Battery The mobile phone is suitable for original battery and accessories. When the battery is idle, it is recommended to put it into the protection box. -
Page 15: Charge Battery
CLIO User Manual Battery Charge Battery The new battery cannot reach the optimal efficiency level unless it has undergone several continuous complete charges and discharges. When the battery is used up, charge it in time. Over-discharge can damage the battery. -
Page 16: Notice On Using The Battery
CLIO User Manual During charging, the battery capacity icon on the screen flickers from the right to the left. After the battery is charged fully, the icon is full of bars. Slight heat during charging is normal. Warning: When a travel charger and its... - Page 17 CLIO User Manual standard voltage scope for the battery is 3.6V-4.2V. During charging, keep the battery at room temperature or similar temperature. With time passing by, the battery will gradually be worn and thus needs a longer time to charge. This is normal. However,...
-
Page 18: Pin Code
CLIO User Manual to prevent an explosion. Warning: Charging the mobile phone by improper means can cause an explosion. Always refer to the related regulations for the disposal of the battery PIN code PIN1 Code: It is the personal identification number used to enter SIM and able to prevent others using SIM1 without permission. -
Page 19: General Instructions
CLIO User Manual If these two codes are not provided together with the SIM cards, ask the local service provider for them. Warning: If the PIN code is input wrongly for successively three times, the SIM card will be locked. Please contact the network operator immediately for help. -
Page 20: Switch-On/Off Key /End Key
CLIO User Manual Switch-on/off key /End key In call state, it is used to interrupt a call; in call conversation state, it is used to end a call or exit from the current menu and back to the standby state. Hold this key for 4~5s to switch on/off the mobile phone. -
Page 21: Keypad Lock
CLIO User Manual 1-9 number keys: If they are pressed shortly, you can switch to the corresponding channels saved in the channel list; if they are pressed long, you can save the current frequency to the corresponding channel. ... -
Page 22: Language And Input Mode
CLIO User Manual Ring only Vibrate and ring Vibrate only Vibrate then ring Language and Input Mode The mobile phone has abc as the default input mode. For different areas, there are different languages and corresponding input modes. Call hint... -
Page 23: Caller Group
CLIO User Manual of the mobile phone. Caller group The caller group in the mobile phone includes friends, family, VIP, colleagues and others etc. You can set different call tone and photo for different callers’ group. 5. Terms Description Dial domestic calls ... -
Page 24: Dial International Calls
CLIO User Manual To dial a domestic call, input area code + phone number and then press the dial key. Dial international calls If you want to make an international call, you can press * key continuously until the international dialing prefix ‘+’... -
Page 25: Emergency Calls
CLIO User Manual phone can automatically dial extension number if you input ‘P’ between the switchboard extension number. Method for input ‘P’ as following: hold press or continually short press three times ‘*’ key (‘P’ will be shown on the display). -
Page 26: Basic Operation
CLIO User Manual Switch off the mobile phone and take off the battery, then you will see the label with such number on the back of the mobile phone. Also, this number is saved in the mobile phone. After switch-on, in standby state, input “*#06#” to display it. -
Page 27: Switch Off
CLIO User Manual the password. Input PIN —— If you set SIM card password. No service—Indicates fail to make register and cannot make any calls. Emergency calls only—indicates registered to other network and only can make call to 112. -
Page 28: Adjust Receiver Volume
CLIO User Manual Press the dial key to dial the phone number. In SIM1 and SIM2 On state, you can choose to dial a call via SIM1 or SIM2. To end a call, press the end key; or to cancel a dial, press the Cancel key or the switch-on/off key. -
Page 29: Send Dtmf Signal
CLIO User Manual vibration. To receive a call, press Dial/Call Key. To refuse a call, press Switch-on/off key or the end key directly. If the CLI (Call Line Identity) is opened, the phone number of the caller will occur on the screen. If... -
Page 30: Fast Read Sms
CLIO User Manual another call. Phonebook: Enter the directory of the phonebook. SMS: Enter the directory of the SMS. Record: While having call conversation, you can record the call. Activate/Inactivate Handfree: activate/inactivate the speaker. DTMF: You can set whether to send DTMF signals. -
Page 31: Connect To Voice Mail
CLIO User Manual will display a missed call icon. And press Read to enter and read missed calls. Connect to Voice mail The mobile phone allows connecting the incoming call into the voice mail and then you can receive a notice about voice message. (The voice mail number must be preset). - Page 32 CLIO User Manual Use as: You can send audio to Profiles. Send: You can send audio via MMS, or via Bluetooth. Details: You can see the date and size of the file. Rename: You can rename the folder.
- Page 33 CLIO User Manual Bluetooth. Details: You can see the date and size of the file. Rename: You can rename the folder. Copy: You can copy the file into Audio, Images, My Music, Photos, Video or specified folders.
- Page 34 CLIO User Manual Details: You can see the date and size of the file. Rename: You can rename the folder. Copy: You can copy the file into Audio, Images, Photos, Video are specified folders. Move: You can move the file into Audio, Images, Photos, Video or specified folders.
- Page 35 CLIO User Manual specified folders. Move: You can move the file into Audio, My Music, Images, Video or specified folders. Delete: You can delete the current record. Delete All files: You can delete all records in all current folders.
-
Page 36: Phonebook
CLIO User Manual Images, My Music, Photos or specified folders. Delete: You can delete the current record. Delete All files: You can delete all records in all current folders. Mark several: You can select more files at the same time. -
Page 37: Quick Search
CLIO User Manual friends, VIPs, colleagues and others). Every contact saved into SIM1 and SIM2 can only include name and number. The mobile phone supports 1,000 groups of numbers. Quick Search You can Input the English letter in the position where the cursor is flickering to position the contact from these contacts that meets the conditions. -
Page 38: Copy All
CLIO User Manual Tip: If one contact is set with photo link, tone link and callers’ group at the same time, then the callers’ group function will be inactive. Copy all You can copy the contacts from the phone to SIM Card or from the SIM card to phone. -
Page 39: Fun & Games
CLIO User Manual SIM2 and phone memory. The display format is “Used/Total”. Preferred Storage: You can choose the storage path for the current number. Fields: You can choose the display items in the phonebook and the display items in the Add Contact interface. -
Page 40: Call Center
CLIO User Manual Call center Call center includes Call history and Call Settings. In dual-SIM mode, you can separately search the call register of SIM1 and SIM2 and set separately some operations corresponding to SIM1 and SIM2. In mono-SIM standby mode, you can set the available SIM card and see its call registration. - Page 41 CLIO User Manual the last call time. Dialed calls: With this function, you can view the duration of all dialed calls. Received calls: With this function, you can view the duration of all received calls. Reset all: With this function, you can clear all duration records of calls.
-
Page 42: Call Settings
CLIO User Manual currency unit. PIN2 code must be input to set call cost. Price Per Unit: This function needs network support. For more details, please consult the network operator. SIM text message Counter With this function, you can see and preset the number of sent messages and received messages. - Page 43 CLIO User Manual Set by Network: While having a call conversation, you can send my caller ID in the form preset by the system. Hide ID: While having a call conversation, you will not send my caller ID. If the system does not support such function, call may fail.
- Page 44 CLIO User Manual (switched-off or out of the service area), it will divert the calls. When the mobile phone Divert if no does not answer the call, Answer network will automatically divert it. When you are on line, the Divert if Busy network will divert the call.
- Page 45 CLIO User Manual Incoming Calls: All Calls: You can bar all incoming calls. When Roaming: You can bar all calls except the calls of the local service area. Cancel All: You can cancel call barring settings and dial/receive calls normally.
-
Page 46: Messages
CLIO User Manual Messages Text message SMS is a kind of network service that cannot be used to send and receive short messages until you apply to the network operator Both SIM cards of the mobile phone can send and receive SMS. The SMS is sent to the SMS center of the network and then sent by the network to the target user (GSM user). - Page 47 CLIO User Manual hear the alert sound from the mobile phone (if such alert function is set as ON) Note: When sending SMS via the SMS network, the mobile phone may display “Message sent”. It indicates that the SMS has been sent to the SMS center inbox set in the mobile phone but does not mean the receiver has received the SMS.
- Page 48 CLIO User Manual more. You can insert Picture, My picture, Predefined animation, My animation, Melody, My melody, Predefined sound into SMS. However, the SMS will not be received and displayed unless the network and the receiving mobile phone support. You can enter the phone number or choose a number from the phonebook to send the SMS.
- Page 49 CLIO User Manual Delete all: You can delete all SMS in inbox. Copy all: You can have two options, i.e. copy all entries on the SIM card in the inbox onto the phone or vice versa. Move all: You can have two options, i.e. move all entries on the SIM card in the inbox onto the phone or vice versa.
- Page 50 CLIO User Manual Templates With it, you can pre-edit some common phrases, which is convenient for quick SMS editing. SMS settings You can set some parameters of the SIM1 SMS or SIM2 SMS in the menu. Profile settings: To send SMS, you must input the SMS center number.
-
Page 51: Mms
CLIO User Manual Preferred storage: You can set the storage position (SIM or phone) for SMS. MMS can contain words, sound and photos. If the MMS is out of the limit, the mobile phone will be unable to receive the MMS. If the SMS contains photos, the mobile phone will adjust photos so as to display them on the screen completely. - Page 52 CLIO User Manual receiver. Add E-mail-- Input the e-mail of the receiver. Add Number-- Input the number of the receiver. Add E-mail-- Input the e-mail of the receiver. Subject: You can edit the subject of the MMS.
- Page 53 CLIO User Manual effect of the current MMS. Slid timing: You can set the play time of every slide. After editing, you can press “Done” key to finish the MMS, in this option you can send the MSM as...
- Page 54 CLIO User Manual Save as template: You can save the MMS as template. Properties: View the detailed information of the current message. Use details: You can extract the number in the MMS and save it or dial a call. You can also use the URL in the MMS.
- Page 55 CLIO User Manual Message settings: You can set some parameters of the MMS in the menu. Compose: Creation mode-- "Free" “Restricted ". Picture resizing-- You can reduce the size of the inserted photo, including: 160x120, 320x240 and Off.
- Page 56 CLIO User Manual Slide timing-- You can set the interval of the receiver to see the MMS, defaulted as 5 s Delivery time --Immediate, 1hour later, 12 hours later and 24 hours later. Retrieve: Home network—Immediate Rejected, Delayed.
-
Page 57: Broadcast Message
CLIO User Manual Broadcast Message Cell broadcast is a kind of information service such as weather report, traffic etc that the network operator sends to the GSM users within certain area. In dual-SIM mode, you can separately set SIM1 and SIM2. - Page 58 CLIO User Manual PC, you need some software to view them. If the storage space of the mobile phone is insufficient to store the taken photos, it is necessary to delete some old photos or other files in “File Management” function list to release more space.
-
Page 59: Image Viewer
CLIO User Manual Image viewer All photos taken are saved in the album. Options Description View You can view the selected photos. There are two browse styles, i.e. list and Browse Style matrix. You can send photo to wallpaper, Screen Use as saver, Caller picture. -
Page 60: Video Player
CLIO User Manual Options Description You can set Night Mode and Anti-flicker for Camcorder your recorder so as to have high-quality Settings videos. You can choose videos storage path (to Storage phone or memory card).. Restore You can restore the recorder to factory Default settings. -
Page 61: Audio Player
CLIO User Manual Rename You can rename the specified video. Delete You can delete the specified videos. Delete All You can delete all files. files You can choose video storage path (to phone Storage or memory card). Audio player To download music, you must insert the T-Flash card into the PC’s memory card reader (or use a... -
Page 62: Sound Recorder
CLIO User Manual Add the chosen music into the ring base. Ringtones Refresh Enter the tracklist and update it (e.g. the list deleted music in the file management will not disappear until update is conducted. Settings Play Settings: Tracklist path, automatic tracklist, repeat, shuffle ,background play. -
Page 63: Fm Radio
CLIO User Manual Settings: You can set the storage position for record files, including phone and memory card. Also you can set the format of the record file, (including AMR and WAV) and the audio quality. FM Radio Your mobile phone supports FM radio. To use the... -
Page 64: Option Menu
CLIO User Manual corresponding channel. Option menu Channel list: You can edit and save 20 channels. Manual input: You can edit the specified radio frequency band. The frequency of the radio is between 87.5mHz and 108.0mHz. Preset Auto Search: You can have automatic search and save the searched channels into the list. -
Page 65: Schedule Fm Record
CLIO User Manual Schedule FM record You can schedule to record certain FM Radio channel at any time, so that you will not miss the program. Melody composer This function allows you to create your own music melodies and ring tones on the phone, by entering different music notes. -
Page 66: Tasks
CLIO User Manual with the left and right direction keys. In addition, you can have such operations as Delete, Delete and Add on the schedule. View all: You can view the entire schedule of the date where the cursor is on and set the time, date, content and whether to activate alarm on this schedule. -
Page 67: Alarm
CLIO User Manual Alarm The time format for the alarm clock is identical to that of the clock. When the mobile phone is off, the alarm clock can still work provided the battery is sufficient. The system has set 5 alarm clock options and the default is off. -
Page 68: Calculator
CLIO User Manual current time of every country corresponding to every time zone. Calculator The upper direction key for ‘+’ and the lower direction key for ‘ － ’, the left direction key for ‘×’ and the right direction key for ‘÷’;... -
Page 69: Stopwatch
CLIO User Manual Stopwatch This function is designed to store the timepiece, which is to start or stop for exact timing. To use stopwatch From the main menu select Organizer > Stopwatch. Select Typical stopwatch. You can choose different record methods and view records. -
Page 70: Settings
CLIO User Manual Settings User Profiles Your mobile phone is provided with multiple profiles so that you can customize some settings in different cases for different events. Firstly, as per your personal hobby, you can have individualized settings on profile and then activate it. -
Page 71: Dual Sim Settings
CLIO User Manual ring type. Extra Tone: You can have on/off settings on Warning Tone, Error Tone, camp on Tone and Call Connect Tone so as to have corresponding tone tips. Answer Mode: You can choose whether to use any key to answer. -
Page 72: Phone Setup
CLIO User Manual Phone Setup In such menu, you can set phone language, standby wallpaper, time etc. Time and Date: With this function, you can set city, time and date format and the time of specific place. Set Home City: You can set different cities. - Page 73 CLIO User Manual Note: If the battery is taken from the mobile phone or the battery is used up for a long time, when switching on the mobile phone after reinstalling the battery or charging the battery, you need to reset the time and date.
-
Page 74: Network Settings
CLIO User Manual Left, Right). Misc. Settings: adjust brightness and time of LCD backlight. Network Settings Network Selection: You can search the network again. Select your favorite network and choose to register the network automatically or manually. Preferences: You can set the preferred registered network for SIM card. -
Page 75: Restore Factory Settings
CLIO User Manual a password of 4-8 digits and the default one is 1122. You can change it. Auto Keypad Lock: You can set it as On or Off. The mobile phone has keypad lock function. When it lasts certain time, the keypad will be locked, including such options as Off, 5s, 30s, 60s and 5min. -
Page 76: Internet Service
CLIO User Manual Internet service Homepage-- Start the website chosen in the connection settings file. Bookmarks— Enter the options menu and have the following operations on the bookmark: Go to: Log into the chosen website. Edit: Edit the chosen bookmark name and website. - Page 77 CLIO User Manual service information (‘Recommended’ information) sent by the service provider. For example, the service information can be the notice of related news headlines, which can include one piece of news or a service website. Settings: Select SIM: Always ask/SIM1/SIM2 ...
-
Page 78: Data Account
CLIO User Manual Trusted certificates--Entrust.net WAP CA ©1999 Limited liability. www.entrust.net/wapcps; US VeriSign, Inc. Class Public, primary certification authority. Data account GSM Data—You can set the number, name DNS etc. GPRS—You can set the name, APN, user name, password, Auth. type, DNS. - Page 79 CLIO User Manual Bluetooth function, you can send photo, video segment, audio segment, personal business card and memo. You can also establish wireless connection with the compatible PC to transmit files and connect to web by dialing number via SIM.
- Page 80 CLIO User Manual close this function when it is idle. Inquiry audio device: With this function, you can inquiry audio device. For other devices, enter My Devices to search. My Device: After entering this option, you will see the Bluetooth devices compatible with the mobile phone.
- Page 81 CLIO User Manual device name. Authentication: After this option activated, matching is needed when peripheral device accesses my device via Bluetooth (for matched devices as well). After closing the option, no matching is needed for the matched devices. ...
-
Page 82: Coffer Function
CLIO User Manual saved in my device view. 8. Coffer Function You can access the Coffer function only aftyer entering the password from the standby interface. All call history, SMS etc produced by the contacts saved in the coffer will be saved in the coffer and no hint is left out of the coffer. - Page 83 CLIO User Manual The coffer phonebook supports 10 private contacts. Browse You call see all contacts on the phonebook. Press the left softkey to enter the option menu of a contact and then you can have such operations as Send, View, Edit, Delete, Delete All and Save etc.
- Page 84 CLIO User Manual Coffer SMS Create SMS You can create new SMS in this menu of 1,224 English characters. Inbox The inbox supports 20pcs SMS. You can see the received SMS in the inbox. Reply: You can have a text message reply to the received SMS.
- Page 85 CLIO User Manual have such operations as Edit, Send, Delete, Delete All on the SMS saved in the outbox. Draftbox The Coffer SMS Tone Mode lets you enable/disable the tone for the Coffer SMS. Coffer Call Log It can record the missed calls, received calls and dialed calls related to the contacts in the coffer phonebook.
-
Page 86: Editor Operation
CLIO User Manual Block Incoming Call To enable/disable a block for all the calls coming from the contacts in the Coffer. Password Remind You can save here your numbers for personal accounts, passwords, ATM, etc.. Five storage positions are available. -
Page 87: Symbol Input
CLIO User Manual input digit into the place where the cursor is flickering. Symbol input In any of the above input modes, you are provided with symbol input. If you cannot see symbols, press “*” key to see them. If you want one symbol, press the up/down/left/right key to choose. -
Page 88: Maintenance
CLIO User Manual For other operation systems, the connection between PC and the mobile phone cannot be conducted unless USB driver is installed. 11. Maintenance Please read observe following information for safe and proper use of your phone and to prevent damage. Also, keep the user guide in an accessible place at all the times after reading it. -
Page 89: General Notice
CLIO User Manual Do not disassemble or short-circuit the battery. Keep the battery’s metal contacts clean. Recharge the battery after long periods of non-use to maximize battery life. Battery life will vary due to usage patterns and environmental conditions. - Page 90 CLIO User Manual time may reduce call quality due to heat generated during use. When the phone is not used for a long period time, store it in a safe place with the power cord unplugged. Using the phone in proximity to receiving equipment (i.e.
-
Page 91: Troubleshooting
CLIO User Manual Troubleshooting Phenomena Possible Causes Does the battery have power? Unable switch on Is the battery placed correctly The SIM card is dirty. Clean it. Reinstall the SIM SIM failed card. The SIM card is damaged. Replace Check the signal strength icon on the screen. - Page 92 CLIO User Manual Maybe you have set Hide My Caller ID but your network operator does not provide this service for you. Strong interference exists around you. Unable to dial Maybe have activated the call restriction function. Maybe have activated Line 2 but...
- Page 93 CLIO User Manual battery discharge too much; so it cannot be Unable charged until it is charge connected battery certain time. Its performance has worsened. Too weak signals or strong interference. SIM card installed properly? Unable contact or SIM card...
- Page 94 CLIO User Manual Check if the object taken is moving. Photos taken Check if the mobile phone shivers unclear slightly while you press shutter. Photos taken The object taken may be is distorted too close to camera lens. Unable Maybe the SIM card does...
-
Page 95: Abbreviations
CLIO User Manual 12. Abbreviations Short Message Service Enhanced Message Service Subscriber Identity Module Global System Mobile Communication Personal Identity Number PIN Unblocking Key International Mobile Equipment IMEI Identity Cell Broadcast GPRS General Packet Radio Service Multimedia Message service Host card (the card inserted in... -
Page 96: Certifications
CLIO User Manual 13. Certifications Declaration of Conformity (R&TTE) NGM Italia declare under our sole responsibility that the product identified as: GSM Mobile Phone: Clio conforms to the following standards and specifications: Health EN 50360, EN 62209-1 Safety EN 60950-1+A11... - Page 97 CLIO User Manual Technical documentation preserved at: NGM Italia S.r.l. Available Upon Request. (Legal representative in EU) NGM Italia S.r.l. Via L. Da Vinci, 7 – Ponticelli 56020 Santa Maria a Monte (Pi) SAR certification information (Specific Absorption Rate) This phone meets European Union (EU) requirements concerning exposure to radio waves coming from telecommunication and radio devices.
