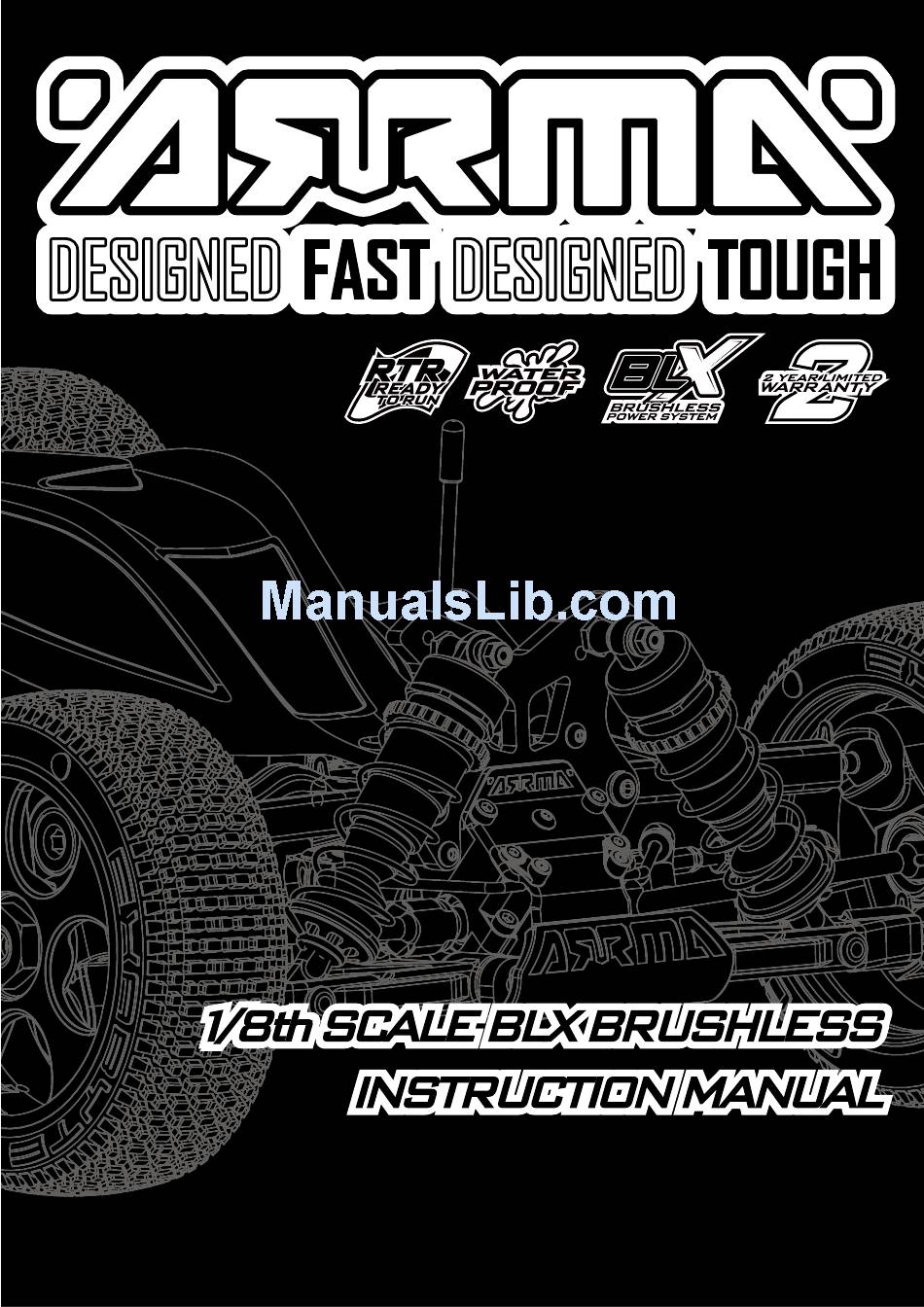

- Page 1 Terms Apply - Download Welcome Pack for Details BEDIENUNGSANLEITUNG BEDIENUNGSANLEITUNG MODE D’EMPLOI MODE D’EMPLOI MANUAL DE INSTRUCCIONES MANUAL DE INSTRUCCIONES 说明书 说明书 取扱説明書 取扱説明書 ARB10108_V3...
-
Page 2: Table Of Contents
ESC Tuning & Factory Defaults Shock Maintenance BATTERY FITTING EXPLODED VIEWS RUNNING Body & Wheel POST-DRIVE CHECKS Shocks 26/27 Differential 26/27 Front Centre 30/32 Centre 31/33 Rear Steering CE STATEMENT © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 2... -
Page 3: Warnings
ARRMA, il y a trois possibilité que vous pouvez utilisez pour obtenir l'aide et des conseils. Visitez ARRMA-RC.com pour la prise en charge, des pièces et des mises à niveau de votre kit. « GO FOR IT » est un forum de propriétaires de produit ARRMA dans le monde entier. -
Page 4: Kit Overiview
インターネット接続付きの PC 2x2S LiPo, 2x3S LiPo, 1x4S LiPo 2x2S LiPo, 2x3S LiPo, 1x4S LiPo LiPo バッグを充電する 充电器 AA 电池 x4 电脑与互联网接入 または 1x6S LiPo 电池 OU 1x6S LiPo Batteries © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 4... -
Page 5: Radiogear
Mantenga pulsado el botón de enlace y encienda la emisora enlace parpadear 受信機ボックスのフタを バインドボタンを押さえたまま、 プロポの電源を入れます。 ESCとプロポのスイッチを切ります。 ステータス LEDの点滅が止まります。 バインドプラグを外します。 元のように取り付けます。 按住 Bind 按钮，打开发射器 状态指示灯停止闪烁 关闭 ESC 和发射器 移除 Bind 插件 更换接收器盒盖 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 5... -
Page 6: Dual Rate
No mover el acelerador cuando enciendas el modelo y el ESC ajustará automáticamente el punto neutro del acelerador. Un pitido largo confirmará el ajuste. 車体側のスイッチを入れる際に送信機のスロットルを操作しないでください。ESC がスロットルのニュートラルポジションを自動設定します。設定が完了すると長いビープ音が鳴ります。ビープ音 が鳴る前にスロットルを操作すると設定が正しく完了しません。 启动时不要作动油门，ESC 会自动设置油门中立点。会发出长哔声，以确认设置。 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 6... -
Page 7: Specifications
Ajuste del ESC The ARRMA BLX brushless ESC is setup for use straight from the factory, if you want to alter the settings for your track or driving style please see the table and steps below: Der ARRMA BLX Brushless-Regler ist werkseingestellt, kann aber individuell auf die eigenen Bedürfnisse abgestimmt werden. Wie genau, das erfahren Sie weiter unten: Le variateur électronique brushless ARRMA BLX est réglé... -
Page 8: Battery Fitting
Battery Fitting Einsetzen Der Akkus Raccordement De Batterie Colocación De Baterías バッテリーの装着 组装电池 AA x4 走行の 操作 Running Fahr Conduite Conducción Post-Drive Checks チェックを駆動した後に 運行後的檢查 Nach dem Fahren Comprobaciones tras la conducción Vérifications après avoir piloté © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 8... -
Page 9: Maintenance
Maintenance Task Page Runs Chassis Maintenance Wheel and Tyre Maintenance Slipper clutch Adjustment Spur/Pinion Mesh Adjustment Slipper Pad Replacement Driveshaft Maintenance Rear Axle Maintenance Wheel Bearing Replacement ARRMA-RC.COM/ SUPPORT/ WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 9... -
Page 10: Chassis Maintenance
N.B. TYPHON chassis shown as an example - information applies to all variants. Wheel and Tyre Maintenance N.B. TYPHON shown as an example - information applies to all variants. ARRMA-RC.COM/ SUPPORT/ Tools Required 17mm Cross Wrench Tyre Glue © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 10... -
Page 11: Motor Removal
Motor Removal Tools Required 2mm Hex 2.5mm Hex 3mm Hex WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 11... -
Page 12: Setting Gear Mesh
Setting Gear Mesh Tools Required 3mm Hex Paper Strip © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 12... -
Page 13: Centre Driveshaft Check
Centre Driveshaft Check Motor Re-Install Tools Required 2.5mm Hex WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 13... -
Page 14: Front Cvd Removal
Front CVD Removal Tools Required 2mm Hex 2.5mm Hex 3mm Hex 17mm Cross Wrench © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 14... -
Page 15: Wheel Bearing Removal
Wheel Bearing Removal Tools Required 2mm Hex 2.5mm Hex 3mm Hex 17mm Cross Wrench WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 15... -
Page 16: Diff Maintenance
Diff Removal Tools Required 2mm Hex 2.5mm Hex 3mm Hex © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 16... -
Page 17: Centre Diff Maintenance
Centre Diff Removal Tools Required 2mm Hex 2.5mm Hex 3mm Hex WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 17... - Page 18 Centre Diff Removal © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 18...
-
Page 19: Radio Maintenance
Radio Maintenance Tools Required 2mm Hex Servo Saver Adjustment Tools Required 2mm Hex WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 19... -
Page 20: Servo Removal
Servo Saver Adjustment Tools Required Servo Removal 2mm Hex © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 20... -
Page 21: Shock Maintenance
Shock Maintenance Tools Required Cross Wrench 1.5mm Hex WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 21... - Page 22 Shock Maintenance A (mm) B (mm) TYPHON 6S KRATON 6S TALION 6S © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 22...
-
Page 23: Exploded Views
Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 23... - Page 24 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 24...
- Page 25 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 25...
-
Page 26: Shocks
AR330206 AR330206 AR330203 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 差动 差動 Differential Differential Différentiel Diferencial AR721312 AR310429 AR310444 AR310441 AR310440 AR310433 AR310436 AR716011 AR610016 AR310439 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 26... - Page 27 AR330206 AR330203 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 差动 差動 Differential Differential Différentiel Diferencial AR721312 AR310429 AR310444 AR310498 AR310440 AR310433 AR310436 AR716011 AR610016 AR310439 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 27...
- Page 28 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 28...
- Page 29 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 29...
-
Page 30: Centre
Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 Centre Center Centre Centro センター 中心 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 30... -
Page 31: Centre
Centre Center Centre Centro センター 中心 AR721312 AR721308 AR390120 AR390112 AR721308 AR310428 AR340075 AR340061 AR320230 AR310446 AR721316 AR310473 AR723410 AR709003 AR220029 AR390139 AR310428 AR320193 AR320188 AR722412 AR722308 AR722312 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 31... - Page 32 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 Centre Center Centre Centro センター 中心 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 32...
- Page 33 Centre Center Centre Centro センター 中心 AR721312 AR721308 AR390120 AR390112 AR721308 AR310428 AR340075 AR340061 AR320230 AR310446 AR721316 AR310473 AR723410 AR709003 AR220029 AR390139 AR310428 AR320193 AR320188 AR722412 AR722308 AR722312 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 33...
-
Page 34: Rear
Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 34... - Page 35 Exploded View Explosionszeichnungen Vues Éclatées Plano De Despiece 展開図 爆炸图 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 35...
-
Page 36: Steering
AR721312 AR721308 AR320195 AR330379 AR320196 AR721312 AR721316 AR715003 AR709003 AR340075 AR340073 AR715001 AR340060 AR340065 AR340062 AR340062 AR340074 AR721308 AR340073 AR340073 AR320230 AR715001 AR340070 AR340068 AR340065 AR340067 AR340066 AR320188 AR722412 © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 36... - Page 37 AR721308 AR721412 AR721312 AR320195 AR320196 AR330379 AR721312 AR715001 AR715005 AR709003 AR340065 AR340075 AR340073 AR340062 AR721316 AR721308 AR340062 AR340060 AR340073 AR340068 AR340074 AR340071 AR340065 AR340067 AR340066 AR330230 AR320197 AR722412 WWW.ARRMA-RC.COM © 2014 ARRMA Durango Ltd. A subsidiary of Hobbico, Inc. Page 37...
-
Page 38: Ce Statement
Directive 1999/5/EC. Español Por medio de la presente ARRMA Durango Limited declara que el ATX 100/ [Spanish] ARX 100 cumple con los requisitos esenciales y cualesquiera otras disposi- ciones aplicables o exigibles de la Directiva 1999/5/CE. - Page 39 1999/5/CE. Italiano Con la presente ARRMA Durango Limited dichiara che questo ATX 100/ARX 100 è [Italian] conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
- Page 40 ARRMA-RC.COM All rights reserved. © Copyright ARRMA Durango Ltd. 2014.
