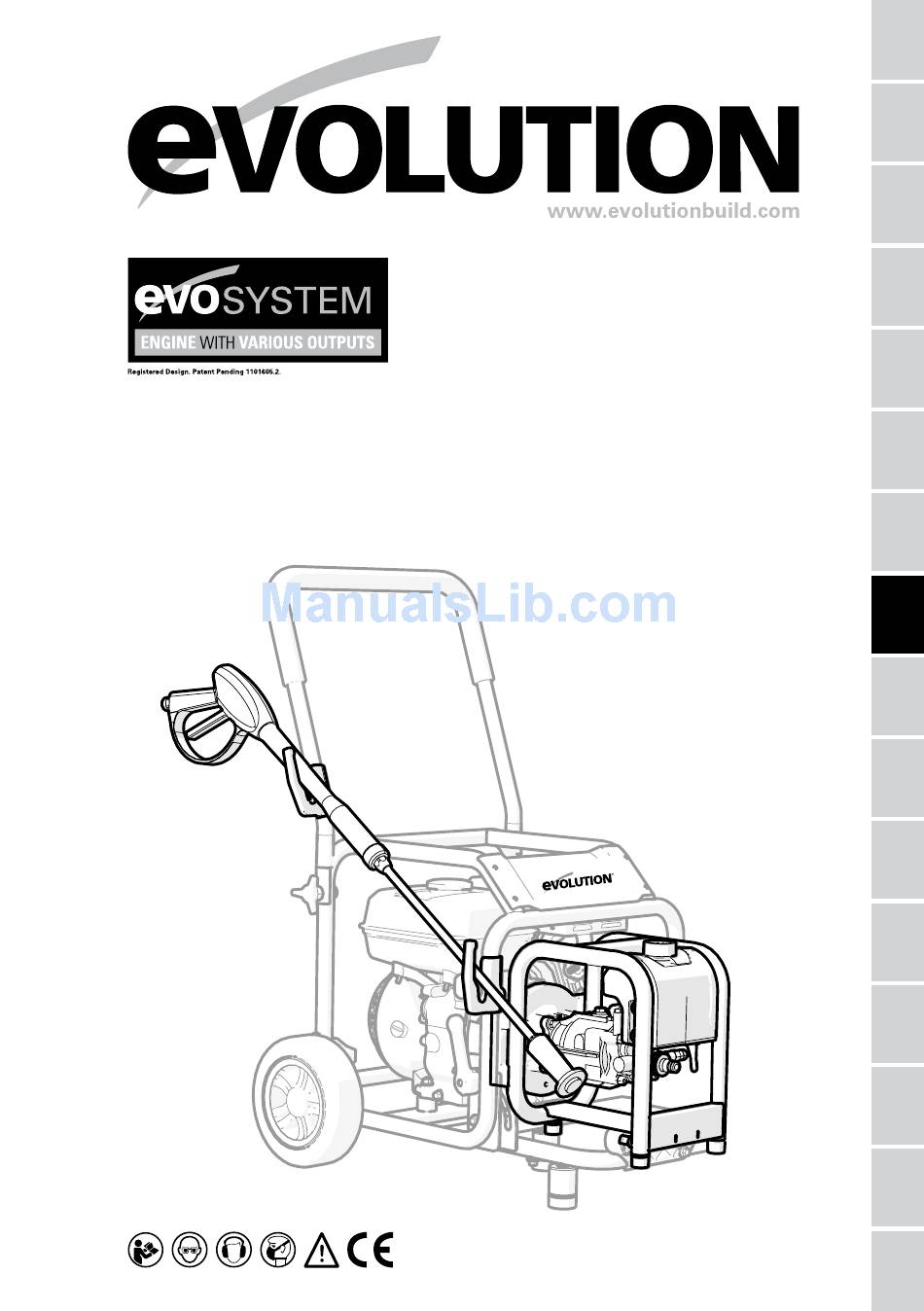

  • Page 1 ® ® PW3200 PRESSURE WASHER ORIGINAL MANUAL Please read instructions before operating this tool...
  • Page 3 Download a FREE QR READER APP and scan the QR CODE (below). Instantly watch the HD Evo-System Video on your Smart Phone. Make sure the HD setting is on. If you don’t have a Smart Phone, you can also watch all Evolution’s videos online.
  • Page 4 Evolution Power Tools Ltd. Venture One Important Information Sheffield S20 3FR 12 Month Limited Warranty Declare that the product Evo-System PW3200 Pressure Washer General Safety Rules Part numbers: Engine Driven Pressure Washer PW3200 Additional Specific Safety Rules Complies with the essential requirements of the following European Directives: Symbols &...
  • Page 5 If you are uncertain about any of sale and none shall be binding on Evolution aspect of using this equipment, please Power Tools. Questions relating to this limited access our Technical Help Resource.
  • Page 6 ® 4. Power tool use and care or entangled cords increase the risk of electric shock. a. Do not force the power tool. Use the e. When operating a power tool outdoors, correct power tool for your application. use an extension cord suitable for outdoor The correct power tool will do the job better use.
  • Page 7 ® SAFETY INSTRUCTIONS FOR k. When transporting the engine in a ENGINE DRIVEN PRESSURE WASHER vehicle ensure that the fuel tap is turned off. To minimise the risk of fuel spillage the engine should be secured by ropes etc to a.
  • Page 8 ------------------------------------------------------------------------ l. Observe all safety rules for the operation Weight: 8.1kg of the Evolution Evo-System Engine as outlined in the Evo-System Engine Instruction Manual. Observe particularly the refuelling procedures and safety rules. Symbol...

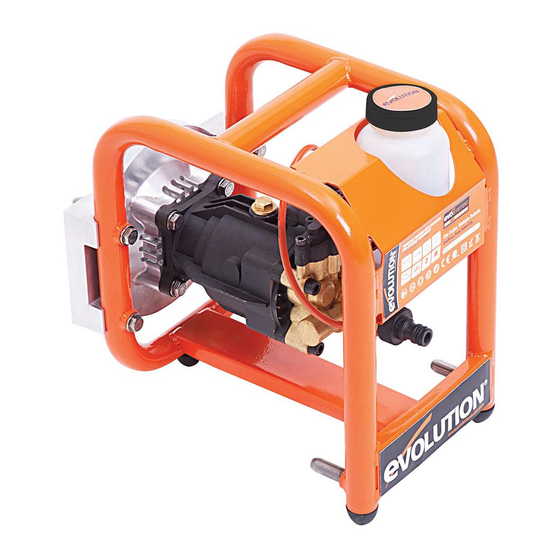

  • Page 9 ® Machine Overview General view of Pressure Washer connected to the Evolution Evo-System Engine Reverse Angle Shown 1. Evolution Evo-System engine 6. Water inlet port 2. PW3200 Pressure Washer 7. Pump/Outlet Port 3. Pressure Washer Lance 8. Pressure Washer Safety Trigger 4.
  • Page 10 ® Machine Overview General view of Pressure Washer connected to the Evolution Evo-System Engine 10. Engine On/Off switch 11. Choke/ Fuel Tap on/off 12. Foot brake www.evolutionbuild.com...
  • Page 11 Your Evo-System Engine has a unique coupling that enables a variety of Evolution accessories to be connected to and be driven by this machine. This coupling is engineered to very...
  • Page 12 ® • Be gentle and patient, the coupling is precisely engineered and no great force is required to connect the accessories. Once the operator has mastered the ‘technique’, accessory connection will become straight forward. • Firmly push the engine and accessory together until the ‘click’...
  • Page 13 1. Siting the Equipment Note: The Evolution Evo-System Engine with the Power Washer attached should be sited with reference to the instructions given in the Evolution Evo-System Engine Instruction Manual (SAFETY INSTRUCTIONS FOR EVO-SYSTEM ENGINE).
  • Page 14 This feature could be activated if the machine is sited on a slope of greater than 10 2. Preparing the Evolution Evo-System Engine Fig. 6 Note: Refer to the Instruction Manual for the Evo-System Engine.
  • Page 15 ® 5. Using the Jet Lance WARNING: The Operator must hold the Jet Lance with both hands. It is dangerous to attempt to use the Jet Lance with one hand. A hand grip is provided approximately half way down the Jet Lance wand. (Fig. 8) Note: The output pressure of the Jet Lance is dependent upon the speed of the engine.
  • Page 16 ® MAINTENANCE AND WINTER STORAGE Some limited maintenance is required to ensure that your pressure washer gives good service for many years. • Keep the annular ring scrupulously clean and free from debris. (Fig. 10) • Keep the 3 locating pins and 2 stabilising pins clean and occasionally spray coat with a silicone oil based spray.
  • Page 17 ® Notes www.evolutionbuild.com...
