Summary of Contents for Leadtek AMOR 8A10

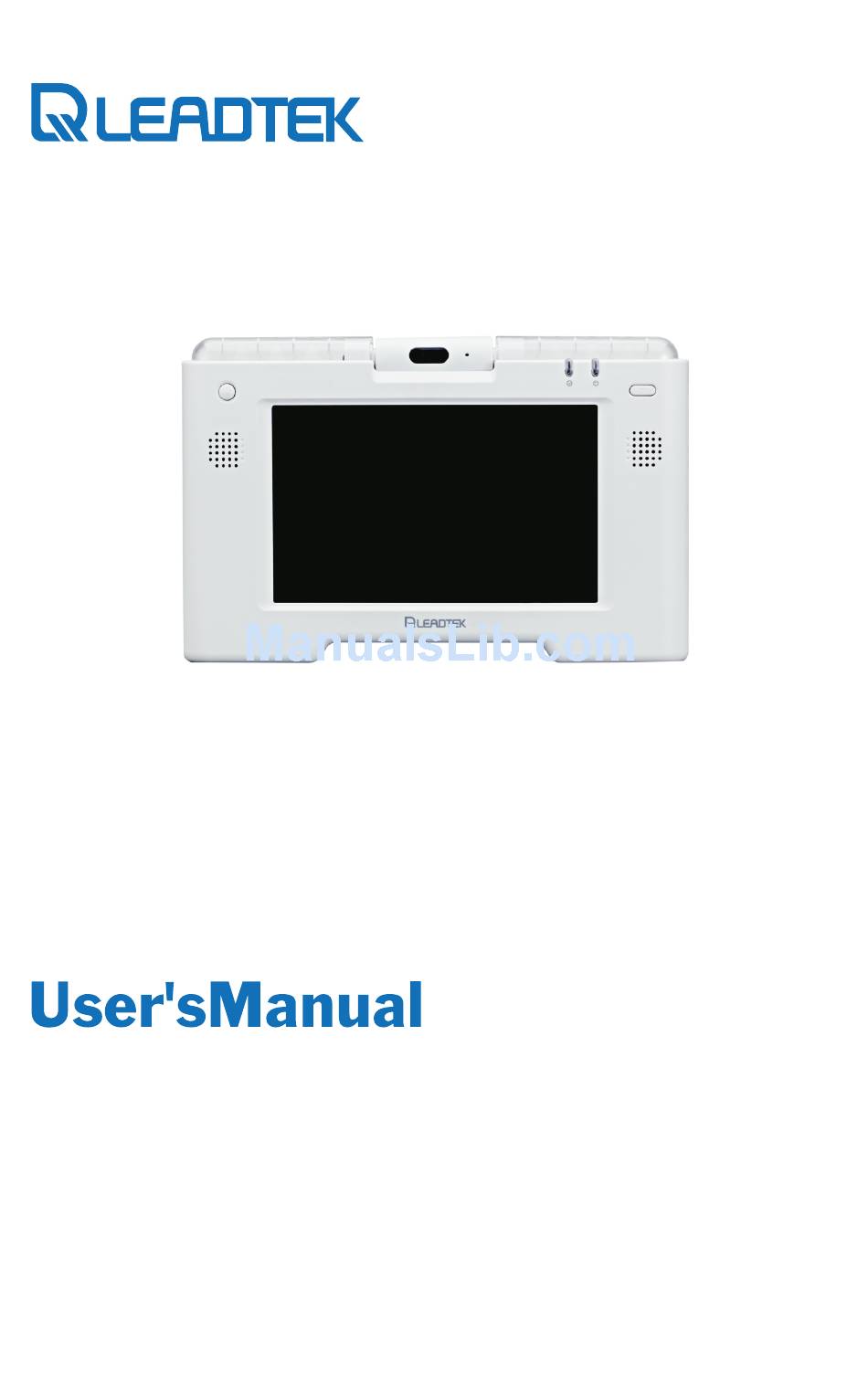

  • Page 1 AMOR 8A10...
  • Page 2 No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Leadtek Research Inc. Leadtek makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice.

  • Page 3: Safety Information

    AMOR 8A10 (and its internal battery) has not been certified as an intrinsic safe device. 4. Only Leadtek authorized service providers have the authority to repair the AMOR 8A10 5. As the AMOR 8A10 is not water-proof, make sure to take appropriate precautions in humid or rainy weather and keep it dry at all times.

  • Page 4: Battery Safety Notices

    2. Use only batteries approved and authorized by Leadtek. If other makes are used, damage to the product may result and voids the warranty. Do not service the battery yourself. You should contact Leadtek or its authorized service providers.
  • Page 5 Lithium- Ion battery. 15. Leadtek and its supplier are not responsible for any damage or casualty as a result of mis-using the battery or not following the conditions described in this Battery Safety Notice.

  • Page 6: Table Of Contents

    Table of Contents Quick Start Introduction What’s in the Package Getting to Know Your AMOR 8A10 Front View Rear View Side View Using the Cradle Using the Remote Control How to Make and Receive a Video Call Dialing Out Direct Dialing...
  • Page 7 Table of Contents How to Use the Contact Creating a Contact Editing a Contact Deleting a Contact Settings Menu General Settings Network Settings Call Settings Photo Settings Product Information Photo Displaying Browsing Photos Capturing Photos Weather News Service FCC Statement...

  • Page 8: Quick Start

    . Quick Start This chapter will help you to quickly start using the AMOR 8A10 to make a video call. Before you begin Ÿ Using the AMOR 8A10 requires a Broadband Internet connection (e.g., a Cable modem or ADSL modem with a router). If you are sharing your Internet connection with another device (such as a PC), you will also need a broadband router or residential gateway.
  • Page 9 Power Adapter into an electrical outlet. AMOR 8A10 Power Adapter Step 3. Extending the stand Gently pull out the stand on the back of the AMOR 8A10 and extend it to a 45-degree angle so that the AMOR 8A10 can stand on its own.
  • Page 10 Turning on the AMOR 8A10 The Power button is located at the upper right hand corner of the unit. Press and hold the power button for three seconds, and the AMOR 8A10 will be turned on. After 1 or 2 minutes, the...
  • Page 11 Using the wizard Before making your first video call, you first have to choose and set up your network settings correctly. When you use AMOR 8A10 for the first time, a built-in wizard will automatically start to help you quickly set up your network connection and other settings, as the picture shown below.
  • Page 12 Step 4: Tap on the left and right directional buttons to select the time zone, and then tap on the city in the list to represent your residence. Tap on the “Done” button when done. Step 5: Tap on the “OK” button. Step 6: Choose whether you are using a wired or a wireless network connection by tapping on the corresponding button.
  • Page 13 Step 7: The wizard is trying to connect to the Internet. Step 8: After a few seconds, a message tells you that the connection is successful. Step 9: AMOR 8A10 is ready for use. Tap on the “GO” button.
  • Page 14 After successfully setting up your AMOR 8A10, you will see the home screen like this: Icons Current date and time There are several icons at the top of the screen. Their meanings are described below. Battery status Battery is being recharged Battery is full Battery has 75% remaining power Battery has 50% remaining power...
  • Page 15 AMOR 8A10 is using a wired Internet connection AMOR 8A10 is using a wireless Internet connection SIP service status AMOR 8A10 is not connected to the SIP service AMOR 8A10 is connected to the SIP service Missed call Displays the number of missed calls...
  • Page 16 Mute Ring off Message Get message...

  • Page 17: Making A Video Call

    Making a video call The easiest way to make a video call is with Direct Dial. Simply tap on the Dial icon on the home screen. You will see the following screen: Tap on the virtual keyboard on the screen to input the desired phone number or IP address, and then tap on to dial out.

  • Page 18: Introduction

    . Introduction AMOR 8A10 is a portable touch-screen videophone supporting Video and Voice applications. It is an intuitive, easy-to-use and easy- to-configure IP video communication solution. Its major functions include IP Telephony, IP Camera Viewer (SIP based) and Digital Photo Frame. AMOR 8A10 is a next generation IP videophone based on the SIP protocol and the H.264 video codec.

  • Page 19: What's In The Package

    . What’s in the Package Please make sure all of these items are included in your AMOR 8A10 package. If any item is missing, please contact your local dealer. Cradle AMOR 8A10 Batteries Remote Control Power Adapter AV Cable Ethernet Cable...

  • Page 20: Getting To Know Your Amor 8A10

    . Getting to Know Your AMOR 8A10 Front View Microphone Rotatable camera Event indicator Light flasher Power indicator Power button Speaker Speaker Touch screen Rotatable camera The camera may be rotated up to 135 degrees by swiveling it up or down.
  • Page 21 0.1 second on / 1 second off Flashing Blue twice: When the power button is pressed for 2 seconds to turn on / off AMOR 8A10. Amber: Network or SIP is disconnected. Flash blue and amber alternately: Firmware is being updated.

  • Page 22: Rear View

    Internet. Stand Gently pull out the stand on the back of the AMOR 8A10 and extend it to a 45-degree angle so that the AMOR 8A10 can stand on its own. Note: The battery life is based on Ethernet connection.

  • Page 23: Side View

    You can connect an external microphone to input audio. SD memory card slot The AMOR 8A10 can be used as a digital photo frame to display the pictures on an SD memory card when it is inserted into this slot.

  • Page 24: Using The Cradle

    . Using the Cradle The cradle can be used for many purposes: ! To connect your AMOR 8A10 to your TV and use it like a classic videophone on your big screen. ! As a docking station on your desk or counter and to easily connect your AMOR 8A10 to a power and Internet source and to other devices quickly and conveniently.
  • Page 25 Recessed mounting holes A/V ports Ethernet port Telephone jack Power cord jack RCA / A/V ports Audio/Video Output Jacks on the back of the cradle which are used to connect to a television or other external monitor. Ethernet port Insert an RJ-45 Ethernet cord into the jack to connect the unit directly to the Internet.
  • Page 26 AC power cord jack Insert the power cord into the power port on the back of the cradle to recharge the AMOR 8A10. The power cord can also be connected directly to the AMOR 8A10. Recessed mounting holes These holes may be used to mount the cradle on a wall in a location in your home or office where you frequently make or receive calls.

  • Page 27: Using The Remote Control

    “OK” to select a single letter. You may activate the AMOR 8A10 from the standby mode at any time by pressing any button on the remote.
  • Page 28 The definition of buttons on the remote control...

  • Page 29: How To Make And Receive A Video Call

    . How to Make and Receive a Video Call Dialing Out There are four methods to dial a number: Direct Dial, Speed Dial, Dial from Call Log, and Dial from Contact. The only difference among the four methods is how the phone number is obtained. Dialing Method How the Phone Number is Obtained Direct Dial...

  • Page 30: Direct Dialing

    Direct Dialing To Direct Dial, tap on the Dial icon on the home screen. A virtual number pad will appear. Enter the desired phone number or IP address, and tap on to make a call. If you want to enter a URL, tap on the “Keyboard” icon at the bottom of the screen.
  • Page 31 You can choose either Video call or Audio call by tapping on the respective button. Option Function Initiate the call with both video and voice. However, you may not see video images of the recipient if the recipient answers the call with voice only. Initiate the call with voice only.
  • Page 32 Add the phone number to a contact 1. Tap on the “Add New” icon. 2. A sub-menu will appear. Tap on the “Add to Contact List” button. 3. The contacts are listed. Tap on a contact for the phone number. 4.

  • Page 33: Speed Dialing

    Speed Dialing To use Speed Dial, the contact must be in the Contact list and saved into a slot first. Up to nine contacts in the Contact list can be saved in the Speed Dial slots. Please follow the steps below. 1.
  • Page 34 Now you can tap on one of the Speed Dial numbers to make a call. 6. AMOR 8A10 is calling out.

  • Page 35: Dialing From The Call Log

    Dialing from the Call Log 1. Tap on the Call Log icon on the home screen. 2. The contents of the Call Log are displayed. Tap on the “Call” icon next to the desired record to make the call. You can tap on the up or down directional buttons on the right of the screen to find a specific record.

  • Page 36: Dialing From The Contact

    Dialing from the Contact 1. Tap on the Contact icon on the home screen. 2. The Contacts are displayed. Tap on the icon next to the desired contact to make an audio call, or tap on the icon to make a video call. AMOR 8A10 is calling out.

  • Page 37: Operations During A Call

    Operations During a Call During a call, there are several icons at the bottom. Their functions will be explained below. Options – Call on Hold 0286532618 Tap on the “Options” icon, and a sub-menu will appear. If you would like to hold the call, tap on the “Hold” button. The one you talked to will be held for waiting 0286532618 To resume the conversation, tap on the “Retrieve”...
  • Page 38 Options – Call Transfer If you need to transfer the call to a new recipient, tap on the “Transfer” button. You can choose to transfer to a contact or a phone number. If the contact has more than one phone numbers, you have to choose one of them.
  • Page 39 0223706495 If you need to enter a URL, you can tap on the “Keyboard” icon. A virtual keyboard will appear. Enter the information and tap on the “Done” button. Options – Make a new call During a call, if you wish to make another call, you can tap on the “Make a new call”...
  • Page 40 Tap on the icon to make an audio call, or tap on the icon to make a video call. When the second call is in progress, the first call will be held 0286532618 for waiting. Options – Switch as voice call If you want to talk with only voice, you can tap on the “Switch as voice call”...
  • Page 41 To resume the video, tap on the “Switch as video call” button in the “Options” menu. 6532618 Options – Buzz If you want to catch the attention of the other party, you can tap on the “Buzz” button. A light bulb symbol will show up at the upper left corner, and the top of the video phone of the other party will flash.
  • Page 42 Numeric Keypad You can tap on the “Keyboard” icon to invoke a virtual numeric keypad if you need to input numbers during the call such like 0286532618 extension numbers or password. Tap on the number buttons when necessary. When you don’t need the keypad, tap on the “Close”...
  • Page 43 Share a Photo During a call, you can share a photo with the other party. To use this function, tap on the “Photo Share” icon. 0286532618 You have to choose the photo source. The photo can be stored in the internal memory, the SD card, or the external USB device.
  • Page 44 The photo is waiting to be received by the other party. To stop sharing the photo, tap on the “Close” button. 0286532618 Capture a Photo During a call, you can tap on the “Capture” icon to take a snapshot of the image of the other party and save it to the internal memory.
  • Page 45 Full Screen: The image of the other party is enlarged to full screen, and your image is hidden. PIP Display: The image of the other party occupies the full screen, and your image appears as a sub-picture at the lower-right corner. Equal Display: The image of the other party is on the left half of the screen, while...
  • Page 46 Video Privacy When you tap on the “Privacy” icon, the video privacy is turned on AMOR 8A10 stops sending your video to the other party during the video call, and you will not be 0286532618 seen by the one you talk to. The other party will see an image which replaces your video.
  • Page 47 Audio Mute When you tap on the “Mute” icon, the audio mute is turned on and AMOR 8A10 stops sending your audio to the other party during the call. You will not be heard by the 0286532618 one you talk to. An icon on the left will show up indicating Audio Mute mode.
  • Page 48 PTZ function During a video call, you can tap on your local image to enable the PTZ function. 0286532618 The positions of the images of both parties will be exchanged. Tap on button to start adjusting your local image with the PTZ 0286532618 function.

  • Page 49: How To Make 3-Way Conference Call

    . How to Make 3-way Conference Call You can make a 3-way conference call with AMOR 8A10. Please follow the steps below to start a conference. 1. Tap on the Conference icon on the home screen. 2. Select the members in the Contact list, or you can tap on the “Keypad”...
  • Page 50 5. Enter the phone number of the third party and tap on the icon for video call or audio call. 6. A 3-way video conference is established. The host can see all three members on the screen, while the other two 0225157839 members can only see him/herself and the host.

  • Page 51: How To Use The Call Log

    . How to Use the Call Log To enter Call Log, please tap on the Call Log icon on the Home Screen. The contents of the Call Log are displayed. You can tap on the icon next to a record to make the call. You can tap on the icon next to a record to delete it.
  • Page 52 The Call Log contains three types of information: Missed Calls, Received Calls, and Dialed Calls. ! “Missed Calls”: stores information about incoming calls that have been missed (unanswered). ! “Received Calls”: stores information about incoming answered calls. ! “Dialed Calls”: stores information about dialed calls. The kind of information in all three logs is the same, and the three logs can be displayed together or separately.
  • Page 53 Deleting all call logs 1. Tap on the “Options” icon. 2. A sub-menu will appear. Tap on the “Delete All” button. 3. You will be asked for confirmation. Tap on the “Yes” button.

  • Page 54: How To Use The Contact

    . How to Use the Contact The Contact menu is where you store your contact information. When you enter the Contact menu, you will see a contact list with names and their photos, or you can add new contacts if the phonebook is empty.
  • Page 55 4. Type the name of the contact and tap on the “Done” button. 5. Tap on the “Add New Number” tab to input the phone number for the contact. 6. Enter the phone number and tap on the “Done” button. You can assign the phone number type to be Home, Mobile, Office, or VOIP.
  • Page 56 9. You can select a corresponding photo for the contact. Tap on the “Memory” button to choose a photo. You can choose a photo from Captured (the internal memory), the SD card, or the USB device. 11. Tap on a photo to select it. 12.
  • Page 57 14. Tap on the “Yes” button to set the photo as the avatar. 15. The system is setting the avatar. 16. Tap on the “Save” button to save the contact. 17. You can switch to “Edit View” by tapping on the icon. 18.

  • Page 58: Editing A Contact

    Editing a Contact 1. In the Contact menu, tap on the “Edit View” icon. 2. Tap on the “Edit” button next to the contact you wish to edit. 3. Tap on the fields and change the contents. When you finish all changes, tap on the “Save”...

  • Page 59: Deleting A Contact

    Deleting a Contact 1. In the Contact menu, tap on the “Edit View” icon. 2. Tap on the “Delete” button next to the contact you wish to delete. 3. You will be asked for confirmation. Tap on the “Yes” button.

  • Page 60: Settings Menu

    . Settings Menu Tap on the Settings icon on the Home screen to enter the settings menu. The Settings menu is where you set up the AMOR 8A10 for your network and to work with your service provider. It is also where you configure it according to your preferences.

  • Page 61: General Settings

    General Settings The General Settings menu contains the general settings for the videophone, including Language, Date / Time, Sound, Display, and Security. Language You can choose a language for the on-screen menu with this function. Tap on the Language tab, and the following screen will appear. Select a language you prefer and tap on the “Done”...
  • Page 62 Date / Time You can set the date and time for AMOR 8A10 with this function. Tap on the Date / Time tab, and the following screen will appear. Time Zone: You can select the time zone in which you are using AMOR 8A10.
  • Page 63 Date / Time: Use this function to set the date and time for AMOR 8A10. Tap on the “Setup” button, and the following screen will appear. Tap on the up and down directional buttons to enter the date and time. Tap on the “Done”...
  • Page 64 Sound You can adjust the volume and select the ring tone for AMOR 8A10 with this function. Tap on the Sound tab, and the following screen will appear. Volume: Tap on the “+” button to increase the volume, and tap on the “-” button to decrease the volume.
  • Page 65 Display You can configure several display options for AMOR 8A10 with this function. Tap on the Display tab, and the following screen will appear. Brightness: Tap on the “+” button to increase the brightness of the LCD screen, and tap on the “-” button to decrease the brightness. Alternatively, you can drag the slider to adjust the brightness.
  • Page 66 Touch Calibration: This function can be used to calibrate input via the touch screen. Tap on the “Start” button to start the calibration. The screen will turn blank, with a crosshair at the upper-left corner. Tap on the center of the crosshair. Four more crosshairs will appear in the following sequence: lower-left corner, lower-right corner, upper-right corner, and center.

  • Page 67: Network Settings

    Network Settings You can create multiple network configuration profiles and conveniently switch to the one that works with the current network environment. Select Network Profile In the “Select Network Profile” tab, if you choose an existing profile, you will be asked if you want to connect to the selected network. Tap on the “Yes”...
  • Page 68 Add / Edit Network Profile To create a new network profile, tap on the “Add” icon. Choose “Wired” or “Wireless” according to your network environment. If you choose “Wireless”, please see page 65 for the setting. Type the name for the profile and tap on the “Done” button.
  • Page 69 DHCP AMOR 8A10 will acquire the IP address / Subnet Mask / Gateway / DNS address via the DHCP mechanism from an upstream device, such as a cable modem or a router. Internet AMOR 8A10 Ethernet Device / Cable modem...
  • Page 70 Static IP Enter IP address / Subnet Mask / Gateway / DNS address manually. Internet AMOR 8A10 Ethernet Device Tap on the “Static IP” tab and tap on the “Done” button. Tap on the “IP Address”, “Subnet Mask”, “Default Gateway”, “Primary DNS”, and “Secondary DNS”...
  • Page 71 PPPoE PPPoE Username and Password are assigned by your ISP. Internet AMOR 8A10 Ethernet Device Tap on the “PPPoE” tab and tap on the “Done” button. Tap on the “Username” and “Password” tabs to input the respective information. Tap on the “Done” button when you finish the setting.
  • Page 72 Wi-Fi Setting Internet AMOR 8A10 Wireless AP or Router Type the name for the profile and tap on the “Done” button. AMOR 8A10 will search for available wireless signals nearby. The signal sources are listed. Tap on the one you would like to use.

  • Page 73: Call Settings

    Call Settings The Call Setting menu contains the call-related settings for the AMOR 8A10. You can tap on the up and down directional buttons to view and access the options. Do Not Disturb Tap on the buttons to toggle "ON" or "OFF". When it is on, Do Not Disturb is enabled.
  • Page 74 Call Forward Tap on the buttons to toggle "ON" or "OFF". If the option is ON, you have to choose “Forwarding Method” and input the “Forward Number”. Forwarding Method: Always: Forward call to the number you assign directly. When Busy: Forward call to the number you assign when videophone is busy.

  • Page 75: Photo Settings

    Photo Settings The Photo Setting menu contains the settings for displaying photos in the photo browser. The settings here are effective for all the photos from internal memory, SD memory card and USB device connected to AMOR 8A10. Image Display Choose a image display mode with function.
  • Page 76 Slide Sequence Choose the pattern to display the photos in the slideshow. The options are Sequential and Random. Slide Interval Choose the interval of the slideshow. The options are 15 sec, 30 sec, 5 min, 15 min, and 60 min. Transition Effect Choose the transition effect between the photos in the slideshow.

  • Page 77: Product Information

    Product Information The Product Information menu contains information on Network, SIP, CODEC, Firmware, and Hardware. Tap on the “Product Information” tab, and the following screen will appear. You can tap on the tabs on the left of the screen to see the detailed information in each category.

  • Page 78: Photo Displaying

    . Photo Displaying Tap on the Photo icon on the Home screen to enter the Photo menu. This is where you browse and capture photos. The system memory can store up to 100 photos and the capacity of the external memory depends on the size of the SD memory card and the USB device.

  • Page 79: Browsing Photos

    Browsing Photos Photos in the device are listed as thumbnails. Tap on a thumbnail to view the photo full size. The details of the photo are displayed at the lower right corner. You can tap on the left and right directional buttons to browse other photos.
  • Page 80 SlideShow Tap on the “SlideShow” icon to start displaying all the photos in the current device as a slideshow. Tap anywhere on the screen to stop the slideshow. Rotate When viewing a photo, you can tap on the “Rotate” icon and select “Rotate Right”...
  • Page 81 Zoom Tap on the “Zoom” icon to zoom in and zoom out the photo you are viewing. Tap on the “+” button to zoom in the photo, and “-” to zoom out the photo. Tap on the “Back” button to return to the browser. Set as If you want to set the current photo as the wallpaper or the avatar, tap on the “Set as”...
  • Page 82 Tap on the “Wallpaper” or “Avatar” button depending on your preference. Delete To delete the current photo, tap on the “Delete” icon. You will be asked for confirmation. Tap on the “Yes” button.

  • Page 83: Capturing Photos

    Capturing Photos To capture photos, tap on the “Camera” tab in the Photo menu to enter the snapshot window. Tap on the “Take Photo” icon to capture the video in the snapshot window and save the image as a photo. The snapshot is listed on the left.

  • Page 84: Weather

    . Weather When connected to the Internet, the AMOR 8A10 can provide you with the weather information of many cities in the world. To see the weather information, tap on the “Weather” icon on the Home screen. The weather of your city and 3 days forecast are displayed. To add new cities, tap on the “Options”...
  • Page 85 Type the name of the country. When you type the initial letters, the matching names are listed. Tap on the country and tap on the “Done” button to choose it. Type the name of the city. Likewise, when you type the initial letters, the matching names are listed.

  • Page 86: News

    . News AMOR 8A10 can also bring you the latest news from all over the globe. To enter the News channel, tap on the “News” icon on the Home screen. News are classified in various categories. Tap the one you are interested in.
  • Page 87 RSS Reader AMOR 8A10 can also function as an RSS reader, with which you can constantly receive updates from news sites or blogs without visiting their web pages. To subscribe to an RSS feed, tap on the “Options” icon. Tap on the “Add new” icon.

  • Page 88: Service

    . Service Please consult your service provider for this function.

  • Page 89: Fcc Statement

    . FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules.
