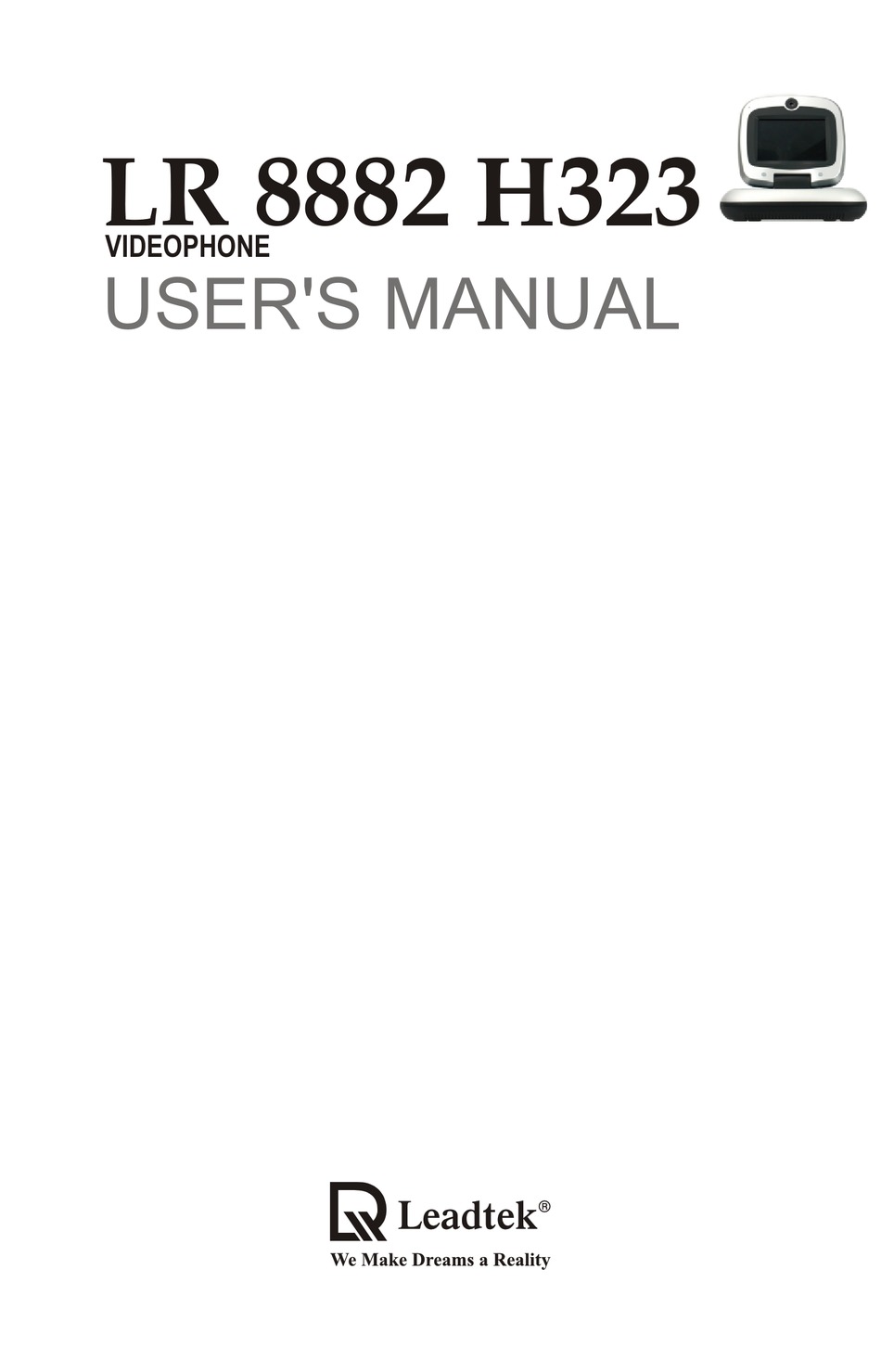

  • Page 1 LR 8882 H323 VIDEOPHONE USER'S MANUAL...
  • Page 2 No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Leadtek Research Inc. Leadtek makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    Audio input ..............3 Audio output..............3 VideoPhone LR 8882 H323 packaging description ..4 What's In The Package ..........5 Getting to Know Your LR 8882 H323 ....... 6 Front view ..............6 LEDs................9 Rear view ..............11 Side view ..............
  • Page 4 System Setup ..............15 ADSL/Constant ADSL/Single, Public, & Fixed IP ..16 When the IP is used exclusively by LR 8882 H323 ....16 ADSL/Constant ADSL/Multiple, Public, & Fixed IP ... 17 When LR 8882 H323 uses one of the IPs (without a DHCP server connected) ........
  • Page 5 Table of Contents Phonebook ..............34 Add ................. 34 List ................. 35 Edit contact ................35 Delete contact ..............36 Make call ................36 InBox ................37 Phone Setup ..............38 Time Setup ..............38 Language Setup ............... 39 Software update .............. 40 Return default ..............

  • Page 6: Getting Started

    (OSD), easily control the functions and make adjustments. The LR 8882 H323 has a built-in high quality CCD camera and an active matrix liquid crystal display. Images are transmitted through the Internet at up to 24 frames per second (fps) (@ CIF resolution).

  • Page 7: Hardware Specifications

    Hardware Specifications LED Status VideoPhone LR 8882 H323 is ON and in standby mode The " En Service " LED is on permanently. Video connection indication If the video connection is establish, the Video LED turns on. When the video connection terminates, this Video LED turns off.

  • Page 8: Network Connection(Modem)

    The user can adjust the sound volume with " " and " " keys on his VideoPhone LR 8882 H323. The audio is output to the VideoPhone LR 8882 H323 speaker (or handset depends if the user is using the hands-free function).

  • Page 9: Videophone Lr 8882 H323 Packaging Description

    VideoPhone LR 8882 H323 tightly. An ethernet cable is used to connect VideoPhone LR 8882 H323 to an ADSL modem either directly or through a PLT (optional). An A/V Convertible Cable which provides one pair of Audio/Video...

  • Page 10: What's In The Package

    What's In The Package The following is a summary of VideoPhone LR 8882 H323 accessories: Color: Black Color: Dark Grey Length: 1600mm Handset x 1 Power Adapter x1 Color: Black Color: Black Length: 1830mm Handset Cable x 1 Power Cord x1...

  • Page 11: Getting To Know Your Lr 8882 H323

    Getting to Know Your LR 8882 H323 Front view CCD Camera: Mic: The input source of local video Microphone can be used image, a miniature built-in CCD instead of handset. camera. LCD Screen: Message indicator: Shows the video images of callers.

  • Page 12: Hot Keys

    Front view (cont.'d) Cursor Panel When used with OSD menus; it is used to move the cursor up. During a call, it is used for turning the volume of the speaker Used with OSD menus; to pop up phone up. the OSD menu, to enter the sub Used with OSD menus;...
  • Page 13 The images are usually reversed. "Still/Privacy" key(Orange) : Press once to freeze the video image of callers so that the other party can have a clearer display. Press twice to hide the display image to the other side. LR 8882 H323 User's Manual...

  • Page 14: Leds

    When the user switches in Video mode, the LED lights up permanently. As soon as user freezes his local image or when the 'Privacy" mode is on, the LED flickers/blinks. "Power" "Message" When VideoPhone LR 8882 H323 is well-connected, the LED is in permanent red color.

  • Page 15: Numeric Keypad

    Front view (cont.'d) Numeric Keypad Inputting numbers Pressing any key on the numeric keypad can input the corresponding number. For example, pressing will generate the number " 8 ". Inputting letters Every button on the numeric keypad has characters printed on it, in addition to the numbers.

  • Page 16: Rear View

    180 degrees Handset Jack (To the left) and 90 Handset cable degrees (To the right) connector and tilted forwards and backwards USB port(Metal) The USB interface that provides extension for USB WiFi Ethernet dongle LR 8882 H323 User's Manual...

  • Page 17: Installation

    Installing the unit Step 1 Pick a good spot Stability Place your LR 8882 H323 on top of a counter, desk, or table with the CCD camera opening in front. Lighting condition Make sure the lighting is sufficient and does not shine directly into camera lenses.
  • Page 18 Plug one end of the Ethernet cable in one port of the jacks marked " " on LR 8882 H323. Plug the other end of the Ethernet cable in the RJ-45 jack of the Ethernet device (hub, router, or A TU-R).

  • Page 19: Using External Devices (Optional)

    Using external devices (Optional) External Microphone Ethernet connection A/V Input A/V Output (Brown tags) (Green tags) Television CCD Camera DVD/VCD DVD/VCD (for recording) (for playing)

  • Page 20: System Setup

    (as shown in the figure), indicating what type of connection the setup guide on that page is for. Look for the type of connection you use with your LR 8882 H323 to find the setup instructions you need. Condition Bar...

  • Page 21: Adsl/Constant Adsl/Single, Public, & Fixed Ip

    Connection ADSL Type Constant ADSL Single, Public, & Fixed When the IP is used exclusively by LR 8882 H323 Internet LR 8882 H323 ATU-R LR 8882 H323 System Setup Note : IP address, Subnet Mask and Gateway are assigned by your SIP, each consisted of 4 sets...

  • Page 22: Adsl/Constant Adsl/Multiple, Public, & Fixed Ip

    System Setup (Cont'd) Connection ADSL Type Constant ADSL Multiple, Public, & Fixed When LR 8882 H323 uses one of the IPs (without a DHCP server connected) Internet ATU-R General PC 1, 2, ...n LR 8882 H323 LR 8882 H323 System Setup Note : IP address, Subnet Mask and Gateway are assigned by your SIP, each consisted of 4 sets of numbers with dots in between them.

  • Page 23: Adsl/Timing Adsl/Single, Public, & Dynamic Ip

    Single, Pu blic, & Dyn am ic Connection ADSL Type Timing ADSL When the ADSL is used exclusively by LR 8882 H323 Internet LR 8882 H323 ATU-R LR 8882 H323 System Setup Note : IP, Subnet Mask and Gateway are assigned by PPPoE.

  • Page 24: Cable/Single, Public, & Dynamic Ip

    System Setup (Cont'd) Connection Cable Type Single, Public, & Dynamic When the IP is used exclusively by LR 8882 H323 Internet LR 8882 H323 Cable modem LR 8882 H323 System Setup Note : IP, Subnet Mask and Gateway are assigned by the DHCP server of your SIP.

  • Page 25: Lan/No Firewall Or Nat

    With a DHCP server connected Internet Router General PC 1, 2, ...n LR 8882 H323 DHCP Server LR 8882 H323 System Setup Note : IP, Subnet Mask and Gateway are assigned by your DHCP server. Remember that Public IP is required.

  • Page 26: Without A Dhcp Server Connected

    General PC 1, 2, ...n LR 8882 H323 LR 8882 H323 System Setup Note : IP address, Subnet Mask and Gateway are assigned by your SIP. If you are using an IP segment, which is x.x.x.0-x.x.x.255, your settings should be: IP : one chosen from the range between x.x.x.1 to x.x.x.254...

  • Page 27: Lan/Firewall With Packet Filter

    LR 8882 H323 DHCP Server Firewall You can put LR 8882 H323 into DMZ, or open all ports of LR 8882 H323 if your router supports this function. LR 8882 H323 System Setup Note : - IP, Subnet Mask and Gateway are assigned by your DHCP server.

  • Page 28: Without A Dhcp Server Connected

    General PC 1, 2, ...n LR 8882 H323 Firewall You can put LR 8882 H323 into DMZ, or open all ports of LR 8882 H323 if your router supports this function. LR 8882 H323 System Setup Note : IP address, Subnet Mask and Gateway are assigned by your SIP. If you are using an IP segment, which is x.x.x.0-x.x.x.255, your settings should be:...

  • Page 29: Lan/Firewall With Nat & Packet Filter

    LR 8882 H323 DHCP Server Firewall The DHCP Server You can put LR 8882 H323 into DMZ, or open all ports of LR 8882 must be able to H323 if your router supports this function. support dynamic- fixed IP allocation.

  • Page 30: Without A Dhcp Server Connected

    General PC 1, 2, ...n LR 8882 H323 Firewall You can put LR 8882 H323 into DMZ, or open all ports of LR 8882 H323 if your router supports this function. LR 8882 H323 System Setup Note : You can assign your own IP , Subnet Mask and Gateway within your private segment. If the segment is 172.16.0.0-172.16.0.255, your settings should be:...

  • Page 31: Making A Call

    0.5 m 0.5 m Make sure of the most appropriate Do not point the LR 8882 H323 at a lighting source, preferably from the mirror or bright light. front with the beam on your face.

  • Page 32: Making A Video Call

    Dialing (local view) Step 5 If there is difficulty in making connection, please make sure that the LR 8882 H323 has been properly installed. Please also check if the network settings are configured properly. LR 8882 H323 User's Manual...

  • Page 33: Using Osd Menus

    Using OSD Menus Outbox Outbox You can dial out directly from the Outbox list.

  • Page 34: Network Setup

    Using OSD menus Network Setup Bandwidth Bandwidth Saving... Please wait.. Saving... Please wait.. Please set the bandwidth according to the bandwidth your SIP provides. LR 8882 H323 User's Manual...

  • Page 35: Ip Setup

    Using OSD menus Network Setup IP Setup IP Setup Saving... Please wait.. Connect Type: STATIC: IP address/Subnet Mask/Gateway have to be assigned (Consult your SIP provider). IP address/Subnet Mask/Gateway will be assigned by DHCP DHCP: server PPPoE: PPPoE Username/PPPoE Password have to be assigned (Consult your SIP provider).

  • Page 36: Nat Setup

    Using OSD menus Network Setup NAT Setup NAT Setup Saving... Please wait.. LR 8882 H323 User's Manual...

  • Page 37: Gk Setup

    Using OSD menus Network Setup GK Setup GK Setup Saving... Please wait.. GK: When the Gatekeeper is turned off the GK IP, Phone number, H323 alias and Keep alive functions are unavailable. GK IP: You need to get the IP of the gatekeeper from your gatekeeper service provider.

  • Page 38: Missed Calls

    Using OSD menus Missed Calls Missed Calls You can dial out directly from the Missed Calls list. LR 8882 H323 User's Manual...

  • Page 39: Phonebook

    Using OSD menus Phonebook Add Adding to the phonebook Refer to explanations on page 44 Saving.. Please wait...

  • Page 40: List

    Using OSD menus Phonebook List List of numbers Edit contact Saving.. Please wait... (Continued) LR 8882 H323 User's Manual...

  • Page 41: Delete Contact

    Using OSD menus Phonebook List List of numbers (cont'd) Delete contact Make call If you cannot dial out with LR 8882 H323, please hang Record deleted up or press button to return to local view, and try to dial again.

  • Page 42: Inbox

    Using OSD menus Inbox Inbox You can dial out directly from the Inbox list. LR 8882 H323 User's Manual...

  • Page 43: Phone Setup

    Using OSD menus Phone Setup Time setup Time setup Saving.. Please wait... Please set the time zone according to the area you are using the phone.

  • Page 44: Language Setup

    Using OSD menus Phone Setup Language setup Language setup Saving.. Please wait... Choose the language for the OSD Menu. LR 8882 H323 User's Manual...

  • Page 45: Software Update

    Using OSD menus Phone Setup Software update Software update...

  • Page 46: Return Default

    Using OSD menus Phone Setup Return default Return default Press to restore the factory settings. Press to cancel. LR 8882 H323 User's Manual...

  • Page 47: Calls Setup

    Using OSD menus Calls Setup Communication mode Communication mode Saving.. Please wait... Users can choose the Communication mode to be either Audio mode only or Video + Audio mode.

  • Page 48: Caller Id

    Using OSD menus Calls Setup Caller ID Caller ID Saving.. Please wait... When Caller ID is ON, the caller ID will display on the screen when an incoming call is received. LR 8882 H323 User's Manual...

  • Page 49: T.140

    Using OSD menus Calls Setup T.140 T.140 Saving.. Please wait... During the phone conversation, users can type in words instead of talking on the phone when T.140 is set to ON.

  • Page 50: Auto Answer

    Using OSD menus Calls Setup Auto answer Auto answer Saving.. Please wait... While dialing, the Auto answer function is turned on when the auto answer function for a phonebook entry is set to ON. LR 8882 H323 User's Manual...

  • Page 51: Auto Answer Rings

    Using OSD menus Calls Setup Auto answer rings Auto answer rings Saving.. Please wait... When Auto Answer is ON, you can set the number of rings (0~9) before the auto answer function is activated.

  • Page 52: Information

    Using OSD menus Using OSD menus Information Information This screen displays system information such as IP, Submask, Gateway, software & hardware version. LR 8882 H323 User's Manual...

  • Page 53: Osd Menu Tree

    OSD Menu Tree Missed Calls Inbox Edit Outbox Delete List Make call Phonebook Communication mode Information Caller ID T.140 Calls Setup Auto answer Auto answer rings Time Setup Phone Setup Language Setup Software upgrade Return default Bandwidth Network Setup IP Setup NAT Setup GK Setup...

  • Page 54: Trouble Shooting

    Trouble Shooting Your LR 8882 H323 is reliable and easy to use. If you encounter any problem while using this product, please refer to the table below for possible solutions. Power Indicator OFF Video of local view is dark Plug power adapter in the unit.

  • Page 55: Tech Support

    In the event of not finding the solution to your problem, please contact your local distributor. You may also contact our technical support staff; E-mail to <service@leadtek.com.tw> with the following information: Product name: It will be easier for our staff to answer your question if you know the name of the product.

  • Page 56: Limited Warranty

    Limited Warranty Leadtek warrants to the original purchaser of this product that it shall be free of defects resulting from workmanship or components for a period of one (1) year from the date of sale. Defects covered by this Limited Warranty shall be corrected either by repair or, at Leadtek's discretion by replacement.

  • Page 57: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: · This device may not cause harmful interference. · This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules.
