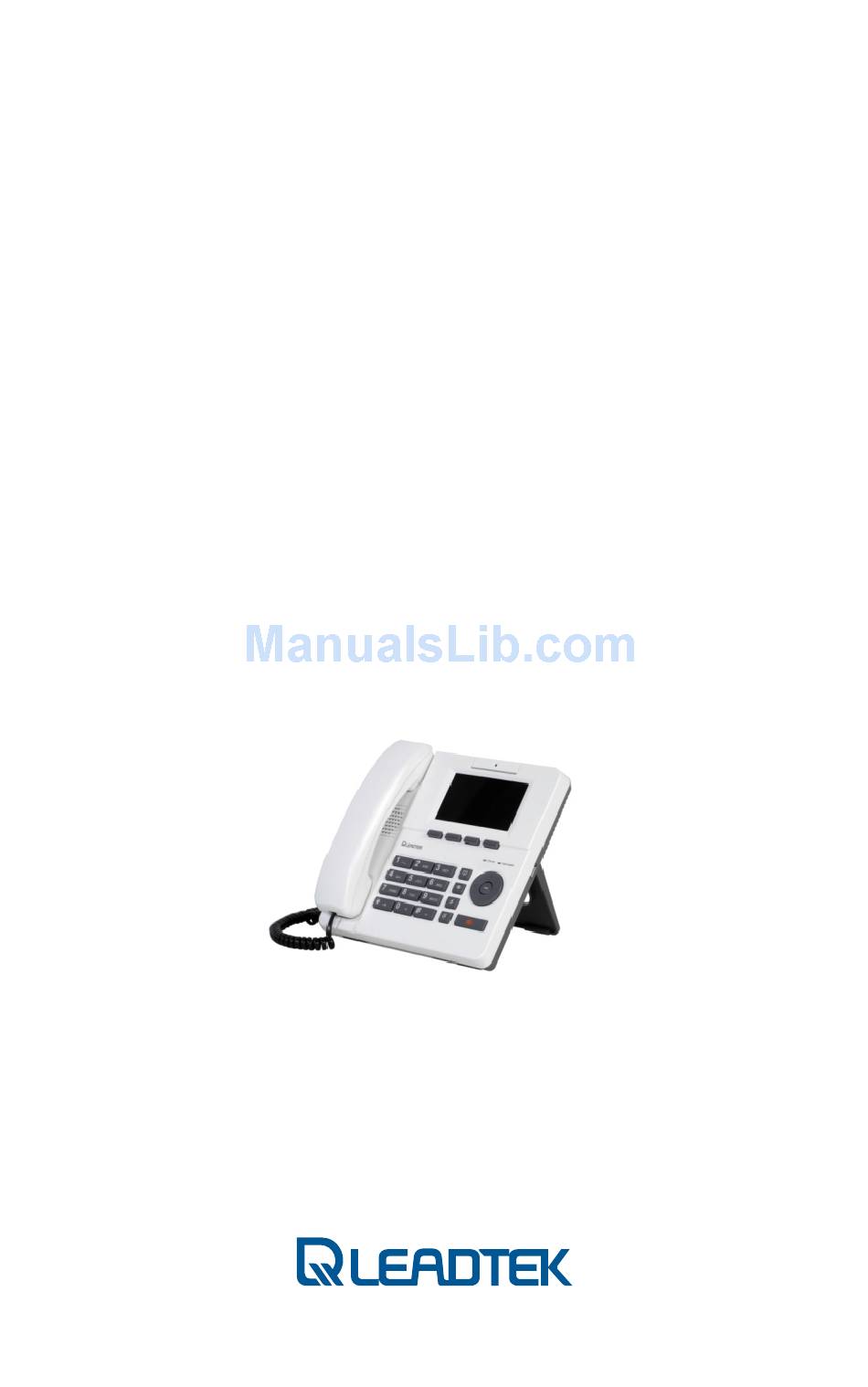

- Page 1 XTP8886 User's Manual...
- Page 2 No part of this document may be copied or reproduced in any form or by any means without the prior written consent of Leadtek Research Inc. Leadtek makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Getting Started ........... 1 What's In The Package ........2 Getting to Know Your XTP8886 ......3 Front view ..............3 Rear view ..............10 Side panel ..............11 Installation ............12 Installing the unit ............12 System Setup ............. - Page 4 Table of Contents Configuration Menu .......... 33 Photo Setting ............... 34 Device Setting ............. 35 Display Setting .............. 35 Sound Setting ..............36 Time Setting ..............37 Change Password ............37 Call Setting ..............38 Call Feature ..............38 Codec & Misc ............... 42 Network Setting ............
-
Page 5: Getting Started
Getting Started Overview XTP8886 is an H.264 based broadband videophone supporting Video and Voice applications. Its major functions include IP Telephony, IP Camera Viewer (SIP based) and Photo frame. It can satisfy the demanding requirements of the next generation of IP broadband communication applications and opens the door to the world of multimedia. -
Page 6: What's In The Package
What's In The Package XTP8886 x1 Handset x 1 Handset Cable x 1 Telephone Line Cord x 1 Stand x 1 Power Adapter x 1 Ethernet Cable (RJ-45) x 1 User's Manual x 1 XTP8886 Telephone Handset Handset Cable Stand... -
Page 7: Getting To Know Your Xtp8886
Getting to Know Your XTP8886 Front view SD card slot (on the top) Microphone Camera Soft keys Speaker (on the side) Handset Keypad Handset Cable XTP8886 User's Manual... - Page 8 Front view (cont.'d) Keypad Soft keys Navigation keys Speakerphone Feature keys Numeric / Alphabet / Symbol keys Numeric / Alphabet / Symbol Keys The numeric / alphabet / symbol keys are used for entering numbers, letters and symbols. In a situation where only a number is expected, for example, when dialing a phone number, pressing a key will enter the corresponding digit.
- Page 9 A complete example: Suppose is used to switch between the lower case/upper case and numeric modes. To arrive at the characters Got 2 Go, do this: Press To get Upper case Lower case Space Space Upper case Lower case XTP8886 User's Manual...
- Page 10 Front view (cont.'d) Feature Keys The feature keys provide a quick way to invoke a feature or a function. Phonebook: Press to access the phonebook menu. Video Privacy: Press to turn on video privacy, the videophone stops sending your video to the recipient. Press again to turn off video privacy. Flash: When there is an incoming call, pressing this key followed by a phone number will forward the call to the number.
- Page 11 During a call, increases the video bandwidth. Confirms a selection. During a call, shows the current video bandwidth. Press this key at the home page and the picture below will show up. The phone number and IP address will be displayed. XTP8886 User's Manual...
- Page 12 Front view (cont.'d) Soft Keys There are four soft keys: F1 , F2 , F3 & F4 . Each key performs a specific function indicated by a corresponding icon displayed near the bottom edge of the screen. The specific function is assigned by the internal logic of the videophone and varies from menu to menu.
- Page 13 Power is on but there are some problems. The detail will be displayed on the display (LCD or external display). Power is on and the videophone is running well. VIDEO/MSG Yellow No video transmission. Video is being transmitted. Blink There is unread message(s). XTP8886 User's Manual...
-
Page 14: Rear View
Rear view Network: Plug in a Cat-5 network cable for connecting to an upstream network port. Line: Connect a telephone line cord to the wall jack (for the models with PSTN A/V Output: connectivity only.) Plug in the AV cable for connecting to an external display. -
Page 15: Side Panel
SD Card Slot (on the top): Plug in the supported SD memory card. USB (on the right side): Handset Connector (on the left): Plug in the supported USB flash disk or Wi-Fi dongle. Plug in the provided handset cord. XTP8886 User's Manual... -
Page 16: Installation
Installing the unit Step 1 Pick a good spot Stability Place your XTP8886 on top of a counter, desk, or table with the CCD camera opening in front. Lighting condition Make sure the lighting is sufficient and does not shine directly into camera lenses. - Page 17 Step 3 Connect the Ethernet cable Plug one end of the Ethernet cable in the port marked with "NETWORK" on the back of XTP8886. Plug the other end of the Ethernet cable in the RJ-45 jack of the Ethernet device (hub, router, or A TU-R).
-
Page 18: System Setup
In startup screen the videophone will test self. If any item fails you can press to go to the main menu. If the XTP8886 is not connected to the Internet or the connection fails, you will be asked to input the current date and time. Press... - Page 19 Phone service is enabled Password In the home screen when you press to go to Settings menu, you will be asked to enter password. There is no password for general users. Just press . The password for administrator is 4321. XTP8886 User's Manual...
-
Page 20: Ip Telephony Setup
IP Telephony Setup Set Up Videophone to Use a Fixed IP Address 1. Press 2. Select the "Network Setting" icon. 3. Press to change the Connect Type to Static. 4. Press to move to IP Address. Enter a fixed IP address. 5. -
Page 21: Making A Call
XTP8886. that might shine into the camera lens. 0.5 m 0.5 m Do not point the XTP8886 at a Make sure of the most mirror or bright light. appropriate lighting source, preferably from the front with the beam on your face. -
Page 22: Making And Receiving Calls
Making and receiving calls Dialing out There are four methods of dialing a number: Direct Dial, Speed Dial, Dial from Call List, and Dial from Phonebook. The only difference among the four methods is how a phone number is obtained. Dialing Method How a Phone Number is Obtained Direct Dial... -
Page 23: Dial With Phone Number
Initiate the call with voice only. Recipient will not be able to see you. Assumes the key is used to switch between the lower case /upper case /numeric modes. Switch to PSTN call. Press Forward to another call. Hang up and redial. Switch to VoIP call. XTP8886 User's Manual... -
Page 24: Dial With Ip Address
Dial with IP address User can use text or numeric mode input IP address in place. If you need to change numeric or text mode, press to change. See the section called "Keypad" chapter. a. Text mode: You can use keypad in text mode to input numeric directly, for example: pressing will enter the numeric "1", and pressing two times will... -
Page 25: Answering
Incoming call is Video + Voice Press Receive the call with both video and voice. Receive the call with voice only. Caller will not be able to see you. Reject the call. Caller will hear a busy Signal. XTP8886 User's Manual... - Page 26 Incoming call is Voice only Press Receive the call with voice. Caller will not be able to see you. Reject the call. Caller will hear a busy signal.
-
Page 27: During A Call
You can think of video privacy as a video mute. Audio Mute Press to mute your audio. The recipient will not be able to hear anything on your side. To turn off mute, press the same key again. XTP8886 User's Manual... -
Page 28: Call List
Call List The Call List contains three logs of information. The first log, Inbox, stores information pertaining to incoming answered calls. The second log, Missed Call, stores information pertaining to incoming calls that have been missed (not answered). The last log, Outbox, stores information pertaining to dialed calls. - Page 29 To navigate and make selections in the Call Log menu and its sub-menus, use the navigation keys and soft keys as described previously. Referring to the figure above, to enter the Inbox menu, first use to highlight the Inbox icon, and then press XTP8886 User's Manual...
-
Page 30: Responding To A Call
Because the three logs essentially store the same information and are operated the same way, only the Inbox will be extensively discussed in this document. The same discussions apply to both the Outbox and the Missed Call. Responding to a Call This action is also known as Dial from Call Log. -
Page 31: Delete An Entry
Delete an Entry to highlight the Inbox log. Press to go to Inbox. to highlight an entry you want to delete. Press to delete it. Press to confirm deletion or Press to cancel. XTP8886 User's Manual... - Page 32 Save an Entry into Phonebook to highlight the Inbox log. Press to go to Inbox. to highlight an entry you want to add into phonebook. Press to save the entry. The saving procedure is identical to creating a new entry in the Phonebook menu.
-
Page 33: Phonebook
"Speed Dial". Press to choose the Speed Dial number. Press to add the phone number to Speed Dial. If the chosen number is already used, you will be asked if you would like to replace it. Press when done. XTP8886 User's Manual... -
Page 34: Edit A Contact
Choose an image for the new contact Press , and use choose "Image". Press to choose a picture stored in the unit and press Press to save the contact. Edit a Contact In the Phone book menu, use choose the contact you want to edit. Press , and use choose "Edit". -
Page 35: Delete A Contact
Press when done. Delete a Contact In the Phone book menu, use choose the contact you want to delete. Press , and use choose "Delete". Press Press to confirm the deletion, or press to cancel. XTP8886 User's Manual... - Page 36 Search a Contact In the Phone book menu, press any numeric keys. A search bar is displayed at the top of the contact list. The contact list will be updated according to the contents in the search bar. to select contact from the search result. Press to return the full contact list.
-
Page 37: Configuration Menu
Network Setting, and STUN Setting. Please refer to the related chapters for more details. To return to the previous menu, press When you make a change and want to save it, press . The screen will prompt you for confirmation. Press to confirm, or discard the change. XTP8886 User's Manual... -
Page 38: Photo Setting
The Photo Setting menu contains the settings for displaying photos in the photo browser. The settings here are common to the photos stored in the SD memory card and the USB device connected to the XTP8886. Play in style Choose the style the photos are displayed. The options are Normal and Effect. -
Page 39: Device Setting
Display Setting, Sound Setting, Time Setting, and Change User Password functions. Display Setting The Display Setting menu contains Language and Screen Saving. Language This function can change the UI language. You can press the keys to change it. XTP8886 User's Manual... -
Page 40: Sound Setting
Screen Saving You can configure the screen saver here. There are two options: Photo Display and Screen Off. If you choose Photo Display and when the screen saver is triggered, the videophone will play the pictures in the SD memory card if it's present. -
Page 41: Time Setting
You can also perform this function on the web configuration page. If you want to change the administrator password, then you must use web configuration to perform it. XTP8886 User's Manual... -
Page 42: Call Setting
Call Setting The Call Setting menu contains the call-related settings for the videophone, including Call Feature and Codec & Misc. Call Feature Caller ID Action Result to choose "ON" or "OFF". Caller ID enabled if you choose "ON". Press... - Page 43 Do Not Disturb Action Result to choose "ON" or "OFF". Do not disturb enabled if you choose "ON". Press XTP8886 User's Manual...
- Page 44 Call Forward Action Result Call forwarding enabled. to select Call Forward. to select No ringing / Busy / Time out / OFF. Use numeric keys to set forward number. Press No ringing: Forward call to the number you assign directly. Busy: Forward call to the number you assign when videophone is busy.
- Page 45 Call Wait enabled if you choose "ON". Press During a call, you will see a message on the screen when another call comes in. Press to answer the second call and then switch between these two calls with XTP8886 User's Manual...
-
Page 46: Codec & Misc
Codec & Misc Audio Codec Action Result to choose the audio codec Apply the audio codec according you prefer. to your selection. Press Video Codec Action Result to choose the video codec Apply the video codec according you prefer. to your selection. Press... - Page 47 Video Bandwidth Action Result Press to change values. Video quality gets better when given more bandwidth. Press DTMF Mode Action Result to choose the mode you use. Apply DTMF mode according to your selection. Press XTP8886 User's Manual...
-
Page 48: Network Setting
There are three types of settings. DHCP Acquire IP address/Subnet Mask/Gateway/DNS address via the DHCP mechanism from an upstream device, such as a cable modem or a router. Internet XTP8886 Ethernet Device / Cable modem Press to choose Network Setting icon. Press to select "DHCP". -
Page 49: Static Ip
Static IP Enter IP address/Subnet Mask/Gateway/DNS address manually. Internet XTP8886 Ethernet Device Press to choose Network Setting icon. Press to select "Static". Manually enter the IP address/Subnet Mask/Gateway/DNS address. Press The videophone will reboot. XTP8886 User's Manual... -
Page 50: Pppoe
PPPoE IP address/Subnet Mask/Gateway/DNS address are assigned by PPPoE. PPPoE Username and Password are assigned by your ISP. Internet XTP8886 Ethernet Device Press to choose Network Setting icon. Press to select "PPPoE". Enter PPPoE Username and PPPoE Password. Press The videophone will reboot. -
Page 51: Service Setting
Your videophone registers to it during power up or rebooting. It also acts as a telephone switch behind the scenes. Screen Action to select "Service Setting". Press to select "SIP Service". Press to select "Account Setting". Press XTP8886 User's Manual... - Page 52 to select account. Press Consult your service provider for the following information: SIP service / SIP Domain / SIP Port Phone Number / Caller ID Login Name / Login Password Press Dynamic-DNS Queried to select "Dynamic-DNS Queried". Press Consult your service provider for the following information: SIP Domain/Phone Number / Caller ID / Login Name / Login Password...
-
Page 53: Stun Service
"Account Selection". Press to choose the account you prefer. Press STUN Service STUN service is used to help your videophone connect with your service provider from behind a NAT router. Consult your service provider for the information. XTP8886 User's Manual... -
Page 54: Aps Service
APS Service APS service will be pre-configured by your service provider. Software Update Consult your service provider for the information. Product Info The Product Info menu contains an information screen of firmware versions. See the figure below. It is for reference only. to highlight the Product Info. -
Page 55: Photo Frame
Photo List mode. Press to close the browser window. If the picture to be displayed is larger than 640 x 480 pixels, it will not show up, and a message "unsupported size" will appear. XTP8886 User's Manual... - Page 56 In the Photo Browser, press to enter the Photo Setting menu, as described in the Photo Setting section. Choose the options you prefer. Press when done. In the Photo Browser, press to automatically play all of the pictures in the SD card. Browse the Pictures in the USB Device The operations for browsing the pictures in the USB device are essentially the same as the descriptions for browsing the pictures in the SD card.
-
Page 57: Browse The Pictures In System Memory
Browser. Note: 1. The pictures stored in the internal memory of the XTP8886 can be copied to the SD card or the USB device. However, you can not copy the pictures in the SD card or the USB device to the internal memory of XTP8886. -
Page 58: Capture A Picture
Capture a Picture Press to enter the Photo Browser. to select "Camera" and press to enter the snapshot window. Press to capture the video in the snapshot window. Press to close the snapshot window. Press to save the snapshot to the internal memory. -
Page 59: Tv Mode
TV mode following the instructions below. Press at the home screen, and the screen below will appear. Press to switch to TV mode. The LCD will be turned off. to switch between the built-in LCD and the external display device. XTP8886 User's Manual... -
Page 60: Trouble Shooting
Trouble Shooting Your XTP8886 is reliable and easy to use. If you encounter any problem while using this product, please refer to the table below for possible solutions. Power Indicator OFF Plug power adapter in the power outlet in the wall. -
Page 61: Limited Warranty
Limited Warranty Leadtek warrants to the original purchaser of this product that it shall be free of defects resulting from workmanship or components for a period of one (1) year from the date of sale. Defects covered by this Limited Warranty shall be corrected either by repair or, at Leadtek's discretion by replacement. -
Page 62: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules.
