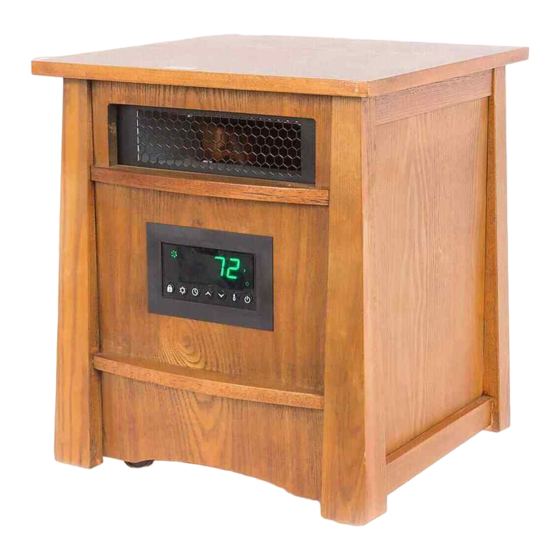

Life Smart LS-8WIQH-DB Owners Installation And Operating Manual

Infrared
Hide thumbs

Advertisement

Quick Links

O
W
N
E
R
O
W
N
E
R
Please read this entire Installation and Operating Manual BEFORE installing and using
your new Infrared Heater. Failure to fully understand and follow instructions may result in
property damage, bodily injury, or even death.
If the Infrared Heater in not used properly, a house fire may result. For everyone's safety,
FOLLOW all Installation and Operating Directions.
S
I
N
S
T
A
L
L
A
T
I
O
S
I
N
S
T
A
L
L
A
T
I
O

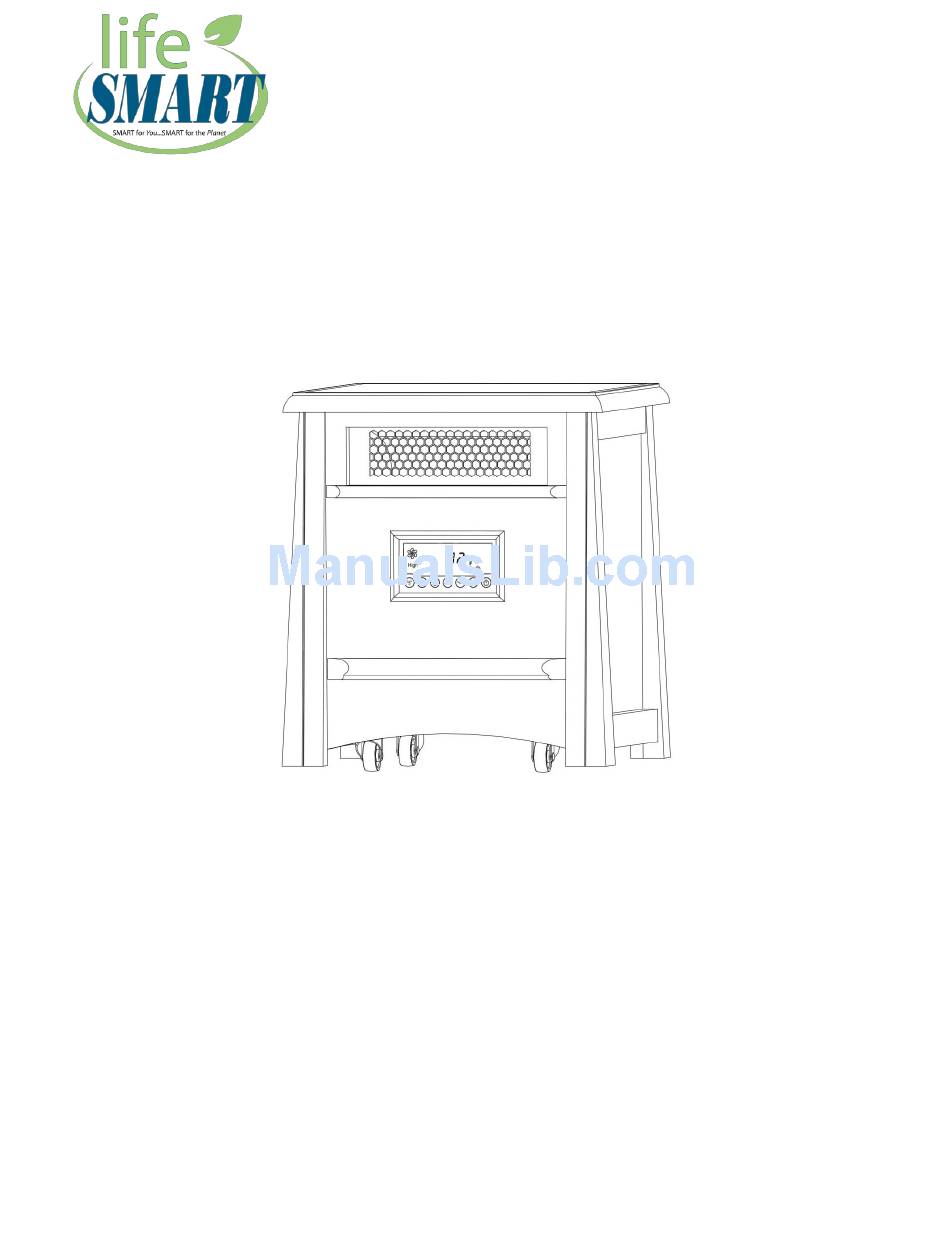

LIFESMART INFRARED HEATER
Model
: LS-8WIQH-DB / LS-8WIQH-LB
Safety Notice

Save These Instructions

N
A
N
D
O
P
E
R
A
T
N
A
N
D
O
P
E
R
A
1
I
N
G
M
A
N
U
A
L
T
I
N
G
M
A
N
U
A
L

Advertisement

loading

  Related Manuals for Life Smart LS-8WIQH-DB

  Summary of Contents for Life Smart LS-8WIQH-DB

  • Page 1: Save These Instructions

    LIFESMART INFRARED HEATER Model : LS-8WIQH-DB / LS-8WIQH-LB Safety Notice Please read this entire Installation and Operating Manual BEFORE installing and using your new Infrared Heater. Failure to fully understand and follow instructions may result in property damage, bodily injury, or even death.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Page(s) Customer Service & Support Introduction & Specifications Specifications _______________5 Important Safety Information Frequently Asked Questions 8-11 Heater Operation Heater Placement Users Guide 14-15 Air Filter Maintenance Warranty 17-19 *Contents in the box: 1. Infrared heater(1unit) 2.
  • Page 3: Customer Service & Support

    Customer Service and Support To Obtain Warranty Support or Advice, Please Complete These Easy Steps: Contact LIFESMART PRODUCTS Technical Support 1-866-484-2066 or 1-214-614-2509 Phone Warranty@lifesmartproducts.com E-mail Visit us: www.lifesmartproducts.com You will need to provide the unit's model number, serial number (located on the heater’s front panel, rear panel, or on the box), date of purchase, retailer of purchase,...
  • Page 4: Introduction & Specifications

    INTRODUCTION Thank you for choosing one of the best Infrared distribution heaters available on the market today. Our Infrared Heater is a very safe and effective room heater. It produces safe, clean and economical heat by utilizing quartz infrared heating elements. The heating process of the Infrared Heater is similar to the way the sun warms the earth.
  • Page 5: Specifications

    SPECIFICATIONS Electrical: Voltage: 120V~60Hz Power consumption: Up to 1500 Watts Thermostat range: 50-90 Fahrenheit Dimensions: 16” x 15” x 18.5”, 31.2lbs SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off.
  • Page 6: Important Safety Information

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS, SAFETY WARNINGS, AND FAQ’s BEFORE USING THE HEATER WARNING! ! POTENTIAL FOR ELECTRICAL HAZARD IF NOT ADHERED TO! When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1.
  • Page 7 9. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations, nor any locations that use GFCI outlets. 10. Never place heater where it may fall into a bathtub or other water receptacles. 11. Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar coverings.
  • Page 8: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS (FAQ’S) My heater emits a “strange” odor when I first open the box/when I turn the heater on for the first time. Why is this happening? This is normal. This heater is treated with a special heat safe/resistant coating. This odor will sometimes be present when the box is opened, and may be compared to a heaters version of “new car smell.”...
  • Page 9 Once I plug the unit in and turn it on, how long will it take to heat my room? The heating process in the heater begins immediately upon powering on, and setting the desired temperature above the ambient temperature. A noticeable change in the l room’s ambient temperature will vary.
  • Page 10 Why does my heater’s fan continue to run after the set temperature is reached or the power is turned off? This is normal. The heater’s fan will continue to run, even after the heater automatically cycles down. The fan continues to run so that every last bit of heat is blown out of the heat chamber, while allowing the unit to continue filtering your air.
  • Page 11 My heater’s display shows my ambient temperature to be in the 20’s, when I know it is warmer than that. Why? The heater’s display is defaulted to read the temperature as Fahrenheit. If your heater is definitely heating, but shows it is in the 20’s, you probably have the setting to read your temperature in Celsius, rather than Fahrenheit.
  • Page 12: Heater Operation

    HEATER OPERATION Here is a small description of how our heaters work: Operation Mechanism: Air is brought into the heater through an easy to clean, washable filter at the rear of the unit. The highly efficient, one-speed, high volume fan pushes filtered air through the chamber, across the heat elements.
  • Page 13: Heater Placement

    HEATER PLACEMENT By using this infrared heater you can efficiently heat up to 1500 of unobstructed square feet. This heater is NOT intended to replace your home’s furnace. Rather, it is designed to be a supplement to it. It is not an instant heater, and on occasions (depending on various factors), can take up to 24 hours for a room to reach the desired temperature.
  • Page 14: Users Guide

    USER’S GUIDE Plug your Infrared Heater power cord into a 120V, 15amp (or higher) three-prong receptacle. To Turn the Heater On: to the “On/Lit” position. 1. Turn the Master toggle switch in the back of the heater 2. Press the “Power” button on the front control panel or the remote control. Heater Default Temperature: The heater’s default temperature every time it is powered “on”...
  • Page 15 Heating Process: In the High Mode, all heating elements will engage for full 1500 Watt heating capacity. In the Low mode, corresponding heating elements will engage to heat at 750 Watts, to save energy. This mode can be used when some heat is needed, but not at full capacity. In the Eco mode, the heater’s Set Desired Temperature will automatically default to 68°F.
  • Page 16: Air Filter Maintenance

    FILTER MAINTENANCE Your Infrared Heater is equipped with an easy to clean, washable static filter. Regular cleaning and maintenance of your filter will ensure a lifetime of trouble-free use. 1. Turn off the heater. Locate the filter at the rear of the heater and lift out (some filters may be held on by brackets.
  • Page 17: Warranty

    All LIFESMART products are manufactured with the highest quality materials and are warranted to be free from defects in material and workmanship at the time of purchase. This limited warranty applies to products manufactured or distributed by the LIFESMART brand name, are delivered in the Continental United States, Canada, and extends to the original purchaser, or gift recipient.
  • Page 18   Heater placed on non-approved surfaces or Use on Extension Cords/Timers/Surge non-approved areas (such as bathrooms, Protectors/GFCI  laundry areas) Outdoor/Patio/Balcony applications   Electrical requirement deficiencies (15-20 Pet/Consumer accidents  amp dedicated outlet). Must be plugged into Purchases from dealers not authorized by a 120V, 15 amp (or more) circuit of its own.
  • Page 19 Legal Remedies This limited warranty gives the original purchaser specific legal rights. Other rights may vary from state to state. LS-8WIQH-DB / LS-8WIQH-LB REV1 PRINTED IN CHINA...
