Page 1: Oven Parts

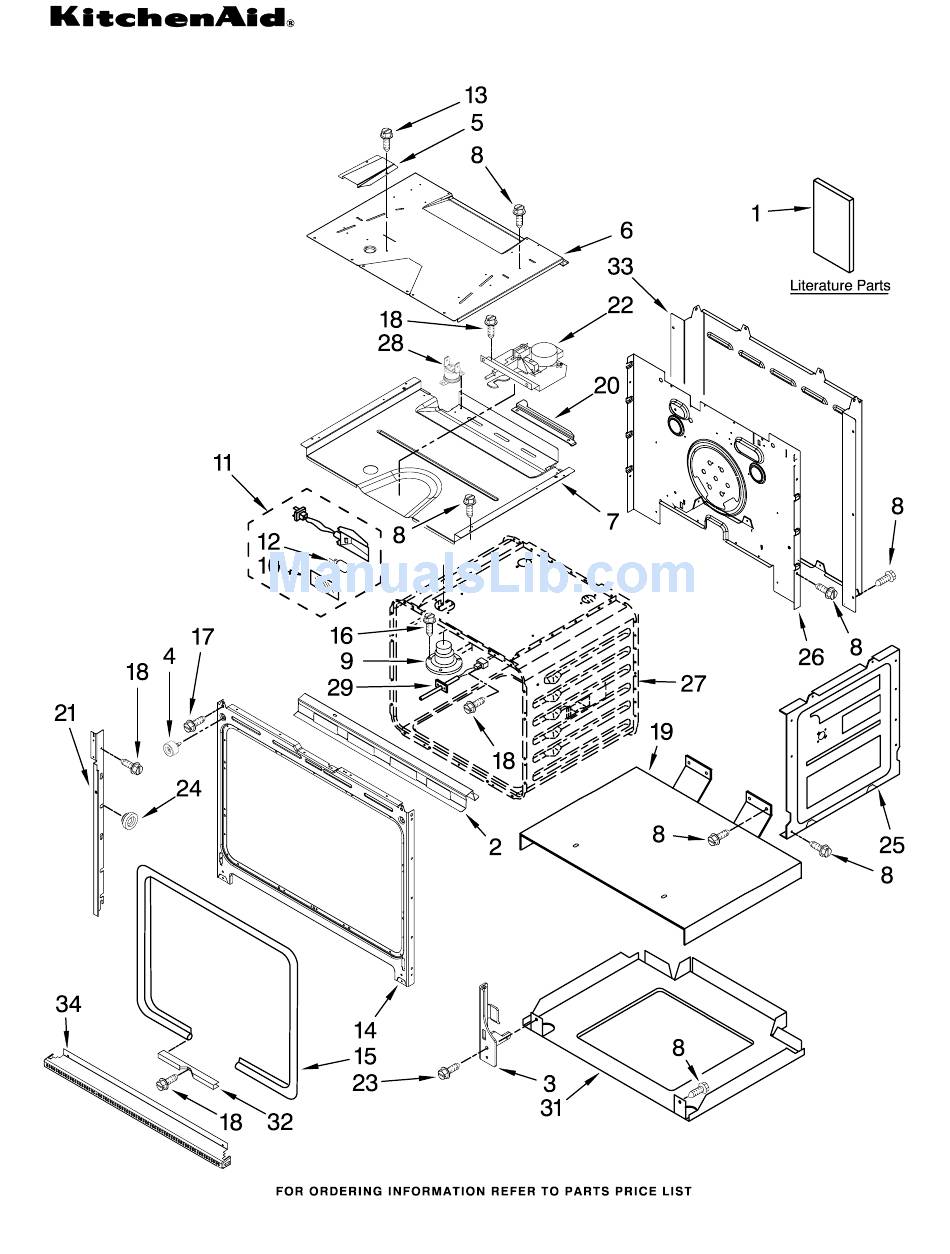

OVEN PARTS 30" BUILT−IN ELECTRIC SINGLE OVEN For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02 (Black) (White) (Stainless) 05−08 Litho in U.S.A. (amd) (eeb) Part No. W10203839 Rev. A... - Page 2 For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02 Illus. Part DESCRIPTION Literature Parts Installation Instructions 8304336 English 8304571 French W10162179 Use & Care Guide Tech Sheet W10185201 English W10185202 French 8304335 Easy Set Guide Safer Cooking Tips 9762761 English W10065852 French 2 W10153090 Bracket, Base...
-
Page 3: Control Panel Parts
For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02 W10203839 CONTROL PANEL PARTS (Black) (White) Illus. Part DESCRIPTION Panel, Control 8303716BL Black 8303716WH White W10165445 Stainless 8303687 Support Appliance Manager 8303797 Bracket, Glass Touch 8304331 Control Panel, Glass Touch 5 W10118733 User Interface 8303719 Backer, Control... -
Page 4: Oven Door Parts
For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02 Illus. Part DESCRIPTION 8303737BL Door Liner 2 W10174285 Hinge, Door (2) 3196183 Screw 8304581BL Vent, Door Top Bracket, Door 8304377 Right 8304378 Left 8303746 Door, Top Bracket 8303731 Glass, Inner 4449743 Screw OVEN DOOR PARTS... - Page 5 For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02 W10203839 INTERNAL OVEN PARTS (Black) (White) Illus. Part DESCRIPTION 9760774 Element, Broil 4448717 Rack, Oven 9760768 Element, Bake 4455037 Tray, Bake 4449154 Screw 4450039 Cover, Bake Tray 4449809 Screw 8304602 Element, Broil Shield (Stainless)
- Page 6 TOP VENTING PARTS For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02 (Black) Illus. Part DESCRIPTION 8304219 Cover, Top 8304643 Duct, Air Outlet 4449809 Screw 8303972 Blower, 60mm 8285593 Connector, Cover 7 W10111628 Transformr,Control 4449868 Block, Terminal 3400080 Screw 8303684 Vent, Control Panel Side, Control Top...
-
Page 7: Optional Parts
For Models: KEBK101SBL02, KEBK101SWH02, KEBK101SSS02 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) W10203839 OPTIONAL PARTS...
