User Manual For use with model CS-10A/CS-11A solar ventilation system controllers... - Page 2 Breeze Mate™ Solar Ventilation System Thank you for your purchase of the Breeze Mate™ solar ventilation system by Attic Breeze. Our advanced control system offers full control over the operation of your Attic Breeze solar powered ventilation products, as well as many safety and performance related features.

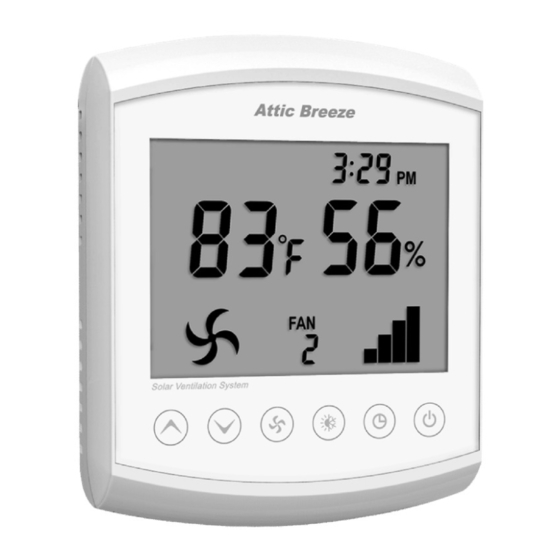

- Page 3 Temperature Display May be configured for display in either °F or °C. Reports attic air temperature over a range of 16°F - 176°F (-9°C - 80°C). Fan Icon Displays when fan is operating. Increase Button Used for adjustments to controller settings. Holding down the increase button for 10 seconds will access the controller Configuration Menu.
- Page 4 MC-10A (continued) Humidity Display Reports relative humidity conditions over a range of 1-99%. Clock Display May be configured for either 12 hour or 24 hour time mode. FC-10A Fan Controller Fan Power LED Indicator Displays when controller sends power to fan. Solar Panel Power LED Indicator Displays when power is available from solar panel.
-
Page 5: Getting Started
Attic Breeze model solar attic fans featuring a unit mounted solar panel. If your Attic Breeze fan features a remote mounted solar panel, the CS-10D or CS-11D control system is appropriate for your installation. - Page 6 ► The FC-10A Fan Controller should be installed within roughly 8-9 feet of your Attic Breeze fan. Choose an unrestricted, open location that allows the controller proper access for monitoring of attic air conditions. Using the included #8 wood screws, mount the FC-10A Fan Controller on a vertical framing member or wall mounting surface.
- Page 7 Cable with the same label. Repeat process with the 2-plug connectors labeled Power Out. If the solar panel on your Attic Breeze fan is exposed to sunlight, the Solar Panel Power LED Indicator [15] on the FC-10A Fan Controller will be illuminated.
- Page 8 MC-10A Installation ► Locate the Battery Access Panel [9] on your MC-10A Remote Interface Controller. Push the panel to access the battery compartment and install the two (2) AAA batteries included with your control system. ► Access the controller Configuration Menu by holding down the Increase Button [3] for 10 seconds.
- Page 9 ► With the MC-10A controller configured to the desired settings, the display screen should now show the current temperature and relative humidity for the fan controller assigned to network channel one. Temperature Display [1] and Humidity Display [12] will show “- -” on the display screen whenever the MC-10A Remote Interface Controller is not able to establish communication with a fan controller on the wireless network.
-
Page 10: Automatic Control Mode
Automatic Control Mode By default, all fans on the Breeze Mate™ control system network are set to automatic mode off when first installed. Fans may be configured for automatic mode operation either individually if needed, or all at the same time using the network’s global update channel. - Page 11 Adjusting Temperature & Humidity The Breeze Mate™ control system offers independent control of both temperature and humidity. Based on the control set points selected, your fan will continue operation until both the temperature and humidity set point targets are satisfied. Temperature and humidity set points may be adjusted for each fan controller individually, or all at the same time using the network’s global update channel.
-
Page 12: Operating The Control System
Additionally, the Fan Power LED Indicator [14] on the FC-10A Fan Controller will be illuminated when the selected fan is operating. Operation of your Attic Breeze fan may be configured within the below set point ranges: Temperature 32F° - 122°F (0°C - 50°C) -
Page 13: Setting The Clock
Setting the Clock The MC-10A Remote Interface Controller features an electronic clock for your convenience. The clock may be configured for either 12 hour or 24 hour time mode display. ► Access the Clock Menu by holding down the Clock Button [7] for 10 seconds. - Page 14 Testing for Attic Depressurization The Breeze Mate™ solar ventilation system features our proprietary differential pressure sensing technology designed to prevent attic depressurization. When an attic space has insufficient intake ventilation, depressurization of the attic may occur resulting in decreased energy efficiency and poor performance from your solar attic fan.
- Page 15 For optimum fan performance, Attic Breeze recommends beginning with a Depressurization Alarm Threshold [27] setting of “2” pressure units. This alarm setting will ensure that your Attic Breeze solar attic fan is supplied with sufficient air intake ventilation to operate at maximum performance.
- Page 16 Due to the extreme sensitivity designed into our pressure sensing technology, normal variations in the barometric pressure will be observed during testing. For this reason, Attic Breeze recommends performing the Depressurization Test during clear and sunny weather conditions to minimize interference from changes in barometric pressure.
- Page 17 A “passed” test indicates that your attic has the proper amount of intake ventilation to support your ventilation system. Please note that the Breeze Mate™ control system defaults to automatic mode off upon exit of the Depressurization Test. Automatic control must be turned on after testing to resume temperature and humidity control.
-
Page 18: Technical Information
Two Year Product Warranty Your new Breeze Mate™ solar ventilation system is warranted by Attic Breeze, LLC, to be free from defects in material and workmanship under normal use for two (2) years from the date of purchase. This warranty shall not... -
Page 19: Customer Support
Attic Breeze fan model number When the Attic Breeze fan was installed Dealer/Installer Breeze Mate™ control system model number 254-865-9999 support@atticbreeze.net www.atticbreeze.net Thank you for choosing Attic Breeze! Breeze Mate™ is a trademark of Attic Breeze, LLC. All rights reserved. -19-... - Page 20 Rev. 0.1 Copyright © 2012 Attic Breeze, LLC. All rights reserved.
