CHECK CONDITION OF SHIPMENT
Upon receipt of this kit, check the condition of the packaging. Damage to the package should be noted on the carrier's freight
receipt. Any damage claims as a result of shipping must be handled through the shipper. Travis Industries will provide assistance
in resolving shipping claims or replacing items not included in the package. Please report any missing items immediately.
COMPATIBILITY
• All Travis Gas Stoves & Inserts
ITEMS NEEDED FOR ASSEMBLY
• Standard Screwdriver
• You may need additional tools to access the on/off switch on certain gas heaters - refer to the instructions in the owner's manual.
PACKING LIST
• Thermostat
INSTALLATION INSTRUCTIONS
!
This kit must be installed by a qualified technician.
!
Do not connect 110 VAC to the gas control valve or on/off switch on gas heaters or the thermostat posts on pellet heaters.

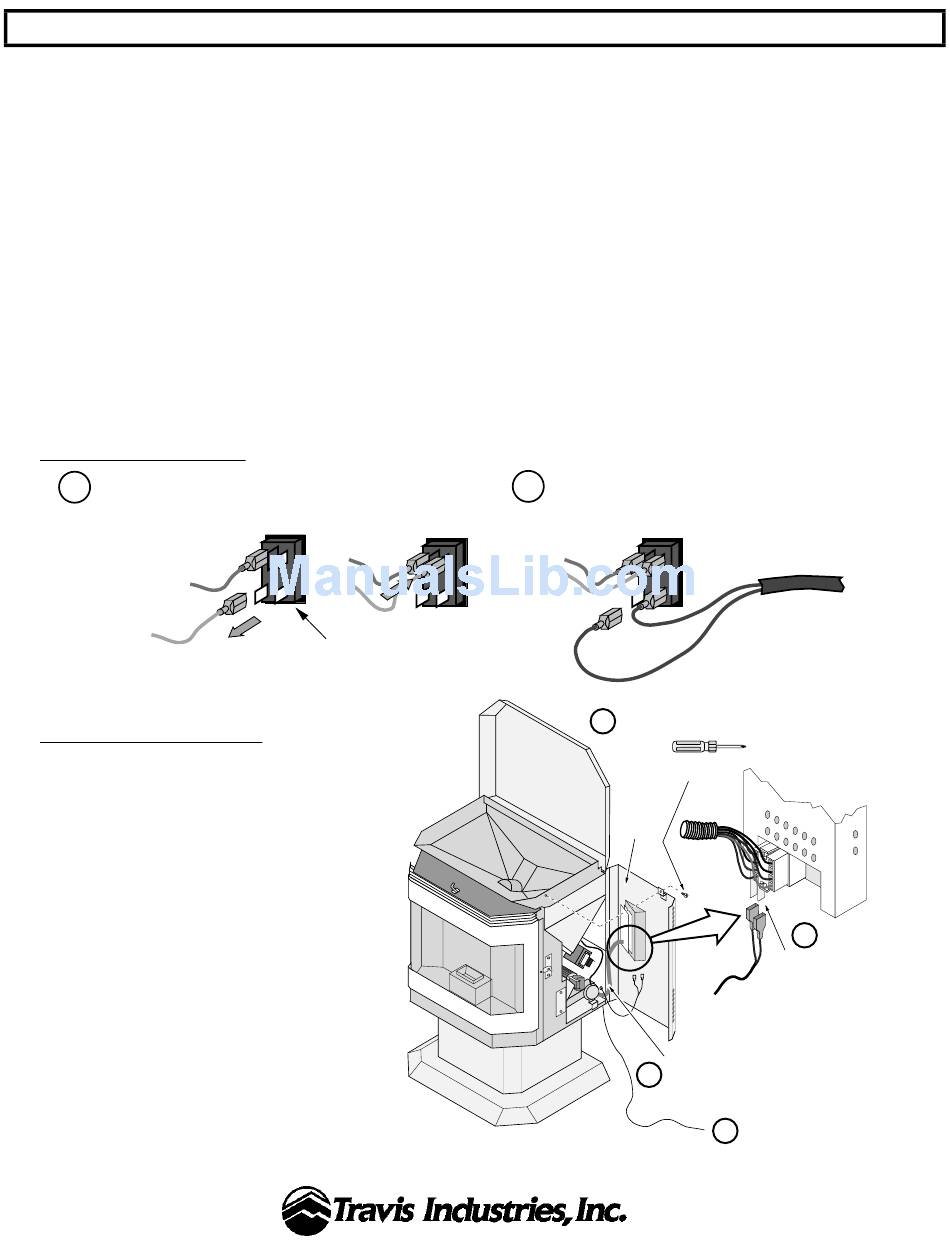

Gas Heater Installation
Remove the on/off wire on the lower post of the
a
on/off switch and attach it to the upper post.
Red & brown wires
leading to the gas
control valve.
Pellet Heater Installation
Attach the thermostat wire to the
circuit board.
Page 1 of 2
Wall Thermostat - Gas/Pellet
• Newport (Avanti) Pellet Stoves & Inserts • Pioneer (Heritage Bay) Pellet Stoves & Inserts
• Additional tools may be required for laying the thermostat wire
• Thermostat wire (25' long)
Back of on/off switch
10850 117th Place N.E. Kirkland, WA 98033
• 2 Screws (for attaching the thermostat to wall)
Connect the thermostat wires to the lower two posts
b
on the on/off switch (orientation does not matter).
a
Open the hopper lid and remove the
screw holding the right panel in place.
Phillips
Screwdriver
Swing the
panel
open.
Thread the thermostat wire, quick-
b
connect end first, through the hole in the
rear panel.
Part # 99300650
c
Attach the quick-
connects to the
thermostat posts
on the circuit
board (orientation
does not mater).
Pull on the thermostat
wire to allow just enough
d
slack to allow the right
side panel to open.
Printed February 3, 2003
