Compatibility
•
All Travis Gas Stoves
•
33 DVI Insert
•
31 DVI Insert
•
564 SS and DF
Packing List
•
Thermostat
•
Thermostat Wire (20')
•
(2) Screws (for attaching thermostat)
Installation Warnings
! Shut off power to the appliance and allow it to cool prior to installation.
! This kit must be installed by a qualified technician.
! Do not connect 110 VAC to the gas control valve or on/off switch on gas heaters or the thermostat
posts on pellet heaters.
Follow the instructions on the following pages for the type of model being addressed.
Wire Connection - Pellet Heaters
Attach the thermostat wire to the circuit board.
Page 1 of 3
Wall Thermostat
SKU 99300650
•
864 TRV, ST, and HO
•

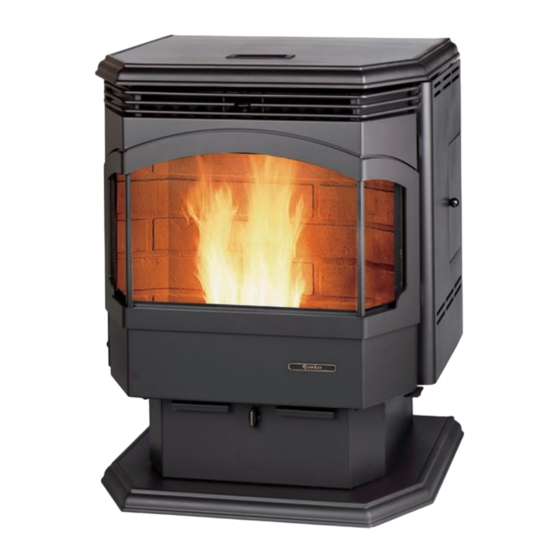

All Travis Pellet Stoves or Inserts
a
Open the hopper lid and remove the
screw holding the right panel in place.
Phillips
Screwdriver
Swing the
panel
open.
c
Route the wires up to the circuit
board and attach the quick-connects
to the thermostat posts (orientation
does not matter).
Bundle up any excess wire with a
d
lock-tie to prevent it from contacting
any hot or moving parts
2/2/11 - 17601040
b
If necessary, attach the
pellet stove connector
wires to the ends of the
receiver wires.
© Travis Industries, Inc.
Advertisement
Related Manuals for Travis Industries 99300650
Summary of Contents for Travis Industries 99300650
- Page 1 (orientation does not matter). Bundle up any excess wire with a lock-tie to prevent it from contacting any hot or moving parts Page 1 of 3 2/2/11 - 17601040 © Travis Industries, Inc.
- Page 2 On/Off Switch OFF Thermostat/External Switch ON Heater is ON Heater is OFF Thermostat/External Switch OFF Heater is OFF Heater is OFF To wire the heater in series, follow the directions below: Page 2 of 3 2/2/11 - 17601040 © Travis Industries, Inc.
- Page 3 (cut off excess wire, leaving 6” of slack). Robertshaw Expose 1/2” of wire and attach to these two posts. Standard Screwdriver Attach the thermostat to the wall through these two holes. Page 3 of 3 2/2/11 - 17601040 © Travis Industries, Inc.
