KitchenAid KHHC2090SBL0 Parts List page 8

Microwave hood combination
Hide thumbs Also See for KHHC2090SBL0:

Advertisement

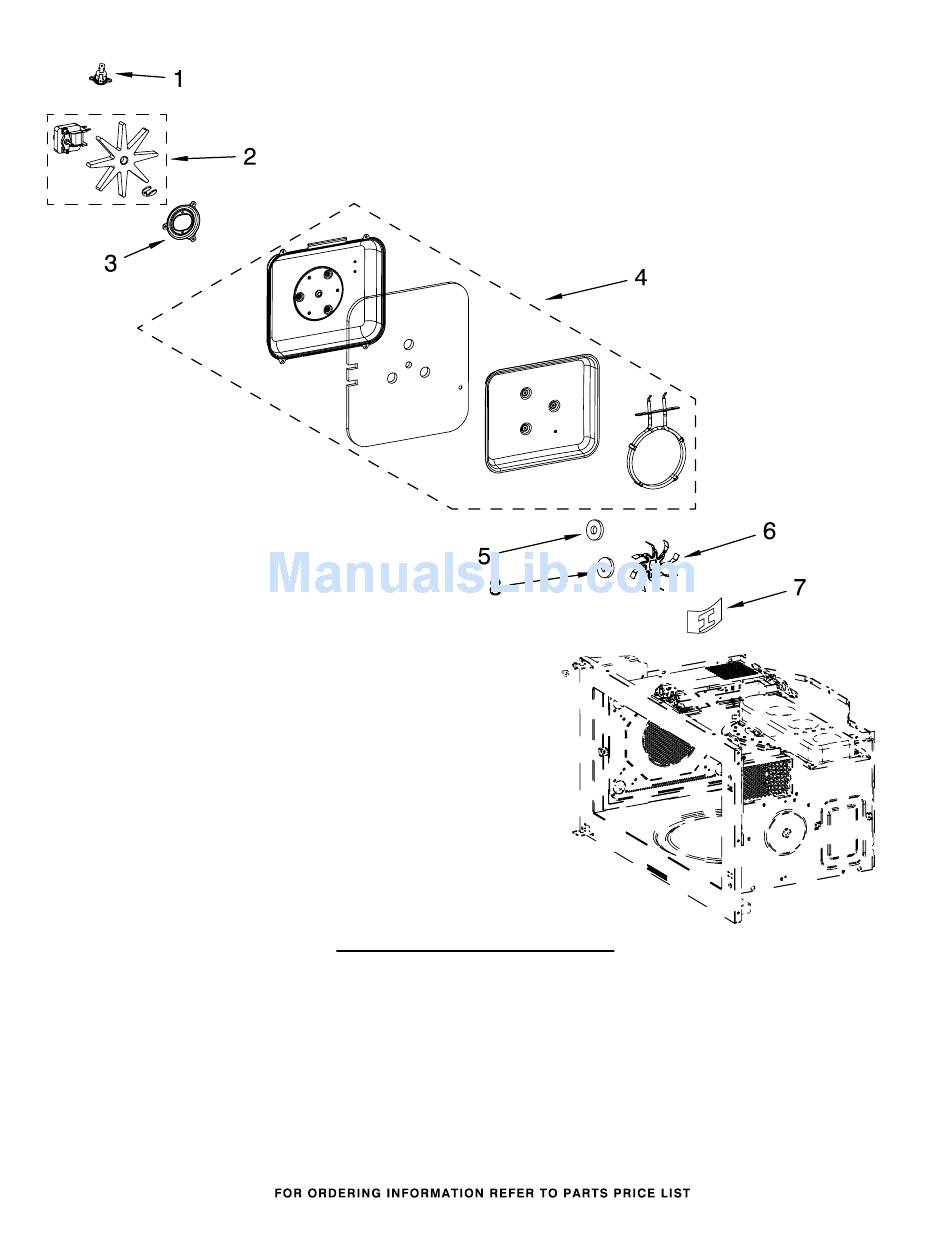

CONVECTION PARTS
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White)
Illus.
No.
(Black)
(Stainless Steel)
Part
No.
DESCRIPTION
1
8206068 Thermostat
2
8206069 Impeller Assy
3 W10115572 Bracket, Motor
4
8206071 Heater Assembly
5
8206073 Washer
6
8206074 Fan Wheel
7 W10115575 Plate, Spring Lock
8 W10115573 Washer, Adjustable
8
(Biscuit)
8188450
