KitchenAid KHHC2090SBL0 Parts List page 6

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
Illus. Part
No. No. DESCRIPTION
1 8205995 Rack, Convection
2 8206264 Rack, Grill
3 8204670 Lamp, Cavity
4 W10113781 Holder, Lamp
5 8205980 Deflector, Air
6 8206451 Steamer
7 8205239 Cover, Protector
8 8184839 Heater, Quartz

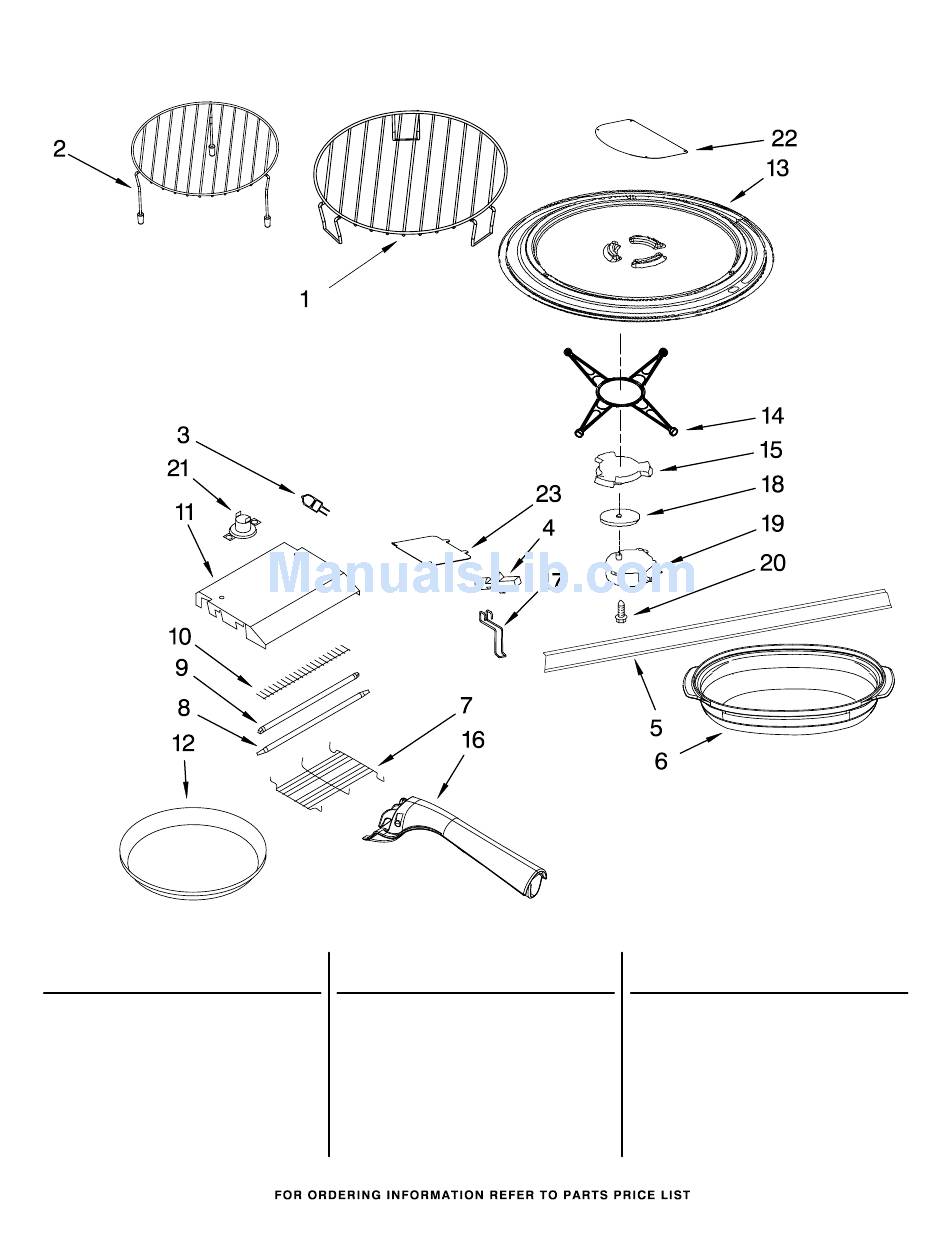

RACK AND TURNTABLE PARTS
(White)
Illus. Part
No. No.
9 8184838 Quartz Tube,
10 8184837 Browner, Halogen
11 8206024 Cover, Insulation
12 8205996 Plate, Crisp
13 W10113773 Turntable
14 8206222 Ring, Turntable
15 8205994 Driver, Turntable
(Black) (Stainless Steel)
DESCRIPTION
Softstart
(Grill)
6
(Biscuit)
Illus. Part
No. No. DESCRIPTION
16 W10106520 Handle, Crisp Plt
17 8206034 Clip, Cavity Lamp
18 8206101 Spacer
19 8206102 Motor, Turntable
20 4393832 Screw
21 8206025 Thermostat,
Grill
22 8206066 Cover, Inlet
23 8206476 Lid, Lamp
8188450
