KitchenAid KCMS1555SBL0 Parts List page 5

Microwave oven 1.5 cubic foot
Hide thumbs


Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
8205458 Blade, Fan
2 W10169274 Guide, Suction
3
8205462 Motor, Fan
4
8184813 H.V. Capacitor
5
8184288 H.V.C Bracket
6 W10169276 Leadwire Assembly
7
4359794 Holder, Wire
W10169317

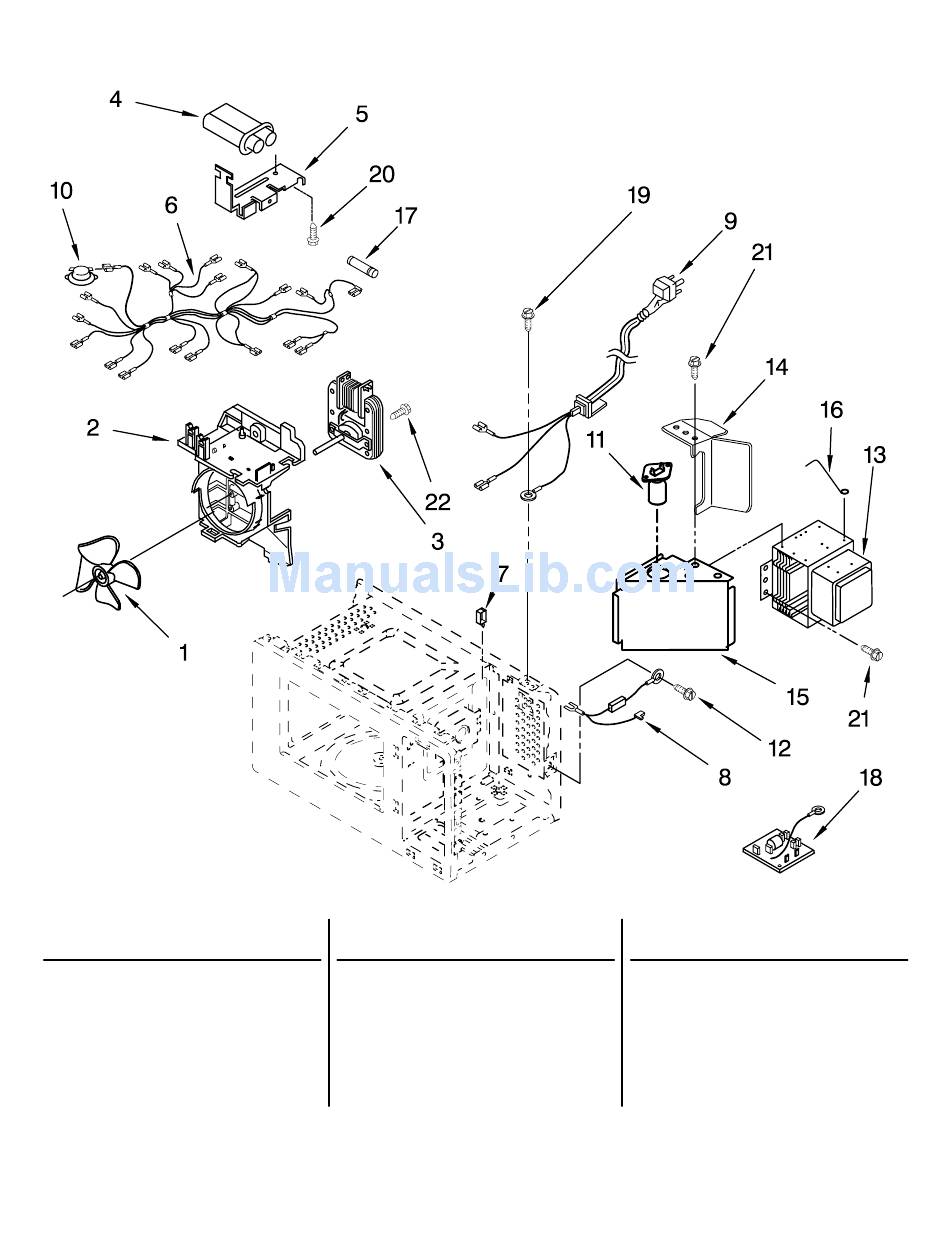

OVEN INTERIOR PARTS
For Models: KCMS1555SWH0, KCMS1555SBL0, KCMS1555SSS0
(White)
Illus.
Part
No.
No.
8 W10160548 H.V. Diode Cable
9
8206281 Power Cord
10 W10169277 Thermostat
11
8171810 Lamp, Baseless
12 W10160553 Screw
13
8205460 Magnetron
14
8205509 Bracket
15
8204900 Duct, Air
(Black)
(Stainless Steel)
Illus.
DESCRIPTION
No.
16
17
18
19
20
21
22
5
Part
No.
DESCRIPTION
8184290 Bracket, Support
8183507 Fuse
8206270 Filter, Noise
8204902 Screw
4358381 Screw
4358489 Screw
4358190 Screw
