KitchenAid KCMS1555RBL2 Parts List

Microwave oven 1.5 cubic foot
Hide thumbs


Advertisement

9−06 Litho In U.S.A. (lwp)

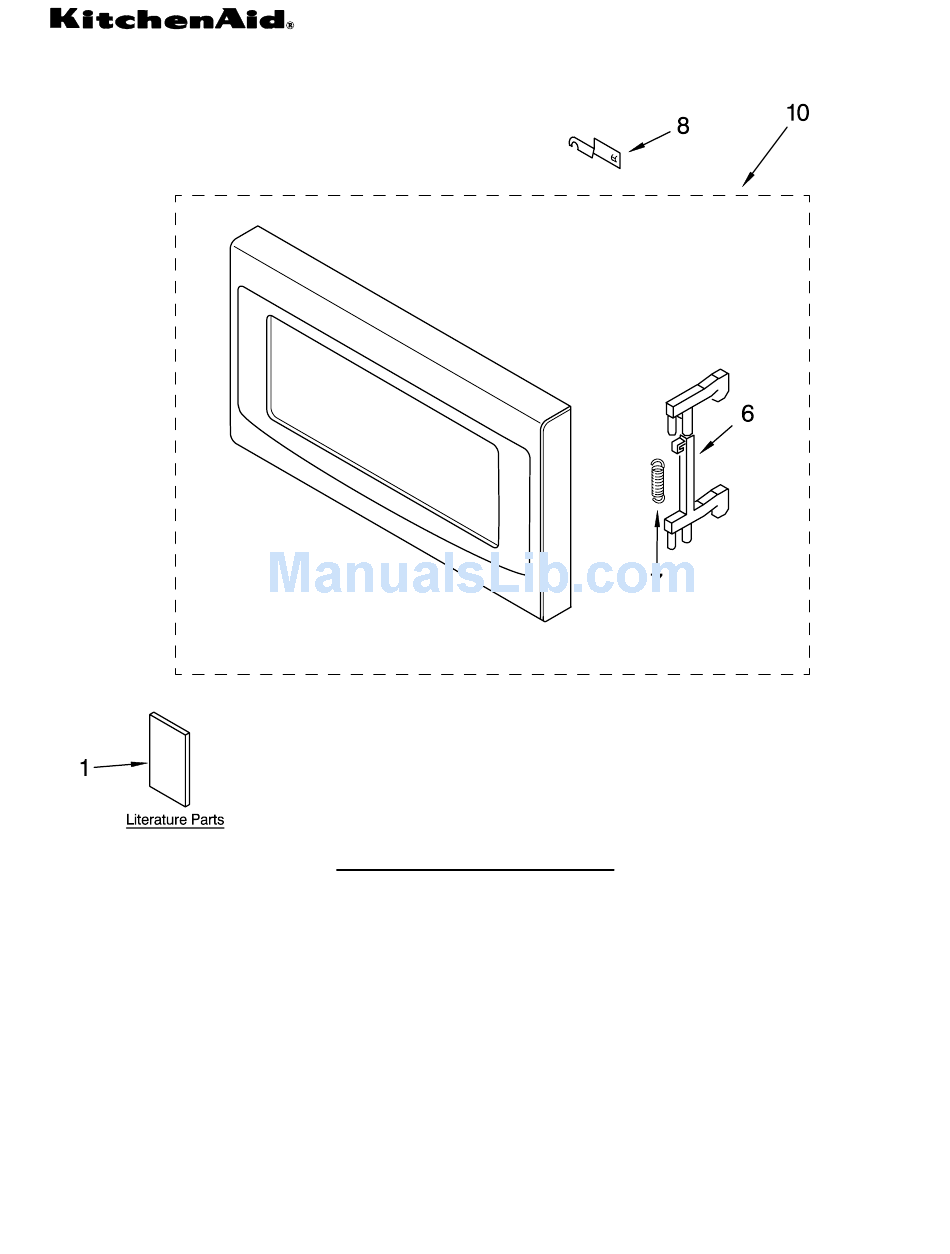

DOOR PARTS

For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2
(White)
Illus.
Part
No.
No.
1
8205988 Use & Care Guide
8205550 Cook Guide Label
8205542 Tech Sheet
8205554 Instructions,
6
8184263 Latch
7
8171918 Spring, Latch
8
8184265 Cap
10
8205804 White
8205797 Black
8205815 Stainless
(Black)
(Stainless Steel)
DESCRIPTION
Literature
Installation
(For Trim Kit)
Door Assembly
1
MICROWAVE OVEN
1.5 CUBIC FOOT
Part No. 8206406 Rev. A

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KCMS1555RBL2

  Summary of Contents for KitchenAid KCMS1555RBL2

  • Page 1: Door Parts

    DOOR PARTS MICROWAVE OVEN 1.5 CUBIC FOOT For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Literature 8205988 Use & Care Guide 8205550 Cook Guide Label 8205542 Tech Sheet 8205554 Instructions, Installation (For Trim Kit) 8184263 Latch 8171918 Spring, Latch 8184265 Cap Door Assembly...
  • Page 2: Control Panel Parts

    CONTROL PANEL PARTS For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 4358381 Screw Release Button 8205806 White 8205799 Black 8205817 Stainless 8184272 Spring, Button Control Panel 8205805 White 8205798 Black 8205816 Stainless 8205800 P.C.B Sub Assembly 8205451 Lever, Release 8204891 Lens 4358883 Screw...
  • Page 3: Oven Cavity Parts

    OVEN CAVITY PARTS For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 8184278 Canopy Outer Case 8205453 White 8205801 Black 8205818 Stainless 4359780 Tray, Glass 8205148 Turntable Support 8184375 Motor, Synchronous 4358188 Screw Screw 4358362 White & SS Models 4358829 Black Model 8171862 Screw 8183514 Sensor, Humidity...
  • Page 4: Latch Board Parts

    LATCH BOARD PARTS For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Latch Board Assembly (Non−Serviceable) 8185271 Latch Board 8183561 Switch Micro Primary/Secondary 8183562 Switch, Micro Monitor 4358271 Screw 8206406...
  • Page 5 OVEN INTERIOR PARTS For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8205458 Blade, Fan 8206281 Power Cord 8204900 Duct, Air 8205456 Guide, Suction 4359164 Thermostat 8184290 Bracket, Support 8205462 Motor, Fan 8171810 Lamp, Baseless 8183507 Fuse 8185272 H.V.
  • Page 6: Base Plate Parts

    BASE PLATE PARTS For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 8205464 Base Plate 8184385 Leg 8205459 Transformer 4358192 Screw 4358489 Screw ACCESSORY PARTS Trim Kits MK1154XPQ 24" White MK1154XPB 24" Black MK1154XPS 24" Stainless MK1157XPQ 27" White MK1157XPB 27"...

This manual is also suitable for:

Kcms1555rss2Kcms1555rwh2
