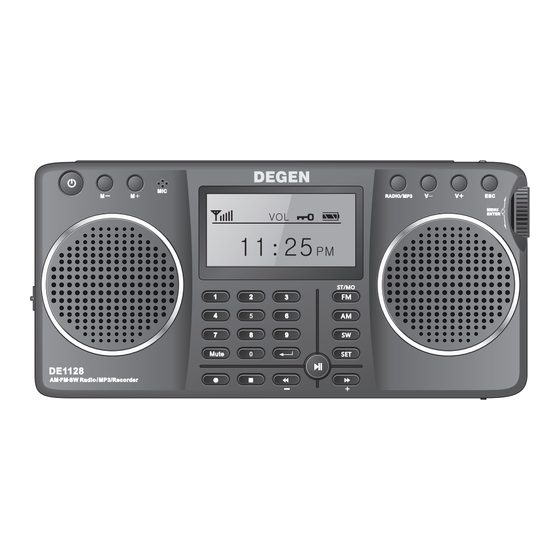

- Page 1 OPERATION MANUAL FM STEREO AM SW DSP RECEIVER MP3 PLAYER DIGITAL RECORDER REPEAT LOUDSPEAKER DE1128 support firmware upgrade, please visit http://www.degen.com.cn This unit is limited to Asia and Russian region...
- Page 2 Accessories DE1128 unit Operation Manual Line-in Cable USB Cable Lithium Battery...
-
Page 3: Table Of Contents
CONTENT LOCATION OF CONTROLS..........1 BATTERY POWER SUPPLY ........4 REPLACING THE BATTERY ....... 4 BATTERY CONSUMPTION INDICATION CHARGING THE BATTERY ............. 5 ADAPTOR CHARGING ............5 CHARGING BY PC..USING STRAPS............. 6 USING BACKSTAND............6 POWER ON/OFF............7 FM RADIO ............ - Page 4 CONTENT A-B REPEAT ..............19 REPEAT ..........1 9 READ AND CONTRAST USE AS AN ACTIVE LOUDSPEAKER(LINE-IN)... 20 USE AS LOUDSPEAKER(MIC) ........21 MIC RECORDING ............ 22 SELECT REC TYPE ..........22 START/PAUSE/STOP LISTEN TO RECORDED FILES........23 WORKING WITH EBOOK..........24 SYSTEM SETTING ..............
-
Page 5: Location Of Controls
LOCATION OF CONTROLS Power On/Off In Radio Mode: M- In Radio Mode: M+ Built-in MIC Display Radio/Music Mode Selection Volume - Volume + Escape/Main Menu Tuning Knob: Rotate to Tune, Press to Confirm/Enter... - Page 6 LOCATION OF CONTROLS Speaker: Dual Stereo Speaker FM Stereo/Mono Selection In A-B Repeat Mode: Repeat AM Button In Music Mode: Enter Sound Quality Mode Selection In A-B Repeat Mode: Read SW Button (press in SW mode to change M Bands) In Music Mode: Enter Repeat Mode Selection In A-B Repeat Mode: Contrast Set Button: Enter Submenu...
- Page 7 LOCATION OF CONTROLS Antenna Back Stand Battery Compartment (Behind the Stand) Strap Hole External MIC Port Mini-USB (Power In) Port Lock/Unlock Radio Tuning Knob Earphone Port Line-In Port...
-
Page 8: Battery Power Supply
BATTERY POWER SUPPLY Before initial use, open the battery compartment (behind the back stand), make sure the lithium battery is installed. INSTALLING THE BATTERY 1. Turn off the unit and open the battery cover. 2. Install the provided lithium battery according to the battery polarity. -
Page 9: Charging The Lithium Battery
CHARGING THE LITHIUM BATTERY To charge the battery, connect the unit to the mini-USB port and opposite end to a power source(5V DC/≥500mA, not provided). While charging, the battery symbol shown on the display “ ” moves from right to left, and stops when the battery is full charged. -
Page 10: Using Straps
USING STRAPS USING STRAPS USING BACK STAND Open the stand on the rear of the unit to allow for an upright position. -
Page 11: Power On/Off
MAIN MENU TURN ON/OFF THE UNIT 1. Turn ON/OFF manually: Press the < > button. 2. Turn off using automatic Sleep Timer: Select “Sleep Timer” in Sys set mode, press the Tuning Knob to enter and then rotate the Tuning Knob to adjust to auto turn off timer from 0~90 minutes. -
Page 12: Fm Radio
CHOOSE BANDS FM RADIO In Main Menu, select FM Radio by press the Tuning Knob to listen to FM. Radio 89.8 FM Radio SELECT Press the < > button to enter either Radio or Music Mode. CHOOSE BANDS In Radio Mode, press the< >,<... -
Page 13: Fm Stereo/Mono Selection
TUNE IN STATIONS - School Band: 64~108MHz - Open RDS: Press to Open/Close RDS - Update RDS time: Syn the RDS time to the unit - AM Spacing Switch: Repeatedly press to select 9K/10K tuning step and direct enter AM listening 9K Frequency range: 522~1710KHz 10K Frequency range: 520~1710KHz - Exit... -
Page 14: Manual/Auto Tuning
TUNE IN STATIONS USING BUILT-IN ANTENNA 1.It only works when listen to AM Broadcast.. 2. While listening to AM station, rotate the radio to find the position which gives the best reception, as the built-in ferrite bar is located inside the unit and it is strongly affected by the direction of placing of the unit. - Page 15 TUNE IN STATIONS AUTO TUNING STORAGE(ATS) In radio mode, press the Tuning Knob and rotate it to select <ATS>. Press the Tuning Knob again to start auto scan and store the available stations within the memories. Memory Location 89.8 Memory Locations: FM/SW(ATS): M51 ~ M99 AM(ATS): M26 ~ M50 Note: 1.
-
Page 16: Directly Input Frequency
TUNE IN STATIONS DIRECTLY INPUT FREQUENCY In Radio Mode, press the number on the keypad that corresponds to a station’s frequency, and then press < > button to directly enter. Note: When listening to <m> bands, it is invalid if your input is out of the frequency range. -
Page 17: Delete Single/All Memories
TUNE IN STATIONS DELETE SINGLE/ALL MEMORIES Press the Tuning Knob in radio mode, and rotate the Tuning Knob to select either <Delete> or <Delete All> and press the Tuning Knob again to delete single memory or all memories. -
Page 18: Fm Rds
FM RDS FM RDS 1. Select an FM station, press the Tuning Knob and rotate to select <Open RDS>, the symbol < > will show on the display. 2. Press the < > button to shift the transmitted details (display on the bottom of the screen). RDS is on 87.8 info. -
Page 19: Record Radio
RECORD RADIO RECORD RADIO While listen to the FM/AM/SW stations, you can directly record the programs by following the steps below: 1. Adjust the volume level up to 10 (minimum). 2. Press the Tuning Knob and rotate it to select either of below recording formats: - 129k BPS (WAV format, max 68 hours, 4G,) - 96k BPS (Mp3 format, max 215 hours, 4G) -
Page 20: Listen To Mp3 Files
LISTEN TO MP3 FILES LISTEN TO MP3 FILES 1. Turn on the unit and select <Music> from the “Main Menu”, then press the Tuning Knob to enter. Play( ) Pause( ) Stop ( No. of the Music Files 003 00:01:57 Name of the Song and players Gaga Poker Face “T”... -
Page 21: Listen To The Files In The Sd Card
LISTEN TO MP3 FILES 3. When playing the music, press the < > and the Contrast < > button can directly select Repeat Type and Follow Equalizer. 4. Bass equalizer is used for earphone listening, please select other equalizer when using speakers. LISTEN TO THE FILES IN THE SD CARD Transfer your selected MP3 format music files into the MICRO-SD card, insert the SD card into the slot at the bottom... -
Page 22: Delete Files
LISTEN TO MP3 FILES DELETE MUSIC FILES While not playing any music, press the Tuning Knob to enter the following settings: - Local folder: Select music file - Delete file: Delete a single music file - Delete all: Delete all music files - Exit To operate above settings, press the Tuning Knob to enter or confirm, rotate the Tuning Knob for selection. -
Page 23: A-B Repeat
A-B REPEAT A-B REPEAT 1. Select <A-B REPEAT> in <Main Menu>, and press the Tuning Knob to enter. 2. Select a song and press the < > button to play. Repeat: When playing the music, press < > once to set the Repeat starting point “A”, <... -
Page 24: Use As An Active Loudspeaker(Line-In)
USE AS AN ACTIVE LOUDSPEAKER USE AS AN ACTIVE LOUDSPEAKER(LINE-IN) Connect the unit to other medias( MP3, voice recorder, etc.) with the Line-in Cable, can increase the sound of the media connected. 1. Plug one end of the Line-in cable to the earphone jack of the audio equipment, and the other end into the Line-in Jack of the unit. -
Page 25: Use As Loudspeaker(Mic)
USE AS A LOUDSPEAKER USE AS A LOUDSPEAKER 1. Insert the external MIC into the external MIC Jack on the left side of the unit. 2. Turn on the unit, select <Loudspeaker> in “Main Menu” by press the Tuning Knob. 3. -
Page 26: Mic Recording
MIC RECORDING MIC RECORDING Select <Record> in “Main Menu”, press the Tuning Knob to enter. 1. Press the Tuning Knob to select REC type: - Long Rec (Long time recording- 64K, WAV format) - High Rec (High quality recording- 129K, WAV format) - Fine VOR (High quality voice sensor recording- 128K, VOR format) File NO./ Time... -
Page 27: Listen To Recorded Files
LISTEN TO RECORDING FILES LISTEN TO RECORDING FILES 1. Select <Voice> in “Main Menu” and press the Tuning Knob to enter. 2. Press the < > or < > button to select file. 3. Press the < > to play/pause the recorded file; press the <... -
Page 28: Working With Ebook
WORKING WITH EBOOK WORKING WITH EBOOK 1. Select <Ebook> in <Main Menu>, press the Tuning Knob to enter. 2. Select your desired file by rotating the Tuning Knob, and press the Tuning Knob to enter below settings: - Local Folder: Select Particular File, press < >... -
Page 29: System Setting
SYSTEM SETTING SYSTEM SETTING In <Main Menu> mode, rotate the Tuning Knob to select <Sys Set>, press the Tuning Knob to enter below settings: Note: Selection time for each step is about 5 seconds. - Time set - Date set - Calendar Info - Alarm set - Backlight... -
Page 30: Time Set
TIME SET TIME SET 1. Select <Time Set> in Sys Set Mode by rotating the Tuning Knob. 2. Press the Tuning Knob and notice the hour-indicator flashes, then rotate the Tuning Knob or press the < >, < > button to adjust the hour; Press the Tuning Knob and notice the minute-indicator flashes, then rotate the Tuning Knob to adjust the minute;... -
Page 31: Alarm Set
ALARM SET ALARM SET 1. Select [Alarm] in Sys Set mode and press the Tuning Knob, [New] appears on the display. 2. Press the Tuning Knob again to enter the new alarm setting, [Normal alarm/ Power on/ Power off/ Exit] appears. 3. -
Page 32: Alarm On
ALARM ON/OFF ALARM ON 1. Select [Alarm On] under [New] in [Alarm set], follow the steps of the normal alarm set. After confirming the time, rotate the Tuning Knob to select [Yes], press it to confirm and enter the following selections: - Radio: Listens to the last radio station (when auto turned on) - Music Audio: Plays the last music file... -
Page 33: Backlight Timer
SLEEP TIMER BACKLIGHT TIMER Select [Backlight] in Sys Set mode, press the Tuning Knob to enter, then rotate the Tuning Knob to adjust the lighting timer from 5~30 seconds. Press the Tuning Knob to confirm and exit. LANGUAGE SELECTION Select [Language] in Sys Set mode, press the Tuning Knob, then rotate the Tuning Knob to select your desired languages. -
Page 34: Power Off Mode
POWER OFF MODE POWER OFF MODE Select [Power Off] in Sys Set mode, press the Tuning Knob to enter and rotate the Tuning Knob to enter the below settings: Standby mode: After turn off the unit, you can check time by press any button. -
Page 35: Date Format
DATE FORMAT DATE FORMAT Select [Date Format] in Sys Set mode and press the Tuning Knob, then rotate the Tuning Knob to select the belowing date format: - yyyy mm dd - mm dd yyyy - dd mm yyyy - Exit Press the Tuning Knob to confirm selection or wait for 5 seconds to automatically cancel and exit. -
Page 36: Firmware Upgrade
If the unit can not be turned on, please use a computer to upgrade by the following steps: 1. Download the ungraded firmware from our website to a computer. 2. Open [Burn Tool] under the DE1128 Firmware Upgrade Folder. The below program appears on the screen:... -
Page 37: Key Lock
KEY LOCK 3. Select [Update Mode], and click [Import File] to choose the “DE1128***.upd”, then connect DE1128 and computer with provided USB cable. Click [Download]. 4. The [Device 0,0%] advancing till 100%, and the process bar turn to green. 5. Disconnect the unit and computer, the unit will turn on automatically. -
Page 38: Specification
SPECIFICATIONS Specifications for Radio 1. Frequency Range 87.0 - 108.0MHz or 64.0 - 108.0MHz 522 - 1710 KHz 2.30 - 23.00 MHz 2. Preset Memories: FM 99 AM 50 SW 99 3. Noise Limit Sensitivity ≤ 5 V ≤ 2.5mv/m ≤... - Page 40 SHENZHEN DEGEN ELECTRONICS CO.,LTD. Address: Building 26,Cuigang Industrial Zone,Fuyong Town,Baoan Shenzhen,China Website: www.degen.com.cn Sale Department Address: West Wing, 3/F, A-2 Block, East Industrial District, Overseas Chinese Town, Nanshan District, Shenzhen, Guangdong, China Zip: 518053 Fax: 86-755-26918325 Tel. 86-755-26912618 26918406 26918409...
