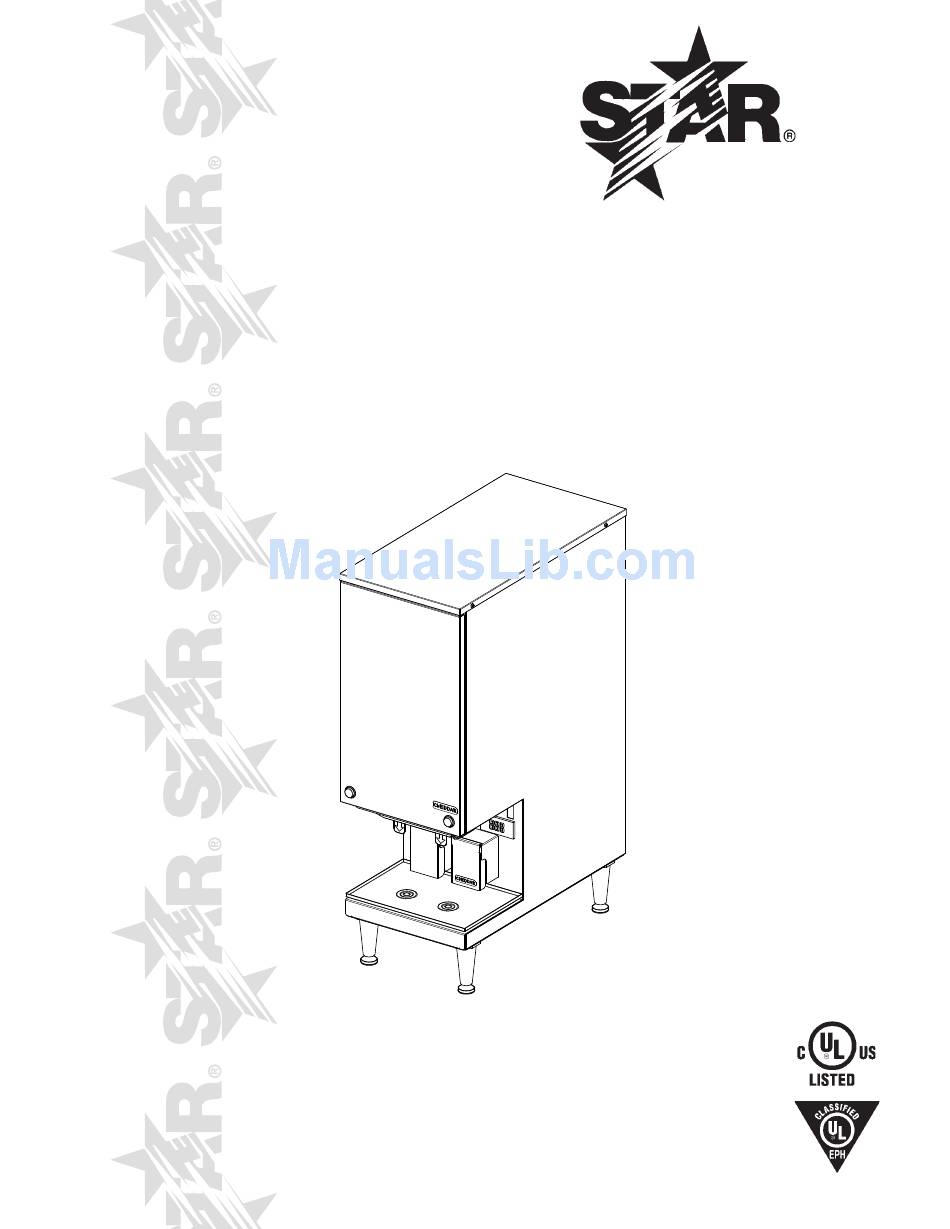

- Page 1 HEATED PERISTALTIC DISPENSER MODEL SPDE1ARB, SPDE2ARB SPDE1HP Installation and Operation Instructions 2M-Z7537 Rev. M 6/6/2011 SPDE2ARB...
-
Page 2: Maintenance And Repairs
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
SPECIFICATIONS SPDE1ARB-120V Capacity: One 60 ounce pouch Electrical: 0V, 60 hertz, single phase, 80 Watts, 7 amps Cord: 6 ft. length Plug: 0V - NEMA 5-5P Dimensions: 9-7/6" W x 9-9/6" D x 0-5/6" H (.97 W x 49.69 D x 77.0 H cm) Net Weight: 4 lbs. -
Page 4: General Installation Data
This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... -
Page 5: Portion Control
PORTION CONTROL This dispenser is supplied with a portion control timer. This portion control is based on a time setting. Variations in product temperature and consistency will affect the dispensed amount. To insure a consistent portion, use product that is at the correct temperature (45°F to 60°). SPDE models have a Portion Control Label showing approximate settings for portion size in oz, see Fig 1. -
Page 6: General Cleaning Instructions
CHANGING TEMPERATURE SET-POINT The dispenser is preset at the factory for a temperature of 45°F. If a different temperature is required, the set point can be changed in a range from 40°F to 60°F. To change the temperature: . Press SET. "SP" will appear in the display. . - Page 7 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 8 SPDE2ARB PERISTALTIC CHEESE DISPENSER STAR MANUFACTURING INTL, INC. 10 SUNNEN DRIVE P.O. BOX 430129 ST. LOUIS, MO 63143 CAUTION: ALWAYS TURN THE FITMENT UNIT OFF WHEN CHANGING A BAG OR SPRING PUMP HEAD CLEANING THE PUMP ENGAGED SPRING MECHANISM RELEASED...
- Page 9 5-21-10 REVISIONS DATE DESCRIPTION OF CHANGE TOLERANCES UNLESS OTHERWISE NOTED THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. FRACTIONS ± 1/64 DECIMALS ± .005 NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. A POWER SWITCH FOR 230V...
- Page 10 NEUT SW-1 SW-2...
- Page 11 NAMEPLATE MODELS: SPDE1ARB, SPDE1HP SPDE2ARB STAR MANUFACTURING INTERNATIONAL, INC. SK2071 REV E 12-16-10...
-
Page 12: Parts List
PARTS LIST December , 0, Rev. M HEATED PERISTALTIC DISPENSER, SPDE1HP, SPDE1ARB, SPDE2ARB Fig No Part No Description Application M2-Z5592 BACK SPDE1ARB, SPDE1HP M2-Z9689 BACK SPDE2ARB M2-PD1018 ASSEMBLY FAN WALL SPDE1ARB, SPDE1HP M2-PD2033 ASY, FAN WALL SPDE2ARB M2-Z3595 DOOR LINER... - Page 13 PARTS LIST December , 0, Rev. M HEATED PERISTALTIC DISPENSER, SPDE1HP, SPDE1ARB, SPDE2ARB Fig No Part No Description Application 2K-7889 BUSHING HEYCO SR-11-2 A3-ST3006 CORDSET ASSEMBLY 2E-Z0512 CORDSET, EUR 10A SPDE1ARB-230V, SPDE2ARB-230V 2U-200559 MOTOR, FAN 120V 12A12BTM 120V 2U-Z5041 FAN A/C 110CFM 230V...
- Page 14 PARTS LIST December , 0, Rev. M HEATED PERISTALTIC DISPENSER, SPDE1HP, SPDE1ARB, SPDE2ARB Fig No Part No Description Application 2A-H7804 BUMP ON 1/4” X 1/2 SQ. 2R-Z2848 PUSH BUTTON (Dispensing) 2R-Z2848 SPDE2ARB 2K-Z0714 SHORTY-BUSHING 2A-Z5564 PUMP HEAD SPDE1ARB, SPDE1HP M2-22049...
- Page 16 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
