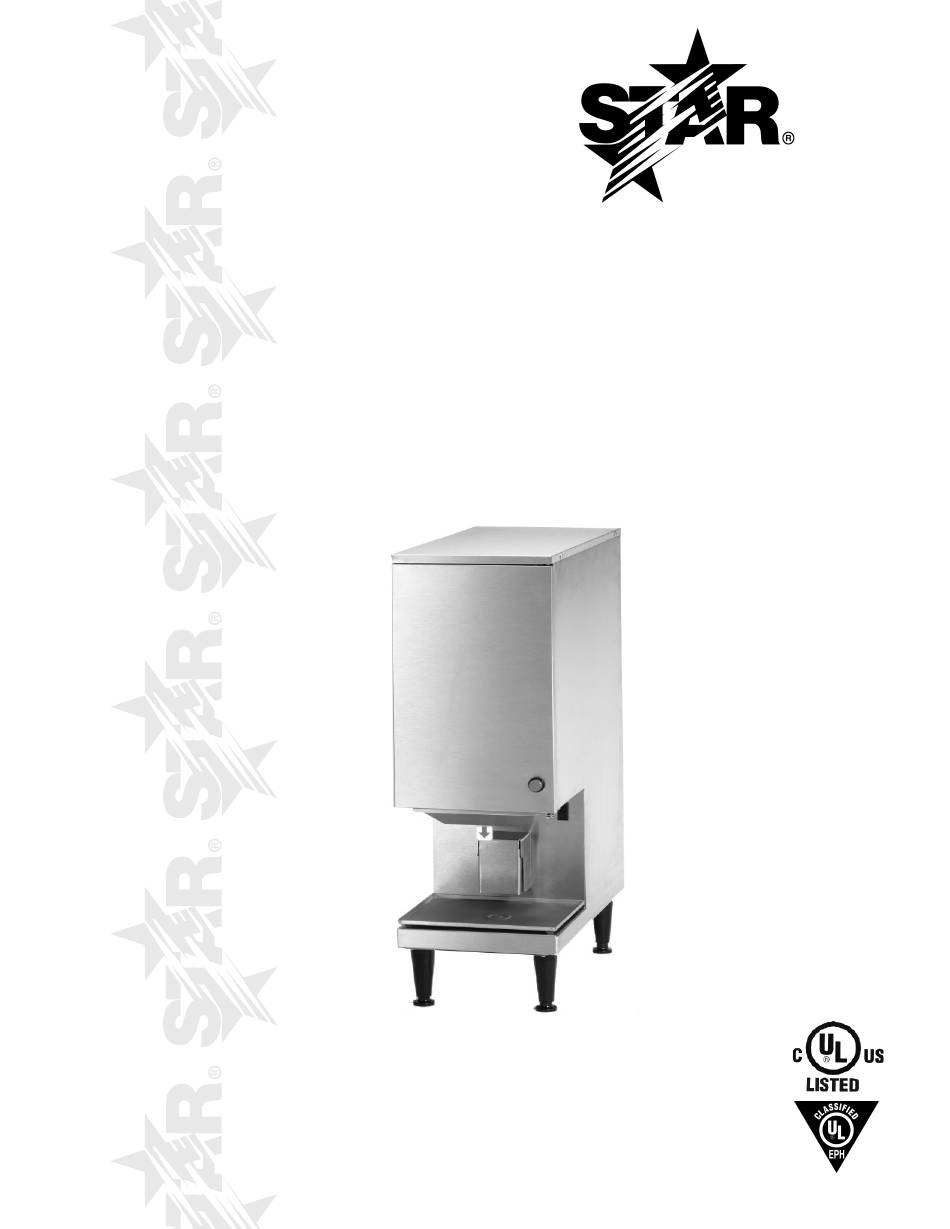

- Page 1 HEATED PERISTALTIC DISPENSER MODEL HPD1ARB SPD1ARB SPD1HP Installation and Operation Instructions 2M-Z5608 Rev. F 10/17/06 HPD1ARB...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
SPECIFICATIONS HPD1ARB, SPD1ARB Capacity: One 160 ounce pouch Electrical: 120V, 60 hertz, single phase, 750 Watts, 6.5 amps Cord: 6 ft. length Plug: 120V - NEMA 5-15P Dimensions: 9-7/16" W x 19-9/16" D x 30-5/16" H (23.97 W x 49.69 D x 77.0 H cm) Net Weight: 42 lbs. -
Page 4: General Safety Information
GENERAL SAFETY INFORMATION CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &... -
Page 5: Portion Control
PORTION CONTROL This dispenser is supplied with a portion control timer. This portion control is based on a time setting. Variations in product temperature and consistency will affect the dispensed amount. To insure a consistent portion, use product that is at the correct temperature (145°F to 160°). To set portion: 1. -
Page 6: Cleaning Instructions
CLEANING INSTRUCTIONS To clean the peristaltic dispenser: The stainless steel body is corrosion resistant, but may corrode if not cleaned properly. The dispenser should be cleaned with a soft cloth with mild soap and water and wiped dry. Do not use detergents, strong abrasives, or metal scouring pads on the stainless steel panels. - Page 7 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 12 NAMEPLATE SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - HPD1ARB-120V SK1900 REV. A 10/17/06...
-
Page 13: Parts List
BUMP ON 1/4" X 1/2 SQ. IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 14 2E-Z4597 TERMINAL BLOCK 1/4 P.O. IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 16 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
