EQUUS SIGNATURE:
discriminating drivers
EQUUS ULTIMATE:
indulgent comfort and a first-class driving experience
Backed by America's Best Warranty
10-Year/100,000-Mile Powertrain Protection
5-Year/60,000-Mile New Vehicle Limited Warranty
7-Year/Unlimited-Mile Anti-Perforation Warranty
5-Year/Unlimited-Mile 24-Hour Roadside Assistance
Equipped with premium features for
Adds ultra-luxury features for
2014
GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Equus 2014 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyundai Equus 2014

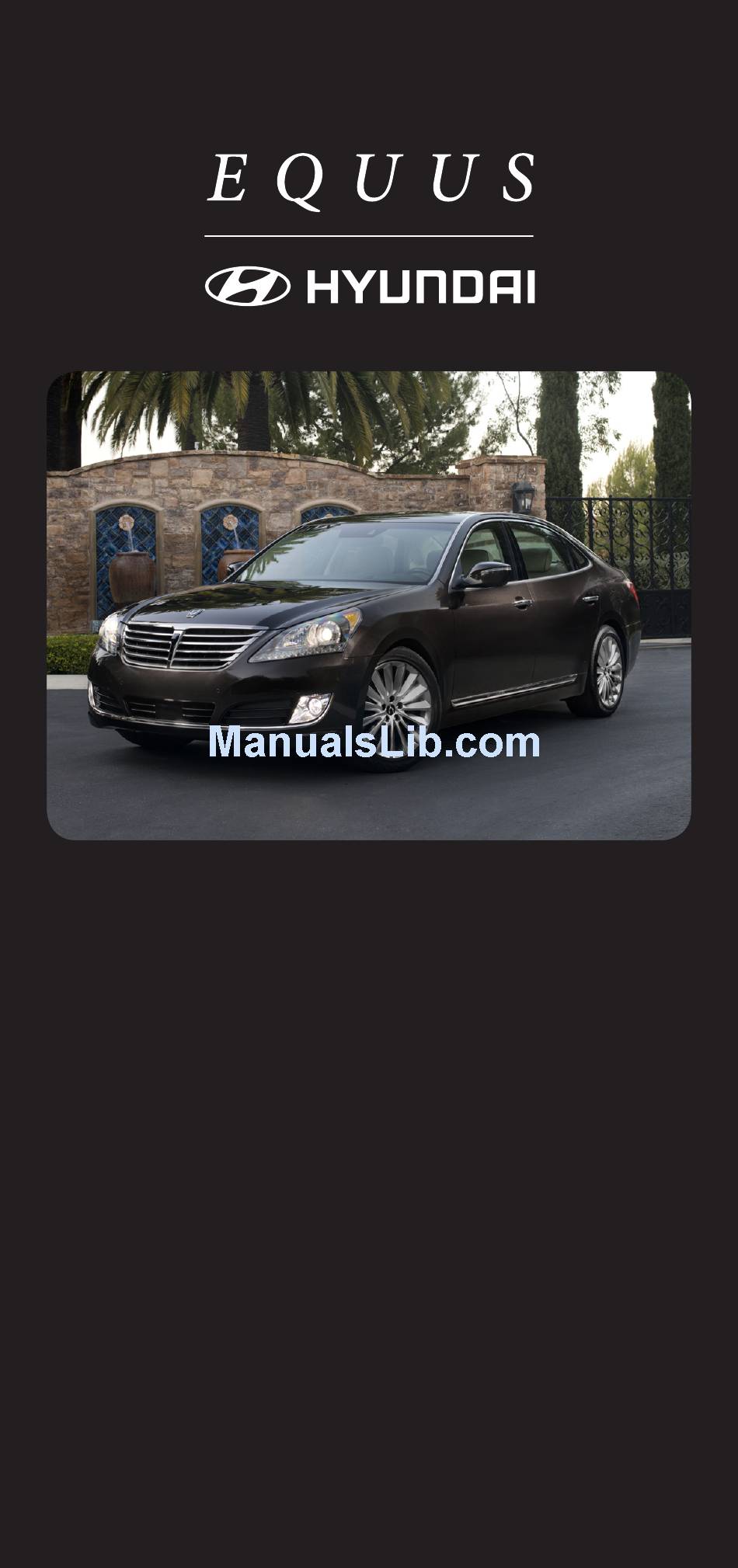

  • Page 1 EQUUS SIGNATURE: Equipped with premium features for discriminating drivers EQUUS ULTIMATE: Adds ultra-luxury features for indulgent comfort and a first-class driving experience Backed by America’s Best Warranty 10-Year/100,000-Mile Powertrain Protection 5-Year/60,000-Mile New Vehicle Limited Warranty 7-Year/Unlimited-Mile Anti-Perforation Warranty 5-Year/Unlimited-Mile 24-Hour Roadside Assistance 2014 GUIDE...
  • Page 2 PERFORMANCE • 5.0-liter DOHC Tau GDI V8 (named one of Ward’s 10 Best Engines, 2011): ® – 429 horsepower @ 6400 rpm (premium fuel); 421 horsepower @ 6400 rpm (regular fuel) – 376 lb.-ft. of torque @ 5000 rpm (premium fuel); 365 lb.-ft. of torque @ 5000 rpm (regular fuel) ® – Dual Continuously Variable Valve Timing (Dual CVVT): Provides more responsive performance in all driving situations. – Tuned Intake System (TIS) – Gasoline Direct Injection (GDI): Provides increased performance, improved fuel efficiency and lower emissions. – Hydraulic Valve Lash Adjustment (HLA): Reduces maintenance. – Steel timing chain: Service interval inspection at 105,000 miles – Iridium double-tipped spark plugs: Replacement at 105,000 miles • Performance rear-wheel drive orientation with fully independent suspension • Premium 19-inch turbine-blade polished alloy wheels with P245/45R19 (front) and P275/40R19 (rear) tires • Dual asymmetrical exhaust with chrome tips integrated into the rear bumper ADVANCED RIDE TECHNOLOGY...
  • Page 3 ADVANCED SAFETY TECHNOLOGY ACTIVE ADVANCED SAFETY (Accident Avoidance) • Lane Departure Warning System (LDWS): Monitors both broken and solid lanes on the highway using a camera mounted near the interior mirror; at speeds above 43 mph, LDWS alerts the driver when the vehicle leaves the lane without using the turn signal by “shaking” the seatbelt and providing an audio and visual warning: – Bad weather and skid marks on the road may cause a false indicator. System can be turned on or off with a switch. • Vehicle Stability Management (VSM) System: With Pre-Collision Warning, integrates ESC, Electronic Parking Brake (EPB), Smart Cruise Control (SCC), seatbelt tensioning system and gauge cluster warnings: – When the possibility of a collision is detected, a warning light and chime are activated. – When the risk is high, these are supplemented by the seatbelt shaking to give a haptic warning and the brakes are automatically pre-set on emergency standby. – When a collision is impending, the seatbelt pre-tensioning and automatic deceleration with Brake Assist (BAS) are mobilized; all systems function unobtrusively and automatically without the driver losing any element of overall control, allowing the driver to take evasive action; if desired, the...
  • Page 4: Additional Safety Features

    ADVANCED SAFETY TECHNOLOGY ACTIVE ADVANCED SAFETY (Accident Avoidance) • 4-wheel disc brakes: 4-sensor, 4-channel Anti-lock Braking System (ABS), provides the ability to brake and steer, Electronic Brake-force Distribution (EBD) keeps the braking smooth and level, and Brake Assist monitors brake pedal pressure. • Electronic Stability Control (ESC) keeps the vehicle on the intended path. • Traction Control System (TCS) helps maintains traction, when needed. • Electro-Hydraulic Power Steering (EHPS): Uses an electric motor to drive the pump so there is less drag on the engine. • High-Intensity Discharge (HID) headlights: With LED turn signal indicators; more effectively illuminate the road at night; includes Adaptive Front Lighting System (AFLS) with auto-leveling and automatic headlights—lights AFLS point into a turn using steering High beam angle sensors for added illumination of the road.
  • Page 5 ULTIMATE ADDITIONAL FEATURE • Multi-View Camera System: Provides a 360-degree visual around the entire vehicle. • Forward-view cornering camera provides an extra margin of safety for negotiating tight urban alleys and parking areas with poor visibility. • Two side cameras are installed in the side mirrors. • Standard rearview camera is integrated for the rearview angle: – When the multi-view camera system is turned on, the default image displays an aerial view. – The multi-view camera system can be toggled between front, rear and side camera views. PASSIVE ADVANCED SAFETY (In Case of Accident) • Nine airbags: Advanced dual front airbags, front and rear seat-mounted side- impact airbags, driver knee airbag, and roof-mounted side-curtain airbags • Electronic active front head restraints with power controls: Activate electronically to protect against neck injury; when the seat slides forward or rearward, the height of the headrest automatically adjusts, increasing both comfort and stability in a rear impact.
  • Page 6: Comfort & Convenience

    COMFORT & CONVENIENCE • Remote and Proximity Key entry with push button start, now also includes a card-type proximity key. • Three-zone Automatic Temperature Control with Air Quality System (AQS): Automatically senses outdoor air pollutants and switches to recirculation air mode to minimize them from entering the vehicle. • Heated, wood-trimmed and leather- wrapped steering wheel—heating element stays on for 30 minutes after activation: – Steering wheel includes audio, Smart Cruise Control (SCC), voice recognition, Bluetooth phone, Lane ® Departure Warning System (LDWS) and trip computer controls. Heater • Power tilt-and-telescopic steering wheel • Leather-wrapped dash and real wood interior trim Tilt/telescopic...
  • Page 7 SEATING REAR SEATING • 60/40 power reclining rear seats: Include adjustable side headrest bolsters, center armrest with control console and drink holders and outboard heated rear seats (bottom and back). • Power rear sunshade: With controls in front and rear seat areas; once activated, the screen will automatically go down when the transmission is placed in reverse. ULTIMATE ADDITIONAL FEATURES • Rear side-window sunshades: Window controlled and operated; second-up operates the sunshade. • Power lumbar: Rear outboard seats • Power door closure • Heated and cooled rear seats: Enhance comfort in all weather conditions.
  • Page 8 ELECTRONICS • Premium navigation system with Driver Information System (DIS) featuring a 9.2-inch display and multimedia controller: Easy to operate; includes vehicle settings. • Lexicon 7.1 Discrete Logic 7 surround sound system: AM/FM/HD ® ® Radio™/SiriusXM /in-dash DVD changer, 598-watt Lexicon ® ® 13-channel digital external amplifier and 17 speakers • Auto Volume Control (AVC): Speed-sensitive volume • iPod /USB and MP3 auxiliary input jacks ® • Bluetooth hands-free phone system ®...
  • Page 9 EQUUS FUNCTIONALITY PROXIMITY KEY—Different Ways to Unlock and Access Press once: Lock. Press twice: Outside mirrors fold in. Press once: Unlock driver’s door. Press twice: Unlock all doors and unfold mirrors. Press and hold to unlock trunk. Press and hold for panic; press any button to turn off panic. Press to remove Mechanical key can be used on the driver’s door, mechanical key. trunk and valet lockout. When you push the unlock button on Proximity Key fob, it activates approach lights that are located under the outside mirrors; when doors are opened, entry lights (puddle lamps) also add illumination to aid driver and passen- gers when entering or exiting the vehicle. Note: The feature, “Press once to unlock all doors” can be programmed through the DIS system. Default is set to “Press once to unlock driver’s door.” Refer to your Owner’s Manual for more information. Image shows proximity range to each door and trunk: • If you open the driver door, only the driver door unlocks • If you open any other...
  • Page 10 DRIVER INFORMATION SYSTEM CONTROLLER— Controls the Following HOME main Opening MAP menu Left tab Main MENU Right tab VOICE main menu Opening PHONE main menus, Opening the DEST main menu which use Bluetooth hands- with full map functions and SSD ® free and store 2,000 stored navigation and POI data phone numbers Blue Link telematics main menu ® Going back one menu level Scrolling through controller: Push to the left, right, backwards, forwards or diagonally; diagonal movement is only used on the map screen. Turning the controller: Turn the controller until the desired menu item is highlighted. Pressing the controller: Confirm a highlighted menu item. Toggle left and right for split screen navigation.
  • Page 11: Trunk Operation

    TRUNK OPERATION There are four ways to unlock the trunk on Equus: 1. Use the manual key. 2. Touchpad: Press to open; Proximity Key needs to be within range. 3. Press and hold the button on the key fob. 4. Press the release button in the vehicle. Manual key 2-position camera Touchpad (manual and power trunk) The valet trunk lockout button is used to prevent unauthorized access to the trunk. To activate the valet lockout system: 1. Open the glove box. 2. Press the trunk lock button in for complete trunk remote functions, with the button out it cancels these functions. The trunk can only be opened with the mechanical key for safety in valet situations. 3. Remove the mechanical key from the Proximity Key. 4. Close and lock the glove box with the mechanical key. Note: Without the mechanical key, the Proximity Key can only start the engine and operate door locks. Cargo hook Fully lined and illuminated trunk First aid kit...
  • Page 12 TRUNK OPERATION—ULTIMATE Equus Ultimate has two additional trunk features: a power trunk and power trunk lock. There are three ways to activate the power trunk opener: 1. Press Proximity Key TRUNK button. 2. Power trunk main control button in the vehicle: Press to open, press and hold to close. 3. Use the touchpad button on the read deck lid. 2013MY shown Power trunk close button: Power trunk lock button: Press to close. Press to close the trunk and lock all doors and trunk; sets the alarm system. The Proximity Key needs to be within range. Tool kit 18-inch Battery: Located in the trunk alloy wheel for better weight distribution; and tire emergency jumper terminals are located under the hood.
  • Page 13: Specifications

    S = Standard Equipment O = Optional Equipment NA = Not Available = Hyundai Advantage Product information as of 4/16/2013. Information subject to change without notice. Please go online to www.spi1986.com for updated product information. Source: www.lexus.com, www.bmwusa.com, www.mbusa.com, www.audiusa.com...
  • Page 14: Color And Trim

    COLOR AND TRIM Exterior Colors Interior Colors JET BLACK IVORY SADDLE NAME CODE TYPE (RY) (NYM) (TU) White Satin Pearl Mica • • Casablanca White*** Mica • • Black Noir Pearl Mica • • Caspian Black* Mica • • Night Shadow Brown Mica • Platinum Metallic Metallic • Santiago Silver**** Metallic • Titanium Gray Metallic Metallic •...
  • Page 15: Maintenance

    MAINTENANCE SCHEDULED MAINTENANCE NORMAL USAGE SEVERE USAGE Engine Oil and Filter (mi./mo.) Replace 7,500/12 Replace 3,750/6 Air Cleaner Filter (mi./mo.) Inspect 7,500 Replace 3,750/6 Replace 30,000 Vacuum Hose (mi.) Inspect 7,500 Climate Control Air Filter—For Replace 15,000 Replace 7,500 Evaporator and Blower Unit (mi.) Air Conditioning Refrigerant (mi.) Inspect 15,000 Brake Hoses and Lines (mi.) Inspect 15,000 Drive Shafts and Boots (mi.) Inspect 15,000 Inspect 7,500 Electronic Throttle Control (mi.) Inspect 15,000 Exhaust Pipe and Muffler (mi.) Inspect 15,000 Front Disc Brake/Pads, Calipers...
  • Page 16 While the information contained in this book was deemed to be correct at the time of printing, specifications and equipment change. No warranty or guarantee is being extended in this book and Hyundai reserves the right to change product specifications and equipment at any time without incurring any obligation.
