Mercedes-Benz CLK Coupe Operator's Manual page 282

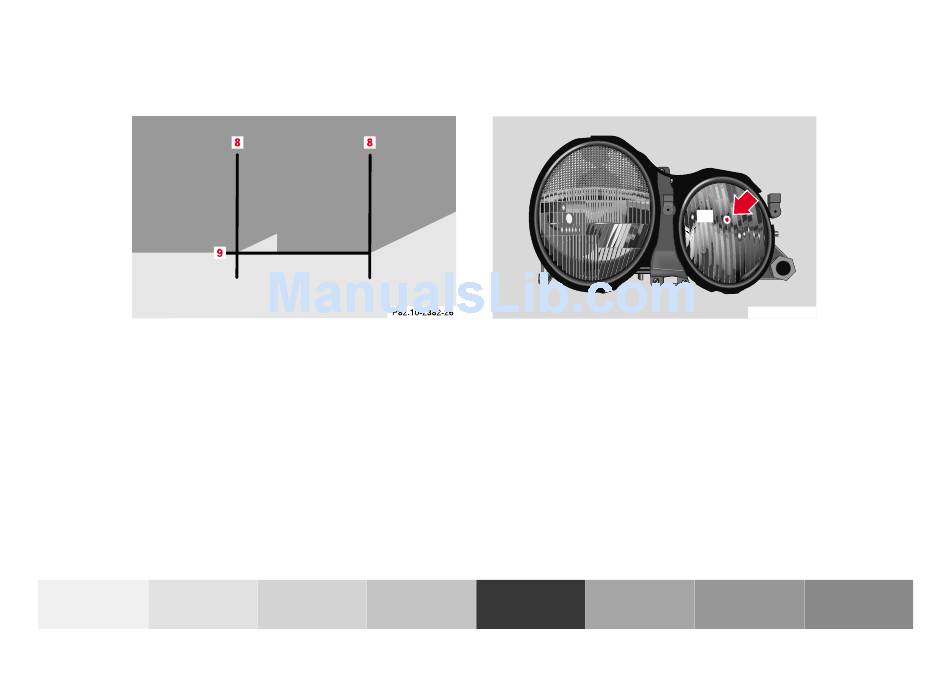

2. (Low beams on):
Using a carpenter's level, align and mark a vertical
centerline (8) on the test screen using the vertex of
the angle formed in each beam image. As a check,
the distance between centerlines should be
1
49 / inches (1250 mm). If the distance does not
4
check, have the system verified at an authorized
Mercedes-Benz Center.
Exterior lamps
Instruments
Operation
and controls
279
Instrument
Driving
cluster display
3. (Low beams off):
Measure the vertical height from the floor to
reference point (10) on high beam lens. Subtract
approx. 2 inches (53 mm) from measurement, and
mark a horizontal centerline (9) on the test screen at
the resulting height from the floor. It must be at a
90° angle to the vertical centerline.
4. Open hood.
Practical hints Car care
10
N82.10-2396-26
