Exterior lamps

Taillamp assemblies

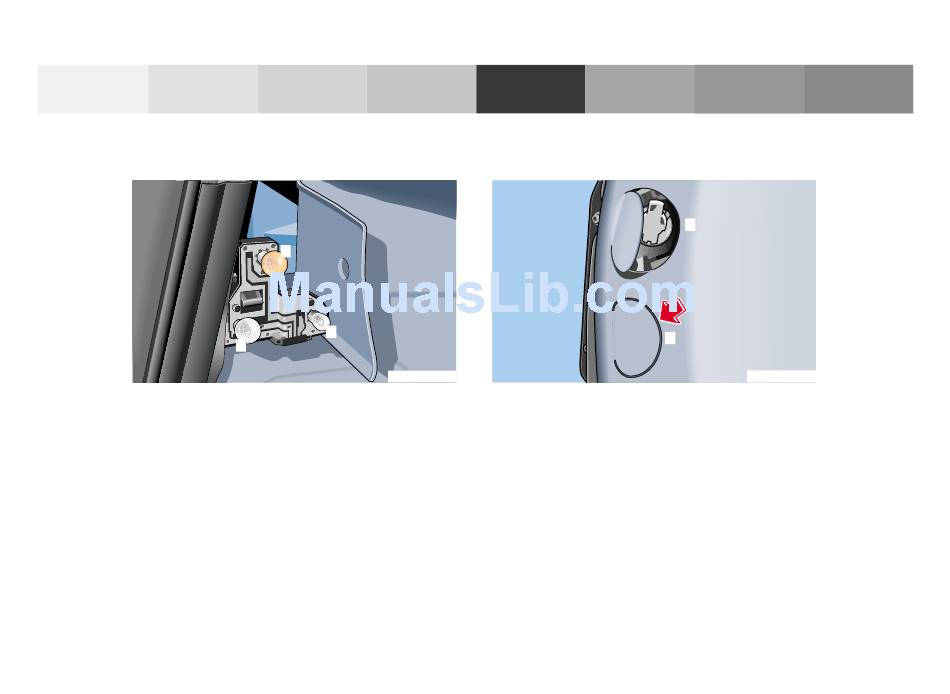

Open trunk lid.
Swing cover aside (bulbs 1, 2 and 3).
1
Turn signal lamp (21 W/24 cp bulb)
2 Stop, tail, parking, and side marker lamp
(21/4 W bulb)
3
Tail and parking lamp (5 W/4 cp bulb)
Instrument
Driving
cluster display
1
3
2
P82.10-2080-26
Practical hints Car care
276
4 Driver's side:
Rear fog lamp (21 W/32 cp bulb)
5 Backup lamp (21 W/32 cp bulb)
Twist bulb socket counterclockwise and pull out. Push
bulb into socket, turn counterclockwise and remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket. Close cover (bulbs 1, 2 and 3).
Technical
Index
data
4
5
P82.10-2083-26
