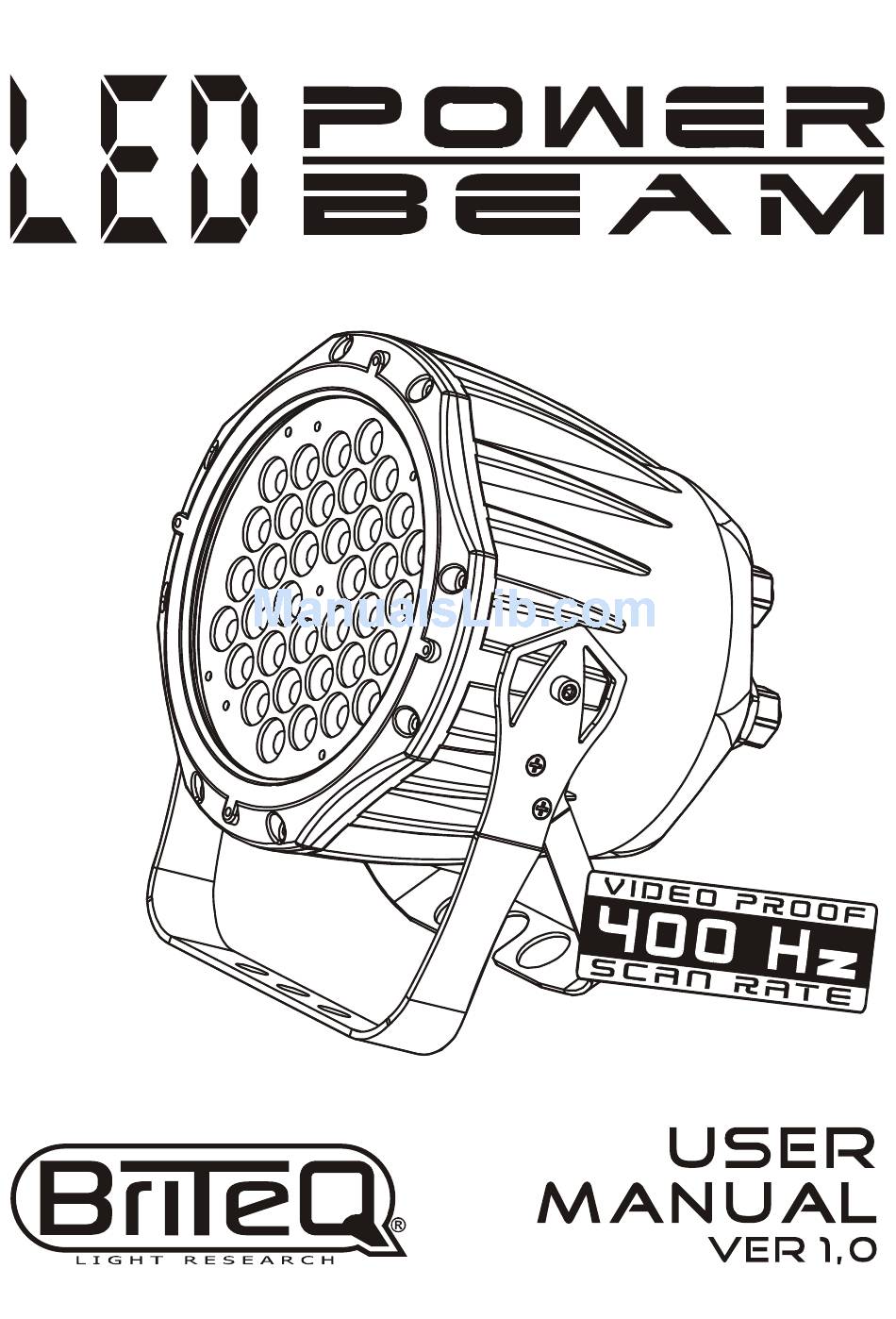

Briteq LED Power Beam User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Briteq LED Power Beam

Summary of Contents for Briteq LED Power Beam

  • Page 2: Table Of Contents

    ABLE OF CONTENTS TABLE OF CONTENTS..............I. PART 1 PRODUCT (GENERAL)............1. 1.1--PRODUCT INTRODUCTION............2. 1.2--PRODUCT FEATURES..............2. 1.3--TECHNICAL SPECIFICATIONS.............3. 1.4--PHOTOMETRIC DATA..............4. 1.5--SAFETY WARNING..............5. PART 2 INSTALLATION...............6. 2.1--MOUNTING...................7. 2.2--POWER CONNECTION..............7. 2.3--SETTING UP WITH A DMX512 CONTROLLER.........8. 2.3-1--DMX512 ADDRESSING WITHOUT ID ADDRESSING........8. 2.3-2--DMX512 ADDRESSING WITH ID ADDRESS..........8. 2.4--SETTING UP WITH THE PiX CONTROLLER........9.

  • Page 3: Part 1 Product (General)

    PRODUCT (GENERAL) PRODUCT INTRODUCTION PRODUCT FEATURES TECHNICAL SPECIFICATIONS PHOTOMETRIC DATA SAFETY WARNING 2007.03.10 1 PRODUCT(GENERAL)

  • Page 4: Product Introduction

    PRODUCT INTRODUCTION This product is designed for indoor or outdoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. This product can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control.

  • Page 5: Technical Specifications

    TECHNICAL SPECIFICATIONS LED MODULE LED MODULE: Voltage 90~250V...50/60Hz Rated Power IP65 protection rating 36pcs (12 x RED / 12 x GREEN / 12 x BLUE) LED/Unit Output/LED Environment Temperature -20 ~40 LED Beam Angle 15 (30 Optional) Cooling Direct air convection Dimensions 235 x 165 x 300mm Weight...

  • Page 6: Photometric Data

    PHOTOMETRIC DATA PHOTOMETRIC DATA WHITE 27 50 70 0 32 0 19 0 14 5 LU X 2(0 .52 ) 4(1 .05 ) 6(1 .57 ) 8(2 .10 ) 10 Dist ance (m) (2. 60D iame ter( m)) 29 0 13 0 50 LU X 11 45...

  • Page 7: Safety Warning

    SAFETY WARNING IMPORTANT ALWAYS READ THE USER MANUAL BEFORE OPERATION. PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA. This product must be installed by a qualified professional. Always operate the equipment as described in the user manual.

  • Page 8: Part 2 Installation

    INSTALLATION MOUNTING POWER CONNECTIONS SETTING UP WITH A DMX512 CONTROLLER 2.3-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING 2.3-2 DMX512 ADDRESSING WITH ID ADDRESS SETTING UP WITH THE PiX CONTROLLER 2.4-1 SINGLE ROW APPLICATION 2.4-2 STANDARD BLOCK APPLICATION 2.4-3 REPEAT ROW BLOCK APPLICATION OPERATION: DMX512 Vs PiX CONTROLLER 2007.03.10 2 INSTALLATION...

  • Page 9: Mounting

    MOUNTING HANGING The LED PAR can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp. Please note that when hanging the unit a safety cable should also be used.

  • Page 10: Setting Up With A Dmx512 Controller

    SETTING UP WITH A DMX512 CONTROLLER 2.3-1 DMX512 ADDRESSING WITHOUT ID ADDRESSING Connect the DMX512 controller to the units in series. Each unit has 9 DMX channels so the DMX Addresses should increase by increments of 9 (e.g. 1,10,19,28...) The ID address has not been set so therefore when using the controller CH8 must be inactive ( CH8=0 ).

  • Page 11: Setting Up With The Pix Controller

    Example: DMX Addr.1 DMX Addr.1 DMX Addr.1 DMX Addr.10 DMX Addr.10 DMX Addr.10 ID Addr.1 ID Addr.2 ID Addr.3 ID Addr.1 ID Addr.2 ID Addr.3 DMX512 The figure above shows a simple DMX layout CONTROLLER which has used three units at each DMX address. The three units have different ID addresses which allows the user to collectively control the whole group of units at that DMX address by setting...

  • Page 12: Standard Block Application

    2.4-2 STANDARD BLOCK APPLICATION Connect the fixtures to the PIX CONTROLLER in series in the direction that is required. ID Address should be set in the Id menu on each unit in ascending values (i.e. 1,2,3...Not required for WASH programs). When using the Effect programs it is important to set the Range of fixtures in the Settings menu of the PiX CONTROLLER.

  • Page 13: Repeat Row Block Application

    2.4-3 REPEAT ROW BLOCK APPLICATION Connect the fixtures to the PIX CONTROLLER in series. ID Address should be set in the Id menu on each unit in ascending order with each row repeated (Not required for Wash programs). When using the PRO-a CONTROLLER with the fixtures there is no need to set the DMX address.
  • Page 14 OPERATION: DMX512 Vs PiX CONTROLLER OPERATION WITH A DMX512 CONTROLLER AVAILABLE BENEFITS DRAWBACKS FUNCTIONS DMX512 ADDRESS No need to set Must locate Basic WASH up DMX Address previosly stored Programming ID ADDRESS or ID Address DMX Address Advanced DMX512 ADDRESS Programming requires WASH &...

  • Page 15: Part 3 Display Panel Operation

    DISPLAY PANEL OPERATION BASIC MENU ACTIVATING AUTO PROGRAMS DMX512 SETTINGS ID ADDRESS EDITING CUSTOM PROGRAMS SPECIAL SETTINGS ACTIVATE THE PASSWORD 3.9 RGB CHANNEL MODEL 2007.03.10 3 DISPLAY PANEL OPERATION...

  • Page 16: Basic

    BASIC The LED fixture is mounted with a LCD display and 4 control buttons. POWER I N POWER O UT DMX IN D MX O UT MENU DO WN MENU DOWN scroll through the main menu or return to the main menu enter the currently selected menu or confirm the current function value scroll 'UP' through the menu list or increase the value of the current function scroll 'DOWN' through the menu list or decrease the value of the current function...

  • Page 17: Menu

    MENU MENU AUTO AT.01 AT.02 AT.10 PR.C1 PR.C2 PR.C10 d 001 I 001 IO66 Edi t PR.C1 SC.01 R. 0 PR.C2 SC.02 GrEn G. 0 PR.C3 bluE B. 0 PR.C4 Strb S. 0 PR.C5 TInE T. 0 PR.C6 SC.30 FAdE F.

  • Page 18: Dmx512 Settings

    ACTIVATING AUTO PROGRAMS MENU AUTO AT.01 AT.02 AT.10 PR.C1 PR.C2 PR.C10 Auto Select the target [Auto] program and press SET Programs AT.01 to AT.10 are fully pre-programmed and will not be altered by changes in EdIT mode Programs PR.C1 to PR.10 are fully pre-programmed and can be edited in EdIT mode DMX512 SETTINGS MENU...

  • Page 19: Id Address

    ID ADDRESS MENU I 001 IO66 Enter the Id mode to set the ID ADDRESS EDITING CUSTOM PROGRAMS MENU Ed it PR.C1 SC.01 R. 0 PR.C2 SC.02 GrEn G. 0 PR.C3 bluE B. 0 PR.C4 Strb S. 0 PR.C5 TInE T.

  • Page 20: Activate The Password

    SPECIAL SETTINGS MENU S ET U P Ld PASS R E ST PASS Sen d En d rEST Select UPLd to upload the custom programs from the current MASTER unit to the SLAVE units. In order to activate the upload function the password must be entered Password is the same as the main access password When uploading the MASTER and SLAVE units will display YELLOW If an error occurs when uploading the MASTER and/or SLAVE units will display RED...

  • Page 21: Part 4 Using A Dmx512 Controller

    USING A DMX512 CONTROLLER BASIC ADDRESSING CHANNEL ASSIGNMENT BASIC INSTRUCTIONS FOR DMX512 OPERATION 2007.03.10 4 USING A DMX512 CONTROLLER...

  • Page 22: Basic Addressing

    BASIC ADDRESSING Connect all of the units in series using standard DMX512 signal cable or the IP65 rated cable provided. Set the DMX512 address in the DMX menu. It is possible to have the same DMX address or independent addresses for each fixture. CHANNEL ASSIGNMENT DMX MODE CHANNEL...
  • Page 23 CHANNEL VALUE FUNCTION NO FUNCTION AT. 01 ( AUTO 01 ) AT. 02 AT. 03 AT. 04 AT. 05 AT. 06 AT. 07 AT. 08 AT. 09 AT. 101 (AT.01 to AT.09 cycle 5min each AUTO mode) PR.C1 (CUSTOM PROGRAM 1) PR.C2 PR.C3 PR.C4...
  • Page 24 CHANNEL VALUE FUNCTION ID21 ID22 ID23 ID24 ID25 ID26 ID27 ID28 ID29 ID30 ID31 ID32 ID33 ID34 ID35 ID36 ID37 ID38 ID39 ID40 ID41 ID42 ID43 ID44 ID45 ID46 ID47 ID48 ID49 ID50 ID51 ID52 ID53 ID54 ID55 ID56 ID57 ID58 ID59 ID60...

  • Page 25: Basic Instructions For Dmx512 Operation

    BASIC INSTRUCTIONS FOR DMX512 OPERATION MASTER DIMMER CH1 controls the intensity of the currently projected color When the slider is at the highest position (255) the intensity of the output is the maximum RED, GREEN & BLUE COLOR SELECTION CH2, CH3 & CH4 control the intensity ratio of each of the RED, GREEN & BLUE LEDs. When the slider is at the highest position (255) the intensity of the color is the maximum.

  • Page 26: Part 5 Using The Controller

    USING THE CONTROLLER MENU WASH PROGRAM EFFECT PROGRAM CUSTOM PROGRAM PLAY SCHEDULE CLOCK SCHEDULE SETTINGS ACTIVATE THE PASSWORD 5.10 PiX CONTROLLER EXTERNAL CONTROL VIA DMX512 5.11 MAINTENANCE 2007.03.10 5 USING THE CONTROLLER...

  • Page 27: Menu

    MENU MENU Wash program Wash 1 Step time 001 Wash 1 Edit Fade time 001 Wash 2 Step time 001 Wash 2 Edit Fade time 001 Wash 8 Step time 001 Wash 8 Edit Fade time 001 Effect program Effect 1 Speed 001 Effect 1 Edit...
  • Page 28 Schedule Start >>> End Wash 1 00:00 >>>00:00 00:00>>>00:00 Wash 2 Start >>> End 00:00 >>>00:00 00:00>>>00:00 Start >>> End Wash 8 00:00>>>00:00 00:00 >>>00:00 Start >>> End Effect 1 00:00 >>>00:00 00:00>>>00:00 Effect 2 Start >>> End 00:00 >>>00:00 00:00>>>00:00 Start >>>...

  • Page 29: Wash Program

    WASH PROGRAM MENU Wash program Wash 1 Step time 001 Wash 1 Edit Fade time 001 Wash 2 Step time 001 Wash 2 Edit Fade time 001 Wash 8 Step time 001 Wash 8 Edit Fade time 001 Wash Select from the eight Wash programs and instantly play When Edit is allowed in [Settings] it is possible to set the Step time and Fade time The unit of Step time is 5 seconds and can be adjusted from 1 to 255...

  • Page 30: Custom Program

    CUSTOM PROGRAM MENU Custom program Custom 1 Custom 1 Edit Scene 1 Scene 1 Scene 1 ID address ID address Scene 2 Scene 1 Scene 1 Step time Module 001 Scene 1 Scene 1 Scene 100 Fade time Red 001 Scene 1 Scene 1 Green 001...

  • Page 31: Play Schedule

    PLAY SCHEDULE MENU Play schedule Schedule >>> Schedule Activate this menu in order to play the schedule CLOCK MENU Clock Time now 02/08/2006 13:50:24 Edit time 02/08/2006 13:50:24 Time now Enter this function to view the current time. Edit time Enter this menu to edit the date and time.

  • Page 32: Settings

    Wash , Effect & Custom Enter each of the twenty-four Wash , Effect and Custom programs to set Start & End time Programs will be played according to schedule time order. When a program is currently playing and has not yet reached the [End] time, any new [Start] time will have priority when over-lapping times.

  • Page 33: Activate The Password

    ACTIVATE THE PASSWORD MENU Passw ord O N / OF F Password ON/OFF Set Password Password Enter the Password mode to set password YES/NO When password is activated, display will demand password each time the fixture is powered on. Enter the Set password menu to change password. Set new password using the &...
  • Page 34 CHANNEL VALUE FUNCTION CHANNEL VALUE FUNCTION Refresh Refresh Wash 1 Effect 6 Refresh Refresh Wash 2 Effect 7 Refresh Refresh Wash 3 Effect 8 Refresh Refresh Wash 4 Custom 1 Refresh Refresh Wash 5 Custom 2 Refresh Refresh Wash 6 Custom 3 Refresh Refresh...

  • Page 35: Maintenance

    5.11 MAINTENANCE ITEM Gel holder Upper cover Glass plate LED heat-transfer plate Power supply Display board Casing Driver board Secondary support Main support 2007.03.10 5 USING THE CONTROLLER...
