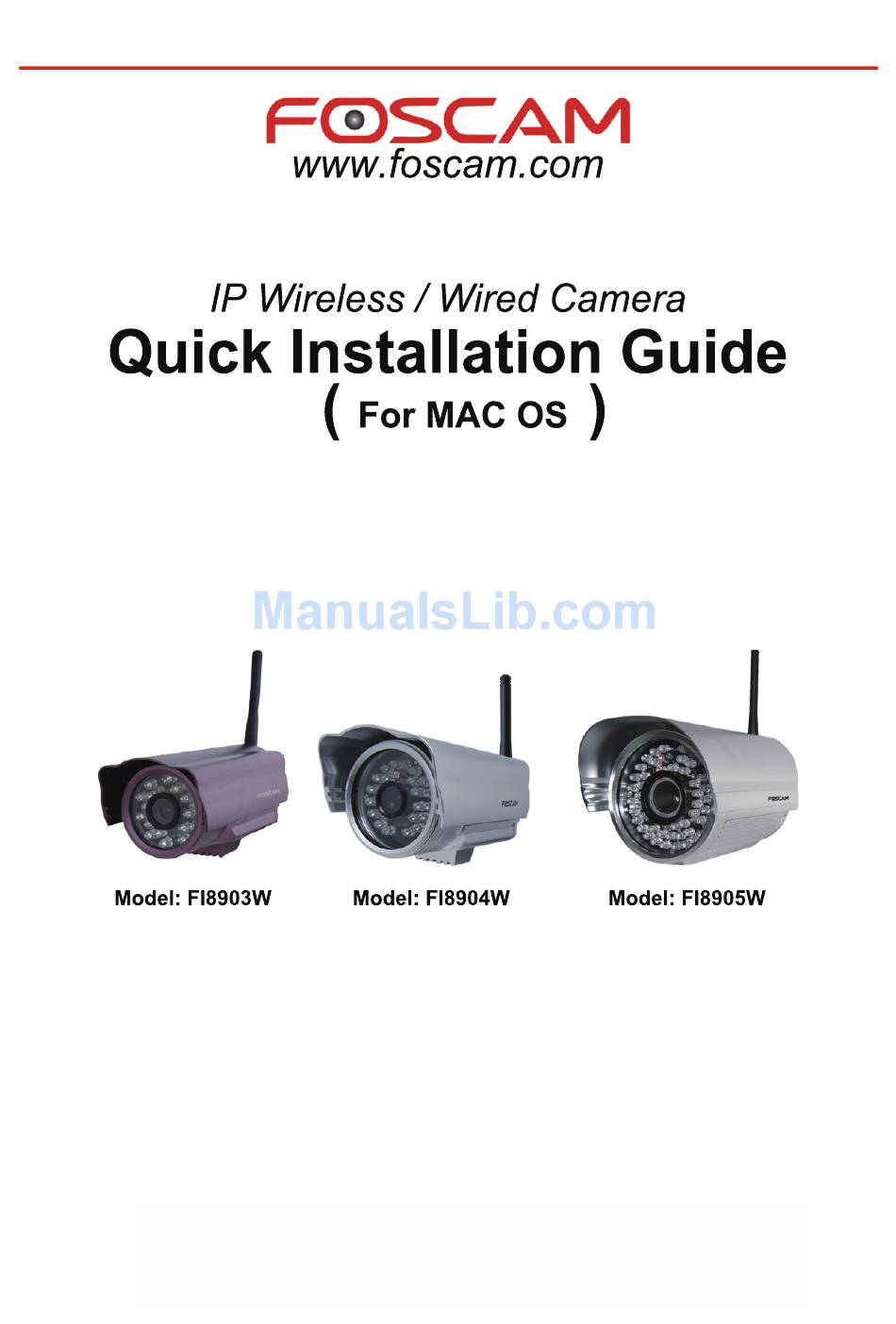

- Page 1 ShenZhen Foscam Intelligent Technology Co., Ltd...
-
Page 2: Packing List
FI8903W/FI8904W/FI8905W Quick Installation Guide Quick Installation Guide-For MAC users Packing List 1) IP CAMERA X 1 2) Wi-Fi Antenna (only available for wireless model) 3) DC Power Supply X 1 4) Network Cable X 1 5) Mounting bracket ×1 6) CD X 1 (Include user manual、IP camera tool) -
Page 3: Software Installation
FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 1.0 Connect the Antenna. Screw the antenna to the back of the camera, make sure it attached well. Figure 1.1 Plug the network cable and power. Use network cable connects with the camera and your router. Plug in the power. - Page 4 FI8903W/FI8904W/FI8905W Quick Installation Guide Please put the small CD in your CD driver of your laptop and find the folder “For MAC”, then open the folder “IP Camera Tool”. Copy the IP camera tool to your MAC and you can use the tool.
- Page 5 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 1.5 The browser will prompt you enter the camera’s user name and password. Please fill in admin and choose Log in. You can see the device status. Figure 1.6 Click Live Video. You can see living video.
-
Page 6: Wireless Lan Settings
FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 1.7 4 Wireless LAN Settings Please choose Device Management and click Wireless LAN Settings. Then choose Using Wireless LAN. Click Scan button and the camera will detect WIFI device around it. It could also find your router and show it in the list. (Figure 1.9) Figure 1.8... -
Page 7: Ddns Service Settings
FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.0 Make sure that SSID, Encryption and share key are exactly the same with your router. Figure 2.1 Figure 2.2 Please click Submit after finish these settings, the camera will reboot. Plug out the network cable after you click submit about 10 seconds. - Page 8 FI8903W/FI8904W/FI8905W Quick Installation Guide finished the connection of camera in LAN and port forwarding. (Figure 3.5/3.6) You can access the camera directly from Internet by the WAN IP and port number. There are two ways to obtain your WAN IP.
- Page 9 FI8903W/FI8904W/FI8905W Quick Installation Guide Do port forwarding manually. (details: Figure 3.5/3.6) If your router has Virtual server, it is used to do port mapping. Please add the camera’s LAN IP and port which you set in basic network settings to the Virtual map list.
- Page 10 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.5 Then choose Add To Cart. Click here after you finish the settings above Figure 2.6 Set the following information as the picture below. Fill in user name,password and email address Click here to create account Figure 2.7...
- Page 11 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.8 Please click the link in your email to activate your account. Or copy the link and paste it to the browser to activate the account. Make sure that your account was activated or DDNS settings will be failed.
- Page 12 FI8903W/FI8904W/FI8905W Quick Installation Guide see your host name in the list. Please remember the host name, user name and password; they are needed when you set DDNS service settings of your camera. Figure 3.1 Basic Network Settings We need set a static IP for the camera when do DDNS service settings.
- Page 13 FI8903W/FI8904W/FI8905W Quick Installation Guide get from the dyndns website. Figure 3.3 Please click submit after fill in all the information. The camera will reboot. Please login in the camera again to check if DDNS settings is succeed. Figure 3.4 How to do port forwarding.
- Page 14 FI8903W/FI8904W/FI8905W Quick Installation Guide start port and end port as the same port number. Add the camera’s LAN IP and port (Figure 3.6) in the list of port forwarding page. Figure 3.6 Please do not forget to save these settings when you finish them.
- Page 15 FI8903W/FI8904W/FI8905W Quick Installation Guide ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com - 14 -...
