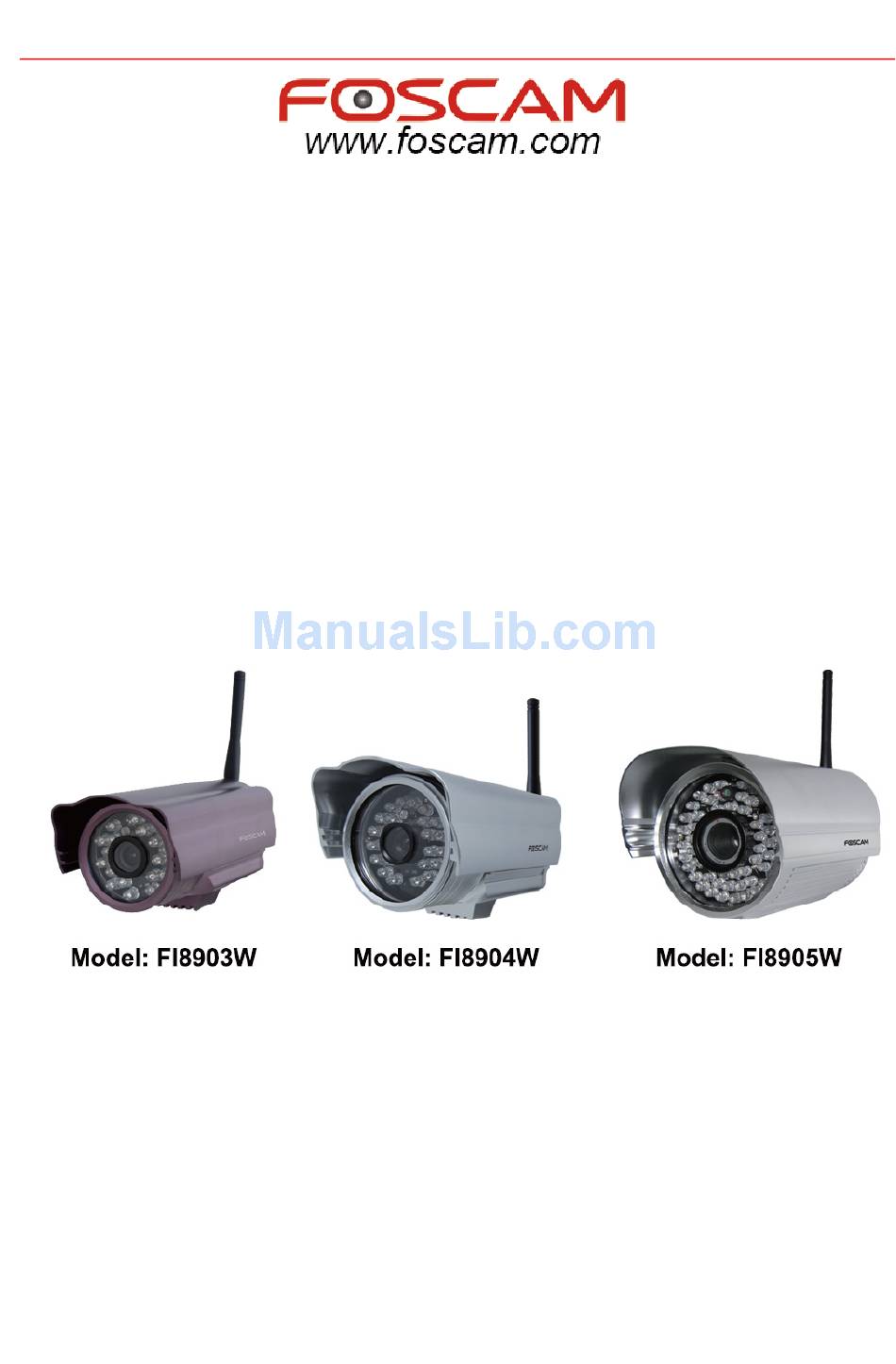

V38.01 IP Wireless / Wired Camera Quick Installation Guide (For Windows OS) ShenZhen Foscam Intelligent Technology Co., Ltd... -
Page 2: Packing List
FI8903W/FI8904W/FI8905W Quick Installation Guide Quick Installation Guide Packing List 1) IP CAMERA X 1 2) Wi-Fi Antenna (only available for wireless model) 3) DC Power Supply X 1 4) Network Cable X 1 5) Mounting bracket ×1 6) CD X 1 (Includes user manual、IP camera tool) -
Page 3: Software Installation
FI8903W/FI8904W/FI8905W Quick Installation Guide Connect the antenna. Screw the antenna to the back of the camera, make sure it is attached securely. Figure 1.1 Plug the network cable and power. Connect the network cable to your camera and to your router. Plug in the power. - Page 4 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 1.3 Click Next to complete the software installation. Figure 1.4 www.foscam.com - 3 -...
- Page 5 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 1.5 An icon will appear on your desktop after the IP Camera Tool software installation has successfully completed. 3 Login the camera Double click the IP Camera Tool icon and the following screen should appear (Figure 1.6):...
- Page 6 FI8903W/FI8904W/FI8905W Quick Installation Guide computer. Double click the IP address on the IP Camera Tool which will display the login UI. If you use IE browser, choose here to login If you use Firefox, Google Chrome, Safari, choose here to login Figure 1.7...
-
Page 7: Wireless Lan Settings
FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 1.8 If you are unable to see a live video, please make sure to allow the activeX running when prompted. (for more details: see user manual) If you only see a black screen with a red cross in the center, please try another port number instead of the default “port 80”. - Page 8 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.0 Figure 2.1 www.foscam.com - 7 -...
-
Page 9: Ddns Service Settings
FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.2 (3) Please click on the Submit button after all settings have been entered. The camera will reboot. After the camera has completed the reboot process, wait 10 seconds and disconnect the network cable. The camera should work through your wireless router. - Page 10 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.3 Obtain the WAN IP address from the router You can find the WAN IP from your router. Normally, it is in system status. For example, here are the steps for the LINKSYS WRT54G router:...
- Page 11 FI8903W/FI8904W/FI8905W Quick Installation Guide LAN IP and port which you set in basic network settings to the Virtual map list. Note: If you plug the camera in a router, it will have dynamic IP address and you need to set DDNS service settings to view it remotely.
- Page 12 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.5 Then choose Add To Cart. Click here after you finish the settings above Figure 2.6 Set the following information as the picture below. www.foscam.com - 11 -...
- Page 13 FI8903W/FI8904W/FI8905W Quick Installation Guide Fill in user name,password and email address Click here to create account Figure 2.7 The website will send you an email to your mailbox to activate your account. Figure 2.8 Click the link in your email to activate your account.
- Page 14 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 2.9 You will see the following picture. Click Activate services>> Figure 3.0 All settings are saved and the following screen appears. (Figure 3.1) Your host name will be displayed in the list. Note: Please remember the host name, user name and password; they are needed when you set DDNS service settings of your camera.
- Page 15 FI8903W/FI8904W/FI8905W Quick Installation Guide Basic Network Settings A static IP for the camera is needed when configuring the DDNS service settings. Login your camera and set basic network settings as the picture below. Figure 3.2 Make sure that your camera is in the same subnet as your router. In other words, keep the first three sections the same as your router or your computer.
- Page 16 FI8903W/FI8904W/FI8905W Quick Installation Guide Login the camera again to check if the DDNS settings show “Succeed”. Figure 3.4 How to configure port forwarding. Login your router and locate the port forwarding settings. For example, the Linksys router has the following configuration settings: Set the port forwarding fields as follows.
- Page 17 FI8903W/FI8904W/FI8905W Quick Installation Guide Figure 3.6 Do not forget to save these settings when you are finished. You can now use the DDNS domain name and port number to login your camera from anywhere. For example, use strings http://cyjun321.dyndns.org:8090 to login the camera.
- Page 18 FI8903W/FI8904W/FI8905W Quick Installation Guide Conclusion Other detail settings, please consult the user manual. ShenZhen Foscam Intelligent Technology Co., Ltd www.foscam.com - 17 -...
