Summary of Contents for Vitamix The Quiet One On-counter Series

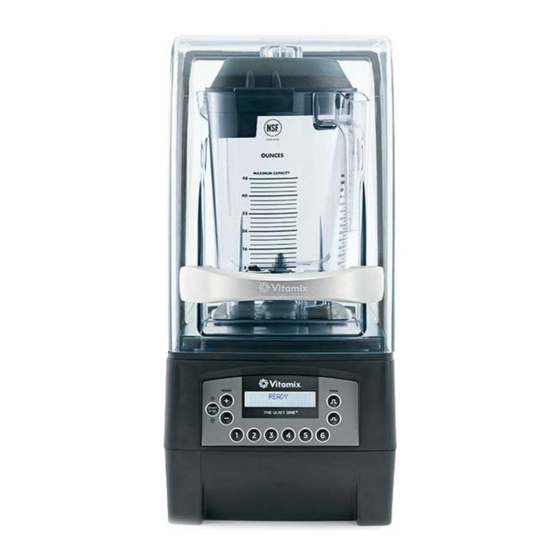

- Page 1 The Quiet One ® Blending Station all mOdelS Use and Care Manual Read and save these instructions Speed Pulse Speed Pulse START STOP START STOP On-cOunter In-cOunter e n g l i S h e S Pa Ñ O l F R a n Ç...
-
Page 2: Table Of Contents
CO n T e n TS English ..........................Español ........................Français ........................Important Safeguards ..................General Instructions ..................Control Panel ......................Programming ......................Programming Pre-Set Buttons Programming Custom Chip Resetting Pre-Set Buttons Recipe Options Machine Assembly .................... Compact Cover Blade Assembly Installation ........................ -
Page 3: Important Safeguards
• Do not operate with loose, nicked or damaged blades – replace immediately. FIGURE A FIGURE B • To reduce the risk of personal injury, never place blade assembly on motor base without the Vitamix container properly attached. 13. The maximum capacity is equivalent to the ounces (liters) listed on the container, iMportant notes! i.e., 48 oz. / 1,4 L, and is substantially less with thick mixtures. 14. Always operate the Vitamix machine with the lid in place and securely attached. The instructions appearing in this Use and Care Manual cannot cover every possible 15. Display window area will scratch when contacted with a scouring pad or sharp condition and situation that may occur. Common sense and caution must be object. Use a soft cloth to wipe the control panel area clean. practiced when operating and maintaining any appliance. 16. The machine cannot be cleaned with a water jet. 17. I t is recommended that for a 120 V installation, you have at least one 20 amp outlet per machine, available within 6 ft. / 1,8 m of the Vitamix. -
Page 4: General Instructions
• O n all units, the built-in thermal protector keeps track of how hot the motor gets your machine with the container empty. and will warn the user and eventually shut down the motor if the motor is overheating. 4. Always use a lid that is securely attached when blending. When overheated, the display will instruct the user to remove the container and 5. P lug the machine into the nearest outlet (if unplugged). Press the run the machine until cool. This takes about two minutes. See page 23, “Cooling the On/Off switch to on. Select desired programmed setting by pressing Motor,” for complete instructions. When the thermal protector shuts the motor off, any of the Pre-Set buttons 1 through 6. The machine will immediately review your processing techniques and your instructions. Your recipes may be too begin to cycle through the selected program and turn off when the thick or have too much material in them. Consider adding more liquid and consult program is complete. (NOTE: Each button has a different pre-selected Vitamix® Customer Service or your local Vitamix Distributor for further assistance. combination of speed and length for blending.) -
Page 5: Control Panel
CO n T R O l Pa n e l Display Window: This area, depending on which button is pressed, displays a variety of operation messages. A “Ready” message appears when there is Speed Pulse power to the machine. Owner Controls: The owner control panel is accessible by activating the Power START Switch located on the back of the motor base while depressing button 2. STOP • O nce the unit powers up, the display will cycle through VITA-MIX CORP three screens. The first indicates the current program VERSION #201 version. The second indicates which program is running on the machine. The third will indicate the motor temperature TEMP COUNT TOTAL NORM (NORM, WARM, HOT), and the total hours of operation, including production and testing. This time can not be cleared. TIMER HR: MIN: SS Once this screen is reached, button 2 can be released. -
Page 6: Programming
P R O g R a m m i n g Resetting the Pre-Set Buttons The Quiet One® is pre-programmed with an Advance® program which is optimized for the Advance® container. The program can be customized by using the control to the original factory settings panel, or a programming chip or programmer software kit available from Vitamix®. 1. Access the Owner Controls by activating the power switch located on Call your distributor or customer service for more information. the back of the motor base while depressing button 2. 2. Once the unit powers up, it will cycle through three screens then stop on the motor Programming Pre-Set Buttons status screen. Depress button 2 again, within 12 seconds, to scroll through the menu settings. 1. A ccess the 34 stored programs by activating the power switch located on the back 3. Scroll using button 2. The screen will display “1 TO OVERWRITE CURRENT of the motor base while depressing the High Pulse button. The display will say... -
Page 7: Recipe Options
P R O g R a m m i n g Recipe Options Arranged by recipe number (#) and drink type: Ramps up to LOW (25%), gradually ramps up to MED (50%), Multiple Coffees 2 then up to HIGH (100%) Small Coffee Gradually ramps up to MED-HIGH (75%) DRINK TYPE DESCRIPTION TIME... -
Page 8: Machine Assembly
To remove the sound enclosure: door hinge cutouts over the round hinges. • First ensure that the container has been removed from the unit. • grasp the enclosure with both hands. • Tilt slightly back and pull the enclosure straight up (See Figure B). To replace the sound enclosure: • Start with the back cover detached from the cover door • Align the opening in the base plate of the back cover (See Figure C) • Start on one side of the centering pad and slowly lay the back cover into position ensuring that the sound dampening pad is not pinched by any portion of the base plate (Figure D) FIGURE A iMportant notes! FIGURE D FIGURE B FIGURE C containers: • T he Quiet One® machines are optimized for use with the Vitamix® 48 oz. / 1,4 L Advance® container (3 sided container). The 64 oz. / 2,0 L standard container will not fit in the compact cover used on the The Quiet One®. Contact Vitamix customer service at 800-886-5235 or contact your distributor for more information. • Outside the United States and Canada, your machine may come with a different container configuration. -
Page 9: Blade Assembly
m aC h i n e aSS e m B ly Two-Piece Lid Blade Assembly (Figure a) 48 oz. / 1,4 L Advance® Container Blade Agitator Assembly: The blade assembly includes a precision-hardened stainless steel blade The two-piece lid is easy to clean and easy to put on, take off and seal. with enclosed double sealed steel ball bearings for • To remove a fully latched lid, lift the two tabs an pull upward and off. -
Page 10: Installation
i n STa l l aT i O n In-Counter Machine On-Counter and In-Counter Blending Station Preparing the counter Area: Electrical Requirements: • Before cutting holes, make sure that there is adequate clearance under the counter for the • 120 V, 50/60 Hz, 15 amps motor. The motor will extend about 3.0 in. / 7,6 cm below the counter but it is best to allow • Uses a U.S.A. three-prong grounded cord. at least 10.0 in. / 25,4 cm from the under-counter to shelves or any other equipment under • 20 amp outlet per machine is recommended. the counter. Also, when using the removable cover design, the back of the hole must be at least 4.3 in. / 10,8 cm from any wall to allow for cover door clearance. Do not use extension cords with machine. • An extra 4.0 in. / 10,2 cm of open space above the top of the cover will be needed for • 220 – 240 V, 50/60 Hz, 1300 – 1550 Watts placement and removal of the In-Counter machine. -
Page 11: Caring For Your Machine
800-521-8140 iMportant notes! iMportant notes! Cleaning Products: Do not use abrasive cleaning agents or concentrated bleach when cleaning. Do not use any cleaners containing quanitary sanitizers on polycarbonate components (i.e., Advance® containers, covers). Do not use any of the following cleaning Sound Dampening Gasket: Do not wash in the dishwasher. High temperatures and products: automatic dishwashing detergents, oven cleaners, steel wool or other abrasive pads. chemicals may cause the pad to swell. Do not soak. The gasket may absorb water and swell. Cover: Do not wash cover door, handle or back cover in dishwasher. It is recommended It can take 24-48 hours of air drying before it returns to its original size. that the handle not be disassembled during cleaning. However, if you choose to Blade Assembly: Do not soak the blade agitator assembly. disassemble the handle from the cover, make sure to not over-tighten it when * B e sure to wring excess water out of cloth or sponge when cleaning around reattaching it to the cover. Doing so will cause damage. the controls or any electrical part. Container: Do not let mixtures, liquids or food products dry in the container. Rinse after ** T o prolong polycarbonate container life, Vitamix recommends using soaps with a low PH balance, such as a liquid dishwashing detergent (Ivory Liquid®). Due to the use. Dry product may lock around the blade and weaken/tear the bearings seal when nature of polycarbonates, automatic dishwashing is not recommended. restarted. Do not place containers in the freezer. Extremely low temperature combined *** R ecommended sanitizing solution: 1.5 tsp. / 7,4 ml institutional or household with hot ingredients and/or the immediate rapid action of the blade may crack the bleach in 2 qt. / 1,9 L water. container. Microwaving and automatic dishwashing are not recommended. -
Page 12: Troubleshooting
• Container blades do not spin b. C heck blade assembly for loose, damaged or nicked components and replace. • Increased vibration c. Tighten retainer nut with the retainer nut • D isplay window reads “THERMAL • Leaking from bottom of container wrench moving clockwise until it is snug. SENSOR FAILURE” Call Vitamix technical support. (See page 17.) • M achine stops in the middle a. P lug the machine into its own • L oud grinding noise from the Damaged motor bearings, your machine of its blend cycle and resets; power supply. blender motor may need to be repaired. display window reads b. -
Page 13: Warranty
Wa R R a n T y LIMITED WARRANTY of Vita-Mix and does not cover normal wear-and-tear, abuse, misuse, negligent use, alteration of the base or container (or the sound enclosure), In order to maximize the life and keep your Vitamix® product in good working order, or exposure to extreme conditions and is only valid if the Equipment is used in accordance with the accompanying instruction booklet (which may also be it is important that you follow a few simple maintenance tips: accessed at www.vitamix.com/foodservice). 1. Periodically inspect the drive socket for visible wear and tear, cracks, or • If applicable, improper installation or ventilation in the case of the in-counter model of brakes to the socket. If damage is found, replace the drive socket with the the Equipment, or placing the Equipment in a sound enclosure not manufactured by extra drive socket enclosed with your blender. To purchase additional Vita-Mix will void this warranty. replacement drive sockets contact Vitamix at 1-800-437-4654 (1-800-4DRINK4) • This warranty is void in the event that repairs to the Equipment are performed for a dealer near you. For customers outside the U.S.A., contact your authorized by someone other than Vita-Mix or an authorized Vita-Mix Service Center. Vitamix Distributor, or call the Vitamix International Division at +1.440.782.2450 or Vita-Mix will not be responsible for the cost of any unauthorized repairs. email international@vitamix.com for a distributor near you. • The sole obligation of Vita-Mix under this warranty is to repair or replace 2. Manually rotate the blade bearing assembly to make sure it turns without the warranted part or parts as determined exclusively by Vita-Mix. hesitation or doesn’t spin too freely. If the blade hesitates or spins too freely, In no event, whether based on contract, indemnity, warranty, tort (including... -
Page 14: Parts List
48 oz. / 1,4 L Advance® container only 15979 48 oz. / 1,4 L Advance® container, blade assembly, no lid assembly #15990 15990 Advance® blade agitator assembly #15988 #15585 15585 Retainer nut One-Piece Lid #891 891 Drive socket 15579 Sound-reducing centering pad #15579 #15596 Retainer Nut Wrench 15080 Compact back cover and cover door with removable hinge design 15081 Compact cover door 15082 Compact back cover 15107 Isolation gasket 15083 In-Counter gasket #015107 #015081 #015082 iMportant notes! • Outside the U.S.A. and Canada, your machine may come with a different container configuration. Contact your local Vitamix Distributor for item numbers. • Other than the drive socket, blade assembly and retainer nut, this unit is not user serviceable. #015080 #015083... -
Page 15: Electrical Requirements
• Depth: 10.7 in. / 27,2 cm with handle • Width: 8.5 in. / 21,6 cm In-Counter Dimensions: • 16.5 in. / 41,9 cm high with lid closed • 23.0 in. / 58,4 cm high with lid open • Depth: 10.7 in. / 27,2 cm with handle • Width: 8.5 in. / 21,6 cm • Depth below counter: 1.2 in. / 3,0 cm When applicable: To see the complete line of Vitamix products, ® visit vitamix.com/foodservice Vita-Mix corporation ® commercial Division 8615 usher Road, Cleveland, Ohio 44138 u.S.a.
