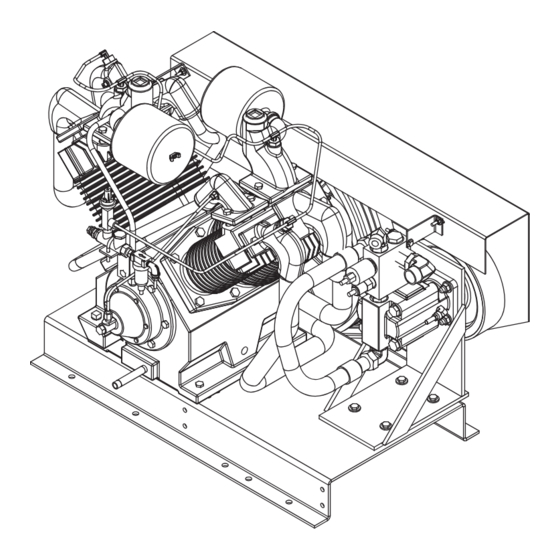

American Eagle SHD-245 Owner's Manual

Hydraulic
Hide thumbs
Table of Contents

Advertisement

Quick Links

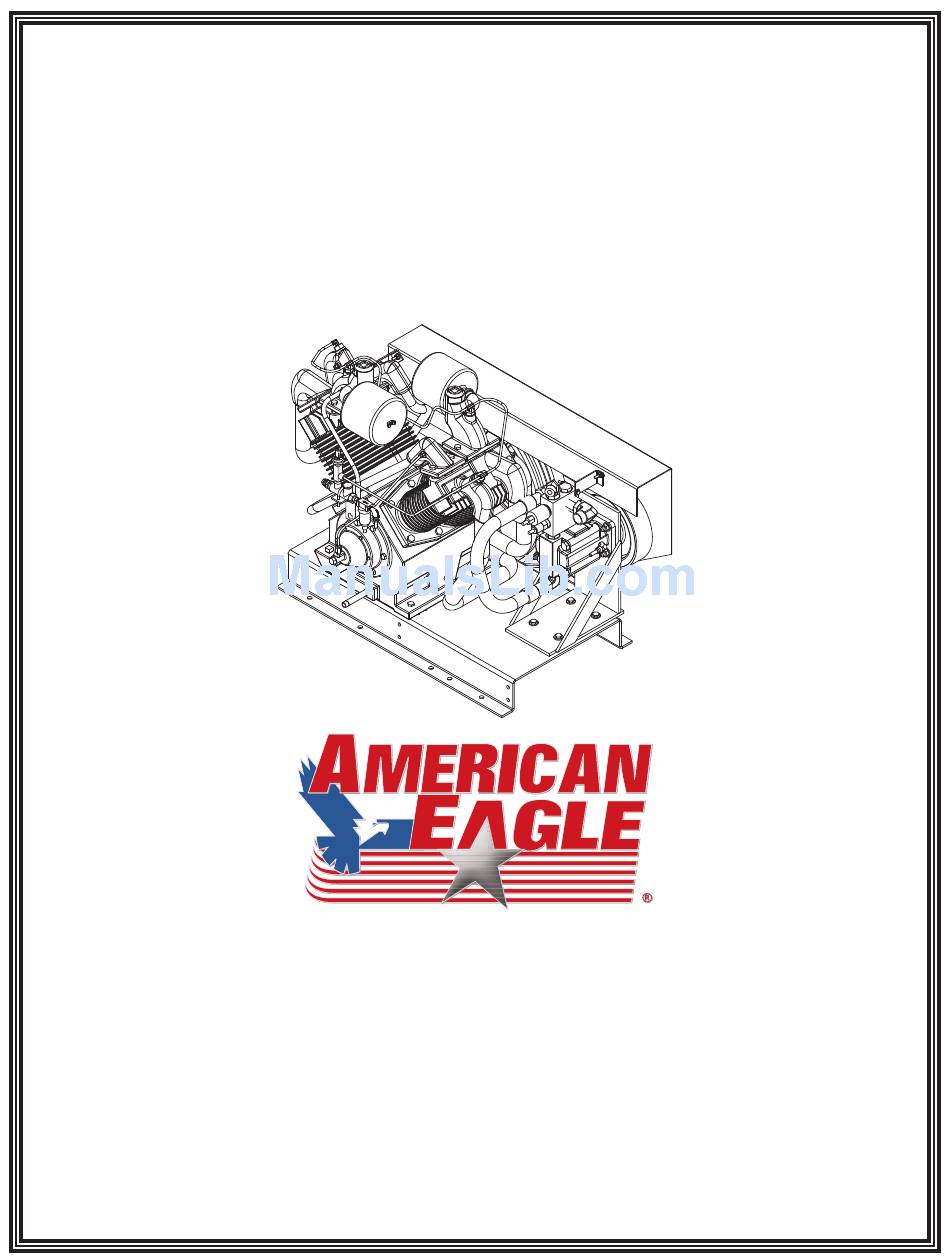

Owner's Manual
Safety, Installation, Maintenance, and Operation
Subject to Change without Notification.
© 2013 American Eagle
Model SHD-245
American Eagle, Inc.
740 N. State Street
PO Box 169
Garner, IA 50438
800-392-3015
Fax: 641-923-9099
www.americaneagleacc.com
Manual Part No. 37244
Last Revision: 01/03/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHD-245 and is the answer not in the manual?

Questions and answers

Related Manuals for American Eagle SHD-245

Summary of Contents for American Eagle SHD-245

  • Page 1 Safety, Installation, Maintenance, and Operation Model SHD-245 American Eagle, Inc. 740 N. State Street PO Box 169 Garner, IA 50438 800-392-3015 Fax: 641-923-9099 www.americaneagleacc.com Manual Part No. 37244 Subject to Change without Notification. Last Revision: 01/03/13 © 2013 American Eagle...
  • Page 2 This manual please contact AE Technical Support at 800- is not binding. American Eagle reserves the 321-3741 or email at right to change, at any time, any or all of the service@americaneagleacc.com...

  • Page 3: Table Of Contents

    Table of Contents Safety Page 3 Specifications Page 4 Operation Page 5 Head Unloading System Page 6 Maintenance Page 7 Installation Page 8 Assembly Drawings Page 12 Replacement Parts Page 17 Troubleshooting Page 18 Warranty Page 20 SHD-245 Manual...

  • Page 4: Safety

    Carefully read the operators manual before starting the unit. Failure to adhere to the instructions could result in serious bodily injury or property damage. The SHD-245 Hydraulic Air Compressor will all hose connections are tight, both air and provide safe and dependable service if operated hydraulic.

  • Page 5: Specifications

    110 CFM @ 175 PSI • Maximum Working Pressure: 175 PSI • Dimensions: 42”L x 27.5”W x 31”H • Electrical: 12 VDC @ 10 amp • Crankcase Oil Capacity: 5 Quart • Cylinders: Four Cylinder(Single Stage) • Maximum Compressor Speed: 1000 RPM SHD-245 Manual...

  • Page 6: Operation

    145 psi Never use plastic pipe or improperly rated metal and the air pressure valve disengages the pipe. Improper piping materials can burst and intake valve hold-open mechanism to allow the cause injury or property damage. SHD-245 Manual...

  • Page 7: Head Unloading System

    4.) Be careful not to move the threaded cap (1). 3.) After pressure is set, tighten locknut (2). Be careful Differential Pressure Adjustment: Proceed with the not to move nut (3) following while the compressor is running. SHD-245 Manual...

  • Page 8: Maintenance

    The following table is a list of routine maintenance items, including service intervals. Service intervals are listed as hours, days, or weeks, whichever occurs first. American Eagle recommends that these service intervals be followed. Before performing any maintenance function “Lock Out” or “Tag Out”...

  • Page 9: Installation

    The electric speed control installation of the PTO. (American Eagle P/N C0873) is used on most gasoline engines. The electronic speed controls Compressor Assembly: are used only on Ford 6.0 and 7.3L diesel Prepare the mounting location of the engines.
  • Page 10 Note: The case drain line from the hydraulic motor is also routed to the oil reservoir. American Eagle recommends a sufficient sized reservoir be provided which includes the proper suction and return filters. The optional cooler on some versions of the compressor is designed and sized to cool the air compressor efficiently.
  • Page 11 Typical Hydraulic Circuit for Single Stage Pump with Multiple Components PN 30533 Typical Hydraulic Circuit for Tandum (Two Part) Pump with Multiple Components PN 30532 SHD-245 Manual...

  • Page 12: With Auxiliary Cooler

    Typical Hydraulic Circuit for Compressor with Auxiliary Cooler HYDRAULIC RESERVOIR FILTER FILTER SCREEN AUXILIARY COOLER SUCTION PORT SINGLE HYDRAULIC PUMP COMPRESSOR RETURN PRESSURE SHD-245 Manual...

  • Page 13: Assembly Drawings

    51275 FTG ADAPT 90 20-16-C5OLO-S 12 C4914 VALVE RELIEF CP-200-1-B-0-A-C 20330 FTG 0.38-0.25 FF HEX NIPPLE 51274 FTG ADAPT 90 16-12-C5OLO-S 51279 HOSE 1.00(881-JC-JC-16-16-16-24.00) 14 C5549 FTG ORB/JIC STRT CONNT 12-F5OX-S 5418 ST EL 0.25 90 DEG BRASS 44-161 SHD-245 Manual...
  • Page 14 C0896 VALVE KIT REL 26499 GASKET 0.015 R70 7419 PLUNGER RELEASE VALVE R30/R70 1 26500 GASKET 0.010 R70 7423 BALL RELEASE VALVE R30/R70 26776 GASKET 0.006 R70 7424 SPRING RELEASE VALVE R30/R70 26777 GOVERNOR HOUSING R70 17248 BODY RELEASE VALVE R15/R70 SHD-245 Manual...
  • Page 15 26790 OIL DIPPER HP ONLY R70 26799 MAIN BEARING R70 26791 LP PISTON W/PIN R70 26800 PUMP RING SET R70 26792 LP PISTON PIN R70 26801 LP PISTON ASM R70 26793 LP PISTON PIN RING SET R70 26802 HP PISTON ASM R70 SHD-245 Manual...
  • Page 16 13734 VALVE ASM HP EXHAUST R70 7481 CYLINDER UNLOADER VALVE R70 13733 VALVE ASM HP INTAKE R70 26811 COMPRESSION FERRULE R70 13732 VALVE ASM LP EXHAUST R70 4565 VALVE SET W/GASKETS (R70) Z614 26810 COMPRESSION NUT R70 4566 GASKET SET VALVE Z615 SHD-245 Manual...
  • Page 17 26810 COMPRESSION NUT R70 26815 INTERCOOLER TUBE W/FITTING LB R70 26811 COMPRESSION FERRULE R70 26816 INTERCOOLER TUBE W/FITTING RB R70 C1183 VALVE PRESS RELIEF CHAMP PO9704A 26810 COMPRESSION NUT R70 26820 STRAIGHT COMPRESSION FITTING R70 26811 COMPRESSION FERRULE R70 SHD-245 Manual...

  • Page 18: Replacement Parts

    Complete Valve Set W/Gaskets 7481 Cylinder - Unloader Valve 7493 Gasket - Unloader Valve C1182 Pressure Relief Valve TUBING COMPONENTS PART# DESCRIPTION 26815 Intercooler Tube w/Fittings (Left Bank) 26816 Intercooler Tube w/Fittings (Right Bank) C1183 Pressure Relief Valve SHD-245 Manual...

  • Page 19: Troubleshooting

    Clean or replace check valve. Dirty after cooler or intercooler tubing. Remove and clean. Compressor runs hot: Faulty compressor values. Clean or replace valves. Dirty intake muffler. Clean or replace. Low crankcase oil level. Add compressor oil as needed. SHD-245 Manual...
  • Page 20 Check valve leaking. Clean or replace. Chassis engine RPM Faulty pressure switch. Replace pressure switch. continue to operate at high speed when air receiver Pressure switch wiring. Wires place on pressure switch incorrectly or reaches maximum capacity: loose ground wire. SHD-245 Manual...

  • Page 21: Warranty

    4-91+)5 )/3- >)99)5;: 796,<+;: ,-:1/5-, )5, 4)5<.)+;<9-, *@ ";-33)9 ;6 *- .9-- .964 ,-.-+;: 15 4);-91)3 )5, >6924)5:017 <5,-9 7967-9 <:- )5, 4)15;-5)5+- 96,<+;: 4<:; *- 15:;)33-, )5, 67-9);-, 15 )++69,)5+- >1;0 ";-33)9B: >91;;-5 15:;9<+;165: )5, +)7)+1;1-: #0- >)99)5;@ 7-916, :0)33 +6=-9 ;0- .6336>15/ #>-3=- 465;0 >)99)5;@ 65 7)9;: )5,...
