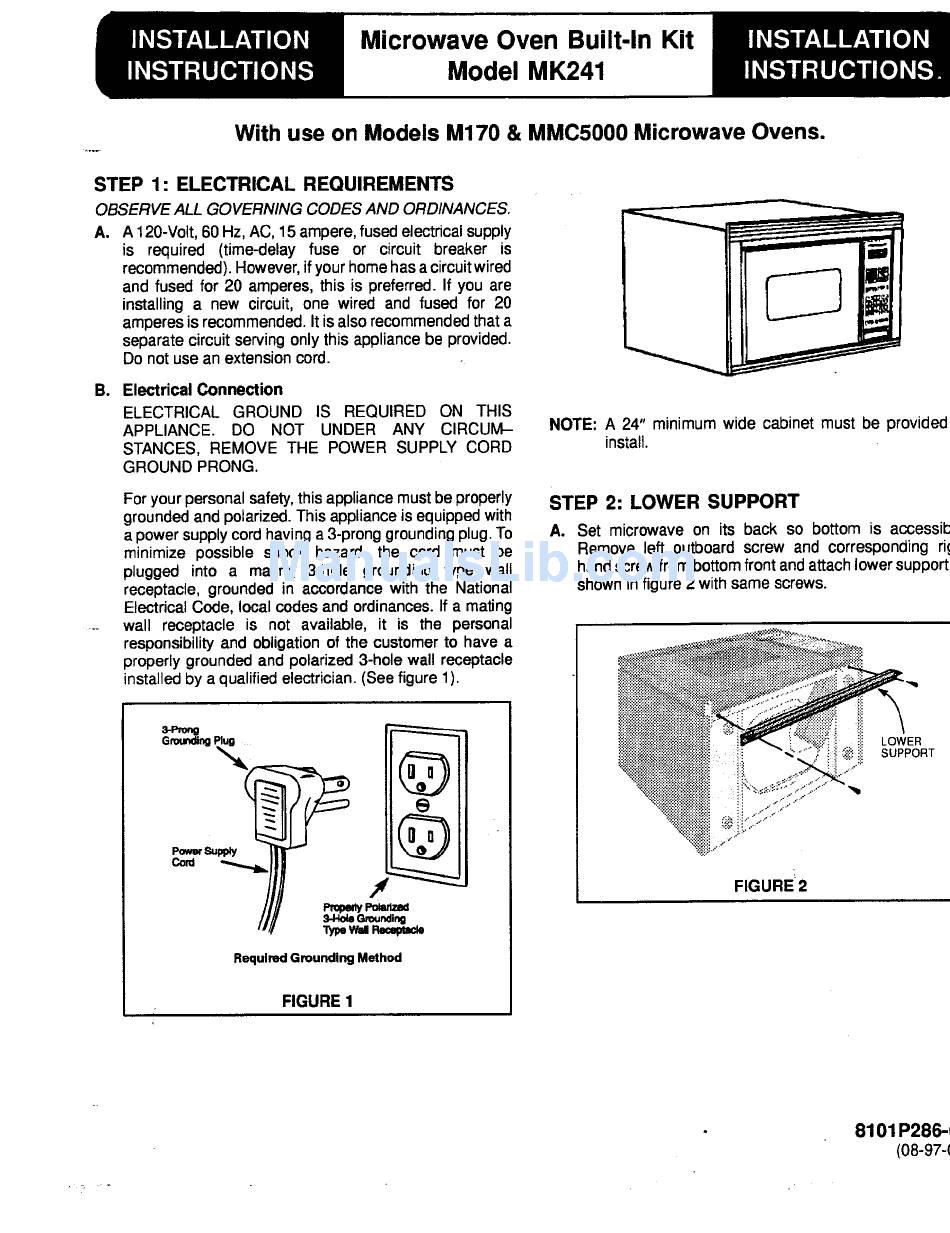

Maytag MK241 Installation Instructions Manual

Microwave Oven Built-In Kit
Model MK241
Withuseon ModelsM170& MMC5000 Microwave Ovens.
STEP 1: ELECTRICAL REQUIREMENTS
OBSERVEALL GOVERNINGCODESAND ORDINANCES.
A. A 120-Volt,60 Hz, AC, 15ampere,fused electricalsupply
is required (time-delay fuse or circuit breaker is
recommended).However,if your homehasa circuitwired
and fused for 20 amperes, this is preferred. If you are
LJ
installing a new circuit, one wired and fused for 20
amperes is recommended.It is also recommendedthat a
separate circuit serving only this appliance be provided.
Do not use an extensioncord.
B. Electrical Connection
ELECTRICAL GROUND IS REQUIRED ON THIS
APPLIANCE. DO NOT UNDER ANY CIRCUM- NOTE: A 24" minimumwide cabinet must be provided
STANCES, REMOVE THE POWER SUPPLY CORD install.
GROUND PRONG.
For your personalsafety,this appliancemustbe properly STEP 2:
LOWER SUPPORT
groundedand polarized.Thisapplianceisequippedwith
a powersupply cordhaving a 3-pronggrounding plug. T o A. Set microwaveon its back so bottom is accessib
minimize possible shock hazard, the cord must be Remove left outboardscrew and correspondingri(
plugged into a mating 3-hole grounding type wall handscrewfrombottomfrontandattachlowersupport
receptacle, grounded in accordancewith the National shownin figure2 with same screws.
Electrical Cede, local codes and ordinances. If a mating
- wall receptacle is not available, it is the personal
responsibility and obligation of the customer to have a
properly grounded and polarized 3-hole wall receptacle
installed by a qualified electrician. (Seefigure 1).
_ong
Grounding P lug LOWER
"_I _ SUPPORT
@ .
(_ _ :::i". .....
;:.:.'
Pow_ Supply
FIGURE 2
Gmu_lng
"lype wdI_'_r,t_
Required G rounding Method
FIGURE 1
8101 P286-1
(08-97-(
