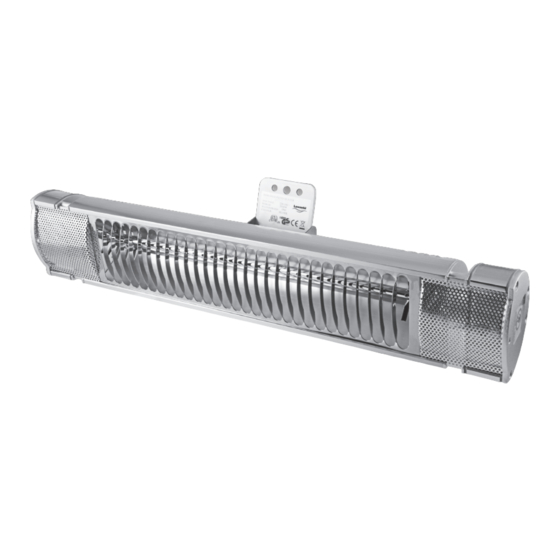

- Page 1 LEVQ20 2kW Quartz Heater Operation Manual...
-
Page 2: Important Safety Instructions
LEVQ20 2kW Quartz Heater Introduction Specifications Your infrared heater uses radiant heat to warm Product type: Infrared quartz heater people and objects and not the air in between. Voltage: 220-240V This is the only method of heating that doesn’t Power Consumption: 2000W blow out or blow away. This heater is specifically designed for outdoor use and is therefore Dimensions (W x D x H): 545 x 100 x 125mm weatherproof. -
Page 3: Installation
• Remove the plug from the power outlet and • Keep out of reach of children. In order to wait until the appliance has cooled completely keep children from the dangers of electrical before cleaning appliances, never leave them unsupervised with the heater. Consequently, when selecting • Do not store any burnable liquids, paint, gas the location for your heater, do so in such a tank etc. in the immediate surroundings of the way that children do not have direct/indirect appliance. - Page 4 Figure 1: Minimum distance to floor, Figure 2: Tilt angle. ceiling and wall. Minimum 0.2 metre Minimum 0.5 metre Recommended Minimum 1.8 metres Maximum Tilt 45° Figure 3: Mounting bracket (wall bracket) and anchor plugs provided. Connection from the wall to the infrared heater. Page 4...
-
Page 5: Lamp Replacement
Lamp Replacement Must be performed by an electrician or similarly competent person. Always ensure the heater is disconnected from the mains power source before attempting any maintenance. Step 1: Loosen retaining screws and remove both side plates. Step 2: Disconnect wires and remove left and right sub shells. Step 3: Pull out the connecting wire. Step 4: Remove fixed plate from the opposite end, then pull out the old lamp. Page 5... - Page 6 Step 5: Remove protective cover and straighten each end. Step 6: Disconnect old lamp. Step 7: Replace new lamp as shown below. Step 8: Fix the lamp into the main shell. Step 9: Insert metal tube through main shell. Page 6...
- Page 7 Step 10: Insert wire through metal tube and pull through from other side. Step 11: Slide protective cover into place and bend each end back down. Step 12: Reconnect wires, then fix sub shells Step 13: Refix side plates and tighten screws. back onto the main shell. The job is now complete. Page 7...
-
Page 8: Cleaning And Maintenance
• For heating element replacement, please contact the manufacturer or a service agent or a similarly qualified person. Customer Service Repairs must be carried out by authorised specialists, thus ensuring electrical safety. Please contact a service agent or a suitably qualified electrician. Improper repairs could lead to danger to the user. This warranty does not cover damage of failure which results from alteration, accident, misuse, abuse, neglect, commercial use or improper maintenance. In line with our policy of continuous product development we reserve the right to change the product and documentation specifications without notice. www.levante-products.com LEV0017b/Issue 1/July 2012 Page 8...
