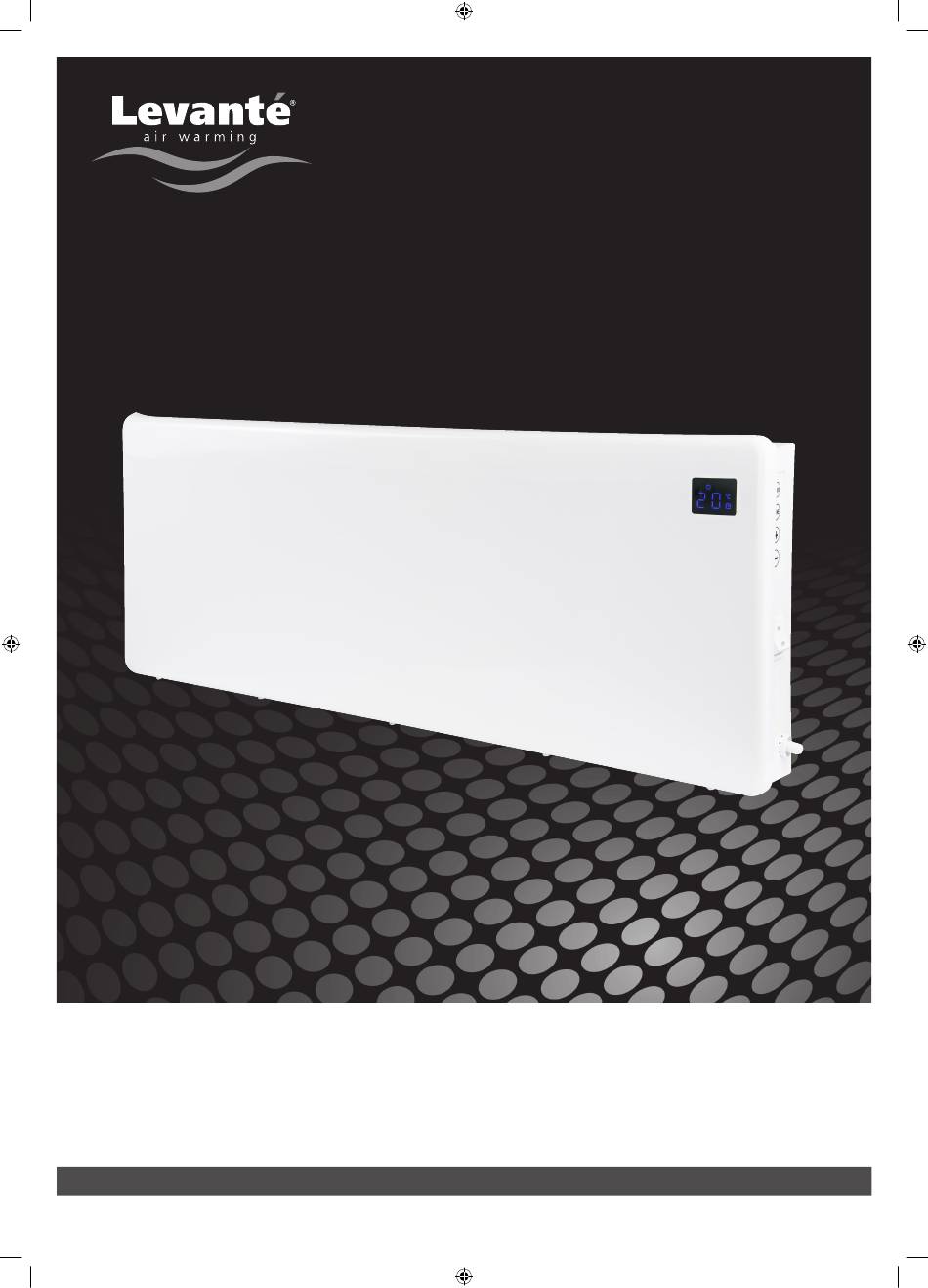

Slimline Digital Panel Heater
Operation Manual
Note: These instructions must be read fully before commencing use of the heater.
Please retain these instructions for future reference.
FOR INDOOR USE ONLY
Models: ECOPANELS500, ECOPANELS1000, ECOPANELS1500, ECOPANELS2000
levante-products.com
Levanté - DN4 5FB, UK
LEV0549/Page 1 of 8/Issue 1/07.18
LEV0549_ECOPANELS_Instructions Manual.indd 1
03/07/2018 14:17
Advertisement
Table of Contents
Related Manuals for Levante ECOPANELS500
Summary of Contents for Levante ECOPANELS500
- Page 1 Note: These instructions must be read fully before commencing use of the heater. Please retain these instructions for future reference. FOR INDOOR USE ONLY Models: ECOPANELS500, ECOPANELS1000, ECOPANELS1500, ECOPANELS2000 levante-products.com Levanté - DN4 5FB, UK LEV0549/Page 1 of 8/Issue 1/07.18 LEV0549_ECOPANELS_Instructions Manual.indd 1...
-
Page 2: Important Safeguards

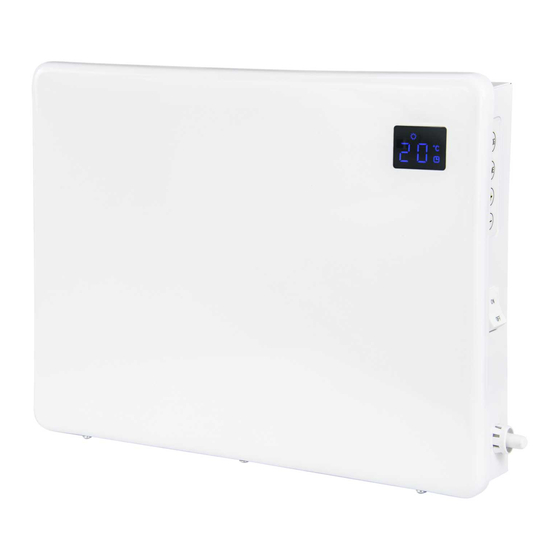

Models covered by this instruction guide: ECOPANELS500 - 500W c/w digital programmer Suggested room size: up to 5m Dimensions: 385 x 280 x 72mm... -
Page 3: Installation Guide
LOT20 Compliant Item Symbol Value Unit Item Unit HEAT OUTPUT - ECOPANELS500 Type of heat input, for electric storage local space heaters only (Select one) Manual Heat Charge Control, with Integrated Thermostat [No] Nominal Heat Output 0.50 Manual Heat Charge Control with Room and/or Outdoor Temperature Feedback... -
Page 4: Setting The Temperature
Press the “+” or “-” button to choose the required temperature, (5°C to 35°C). During low heat time periods, it will display 5°C. When the heater is on and producing heat the symbol, will light on the LED display. levante-products.com LEV0549/Page 4 of 8/Issue 1/07.18 LEV0549_ECOPANELS_Instructions Manual.indd 4 03/07/2018 14:17... - Page 5 22:00 to 23:59 Commercial Routine High 06:00 to 22:00 Constant Heat High 00:00 to 23:59 00:00 to 23:59 Frost Protection High User program – Runs at times defined by the user levante-products.com LEV0549/Page 5 of 8/Issue 1/07.18 LEV0549_ECOPANELS_Instructions Manual.indd 5 03/07/2018 14:17...
- Page 6 Press “Time”, the LED display will show finish hour. Repeat step 2) to 4) to display 3rd high level heat output time interval. If no time is input for a time interval, it will display“--”. levante-products.com LEV0549/Page 6 of 8/Issue 1/07.18 LEV0549_ECOPANELS_Instructions Manual.indd 6...
-
Page 7: Child Lock
Press the “Prog” button for 5 seconds, all the buttons will be locked,The symbol “ ” will light on LED window. Press the “Prog” button for 5 seconds again, all buttons will be unlocked. levante-products.com LEV0549/Page 7 of 8/Issue 1/07.18 LEV0549_ECOPANELS_Instructions Manual.indd 7... -
Page 8: Limited Warranty
Information concerning where the equipment can be disposed of can be obtained from your local authority. levante-products.com LEV0549/Page 8 of 8/Issue 1/07.18 LEV0549_ECOPANELS_Instructions Manual.indd 8 03/07/2018 14:17...
