INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
CERTIFIED UNDER AMERICAN NATIONAL STANDARDS: ANSI Z21.11.2 FOR UNVENTED ROOM HEATERS.
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
CERTIFIED FOR UNITED STATES USING ANSI METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do
not use any phone in your building.
•
Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier,
call the fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
- This is an unvented gas-fi red heater that
uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion
and ventilation air must be provided. Refer to
section " COMBUSTION AND VENTILATION AIR
PROVISIONS".
This appliance may be installed in an aftermarket,
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com
$10.00

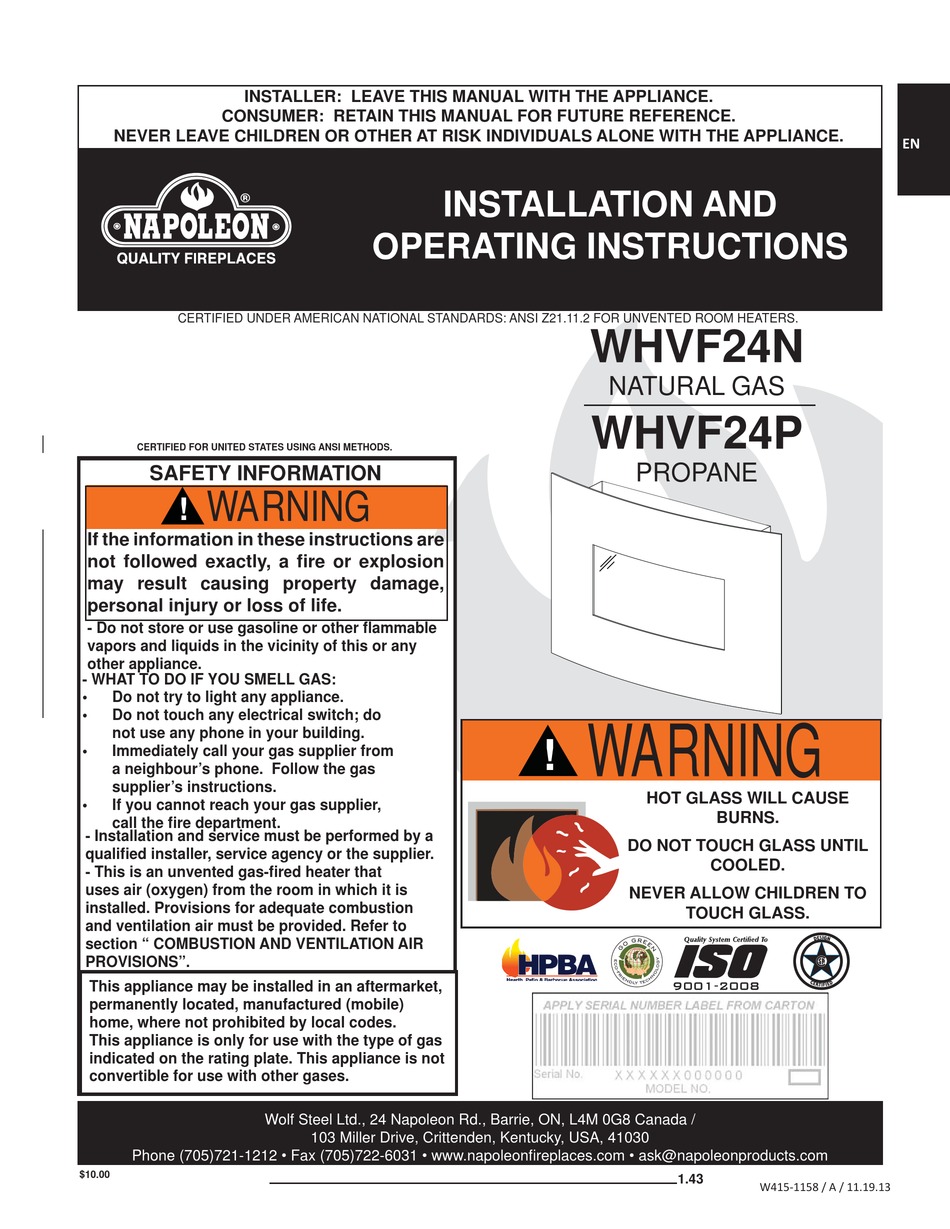

INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
WHVF24N
NATURAL GAS
WHVF24P
PROPANE
WARNING
!
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
1.43
EN
W415-1158 / A / 11.19.13
Advertisement
Table of Contents
Related Manuals for Napoleon WHVF24N
Summary of Contents for Napoleon WHVF24N
-
Page 1: Natural Gas
This appliance is not convertible for use with other gases. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com $10.00... -
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION OVERVIEW INTRODUCTION DIMENSIONS GENERAL INSTRUCTIONS GENERAL INFORMATION RATING PLATE INFORMATION INSTALLATION COMBUSTION AND VENTILATION AIR PROVISIONS DETERMINING CONFINED OR UNCONFINED SPACE GAS INSTALLATION MOBILE HOME MOUNTING THE APPLIANCE MINIMUM CLEARANCE TO COMBUSTIBLES FINISHING SURROUND INSTALLATION / REMOVAL DOOR REMOVAL / INSTALLATION GLASS MEDIA IGNITION SYSTEM DIAGRAM... -
Page 3: Installation Overview
1.0 INSTALLATION OVERVIEW Mantel, see “MINIMUM CLEARANCES TO COMBUSTIBLES” section. Rating plate, see “RATING PLATE INFORMATION” section. Side Wall Surround, see “FINISHING” section. Side Wall, see “MINIMUM CLEARANCES TO COMBUSTIBLES” section. W415-1158 / A / 11.19.13... -
Page 4: Introduction
2.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Under no circumstances should this appliance be modifi ed. •... -
Page 5: Dimensions
DIMENSIONS 19 1/4" 22" 487mm 559mm 6 7/8" 175mm 23 3/4" 605mm 32 3/8" 822mm GENERAL INSTRUCTIONS WARNING * CARBON MONOXIDE POISONING MAY LEAD TO DEATH EARLY SIGNS OF CARBON MONOXIDE POISONING RESEMBLE THE FLU, WITH HEADACHE, DIZZINESS AND/OR NAUSEA. IF YOU HAVE THESE SIGNS, THE HEATER MAY NOT BE WORKING PROPERLY. -
Page 6: General Information
• Sellers of un-vented propane or natural gas-fi red space / room appliances shall provide to each purchaser a copy of 527 CMR 30.00 upon the sale of the appliance from http://www.napoleonfi replaces.com/ Webshare/installation_manuals/mass_requirements.pdf In absence of local codes, install the appliance to the current National Fuel Gas Code, ANSI Z223.1 Installation Code which can be obtained from: American National Standards Institute Inc. -
Page 7: Rating Plate Information
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER. MINIMUM CLEARANCE TO COMBUSTIBLE MATERIAL (FROM APPLIANCE): MANTEL 20” FLOOR 10” SIDES 7” WOLF STEEL LTD. 24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA SERIAL NUMBER WHVF24 W415-1158 / A / 11.19.13... -
Page 8: Installation
3.0 INSTALLATION COMBUSTION AND VENTILATION AIR PROVISIONS This appliance shall not be installed in a confi ned space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. The National Fuel Gas Code, ANSI Z223.1 / NFPA 54 defi... - Page 9 Room Volume = Length x Width x Height Max BTU/hr = Room Volume x 1000 / 50 ROOM 2 If for example: The length of the rooms is 5 feet (1.5m), ROOM 1 The width of Room 1 is 10 feet (3.1m), The width of Room 2 is 15 feet (4.6m), HEIGHT The height of the rooms is 8 feet (2.4m).
-
Page 10: Gas Installation
GAS INSTALLATION WARNING RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS SPARKS OR OPEN FLAMES. SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 11: Mounting The Appliance
MOUNTING THE APPLIANCE Level and affi x the paper template to the wall at desired location and height. See “MINIMUM CLEARANCES TO COMBUSTIBLES” section for the minimum clearance requirement. Using the paper template, mark the mounting screw locations. Install the mounting bracket onto the wall using the two screws as shown in Figure 1. Make sure the mounting bracket is level on the wall and the slots are facing upward. -
Page 12: Minimum Clearance To Combustibles
MINIMUM CLEARANCE TO COMBUSTIBLES Clearances are measured from the appliance. MINIMUM CLEARANCES TO COMBUSTIBLES: 20” (508mm) to top 7” (177.8mm) to sides 10” (254mm) to bottom 36” (914.4mm) to rear 20" (508mm) MIN. 20" (508mm) MIN. 7" 7" (177.8mm) (177.8mm) MIN. -
Page 13: Finishing
4.0 FINISHING WARNING RISK OF FIRE! NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS REMOVED, CRACKED, BROKEN OR SCRATCHED. 72.4 SURROUND INSTALLATION / REMOVAL Lift the surround and engage the hooks into the studs on the appliance, then let it slide down into position. -
Page 14: Glass Media
Remove the surround, see “SURROUND INSTALLATION / REMOVAL” section. Remove the two screws on the upper frame that secure the door. Loosen the two screws on the lower frame. NOTE: These lower screws support thr door assembly and should not be removed. Lift the door up and off. -
Page 15: Ignition System Diagram
5.0 IGNITION SYSTEM DIAGRAM WARNING ENSURE ALL POWER IS TURNED OFF BEFORE HARD WIRING THIS APPLIANCE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR. PILOT THERMOCOUPLE ELECTRODE VALVE KNOB W415-1158 / A / 11.19.13... -
Page 16: Operation
6.0 OPERATION When lit for the fi rst time, the appliance will emit a slight odour for a few hours. This is a normal temporary con- dition caused by the “burn-in” of internal paints and lubricants used in the manufacturing process and will not occur again. -
Page 17: Adjustments
7.0 ADJUSTMENTS VENTURI ADJUSTMENT This appliance has an air shutter that has been factory set open according to the chart below: VENTURI BURNER Regardless of venturi orientation, closing the air shutter will cause a more yellow flame, but can lead to carboning. Opening the air shutter will cause a more blue flame, but can cause flame lifting from the burner ports. -
Page 18: Maintenance
8.0 MAINTENANCE MAINTENANCE MAINTENANCE MAINTENANCE WARNING TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS. DO NOT PAINT THE PILOT ASSEMBLY. CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. -
Page 19: Care Of Glass
CARE OF GLASS WARNING DO NOT CLEAN GLASS WHEN HOT! DO NOT USE ABRASIVE CLEANERS TO CLEAN GLASS. HOT GLASS WILL Buff lightly with a clean dry soft cloth. Clean both sides CAUSE BURNS. of the glass after the fi rst 10 hours of operation with a DO NOT TOUCH GLASS recommended fi... -
Page 20: Replacements
TUBE, BRASS G530-0002 VALVE G530-0003N REGULATOR, NG G530-0003P REGULATOR, LP N720-0044 FLEXIBLE CONNECTOR, 12" X 3/8" (304.8mm x 9.5mm) W725-0046 VALVE, GAS BALL #91-1032 G750-0001 WIRE, ELECTRODE 24" (609.6mm) W385-0334 NAPOLEON LOGO W080-1370 MOUNTING BRACKET W415-1158 / A / 11.19.13... -
Page 21: Troubleshooting
10.0 TROUBLESHOOTING WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS. -
Page 22: Warranty
All parts replaced under the President’s Limited Lifetime Warranty Policy are subject to a single claim. During the fi rst 10 years NAPOLEON® will replace or repair the defective parts covered by the lifetime warranty at our discretion free of charge. From 10 years to life, NAPOLEON®... -
Page 23: Service History
12.0 SERVICE HISTORY 43.1 W415-1158 / A / 11.19.13... - Page 24 Fireplace Inserts • Charcoal Grills • Gas Fireplaces • Waterfalls • Wood Stoves Heating & Cooling • Electric Fireplaces • Outdoor Fireplaces • Gourmet Grills 24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8...
