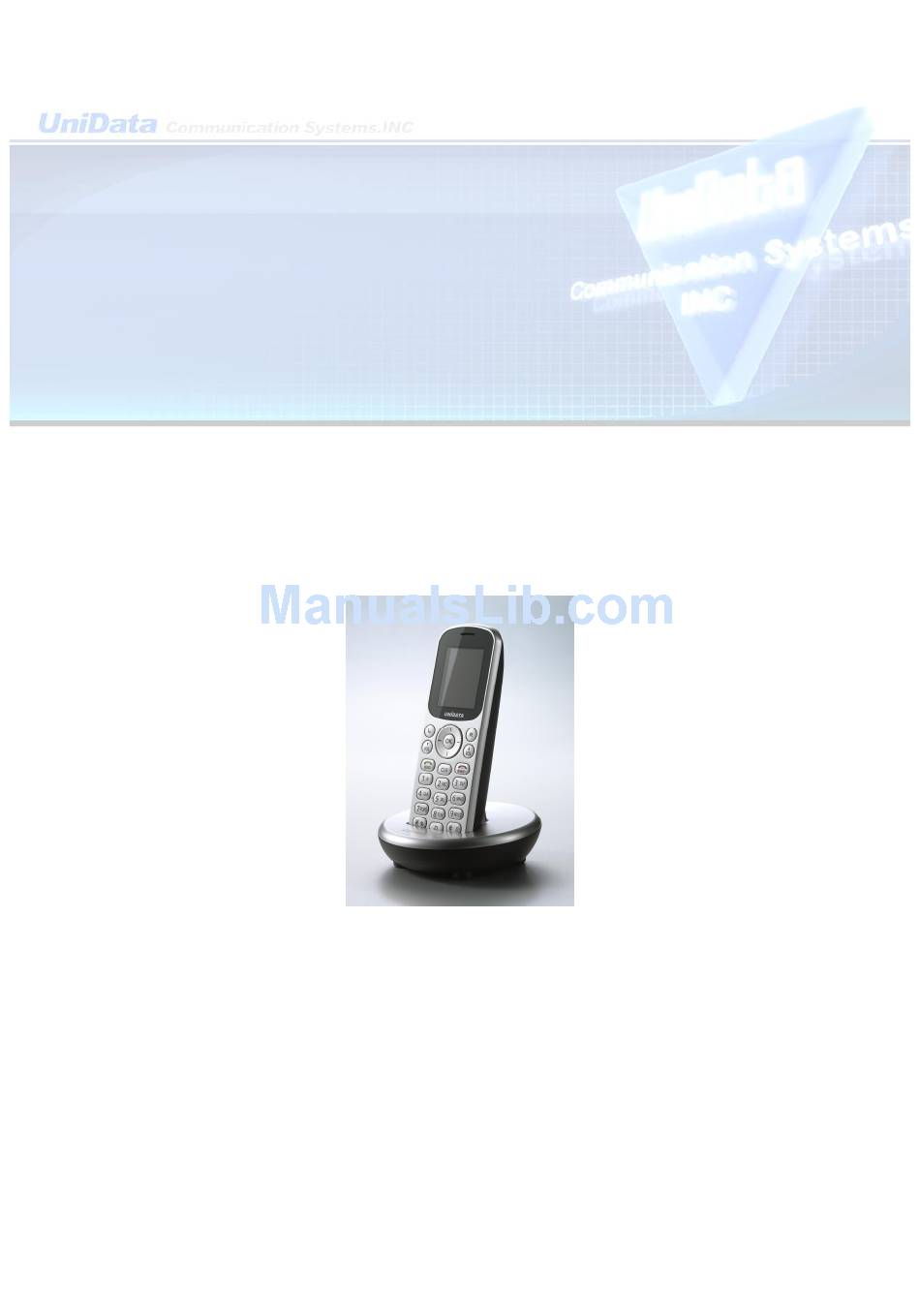

  • Page 1 WPU-7700 Enterprise Edition Administrator Manual UniData Communication Systems Inc.

  • Page 2: Copyright Notice

    Other referenced trademarks are trademarks (registered or otherwise) of the respective trademark owners. This document is confidential and proprietary to UniData Communication Systems Inc. No part of this document may be reproduced, stored, or transmitted in any form by any means without the prior written permission of UniData Communication Systems Inc.
  • Page 3 Manual Introduction Before use, kindly read this “Administrator Manual” thoroughly to have an understanding of the contents After reading, place it within reach at all times such as at the side of this product. This manual is for administrator who has working knowledge of fundamental terms and concepts of computer networking, converged voice and data networks to include LANs, WANs, and IP switching and routing...

  • Page 4: Safety Precautions

    Safety Precautions Since this is provided to make safe and right use of WPU-7700 to prevent any accidents or risks, be sure to carefully read it, follow instructions, and keep it where it is easily noticed. Warning This mark is intended to warn users of the risk of a serious injury or death when they violate instructions.
  • Page 5 It can cause the leak of battery contents, or explosions. Use standard chargers that obtained Unidata authentication for batteries. Otherwise, batteries will have their life reduced, face explosions, or damage WPU-7700. In this case, free services shall not be provided.
  • Page 6 Be aware of radio interference. Since this radio equipment can have radio interference, services related to life safety are not provided. Do not install WPU-7700 in places exposed to direct sunlight, and on carpets or cushions. It can cause fires or troubles.
  • Page 7 Do not install WPU-7700 in heavily shaking places. It can cause performance degradation, or reduce the life of products. After using WPU-7700 for a long time, they can produce a weak sound due to their liquid crystal protective vinyl covering the speaker.

  • Page 8: Table Of Contents

    INDEX BASIC USAGE ............................... 9 Names and functions of the KEY ....................9 Get to Administrator Menu and Change Password ............. 10 NETWORK ..............................12 Connect to new Temporary profile ..................12 Make New Network Profile ...................... 13 Modify Network Profile ......................14 Delete Network Profile ......................
  • Page 9 General Sequence of Autoprovisioning ................... 34 Setting Auto provisioning Server Address ................35 Setting the .ini file in Autoprovisioning Server ..............36 FW upgrade ..........................40...

  • Page 10: Basic Usage

    BASIC USAGE Names and functions of the KEY Key Name Icon Basic functions Used for menu viewing, Can be pressed up and down, left Direction key ▲▼◄► and right Left soft key Submenu operation etc Right soft key Send key Used for receiving and making calls End key Used to end a call and to switch the power ON/ OFF...

  • Page 11: Get To Administrator Menu And Change Password

    Get to Administrator Menu and Change Password Then, push the left direction key to go to the settings mode. Select the Admin Menu to enter Press the left soft key to enter menu in standby mode Press the direction key ▲▼◄► to Admin Menu Enter Administrator password.
  • Page 12 Enter Password...

  • Page 13: Network

    NETWORK Connect to new Temporary profile It is only for the temporarily connected profile. The existing temporary profile will be disappeared if you select another temporary profile. The profile will not be remained if you are rebooting the phone. Press the AP search key to search available WiFi Access Points in Standby mode Select an access point using the direction key ▲▼◄►...

  • Page 14: Make New Network Profile

    Make New Network Profile WPU-7700 supports 4 profiles to provide a function of connecting WPU-7700 to various wireless LAN environments. Based on the results of search of wireless LAN services, select wireless LAN service to which profiles will be added.

  • Page 15: Modify Network Profile

    Modify Network Profile WPU-7700 supports feature to modify saved profiles. Press the AP search key to enter WLAN search mode in Standby mode After move cursor to target AP, press “Edit”. Then enter admin password, SSID, security and authentication type of WiFi access point.

  • Page 16: Delete Network Profile

    Delete Network Profile WPU-7700 supports feature to delect saved profiles. In WLAN search mode, select Menu then 4.Delete to remove WiFi Network profile. After confirm with entering administrator password, select “Yes”, it will be deleted. Press the AP search key...

  • Page 17: Change Priority Network Profile

    Change Priority Network Profile The higher position profile in the screen has higher priority to connect automatically Press the AP search key to enter WLAN search mode in Standby mode After choosing the profile you want to change priority, select Up or Down in menu.

  • Page 18: Security

    Security While set the profile up, security option can be set. Select setup for security using the direction key ▲▼◄► , and confirm using the Ok key. If no security on AP, this procedure is passed. The supporting security is 64-bits WEP, 128-bits WEP, WPA- PSK, WPA2-PSK, WPA-EAP and WPA2-EAP.

  • Page 19: Certification Manager

    Certification manager In case of EAP-TLS, Select “Certs manger” in administrator menu. You can see the message below if you select “View Root CA” or “View Private CA” before download them. Reference and download of the Root CA and Private CA is possible in order to use 802.1x (EAP-TLS, PEAP, TTLS).

  • Page 20: Tcp/Ip

    TCP/IP . WPU-7700 support DHCP and manual IP. Select “DHCP” or ”Manual IP” using the direction key ▲▼◄► in network setup screen, and confirm using the Ok key during set the profile up In case of using manual IP in network setup, IP, Netmask, Gateway and DNS should be entered using the...

  • Page 21: Voip

    VoIP In System mode, Select “VoIP setting” Using the ( - ) key. After choosing the VoiP setting, enter display name, User name, Auth User name, Domain, 1st proxy and 2nd proxy. Select “5.VoIP setting” in System mode Put into Display name, User name and Ath.user name Display name: type the display name of phone User name: type phone number or user name registered in SIP Proxy...

  • Page 22: Qos

    Put 1st_Proxy and 2nd_Proxy. 1st_proxy: SIP 1st proxy 2nd_proxy: SIP 2nd proxy Qos: Quality of Service Select “8.QoS” in System mode Select “VoIp” in QoS mode...

  • Page 23: Coder

    Enter Signal DSCP and Voice DSCP. Coder WPU-7700 supports G.711-ALaw-64K, G.729, G729 codec. Select “9. Coder” in System mode Select “Coder” in Coder mode Press the OK key to set Multiframe. Select the coder type you wish to set it.
  • Page 24 Select “Menu” in Voip mode to set the priority. Set the priority order of audio coder.

  • Page 25: Sip Outbound Proxy

    SIP Outbound Proxy Select “10. SIP Outb Proxy” in System mode. Select “Voip” in SIP Outb Proxy mode Put the SIP Outbound Proxy.

  • Page 26: Diagnostic

    DIAGNOSTIC Diagnose Network Select “Diagnostic” in System mode. Diagnose Network, WLAN and RTP. Results of Diagnose Network In NetDiag, if performing the diagnosis of the Network, diagnosis of the connection of wireless LAN, TCP/IP LAN/WAN, LAN/WAN PER test is by turns performed. It takes about three to five seconds to finish all the processes, and all input key shall be inactive until finish the diagnose network.
  • Page 27 2. TCP/IP status (Connection of TCP/IP) GW: connection to Gateway WAN: connection to WAN 3. Result to PER (Packet Error Rate) PER to GW: packet error rate to GW. PER test to Gateway (ping to GW per 20ms period, 100 units) PER to DNS: packet error rate to DNS.

  • Page 28: Diagnose Wlan

    The diagnosis of wireless[radio] communication surroundings is possible to find out the connection from WPU-7700 to AP, the units of AP around and inside of the present-connected channel, and variables of the surroundings through diagnosing the status of wireless local area Each output information is automatically updated once per one minute, AP status around can be updated pressing on the soft key (searching).
  • Page 29 RSSI: Received Signal Strength Indication (dBm) SNR: Signal to Noise Ratio (dBm) NF: Noise Floor (dBm) RP: Rx Packet Count/Rx Bytes TP: Tx Packet Count/Tx Bytes RE: Rx Error Count/Rx Dropped Count/Rx Length Error Count TE: Tx Error Count/Tx Dropped Count FC : Tx Failed Count - Increments when a MSDU is not successfully transmitted RC : Retry Count - Increments when a MSDU is successfully transmitted after one or more retransmissions...

  • Page 30: Diagnose Rtp

    Diagnose RTP Present-displayed screen show that the phone is disconnected. Present-displayed screen show that the phone is connected. Oral input/output diagnosis When the one-way call of inbound/outbound happens, it is possible to know if present RTP packet, to DSP device, is input/output When engaged, through the diagnosis of wireless [radio] communication surroundings, it’s possible to notice if the status of input/output to DSP is in good progress, when the Tx/Rx count is increasing.

  • Page 31: Dsp Test

    Diagnosis by checking RTP -Connect phone from P1 to P2. -Having a Hold in P1. -In P1, Press on the Hidden key before pressing on SEND. -Diagnosis by clicking RTP. -Result value is displayed. DSP TEST Select “4. DSP TEST” in Diagnostic mode. Diagnose the Digital Signal Processing of the phone.

  • Page 32: Lcd/Led Test

    LCD/LED test Select “5.LCD/LED TEST” in Diagnostic mode. Diagnose the LCD and LED of the phone. Speaker TEST Select “6. Speaker TEST” in Diagnostic mode. Diagnose the speaker of the phone.

  • Page 33: Ping Test

    Ping test Select “2. Ping test” in System mode. Ping Test is accessible for simple diagnosis of network. Select “1.Gateway, DNS server, APS address or Manual input” in Ping test mode. Send the ping through the Gateway, DNS server, APS address and Manual input.
  • Page 34 Manual Input...

  • Page 35: Autoprovisining Guide

    AUTOPROVISINING GUIDE WPU-7700 supports autoprovisioning to configure and to update firmware. General Sequence of Autoprovisioning ① Get IP from DHCP Server ② Get APS Address from BOOTP option 66 ③ Get General. ini (Configuration file) ④ Get Mac. Ini (Configuration file) ⑤...

  • Page 36: Setting Auto Provisioning Server Address

    To set the address by DHCP BOOTP 66 option, please make empty in the input IP or DNS field. Make USE BOOTP 66 option filed to YES. WPU-7700 will get configuration file from autoprovsioning server in the next boot up.

  • Page 37: Setting The .Ini File In Autoprovisioning Server

    RTP_Port_Max = 9020 / min:1024 , max :65535 RTCP_Report_Interval = 5000 / min:0 , max :65535: sending RTCP term RTCP_CNAME = WPU-7700 / min:0 char, max :24 chars Last_RTP_Received_Timeout = 0 / min:0 , max :65535, 0 : disable, 30 : default, 0 ~ 65535 (sec)
  • Page 38 [MWI] Use_MWI = 1 / min: 0(not use), max : 1 (use): Message waiting indication Use_Subscribe = 1 / min: 0(not use), max : 1 (use): Message subscribe Subscribe_Server =”null” min: 0, max :50 chars (sending subscribe server address, Null case SIP sever suscribe) Subscribe_Expire = 3600 / min: 180, max :65535(sec) VMS_Alias = ""...
  • Page 39 Gateway = 0.0.0.0 / IP Address Format DNS1 = 0.0.0.0 / IP Address Format DNS2 = 0.0.0.0 / IP Address Format Security = 2 / min :0, max : 5 Security(0: none, 1: WEP, 2: WPA-PSK, 3: WPA2-PSK, 4: WPA-EAP, 5: WPA2-EAP) WEP_Bits = 0 /min :0 (0: 64bits), max : 1 (128bits) Default_WEP_Key = 1 / min :1, max : 4 WEP_Key1 = ""...
  • Page 40 [NETWORK2~4] Reference Network 1 [PROVISION] Firmware_Version = 02.01.00 / min: 0, max :30 chars Firmware_Name = wpu7700-common-20081031-02-01-00.zip / min: 0, max :128 chars e1_respective_mac.ini( Configuration Entry) [USER_ACCOUNT] Displayname = “null”/ min:0 , max :30 chars Phone_Number = “null”/ min:0 , max :30 chars User_ID = “null”/ min:0 , max :30 chars :authentication ID User_Password =“null”/ min:0 , max :30 chars : authentication password [SERVER_SETTINGS]...

  • Page 41: Firmware Upgrade

    FirmWare upgrade There are two way to set Firm ware update. The first one is input address in menu via the key pad; another one is upgraded by Autoprovisoning server automatically. Select “6.Firmware Upgrade” in System mode. Select protocol, input IP and File name. . “procotol/server.IP/filename.ini In case of server with HTTP, 192.168.1.10 and unidata.ini, enter “HTTP/192.168.1.10/unidata.ini”...
