KitchenAid KGCS166GSS06 Parts List

36" gas cooktop
Hide thumbs


Advertisement

Quick Links

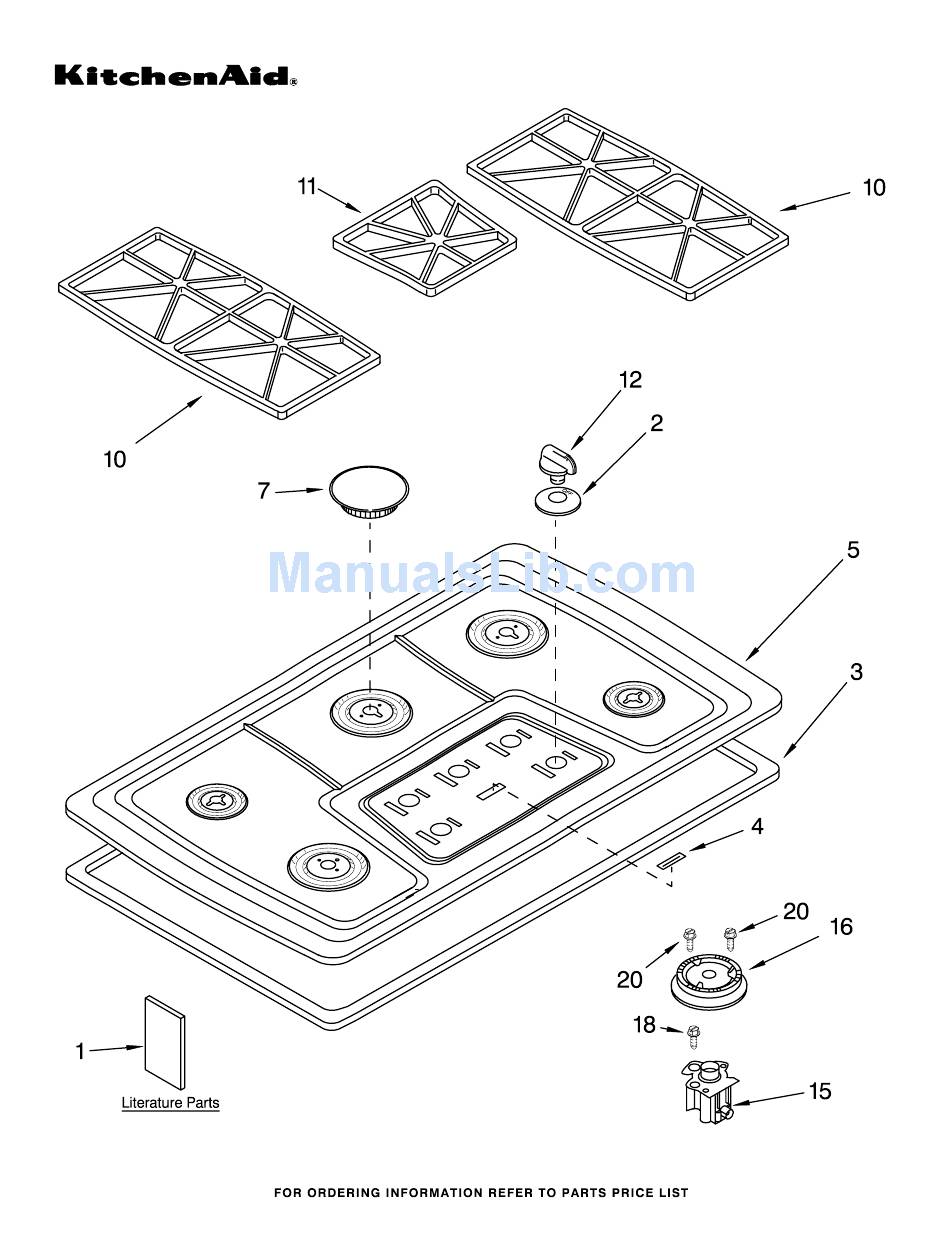

COOKTOP, BURNER AND GRATE PARTS
For Models: KGCS166GSS06
(Stainless Steel)
36" GAS COOKTOP
1
Part No. 8186375
8−05 Litho in U.S.A. (cre)

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KGCS166GSS06

  Summary of Contents for KitchenAid KGCS166GSS06

  • Page 1 COOKTOP, BURNER AND GRATE PARTS For Models: KGCS166GSS06 (Stainless Steel) 36" GAS COOKTOP Part No. 8186375 8−05 Litho in U.S.A. (cre)
  • Page 2 COOKTOP, BURNER AND GRATE PARTS For Models: KGCS166GSS06 Illus. Part 4455834 Installation 4456479 Use & Care Guide 3192099 Wiring Diagram 3191638 Safe Cooking Tips 9759133 Safer Cooking Tips 9759440 LP Conversion 4457192 Collar, Knob 3193091 Seal, Foam 3191514 Nameplate 8285735 Cooktop...
  • Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCS166GSS06 (Stainless Steel) 8186375...
  • Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCS166GSS06 Illus. 8285796 Rail, Burner 8285751 Pipe, Manifold 8286559 White (2) 4456817 Black 4456818 Bronze 8286560 Yellow 3191387 Seal, Shaft 8285791 Rail, Center 8523704 Bolt, Gas Valve 3400843 Screw 3192491 Bracket, Mainfold 3196160 Screw 4456901 Harness &...
  • Page 5 PARTS NOT ILLUSTRATED 8186375 For Models: KGCS166GSS06 (Stainless Steel) Illus. Part DESCRIPTION Following Parts Not Illustrated 3192231 Cord, Power 4173634 Bushing 3177991 Screw 9760279 Seal, Foam Miscellaneous 4455918 Hardware, Mounting 3192741 Conversion Kit Natural Gas To L.P. 2261590 Cleaner, S.Steel...
