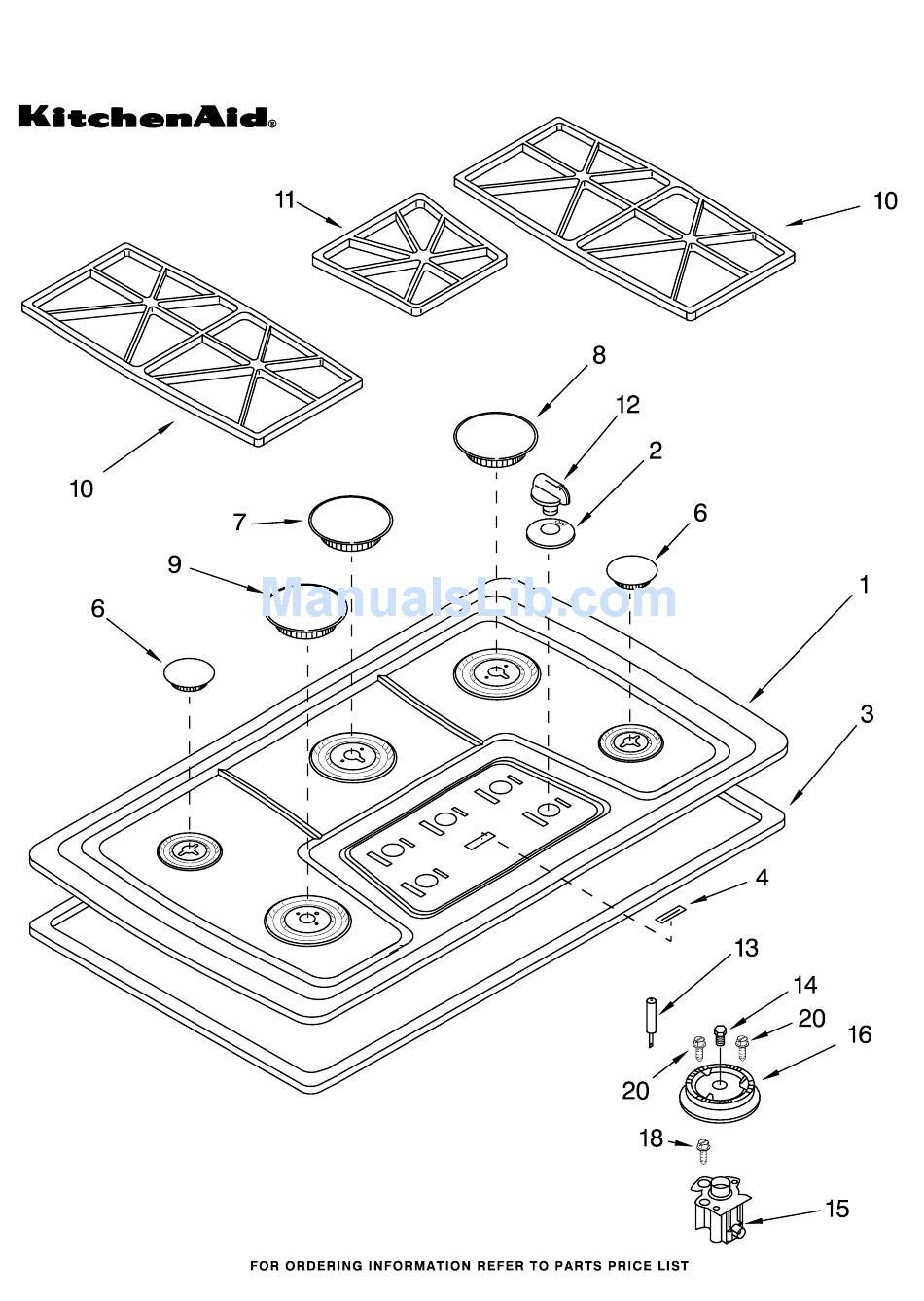

COOKTOP, BURNER AND GRATE PARTS
For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0
(Black)
(White)
(Almond)
(Biscuit)
(Stainless Steel)
36" GAS COOKTOP
10-99 Litho in U.S.A. (RS)
1
Part No.885447 Rev.A
Previous
Page
Next
Page
1
2
3
4
Advertisement
Need help?
Do you have a question about the KGCS166GAL0 and is the answer not in the manual?
Ask a question
Questions and answers
Subscribe to Our Youtube Channel
Related Manuals for KitchenAid KGCS166GAL0
Cooktop KitchenAid KGCT055GBL0 Installation Instructions Manual
Gas built-in cooktops (8 pages)
Cooktop KitchenAid KGCS105GSS Product Dimensions
Gas built-in cooktop (1 page)
Cooktop KitchenAid KGCS105GSS - 30 Inch Sealed Burner Gas Cooktop Installation Instructions Manual
Gas built-in cooktops (17 pages)
Cooktop KitchenAid KGCS166GSS Use & Care Manual
Kitchenaid kgcs166gss: user guide (28 pages)
Cooktop KitchenAid KGCV566 Use & Care Manual
(28 pages)
Cooktop KitchenAid KGCS105GBL05 Parts List
Kitchenaid appliances 30" gas cooktop part list (4 pages)
Cooktop KitchenAid KGCS105GSS10 Parts List
30" gas cooktop (5 pages)
Cooktop KitchenAid KGCS166GBL2 Parts List
36" gas cooktop (4 pages)
Cooktop KitchenAid KGCC505H Use And Care Manual
Gas sealed burner cooktop (23 pages)
Cooktop KitchenAid KGCS-1340 Use And Care Manual
33"built-in gas cooktop (12 pages)
Cooktop KitchenAid KGCS-1340 Use & Care Manual
33 built-in gas cooktop (12 pages)
Cooktop KitchenAid KGCS166GSS10 Installation Instructions Manual
Gas built-in cooktops (17 pages)
Cooktop KitchenAid KGCG260S Use And Care Manual
Built-in gas cooktop (25 pages)
Cooktop KitchenAid KGCS100 Use And Care Manual
Built-in gas cooktops (14 pages)
Cooktop KitchenAid KGCS105GSS Installation Instructions Manual
Gas built-in cooktops (17 pages)
Cooktop KitchenAid KGCS-1340P Use & Care Manual
33” built-in gas cooktop with daisy: power™ burner (15 pages)
Summary of Contents for KitchenAid KGCS166GAL0
Page 1
COOKTOP, BURNER AND GRATE PARTS For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0 (Black) (White) (Almond) (Biscuit) (Stainless Steel) 36" GAS COOKTOP 10-99 Litho in U.S.A. (RS) Part No.885447 Rev.A...
Page 2
COOKTOP, BURNER AND GRATE PARTS For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0 (Black) Illus. Part DESCRIPTION Cooktop 3191256 White 3191255 Black 3191257 Almond 3191295 Biscuit 3191258 Stainless Steel Collar, Knob 3192165 White 3192164 Black 3192166 Almond 3192167 Biscuit 3191936 Seal, Foam...
Page 3
BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0 (Black) (White) (Almond) (Biscuit) (Stainless Steel) 885447...
Page 4
BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0 (Black) Illus. Part DESCRIPTION 3191557 Rail, Burner 3191317 Pipe, Manifold 3191292 Valve, Gas Burner Burner, (RF)(LR) 3191387 Seal, Shaft 3191293 Valve, Gas Burner (RR & CR) 3192157 Valve, Gas...
